WALLPACK COMBO
WALLPACK CBO V 24W ML 84065 IP65
GTIN: 4099854668074
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
- Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
- Separate decor element available for an aesthetic and functional product design
Areas of application
- Outdoor
- Loading docks
- Facade lighting
Product features
- High luminous efficacy: up to 110 lm/W
- Type of protection: IP65
- Impact resistance: IK08
- Ambient temperature in operation: -20…+50 °C
Equipment / Accessories
- Plug & Upgrade emergency kit separately available
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 24 W / 18 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 124mA / 88 mA |
| Inrush current | 9 A |
| Inrush current time Th50 | 190 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 42 |
| Max. number of luminaires per miniature circuit breaker C10 | 35 |
| Max. number of luminaires per miniature circuit breaker C16 | 57 |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 60 % |
| Protection class | II |
Photometrical data
| Luminous flux | 2640 lm / 1980 lm |
| Luminous efficacy | 110 lm/W |
| Color temperature | 6500 K / 4000 K |
| Light color (designation) | Cool Daylight, Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
| UGR | < 30 |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 24 W | 6500 K | 2640 lm | 110 lm/W |
| 24 W | 4000 K | 2640 lm | 110 lm/W |
| 18 W | 6500 K | 1980 lm | 110 lm/W |
| 18 W | 4000 K | 1980 lm | 110 lm/W |
Dimensions & Weight
| Length | 271.00 mm |
| Height | 124.00 mm |
| Width | 314.00 mm |
| Product weight | 992.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| RAL Color (most similar) | RAL 9005 |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Push-in |
| Type of protection | IP65/IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Wall mounting |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 60000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 40000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 225mA / 176 mA |
| ECG - Output ripple current | < 36 % |
Emergency lighting
| Type of Emergency Lighting (EL) | Optional EL unit (battery and controller) for decentral operation available separately |
| Type of emergency operation test | None |
| Wattage in emergency operation mode | 1.5 W |
| Luminous flux in emergency operation mode | 150 lm |
Certificates & Standards
| Standards | CE, EAC, ERP, UKCA, REACH, ROHS |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from December 2025 |
| Added function | MULTI SELECT, PLUG & UPGRADE |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), Cadmium (7440-43-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854668074 | Folding box 1 |
292 mm x 136 mm x 326 mm | 1120.00 g | 12.95 dm³ |
| 4099854668081 | Shipping box 5 |
697 mm x 312 mm x 352 mm | 6640.00 g | 76.55 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
WALLPACK CBO EL CG 1.5W 865 3H MTAT | 4099854668111 |
User instruction / safety instructions
WALLPACK CMB
WALLPACK CMB
Legal information
WALLPAK CMB
WALLPAK CMB
Legal information
Safety Insert G11218810
Safety Insert G11218810
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Legal Insert G11231556
Legal Insert G11231556
Declarations of conformity
CE declaration WALLPAC K CBO
CE declaration WALLPAC K CBO

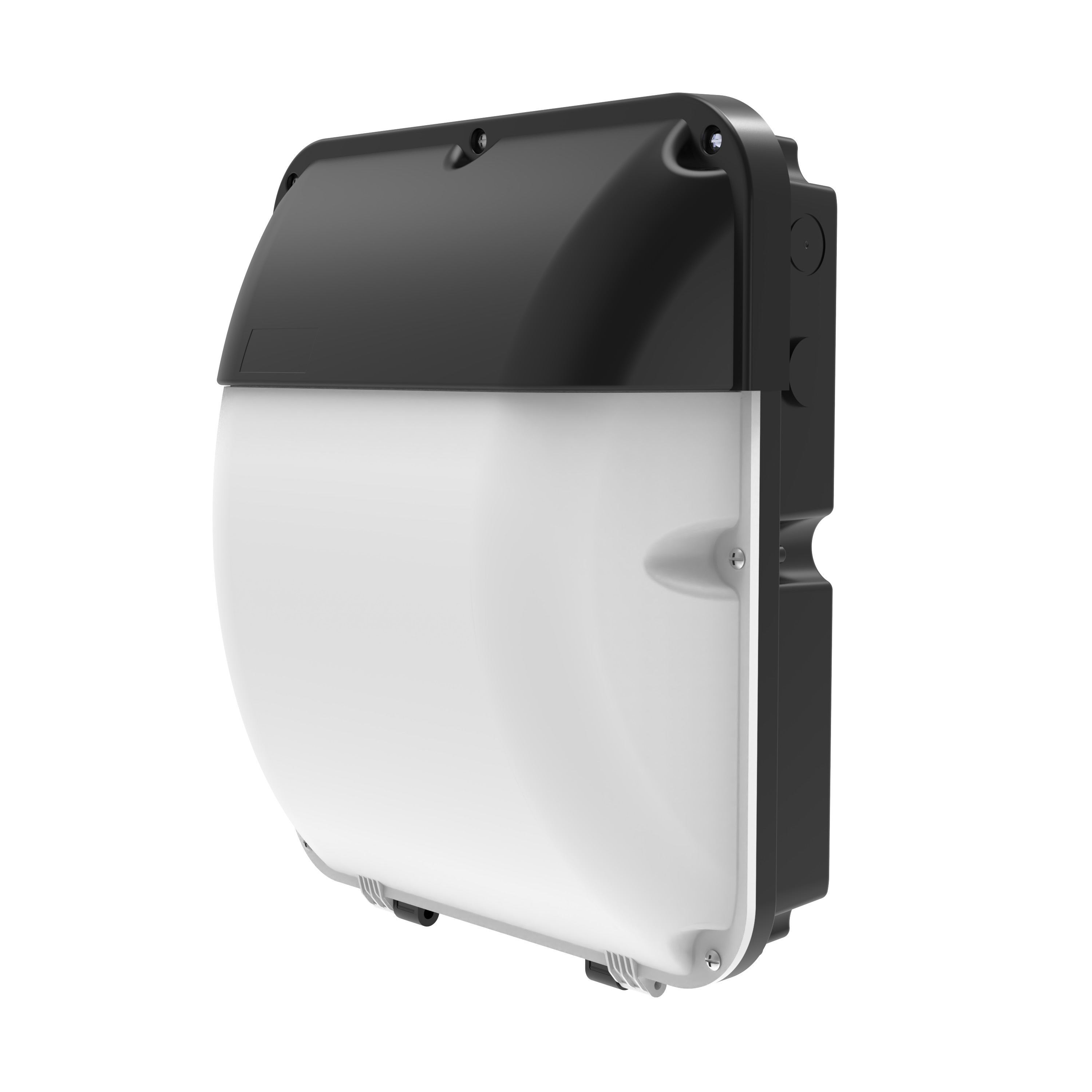

Product image: white background, diagonal
WALLPACK CMB
WALLPACK CMB

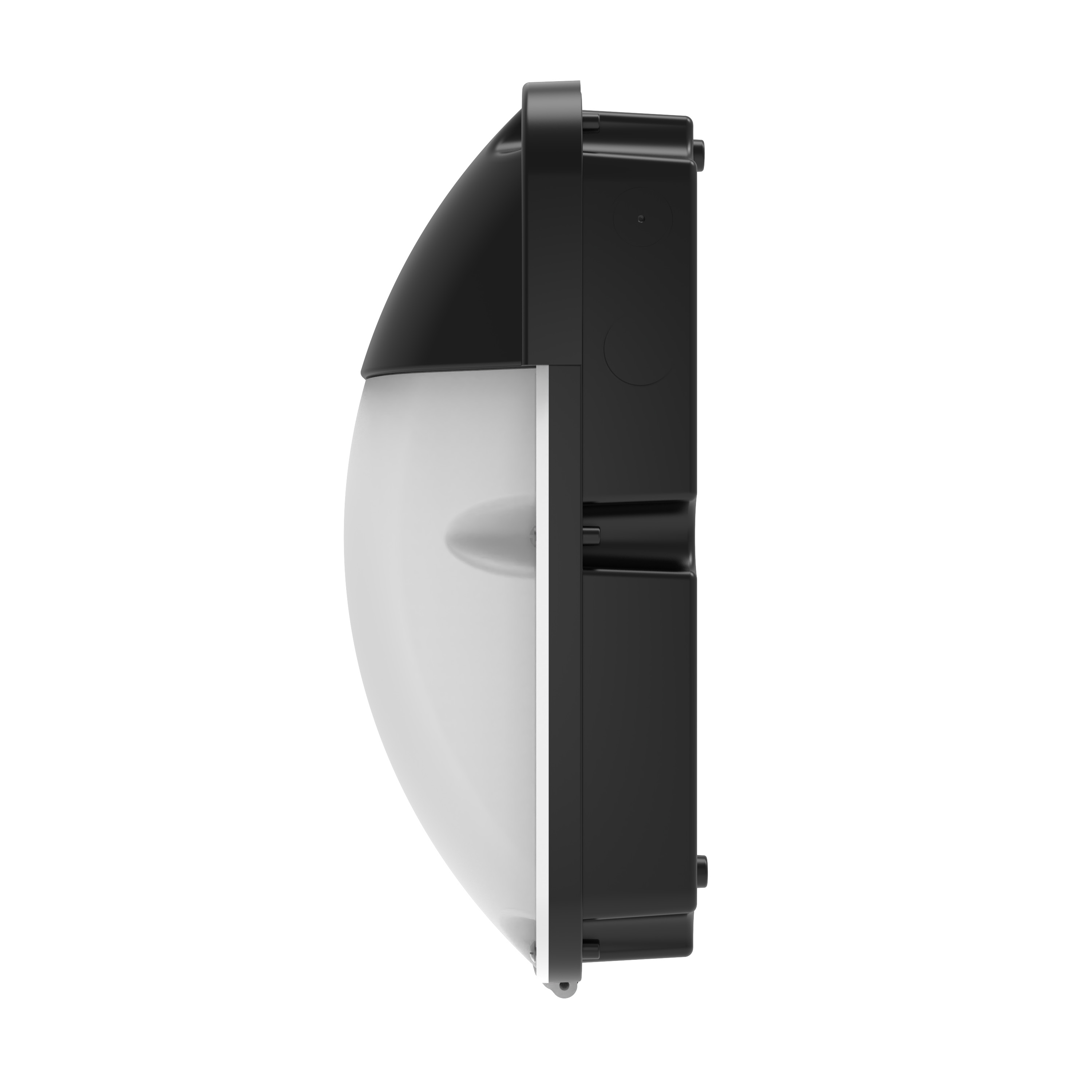

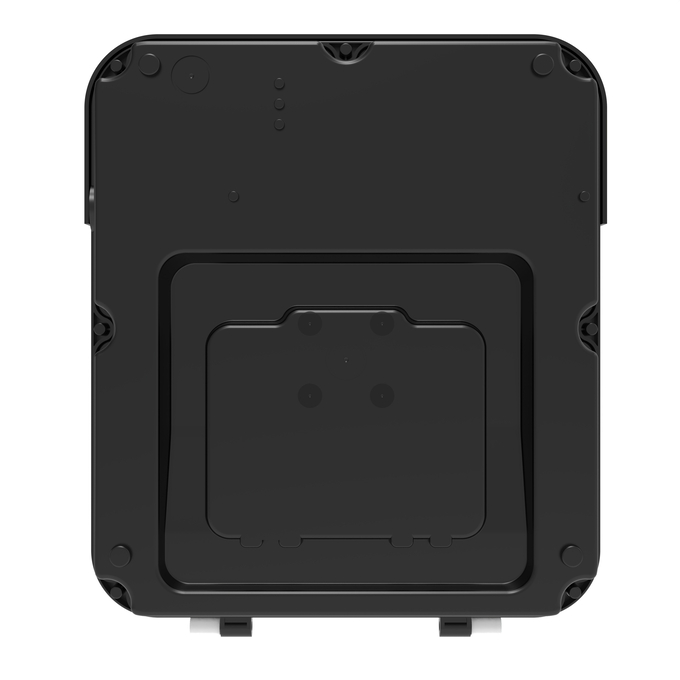

Product image: white background, spacial
WALLPACK CMB
WALLPACK CMB
Product line drawing with letters
WALLPACK CBO V 24W ML 84065 IP65
WALLPACK CBO V 24W ML 84065 IP65

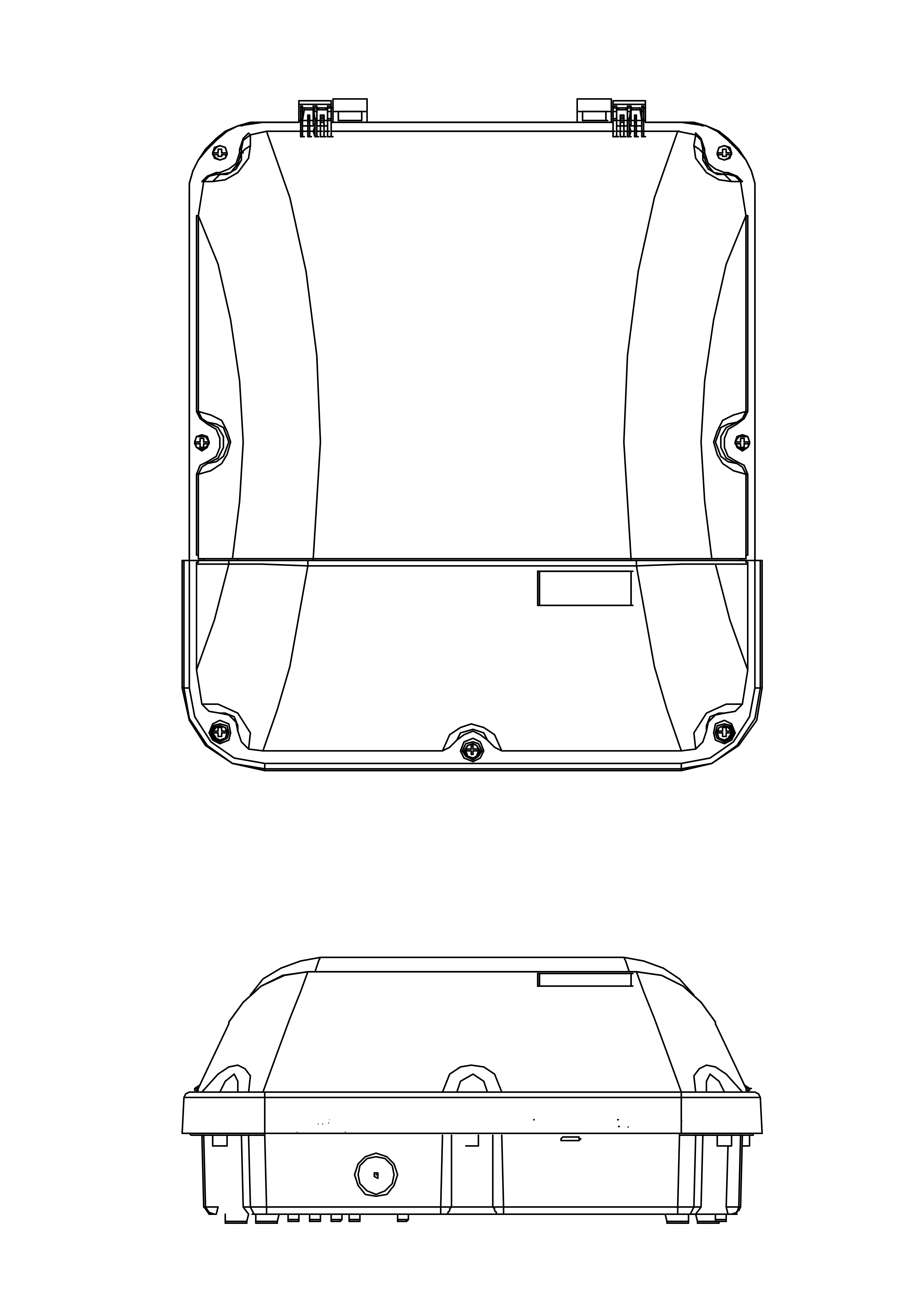

Product line drawing with numbers
WALLPACK CBO V 24W ML 84065 IP65
WALLPACK CBO V 24W ML 84065 IP65

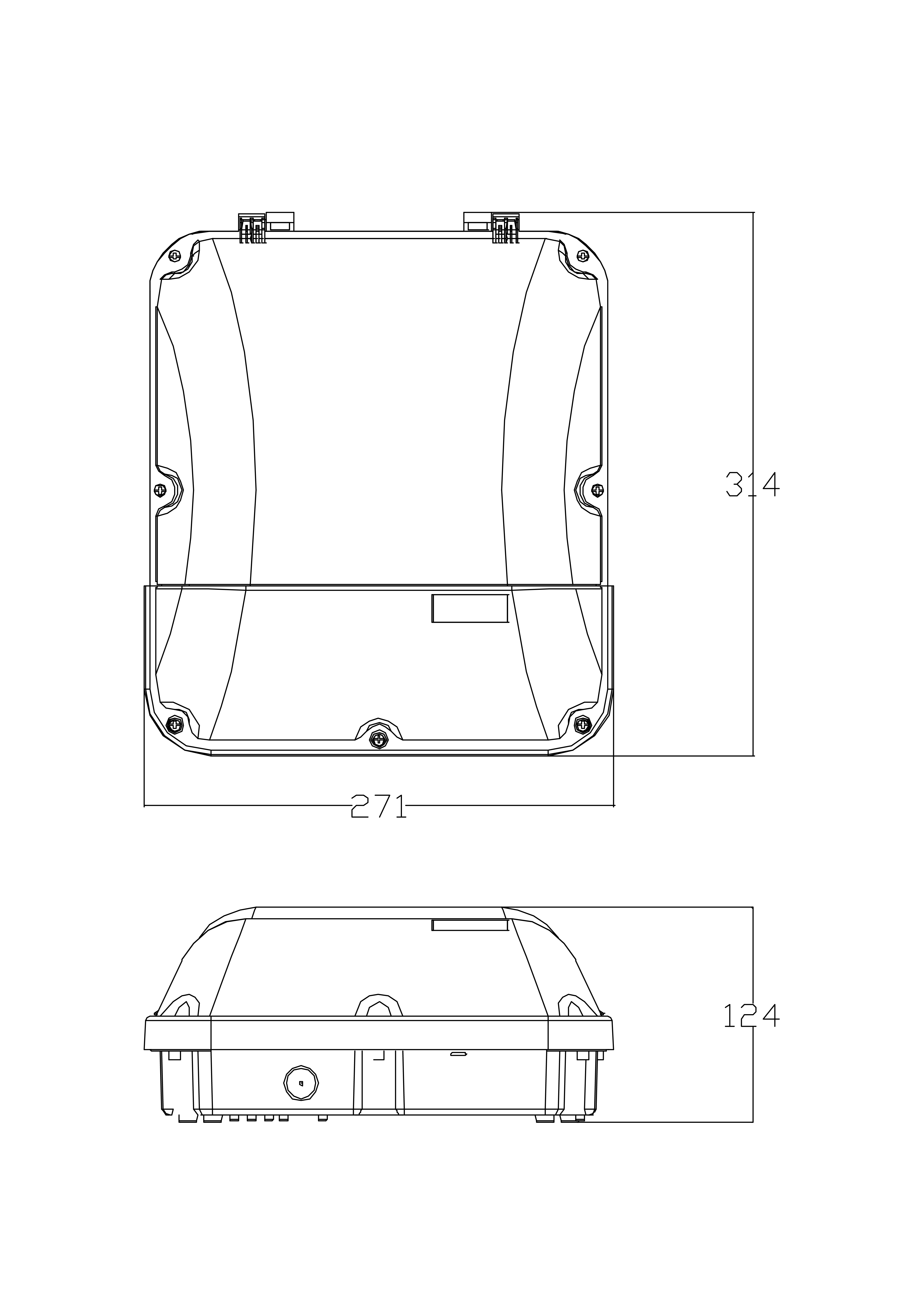

Product line drawing - technical
