TR SP XR V 30W 924 24DEG WT BREAD

NEW

TRACKLIGHT SPECIAL FOOD LED

GTIN: 4099854617089 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Specially tailored spectral distribution for food presentation only

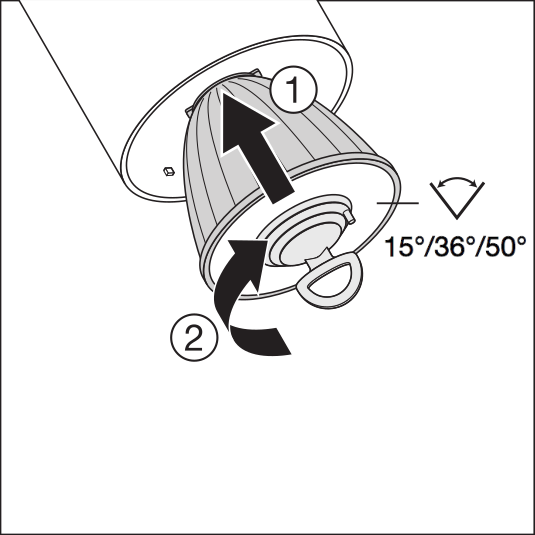

Reflector easily replaceable thanks to bayonet catch and rubber suction pad
No distraction from the illuminated objects thanks to the reduced design
Low flicker light thanks to special electronic control gear
Good glare reduction (UGR ≤ 19)

Areas of application

Shops, supermarkets
Food presentation in e.g. butchers, bakeries, supermarkets or meat processors
Hotels, restaurants

Product features

Compact tracklight spot with in-track control gear
Rotation angle: 350°, tilt angle: 90°
Luminaire efficacy: up to 95 lm/W
Color rendering index CRI 90
Equipped with reflectors with 24° beam angle
Durable die-cast aluminum housing
Available in matt white (like RAL9003), matt black (like RAL9005)

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	30.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	750.000 mA
Inrush current	0.72 A
Inrush current time T_h50	51 µs
Max. number of luminaires per miniature circuit breaker B16	94
Max. number of luminaires per miniature circuit breaker C10	58
Max. number of luminaires per miniature circuit breaker C16	94
Power factor λ	> 0.90
Total harmonic distortion	< 15 %
Protection class	II
Surge capability (L-N)	1000 V
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	2100 lm
Luminous efficacy	70 lm/W
Color temperature	2400 K
Light color (designation)	Warm White
Color rendering index Ra	> 90
Standard deviation of color matching	<7 sdcm
Luminous intensity	2500 cd
Low flicker	Yes
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0.4
Photobiological safety group acc. to EN62778	RG1
Beam angle	24 °
UGR	< 20

Dimensions & Weight

Diameter	80.00 mm
Length	150.00 mm
Height	240.00 mm
Product weight	620.00 g

Materials & Colors

Product color	White
Housing color	White
RAL-Number	RAL 9003
Body material	Aluminum
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+40 °C
Temperature range at storage	-20…+80 °C
Type of connection	Adapter, 3-phase
Type of protection	IP20/IP20
Protection class IK (shock resistance)	IK02
Dimmable	No
Mounting type	Surface
Mounting location	Mounting track
Application environment	Indoor
Adjustable	Yes
With light source	Yes
Replaceable light source	No

Lifespan

Lifespan L70/B50 at 25 °C	50000 h ¹⁾
Lifespan L80/B10 at 25 °C	35000 h ¹⁾
Lifespan L90/B10 at 25 °C	25000 h
Number of switching cycles	25000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current	750 mA
ECG - Output ripple current	< 3 %

Emergency lighting

Type of emergency operation test

None

Certificates & Standards

Standards	CE, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Additional product data

Product remark

Available from September 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854617089	Folding box 1	191 mm x 242 mm x 100 mm	766.00 g	4.62 dm³
4099854617096	Shipping box 4	400 mm x 262 mm x 230 mm	3560.00 g	24.10 dm³

User instruction / safety instructions
G11247140 TRACKLIGHT SPOT XR

PDF (3.49 MB)

Legal information
Safety Insert G11218810

PDF (244.72 KB)

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

Legal information
LSI G11254552 TRACKLIGHT SPOT XR

PDF (2.31 MB)

Declarations of conformity
TRACKLIGHT SPOT

PDF (386.2 KB)

Certificates
ENEC TR SP XR

PDF (346.36 KB)

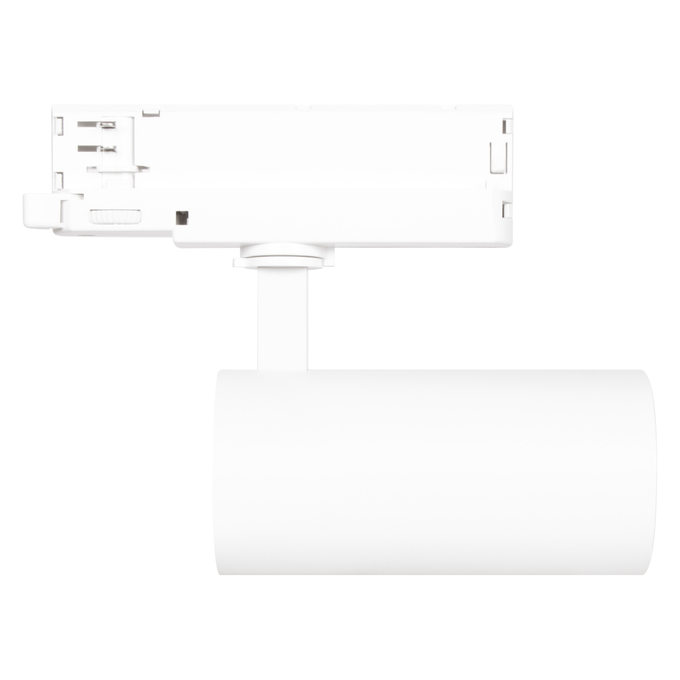

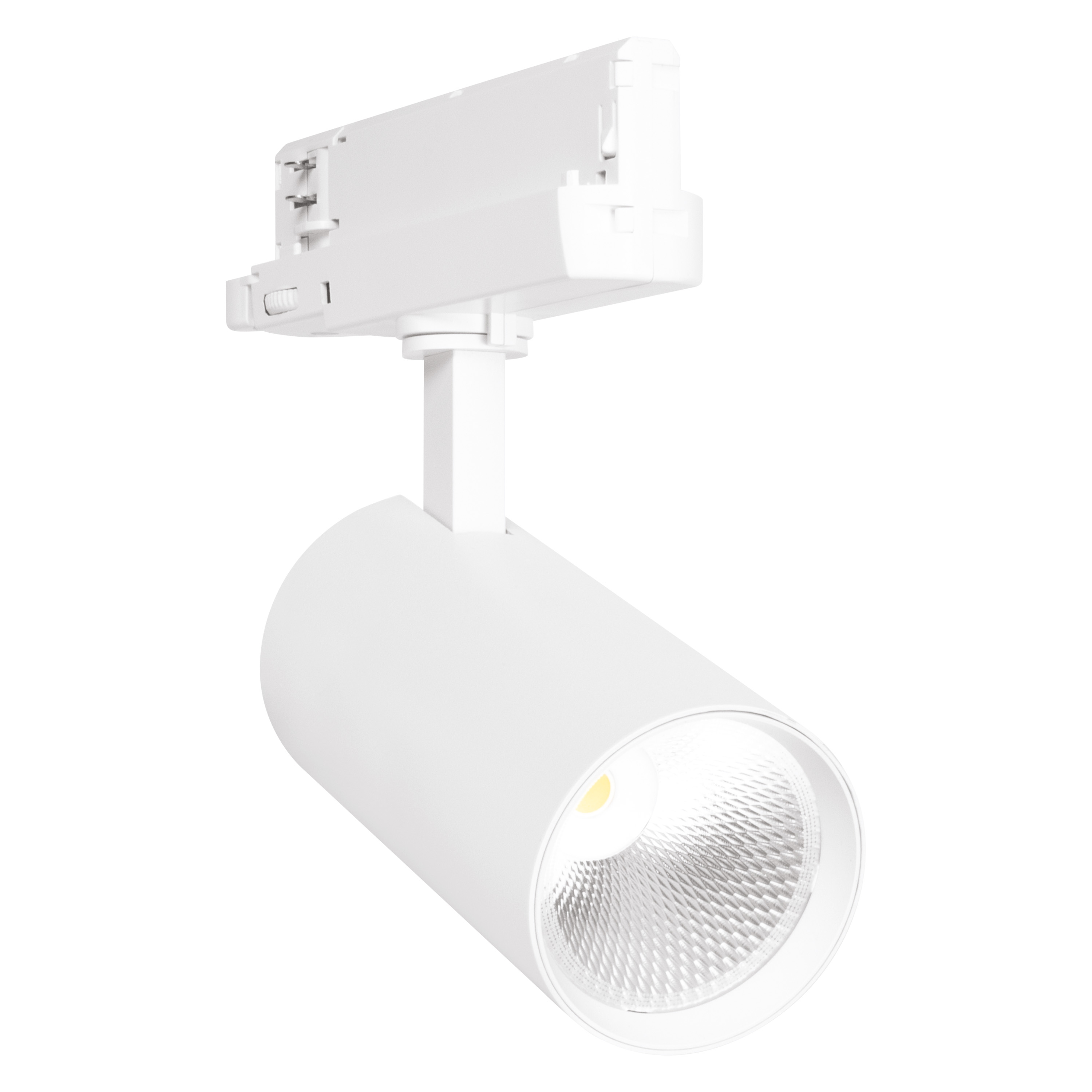

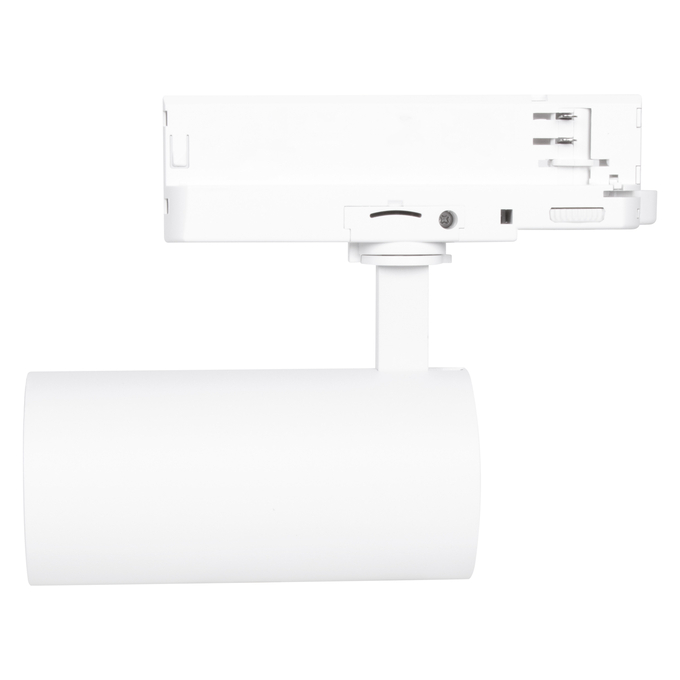

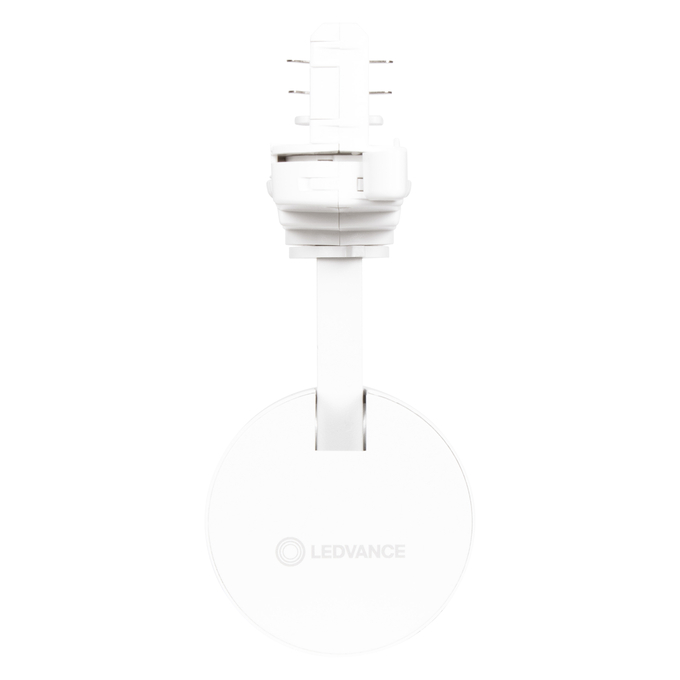

Product image: white background, diagonal
TR SP XR DA V 30W 24DEG

JPG (278.51 KB)

Product line drawing with letters
TR SP XR V 30W 24DEG

SVG (26.06 KB)

Product line drawing with numbers
TR SP XR V 30W 24DEG

SVG (29.18 KB)

Product line drawing - technical
TR SP XR V 30W 24DEG

SVG (17.2 KB)

Catalog info 1
Tracklight Spot

SVG (33.57 KB)

Catalog info 2
Catalog info - TR SP XR

PNG (74.82 KB)

Catalog info 3
Tracklight Spot

SVG (28.44 KB)

Catalog info 4
Tracklight Spot

SVG (30.69 KB)

Catalog info 5
Tracklight Spot

SVG (73.14 KB)

IES file (IES)
TR SP XR V 30W 924 BREAD WT 15D

IES (7.43 KB)

IES file (IES)
TR SP XR V 30W 924 BREAD WT 24D

IES (7.43 KB)

IES file (IES)
TR SP XR V 30W 924 BREAD WT 36D

IES (7.43 KB)

IES file (IES)
TR SP XR V 30W 924 BREAD WT 50D

IES (7.43 KB)

LDT file (Eulumdat)
TR SP XR V 30W 924 BREAD WT 15D

LDT (6.57 KB)

LDT file (Eulumdat)
TR SP XR V 30W 924 BREAD WT 24D

LDT (6.61 KB)

LDT file (Eulumdat)
TR SP XR V 30W 924 BREAD WT 36D

LDT (6.55 KB)

LDT file (Eulumdat)
TR SP XR V 30W 924 BREAD WT 50D

LDT (6.6 KB)

UGR file (UGR table)
TR SP XR V 30W 924 BREAD WT 15D

PNG (60.26 KB)

UGR file (UGR table)
TR SP XR V 30W 924 BREAD WT 24D

PNG (59.85 KB)

UGR file (UGR table)
TR SP XR V 30W 924 BREAD WT 36D

PNG (60.02 KB)

UGR file (UGR table)
TR SP XR V 30W 924 BREAD WT 50D

PNG (60.98 KB)

Light distribution curve type cone
TR SP XR V 30W 924 BREAD WT 15D

SVG (15.43 KB)

Light distribution curve type cone
TR SP XR V 30W 924 BREAD WT 24D

SVG (15.44 KB)

Light distribution curve type cone
TR SP XR V 30W 924 BREAD WT 36D

SVG (15.44 KB)

Light distribution curve type cone
TR SP XR V 30W 924 BREAD WT 50D

SVG (15.43 KB)

Light distribution curve type polar
TR SP XR V 30W 924 BREAD WT 15D

SVG (17.37 KB)

Light distribution curve type polar
TR SP XR V 30W 924 BREAD WT 24D

SVG (17 KB)

Light distribution curve type polar
TR SP XR V 30W 924 BREAD WT 36D

SVG (17 KB)

Light distribution curve type polar
TR SP XR V 30W 924 BREAD WT 50D

SVG (18.11 KB)

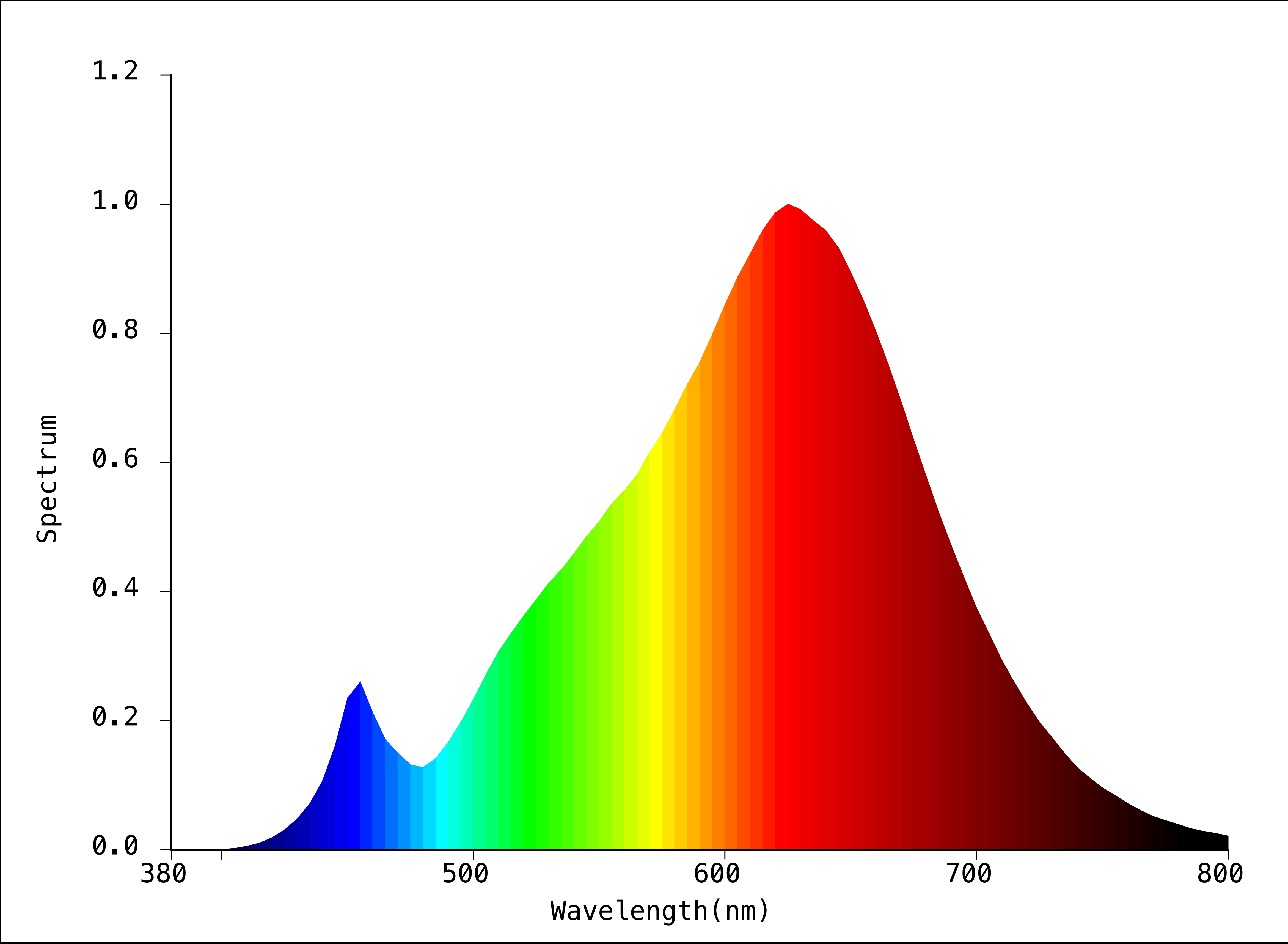

Spectral power distribution
Spectral Power Distribution BREAD

JPG (781.87 KB)

BIM Revit 3D
Tracklight Spot Zoom Dim

ZIP (4.13 MB)

CAD STEP 3D
TL XR V 30W

STEP (365.47 KB)

Tender documents
TRACKLIGHT SPECIAL FOOD LED 30W 924 24DEG WT BREAD-en

TXT (1.81 KB)

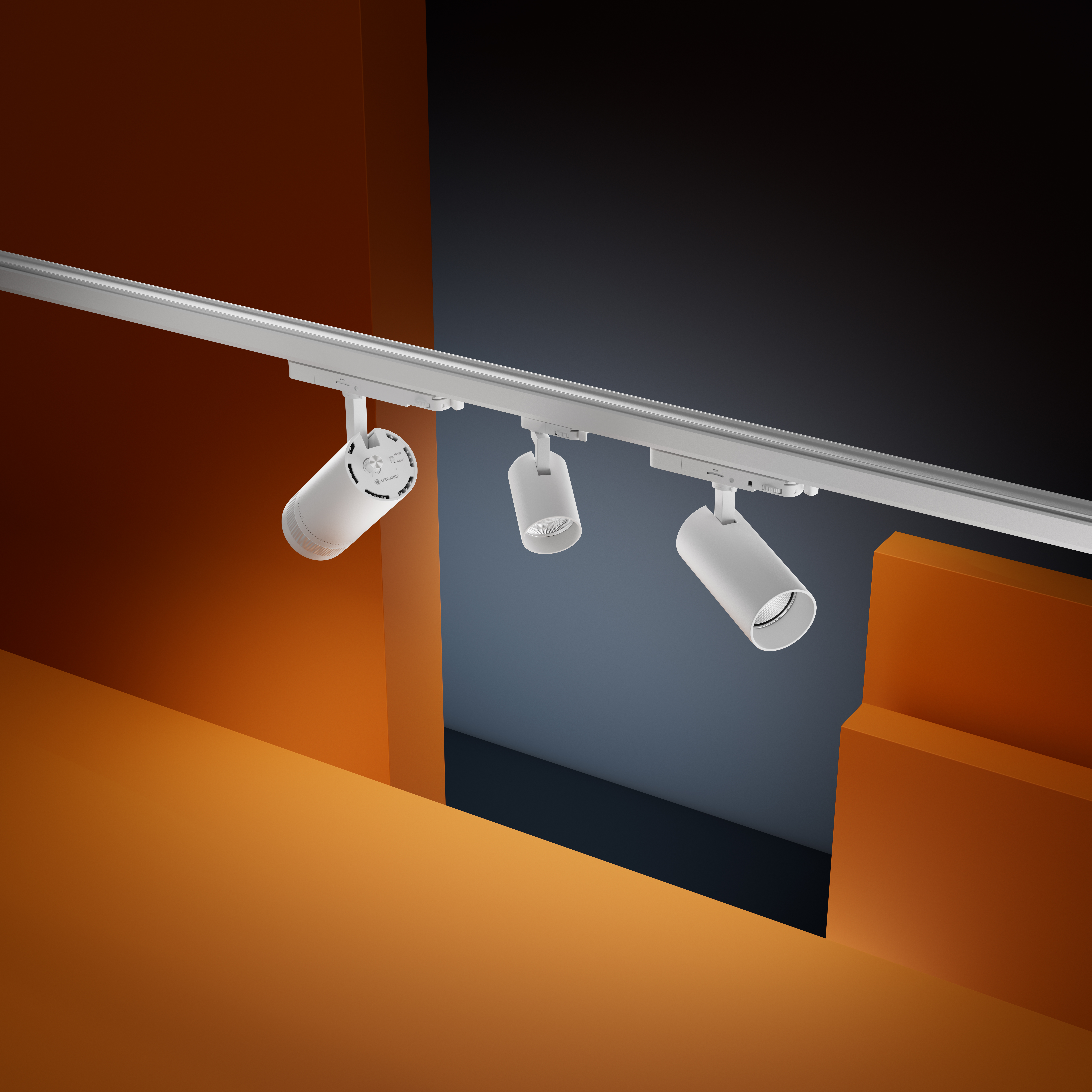

Application pictures
The Room Product Setup Singles TRACKLIGHTS

JPG (9.16 MB)

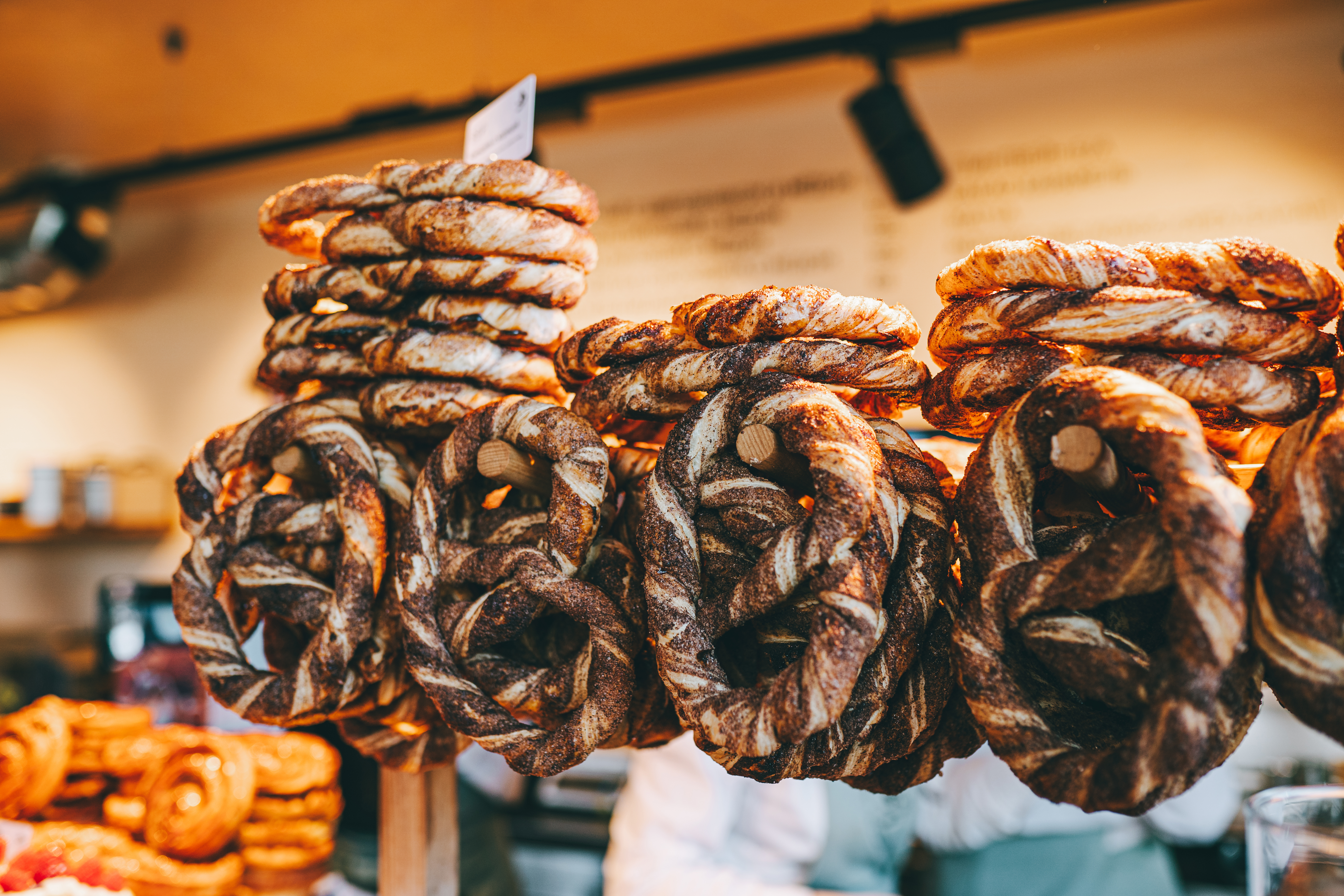

Application pictures Getty
TRACKLIGHT SPECIAL FOOD LED bread

JPG (17.34 MB)

EAN	SEG number	STK number
4099854617089	7404144	4161186
