SPOT SQUARE DARKLIGHT ADJUST
SPOT SQUARE DK ADJ 8 W 3000 K WT
GTIN: 4058075114043
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Cut off angle for comfortable indoor lighting
- High luminous efficacy
- Die-cast aluminum housing for improved heat dissipation
- Energy savings of up to 90 % compared to halogen lamp spotlights
- External driver for extended flexibility (compatible with selected DALI drivers)
- Easy replacement of external driver thanks to plug with bayonet lock
- Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
- 5 years guarantee
Areas of application
- Replacement of halogen lamp spotlights
- General accent lighting
- Shops, boutiques
- Hotel rooms
- Bars, restaurants
- Galleries, museums
- Residential interiors
Product features
- Adjustable tilt angle: +/- 20°
- Initial color consistency: ≤ 4 SDCM
- Lens material: PMMA
Equipment / Accessories
- Driver included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 65 mA |
| Inrush current | 23 A |
| Inrush current time Th50 | < 3.4 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 32 |
| Max. number of luminaires per miniature circuit breaker C10 | 26 |
| Max. number of luminaires per miniature circuit breaker C16 | 41 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 650 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤4 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 36 ° |
Dimensions & Weight
| Length | 90.00 mm |
| Height | 72.00 mm |
| Width | 90.00 mm |
| Product weight | 230.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9003 |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 83 mm |
| Mounting width | 83 mm |
| Mounting depth | 90 mm |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG - Length | 78 mm |
| ECG - Width | 32 mm |
| ECG - Height | 21 mm |
Certificates & Standards
| Standards | CE, TÜV SÜD, RoHS, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075114043 | Folding box 1 |
105 mm x 110 mm x 115 mm | 265.00 g | 1.33 dm³ |
| 4058075114050 | Shipping box 6 |
345 mm x 115 mm x 245 mm | 1795.00 g | 9.72 dm³ |
User instruction / safety instructions
UI Spot Square DK
UI Spot Square DK
On-Pack-Info
Legal Insert Spot LED
Legal Insert Spot LED
Legal information
LSI SP SQUARE DK ADJ
LSI SP SQUARE DK ADJ
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
EU Declaration of Conformity Spot Square 8W LEDV
EU Declaration of Conformity Spot Square 8W LEDV
Declarations of conformity
Attestation-of-Conform ity SP SQ and Multi TÜV
Attestation-of-Conform ity SP SQ and Multi TÜV
Product image: white background, diagonal
SP SQUARE DK ADJ 8W/3000K FL WT
SP SQUARE DK ADJ 8W/3000K FL WT
Product image: white background, upright
SP SQUARE DK ADJ 8W/3000K FL WT
SP SQUARE DK ADJ 8W/3000K FL WT
Product line drawing with letters
SP SQUARE DK ADJ 8W/3000K FL WT
SP SQUARE DK ADJ 8W/3000K FL WT
Product line drawing with numbers
SP SQUARE DK ADJ 8W/3000K FL WT
SP SQUARE DK ADJ 8W/3000K FL WT
Product line drawing - technical
SP SQUARE DK ADJ 8W/3000K FL WT
SP SQUARE DK ADJ 8W/3000K FL WT
Packaging image, spacial
Spot Square DK Adjust 8W 830 FL white MiCh Side
Spot Square DK Adjust 8W 830 FL white MiCh Side
Catalog info 1
Spot Square DK Adjust
Spot Square DK Adjust
Catalog info 2
Spot Square DK Adjust
Spot Square DK Adjust
Catalog info 6
Spot Square DK Adjust
Spot Square DK Adjust
IES file (IES)
SP SQUARE DK ADJ 8W3000K FL WT
SP SQUARE DK ADJ 8W3000K FL WT
LDT file (Eulumdat)
SP SQUARE DK ADJ 8W3000K FL WT
SP SQUARE DK ADJ 8W3000K FL WT
ULD file (DIALux)
SPOTSQUAREDARKLIGHTADJ UST8W3000KWT
SPOTSQUAREDARKLIGHTADJ UST8W3000KWT
ROLF file (RELUX)
SP SQUARE DK ADJ
SP SQUARE DK ADJ

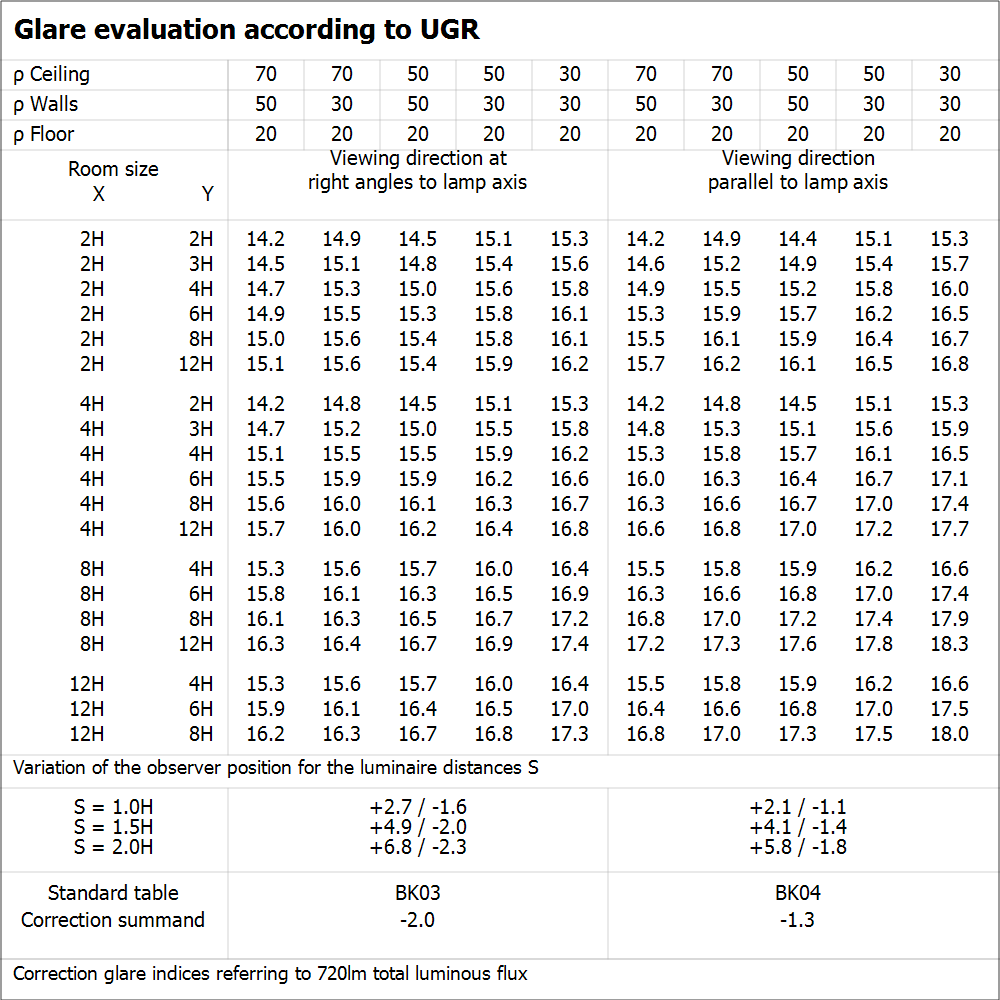

UGR file (UGR table)
