Coming soon
URBAN VILLA RETROFIT ASYMMETRIC
URBAN VLA RET P 60W 722 A60X120
GTIN: 4099854609466
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Durable design and highest quality component selection for long lasting performance
- Quick and easy wiring, due to tool-free housing opening and push button terminal
- High light uniformity
- 2 light colors available, perfectly suited to illuminate highly diverse surroundings
Areas of application
- Outdoor use (IP66)
- Parks
- City center
- Historical center
Product features
- Very long lifetime (L70): up to 100,000 h (at 25 °C)
- 1000 hours salt mist spray test
- Corrosion-resistant powder coating
- DALI D4i drivers for smart city applications
- Operating temperature: -20…45 °C
- High surge protection: up to 20 kV (L/N-GND)
- Type of protection: IP66
- Protection class: II
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 60.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 274.000 mA |
| Inrush current | 45.9 A |
| Inrush current time Th50 | 128 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 22 |
| Max. number of luminaires per miniature circuit breaker C10 | 22 |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 7200 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 2200 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 70 |
| Standard deviation of color matching | < 6 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 60 ° x 120 ° |
Dimensions & Weight
| Length | 320.00 mm |
| Height | 134.00 mm |
| Width | 320.00 mm |
| Product weight | 4380.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Post top |
| Mounting location | Pole |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 200…1050 mA |
| ECG - Output ripple current | 5 % |
Certificates & Standards
| Standards | CE, ENEC, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from September 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854609466 | Shipping box 1 |
387 mm x 352 mm x 195 mm | 5312.00 g | 26.56 dm³ |
User instruction / safety instructions
URBAN VLA RET P
URBAN VLA RET P
Legal information
Safety Insert G11218810
Safety Insert G11218810
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
URBAN module
URBAN module

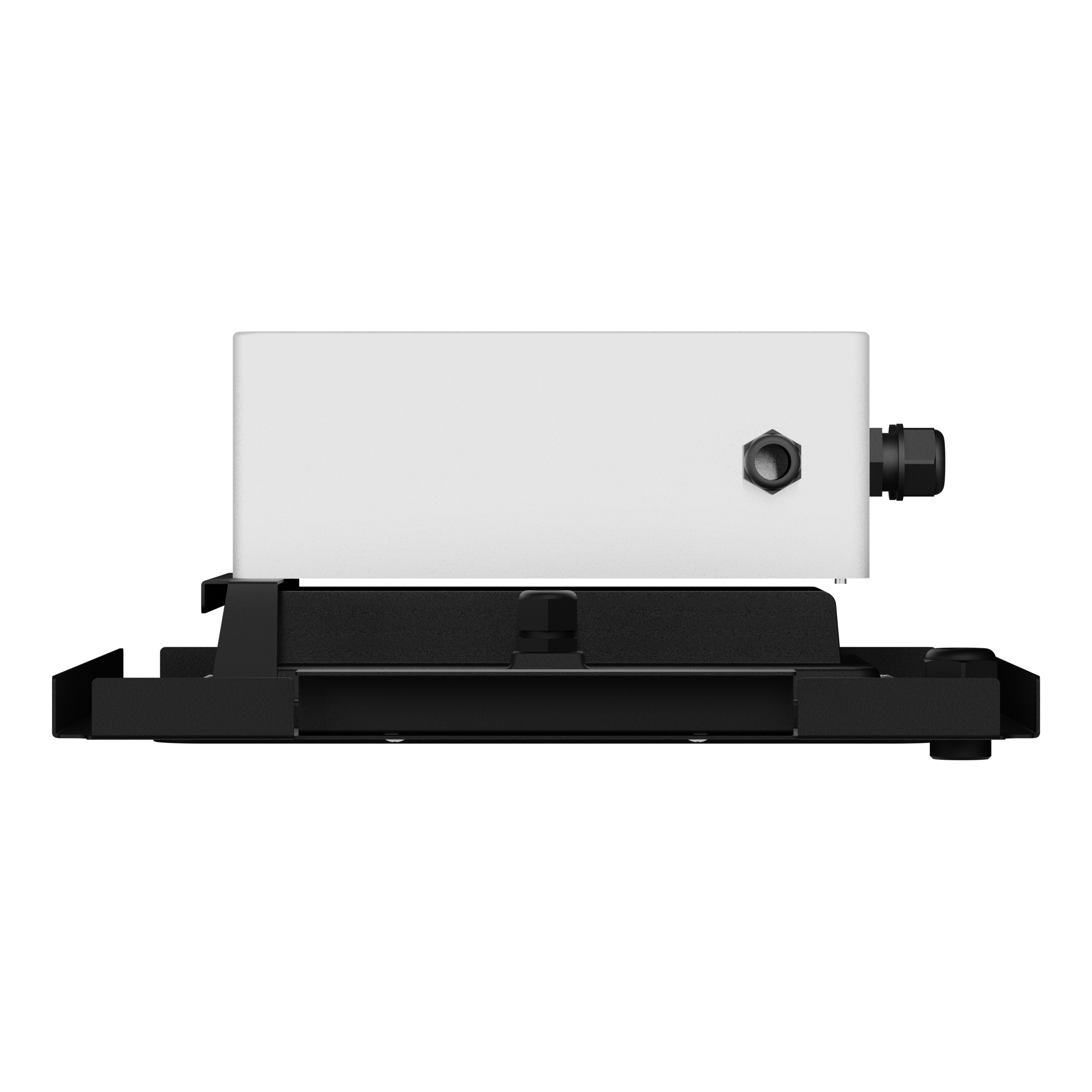

Product image: white background, upright
URBAN VLA RET P
URBAN VLA RET P

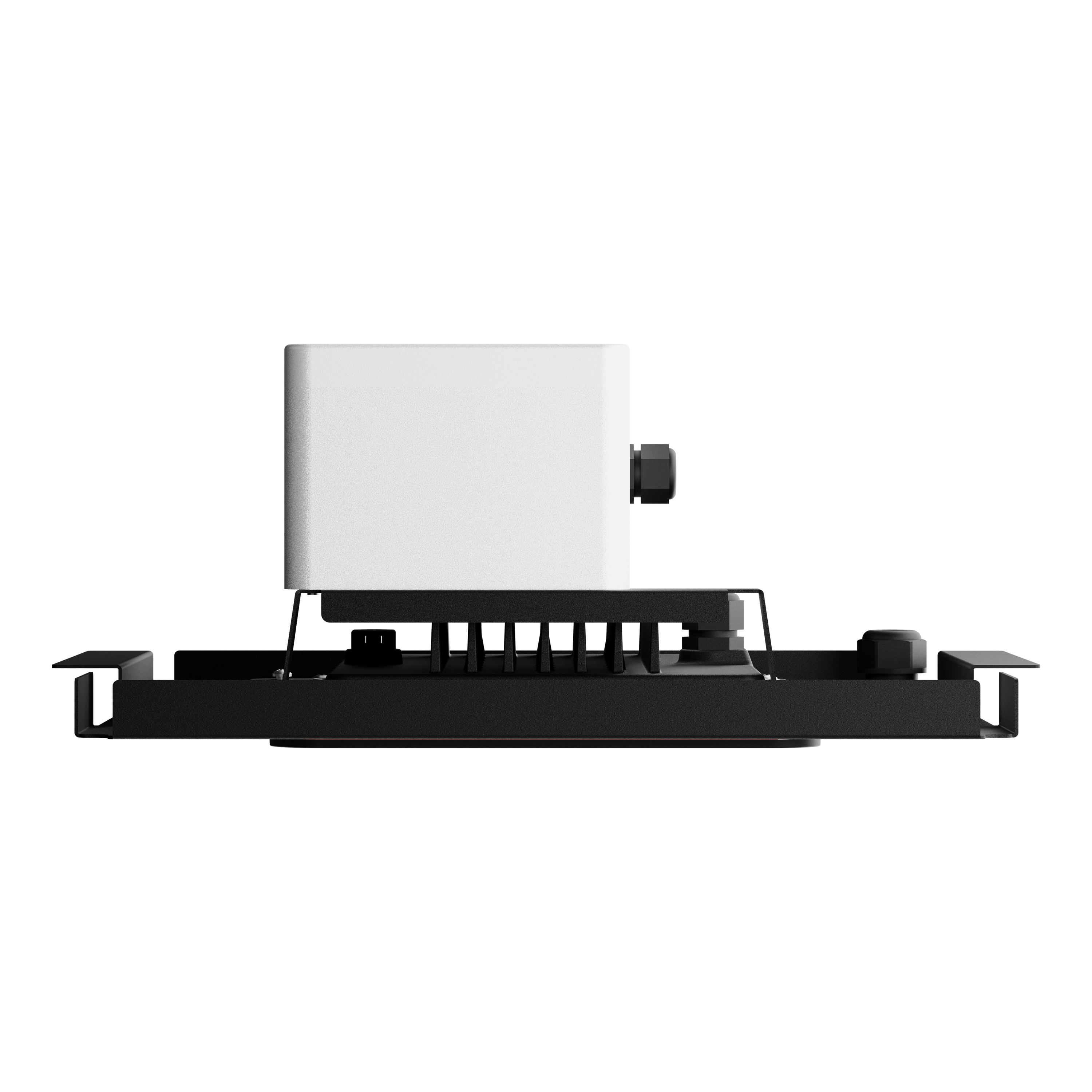

Product image: white background, upright
