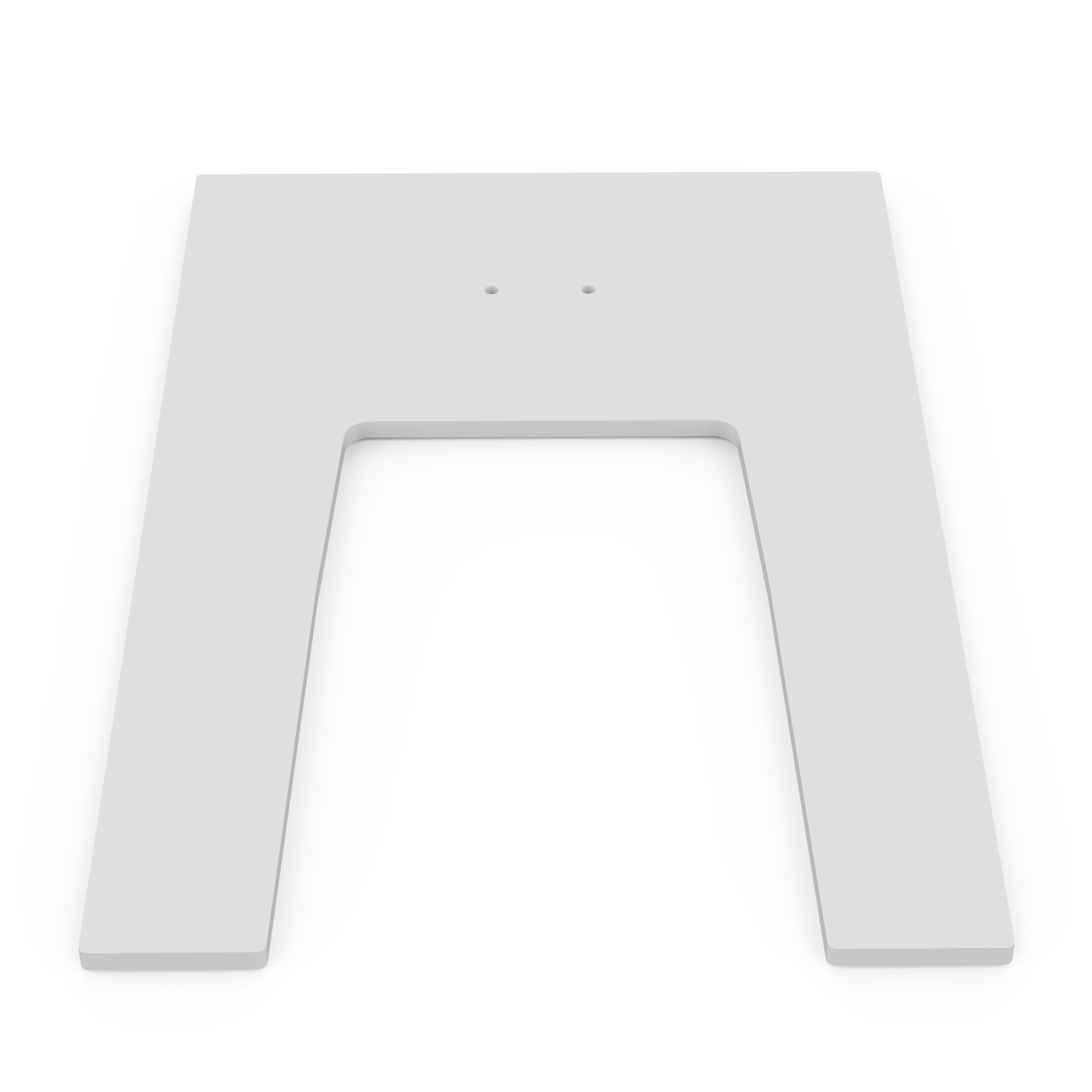

FLOOR STANDING COMFORT BASE
FS CMFT BASE P WT
GTIN: 4099854606694
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low height suitable for most tables
- Large cut-out for various table legs
- Solid design for a stable stand
Areas of application
- Single component (luminaire head, luminaire pole, luminaire base and regional electrical connection) for mounting the FLOOR STANDING COMFORT
- For use at single or double desks
- Individual offices
- Open-space office
- Home offices
Product features
- Powder coated luminaire base made of aluminum
- Floor protectors integrated on the bottom side
- Available in white (like RAL9003), grey (like RAL9006) and black (like RAL9005)
Equipment / Accessories
- Other required components to be ordered separately
- Accessories for mounting the luminaire included
Safety advice
- All electrical connections must be made by a qualified person.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Dimensions & Weight
| Length | 460 mm |
| Height | 10 mm |
| Width | 300 mm |
| Product weight | 5700.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9003 |
| Body material | Aluminum |
Application & Mounting
| Mounting location | Floor |
| Replaceable light source | No |
Certificates & Standards
| Ball shot safe | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854606694 | Shipping box 1 |
555 mm x 320 mm x 30 mm | 6000.00 g | 5.33 dm³ |
User instruction / safety instructions
FLOOR STANDING COMFORT
FLOOR STANDING COMFORT
Product family datasheet
FS CMFT
FS CMFT

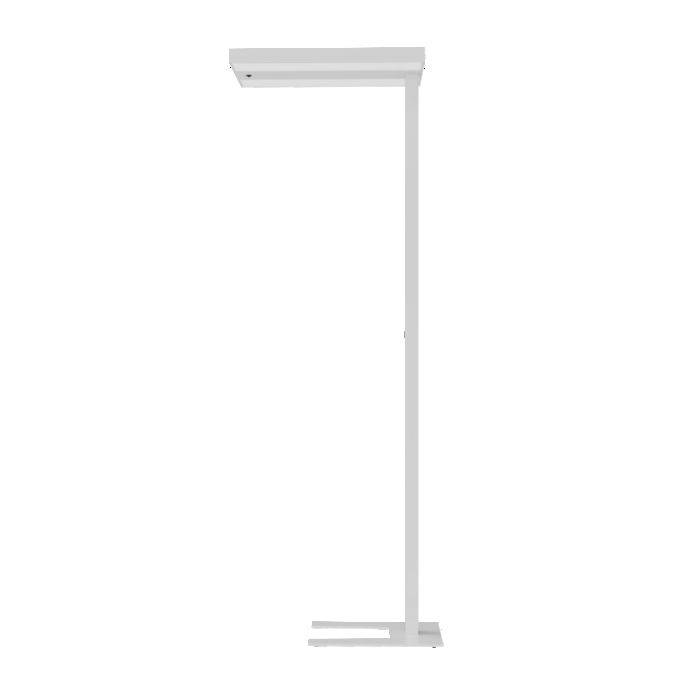

Product image: white background, diagonal
FS CMFT HEAD/POLE/BASE WT
FS CMFT HEAD/POLE/BASE WT

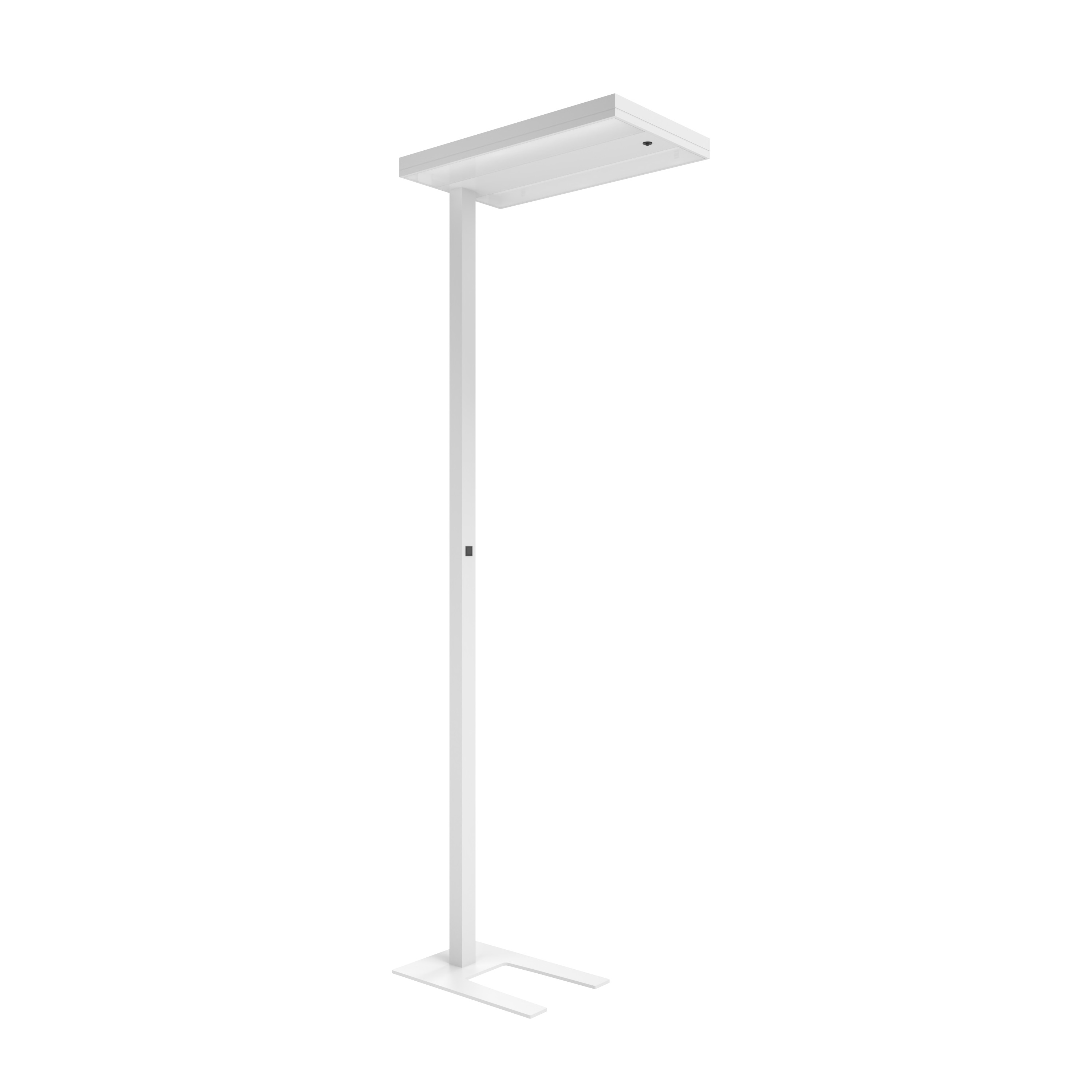

Product image: white background, spacial
