Product benefits

• Automatically switches on and off according to the amount of available daylight
• Always-on override, activated via special mains switching pattern
• Breather membrane to optimize air exchange, without compromising IP protection

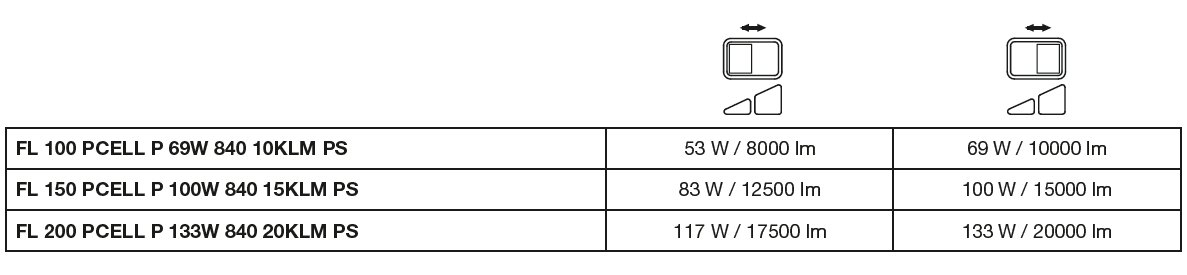

• Highly versatile due to selectable power steps (Multi Lumen) on the housing
• Robust cable gland with integrated waterstop function
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• Bright, robust and durable
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP66)
• D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
• Public areas
• Building facades
• Construction areas
• Parking

Product features

• Daylight sensor, integrated in glass cover
• Switch on below 35 lux, switch off above 95 lux illuminance
• High luminous efficacy: up to 150 lm/W
• Type of protection: IP66
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
• Reflector-based, symmetric light distribution with 100° x 100° beam angle

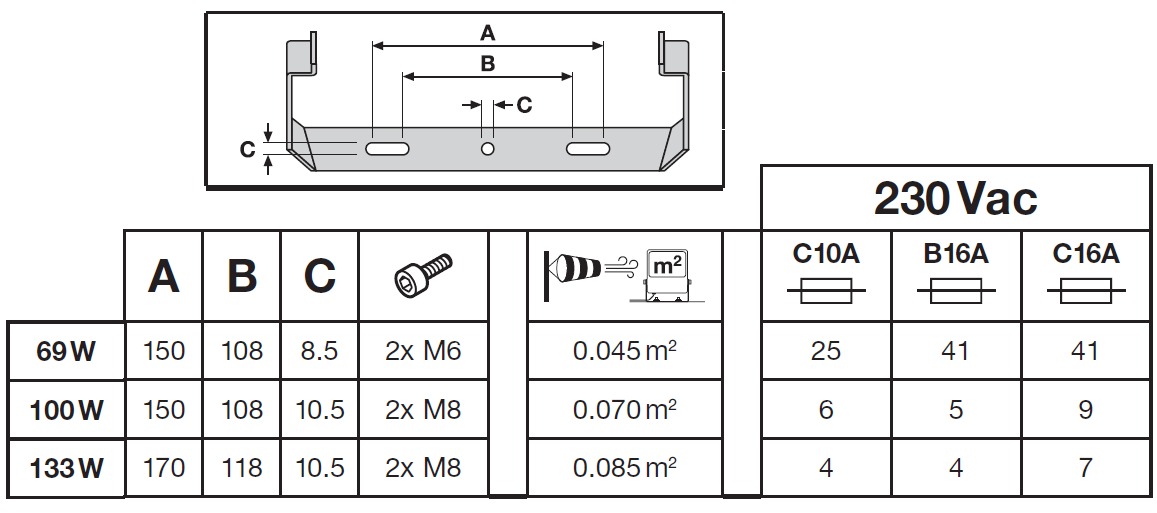

• Mounting bracket with 30° angle and wide rotation area
• Integrated voltage driver, suitable for 220 - 240 V AC

Safety advice

• Max. wind load surface 0.085 m²

References / Links

• For Guarantee see www.ledvance.com/guarantee
