HIGH BAY SENSOR
HIGH BAY SENSOR
GTIN: 4008321410078
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy savings up to 35 % (compared to manual switching)
Areas of application
- Great installation height
- Industry
- Production halls
Product features
- Motion sensor with switching contact
- 3 to 10 m: detection of motion by people
- 3 to 13 m: detection of vehicle movement (e.g. fork lift truck)
- Adjustable switch-off delay: 30 s to 20 min
- Maximum power consumption in stand-by mode: 0.25 W
Equipment / Accessories
- Suitable for up to 15 electronic control gears
- Installation by means of Mounting Adapter possible
Electrical data
| Nominal wattage | 0.60 W |
| Nominal voltage | 120…277 V |
| Mains frequency | 50/60 Hz |
Dimensions & Weight
| Length | 115.60 mm |
| Width | 115.60 mm |
| Height | 40.00 mm |
| Diameter | 116,0 mm |
| Product weight | 135.00 g |
Colors & materials
| Product color | White |
Temperatures & operating conditions
| Ambient temperature range | -10…+70 °C |
Capabilities
| Dimmable | No |
| Maximum installation height | 13 m |
| Detection area | 18 m 1) |
| Detection angle | 100 ° 2) |
| Load contact | 5 A |
| Type of installation | On-top ceiling mounting |
1) Maximum diameter
2) Approximately
2) Approximately
Certificates & Standards
| Approval marks – approval | CE |
| Protection class | II |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321410078 | Folding box 1 |
115 mm x 64 mm x 115 mm | 169.00 g | 0.85 dm³ |
| 4008321410085 | Shipping box 20 |
238 mm x 260 mm x 448 mm | 3828.00 g | 27.72 dm³ |
User instruction / safety instructions
334311_Technical instructions
334311_Technical instructions
User instruction / safety instructions
334723_Technical instructions
334723_Technical instructions
User instruction / safety instructions
334486_Mounting Adapter Technical instructions
334486_Mounting Adapter Technical instructions
Declarations of conformity
334824_Declaration of conformity – Mounting Adapter
334824_Declaration of conformity – Mounting Adapter
Declarations of conformity
EU Declaration of conformity HIGH BAY VISION SENSOR
EU Declaration of conformity HIGH BAY VISION SENSOR
Product image: white background, upright
318462_HIGH BAY SENSOR
318462_HIGH BAY SENSOR
Product line drawing with letters
331559_HIGH BAY
331559_HIGH BAY
Catalog info 1

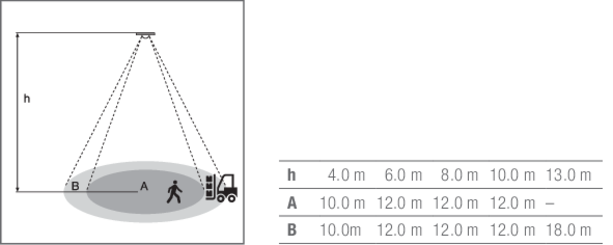

Vivares sensor table
Vivares sensor table
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321410078 | 7985065 | 2612516 | 3359143 | 535040000 |
