PRODUCT DETAILS
Product benefits
- Suitable for Standard DALI and DALI DT8 (TW) drivers
- Intuitive manual dimming, switching and changing of colour temperature
- Individual setting of minimal brightness level
- Individual setting of colour temperature range
- Integrated Bus Power Supply
Areas of application
- Conference rooms
- Restaurants
- Shop lighting
- Private homes
Product features
- Flush-mounted control unit for dimmable DALI drivers
- Up to 4 DALI PCU TW G2 can be connected in parallel to set up multiple control points
- Automatic synchronization between the control points
- Combinable with standard presence- and motion detectors with mains contact
- Behavior after power failure configurable
- Length of the DALI control cable: up to 300 m
Equipment / Accessories
- Suitable for up to 25 electronic control gears
- Cover and rotary knob included
Electrical data
| Nominal wattage | 2.00 W |
| Nominal voltage | 230 V |
| Type of current | AC/DC |
| Mains frequency | 50/60 Hz |
Dimensions & Weight
| Length | 49.00 mm |
| Width | 48.00 mm |
| Height | 22.00 mm |
| Product weight | 49.4 g |
Colors & materials
| Product color | White |
Temperatures & operating conditions
| Ambient temperature range | 0…+50 °C |
Additional product data
| Product remark | Available from September 2023 |
| Number of control outputs | 1 |
| Groups | 1 |
Capabilities
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Type of installation | Integrated in flush device box |
Certificates & Standards
| Approval marks – approval | CE, UKCA |
| Protection class | II |
| Type of protection | IP20 |
| Energy efficiency class | A1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899631625 | Folding box 1 |
85 mm x 85 mm x 35 mm | 68.00 g | 0.25 dm³ |
| 4052899631632 | Shipping box 24 |
273 mm x 182 mm x 164 mm | 1837.00 g | 8.15 dm³ |
User instruction / safety instructions
DALI PCU TW G2
DALI PCU TW G2
PRODUCT DATASHEET
DALI PCU TW G2
DALI PCU TW G2
EU Data Act
Connected Products and Related Software and Services
Connected Products and Related Software and Services

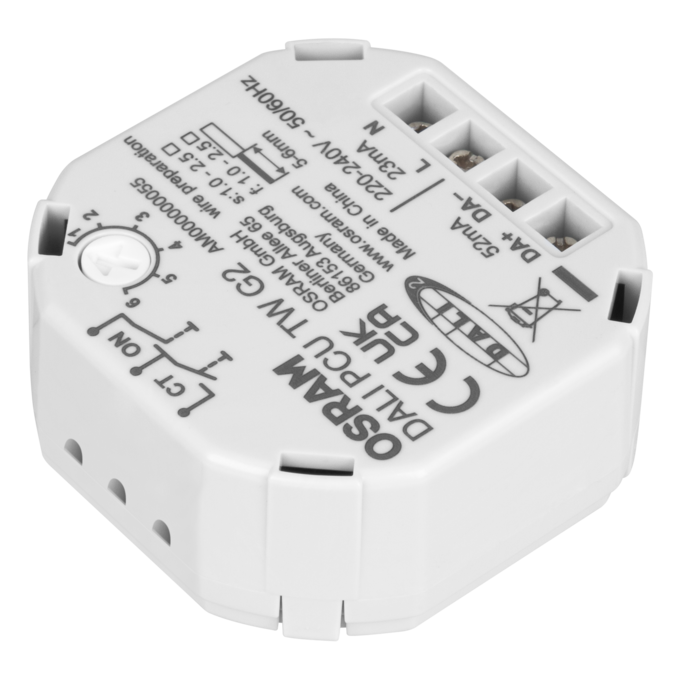

Product image: white background, diagonal
DALI PCU TW G2 OSRAM
DALI PCU TW G2 OSRAM

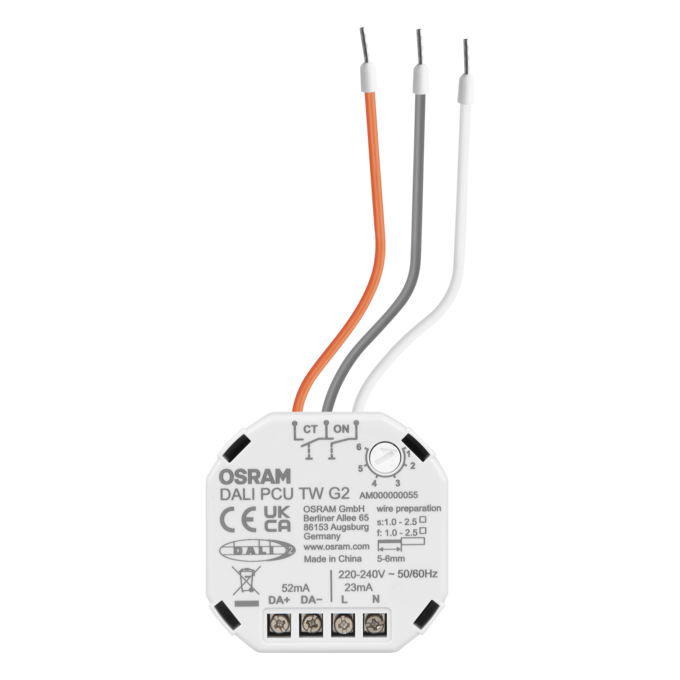

Product image: white background, upright
DALI PCU TW G2 OSRAM
DALI PCU TW G2 OSRAM

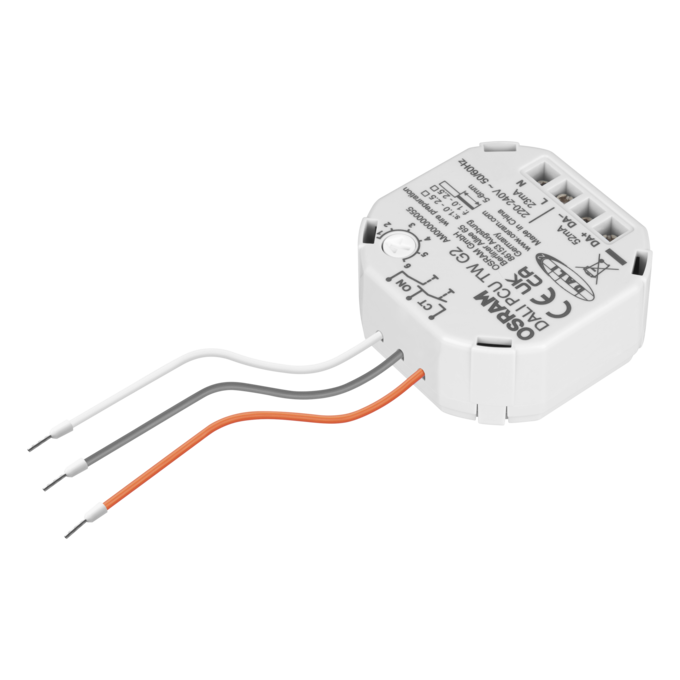

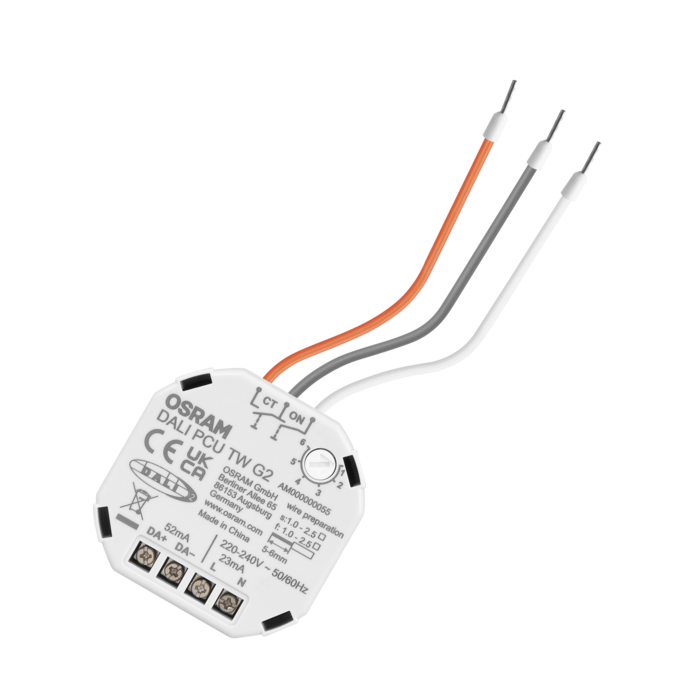

Product image: white background, with accessory, alternative image
DALI PCU TW G2 OSRAM
DALI PCU TW G2 OSRAM
Product line drawing with letters
DALI PCU TW G2 OSRAM
DALI PCU TW G2 OSRAM
Product line drawing with numbers
DALI PCU TW G2 OSRAM
DALI PCU TW G2 OSRAM
| EAN | SEG number | EFO number | ELDAS number |
|---|---|---|---|
| 4052899631625 | 1361020 | 1410835 | 941005820 |
