DALI COUPLER PB G2

DALI Coupler Pushb G2

GTIN: 4062172087575 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Standard pushbuttons/switches can be used
  • DALI-2 certified
  • DALI Bus powered (No mains connection necessary)
  • Multiple couplers connectable to the same DALI line
Areas of application
  • Suitable for installation in flush-type boxes
  • Individual offices
  • Classrooms
  • Conference rooms
  • Production and assembly facilities
Product features
  • DALI pushbutton coupler
  • 4 floating inputs
Electrical data
Nominal wattage 0.10 W
Nominal voltage 16 V
Mains frequency 0 Hz
Dimensions & Weight
Length 43.00 mm
Width 43.00 mm
Height 21.00 mm
Product weight 25.00 g
Colors & materials
Product color Light grey
Temperatures & operating conditions
Ambient temperature range -20…+50 °C
Capabilities
Dimmable No
Dimming interface DALI-2
Type of installation Integrated in flush device box
Certificates & Standards
Approval marks – approval CE
Protection class II
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4062172087575 Folding box
1		 81 mm x 81 mm x 46 mm 42.00 g 0.30 dm³
4062172087582 Shipping box
60		 344 mm x 254 mm x 278 mm 3187.00 g 24.29 dm³
User instruction / safety instructions
DALI COUPLER PUSHB G2
PDF (3.14 MB)
Declarations of conformity
DALI COUPLER PUSHB G2
PDF (810.05 KB)
EU Data Act
Connected Products and Related Software and Services
PDF (346.28 KB)
Product image: white background, diagonal
320301_DALI PRO PB Coupler
TIF (11.45 MB)

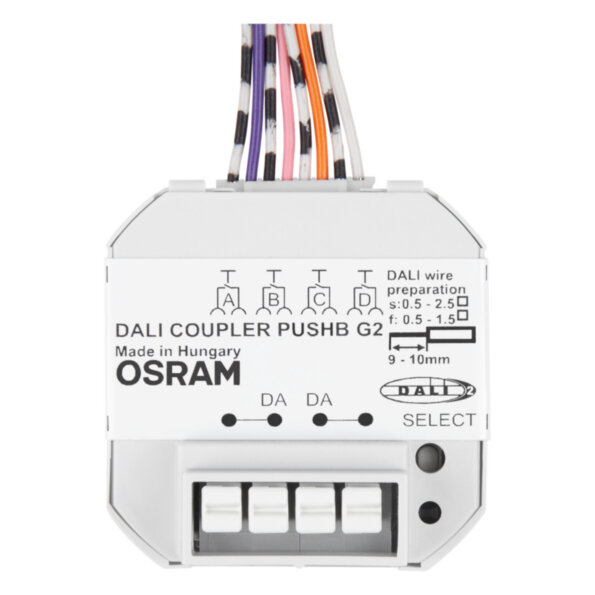

Product image: white background, horizontal
DALI Coupler Pushb G2
JPG (121.99 KB)
Product line drawing with letters
326384_DALI PRO PB COUPLER
SVG (12.54 KB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (9.59 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (7.78 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (8.7 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (5.84 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (6.37 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (6.91 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (8.16 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (8.12 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (9.9 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (11.36 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (9.46 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (7.35 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (16.62 MB)
Application pictures
University of Technology Sport Center in Bydgoszcz Poland
JPG (16.29 MB)
EAN SEG number ELDAS number
4062172087575 7985358 535958410
