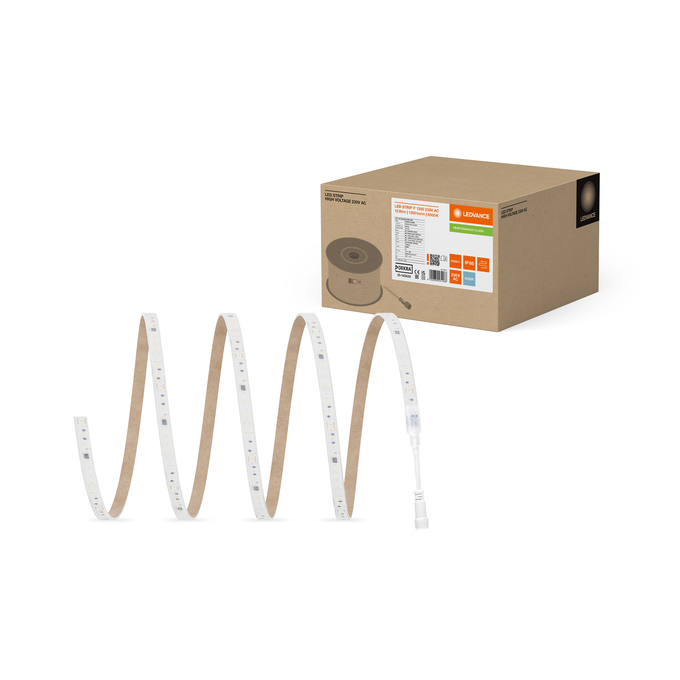

LS P AC 1300 865 50M IP66

LED STRIP P HIGH VOLTAGE 230V

GTIN: 4099854584466 Unpacked / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Great scope of design options due to 50 m long and flexible LED strips
Easy mounting on many smooth surfaces thanks to self-adhesive tape
Maximum flexibility due to large range of accessories with integrated over-current protection (3.15A)
Simple connection thanks to integrated cables with fast twist lock connectors
Suitable for use in damp conditions thanks to high type of protection

Areas of application

General indoor illumination
General outdoor illumination
Industry and construction site
Offices, retail outlets and conference rooms
Architecture lighting
Decorative illumination

Product features

Direct power supply with 220-240V AC mains
Flexible and cuttable LED strip
Smallest cuttable unit: 100 mm
Lifetime (L70/B50): up to 50,000 h at Ta: 45°C
Luminous flux: 1300 lm/m
Prewired LED strip with 200 mm long fast twist lock connector for 220-240V AC mains supply connection
Type of protection: IP66

Equipment / Accessories

Connectors for several mounting options available

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Disconnect mains before installation.

Electrical data

Nominal wattage	550.00 W ¹⁾
Construction wattage	12.00 W ¹⁾
Nominal wattage per meter	12 W ²⁾
Nominal voltage	220…240 V
Type of current	AC/DC
Nominal current	2400 mA ³⁾
Inrush current	12 A
Mains frequency	50/60 Hz
Power factor λ	> 0.90
Max. ECG no. on circuit breaker 10 A (B)	3
Max. ECG no. on circuit breaker 25 A (B)	8

¹⁾ W (50m) AC: 550 DC: 510
²⁾ W (1m) AC: 12 DC: 10
³⁾ mA (50m) AC: 2400 DC: 2230

Photometrical data

Luminous efficacy	111 lm/W ¹⁾
Luminous flux	60300 lm ²⁾
Luminous flux per meter	1340 lm ³⁾
Color temperature	6500 K
Color rendering index Ra	> 80
Light color (designation)	Cool Daylight
Standard deviation of color matching	6 sdcm

¹⁾ lm/W: AC: 111 DC: 143
²⁾ lm (50m) AC: 60300 DC: 64350
³⁾ lm (1m) AC: 1340 DC: 1430

Light technical data

Beam angle

120 °

LED MODULE INFORMATION

Number of LEDs per meter

120

Dimensions & Weight

Length	50000.00 mm
Length – smallest unit	100 mm
Cable length	266.000
Width	12.00 mm
Height	4.50 mm
Product weight	69.4 g ¹⁾

¹⁾ Product weight 50m 3470.00 g

Colors & materials

Product color	Transparent
Body material	Silicone

Temperatures & operating conditions

Ambient temperature range	-20…+45 °C
Temperature range in operation	-20…+45 °C
Permitted rel. humidity during operation	0…93 %

Lifespan

Nominal lamp life time

50000 h

Additional product data

Product remark

Suitable for DC input only in combination with LED DRIVER - DR P 500W 220-240V 215V P , EAN10 represents a length of 1 meter of LED strip out of the entire 50 m role. The minimum order quantity for EAN10 is 50 pieces and a multiple of 50., Available from April 2025

Capabilities

Dimmable	No
Dimming interface	Not dimmable
Lowest bending radius	30 mm
Self-adhesive	Yes

Certificates & Standards

Approval marks – approval	CE, UKCA, EAC, DEKRA
Protection class	II
Type of protection	IP66
Energy class of contained light source	E

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854584466	Unpacked 1	252 mm x 252 mm x 136 mm	69.40 g	8.64 dm³
4099854584473	Shipping box 50	271 mm x 271 mm x 175 mm	4195.00 g	12.85 dm³

Product image	Product name	EAN
	LS AY AC-CP P2 300 P	4058075844780
	LS AY AC-CD P2 200 P	4058075844742
	LS AY AC-CSW P2 100 P	4058075844766
	LS AY AC PLUG EU	4058075844803
	LS AY AC PLUG UK	4058075844827
	LS AY AC-12 SMB	4058075844841
	DR P 500W 220-240V 215V P	4058075844728
