LED TUBE T8 EM SUPERIOR
LED TUBE T8 EM SUPERIOR 1500 mm 16.7W/22.1W 865
GTIN: 4099854432644
Sleeve / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy savings of up to 71 % (compared to T8 fluorescent lamp)
- Quick, simple and safe replacement with or without rewiring
- Highly versatile thanks to selectable power/lumen steps (1200 mm, 1500 mm)
- No bending thanks to glass technology
- Support the implementation of the HACCP concepts from production through to presentation
- Very high resistance to switching loads
- Instant-on light, therefore ideally suitable in combination with sensor technology
- Also suitable for operation at low temperatures
Areas of application
- General illumination within ambient temperatures from -20…+50 °C
- Illumination of production areas
- Traffic zones and corridors
- Supermarkets and department stores
- Industry
Product features
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains

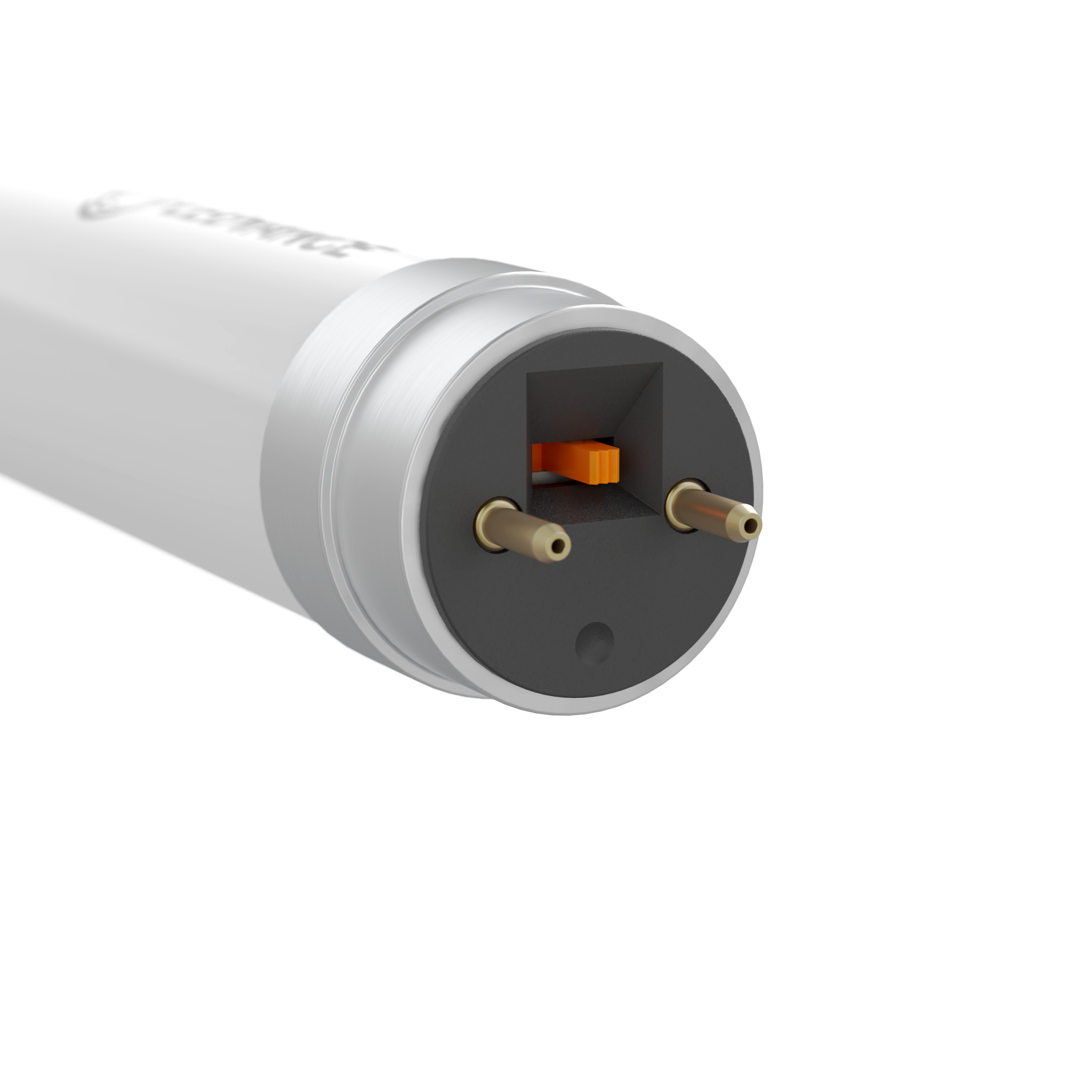

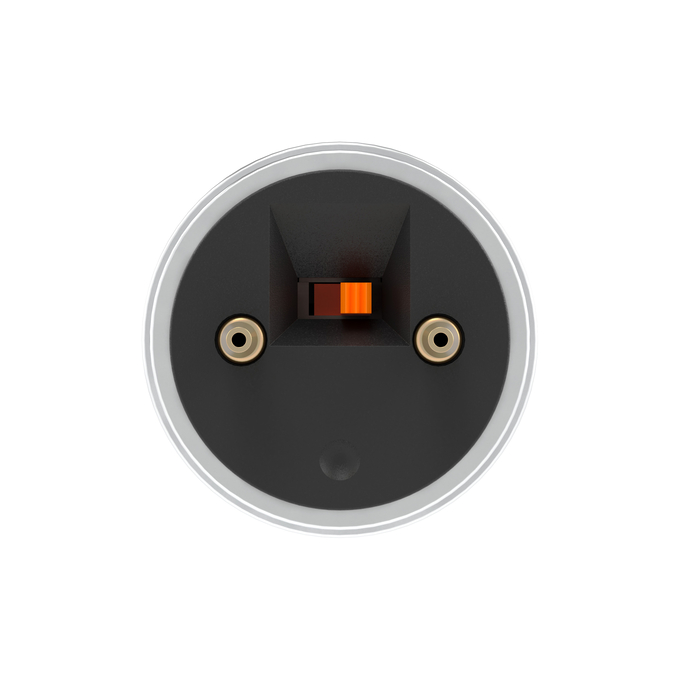

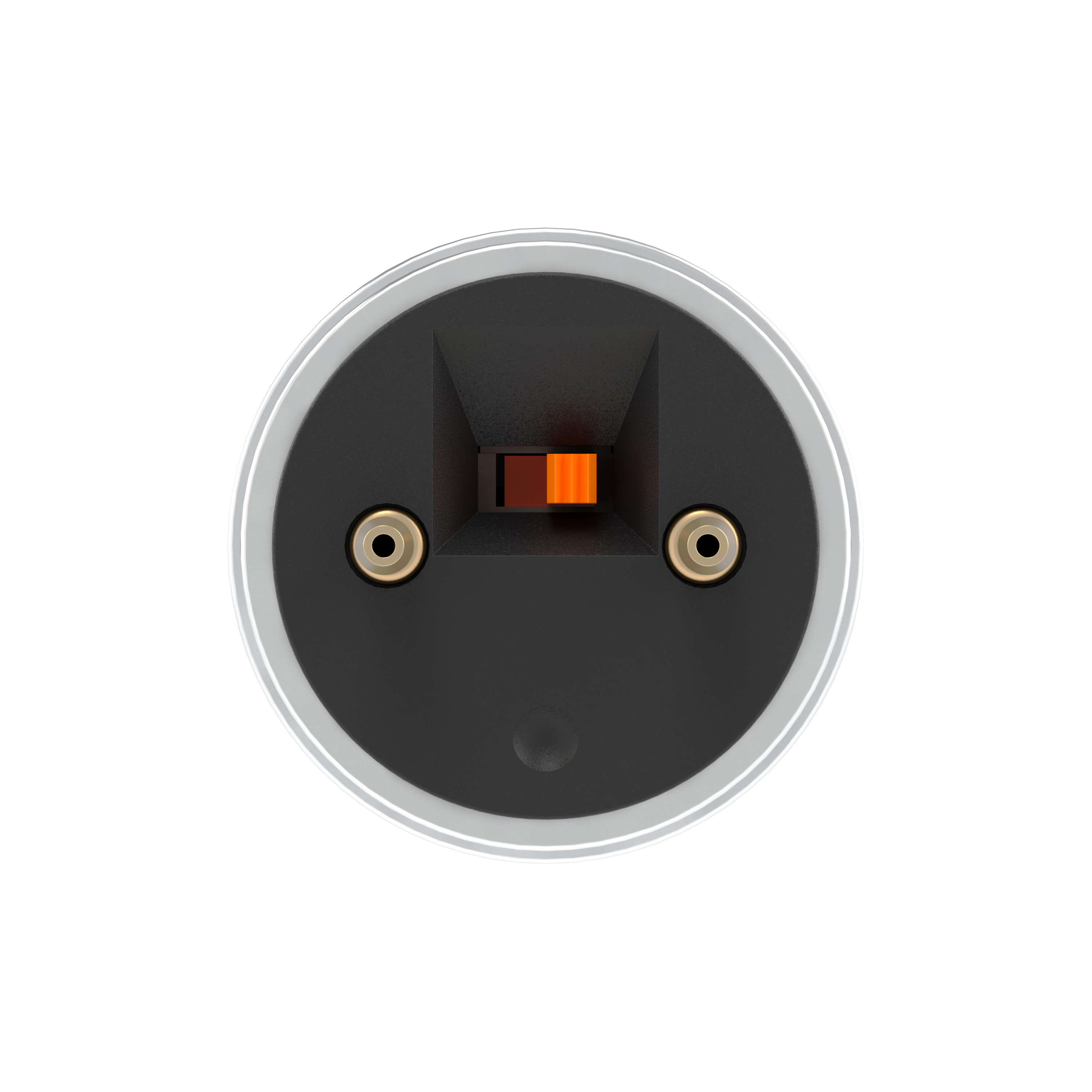

- Multi Lumen function: 2 power steps selectable (1200 mm, 1500 mm)
- LED tube made of glass with shatter protection e.g. for food industry applications
- ENEC 10 VDE mark
- Single and tandem operation on conventional control gear (≤ 0.9 m versions)
- Extremely long lifetime: up to 100,000 h
- Type of protection: IP20
- Mercury-free and RoHS compliant
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
Equipment / Accessories
- Suitable for operation with low-loss and conventional control gears
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Not suitable for operation with electronic control gear.
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- Not suitable for emergency lighting.
- Disconnect mains before installation.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 22.10 W / 16.7 W |
| Construction wattage | 22.10 W |
| Nominal voltage | 220…240 V |
| Operating mode | CCG, AC Mains |
| Nominal current | 100mA / 75 mA |
| Type of current | AC |
| Inrush current | 7.32 A |
| Suitable for DC input | Yes |
| Input voltage DC | 186…260 V |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz 1) |
| Max. lamp number on MCB B10 A | 61 |
| Max. lamp number on MCB B10 A - CCG without compensation | 26 |
| Max. lamp number on MCB B10 A - CCG with compensation | 13 |
| Max. lamp number on MCB B16 A | 98 |
| Max. lamp number on MCB B16 A - CCG without compensation | 42 |
| Max. lamp number on MCB B16 A - CCG with compensation | 21 |
| Total harmonic distortion | < 20 % |
| Power factor λ | 0.90 |
1) DC 0Hz
Photometrical data
| Luminous flux | 4100 lm / 3100 lm |
| Luminous efficacy | 185 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool Daylight |
| Color temperature | 6500 K |
| Color rendering index Ra | 80 |
| Light color | 865 |
| Standard deviation of color matching | ≤5 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | 1 |
| Stroboscope effect metric (SVM) | 0.4 |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 22.1 W | 6500 K | 4100 lm | 185 lm/W |
| 16.7 W | 6500 K | 3100 lm | 185 lm/W |
Light technical data
| Beam angle | 190 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 1513.00 mm |
| Length with base excl. base pins/connection | 1500.00 mm |
| Diameter | 26.70 mm |
| Product weight | 260.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C 1) |
| Maximum temperature at tc test point | 81 °C |
| Performance temp. acc. to IEC 62717 | 47 °C 2) |
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device
2) Tp rated. Tp point coincides with Tc point - marked on device
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h |
| Number of switching cycles | 200000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | G13 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Added function | MULTI LUMEN |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | B 1) |
| Energy consumption | 23.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, UKCA, EAC, ENEC, VDE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
| Order reference | LEDTUBE T8 EM S |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | G13 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | <0.5 W |
| Claim of equivalent power | No |
| Length | 1513.00 mm |
| Height | 26.70 mm |
| Width | 26.70 mm |
| Chromaticity coordinate x | 0.3123 |
| Chromaticity coordinate y | 0.3283 |
| R9 Colour rendering index | 1 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| Displacement factor | 0.9 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 2150916,2340229 |
| Model number | AC69457,AC81600 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854432644 | Sleeve 1 |
1,605 mm x 29 mm x 29 mm | 276.00 g | 1.35 dm³ |
| 4099854432651 | Shipping box 10 |
1,635 mm x 175 mm x 95 mm | 3402.00 g | 27.18 dm³ |
User instruction / safety instructions
LED TUBE T8 EM S
LED TUBE T8 EM S
Extended installation guide
Installation instructions LED TUBE T8, T5 und DULUX LED 2024 10 EN
Installation instructions LED TUBE T8, T5 und DULUX LED 2024 10 EN
Extended installation guide
Notes on the operation of LEDVANCE LED tubes in compensated luminaires
Notes on the operation of LEDVANCE LED tubes in compensated luminaires
Extended installation guide
LEDVANCE Luminaire conversion checklist
LEDVANCE Luminaire conversion checklist
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
LEDTUBE
LEDTUBE
Declarations of conformity
LED tube
LED tube
Certificates
LEDTUBE T8 EM S 1500
LEDTUBE T8 EM S 1500
Product image: white background, diagonal with LEDVANCE logo
LEDVANCE LED TUBE T8 EM
LEDVANCE LED TUBE T8 EM
Product image: white background, diagonal
LED TUBE T8 EM
LED TUBE T8 EM
Product image: white background, horizontal
LEDTUBE T8 EM
LEDTUBE T8 EM
Product image: white background, upright LEDVANCE logo
LEDVANCE LED TUBE T8 EM
LEDVANCE LED TUBE T8 EM
Product image: white background, upright
LED TUBE T8 EM
LED TUBE T8 EM
Product image: white background, spacial
LEDTUBE T8 EM
LEDTUBE T8 EM
Product line drawing with letters
LEDTUBE T8 EM
LEDTUBE T8 EM
Product line drawing with numbers
LEDTUBE T8 EM UO 1500
LEDTUBE T8 EM UO 1500
Product line drawing - technical
638401_Technical drawing TC point LED TUBE T8 EM
638401_Technical drawing TC point LED TUBE T8 EM

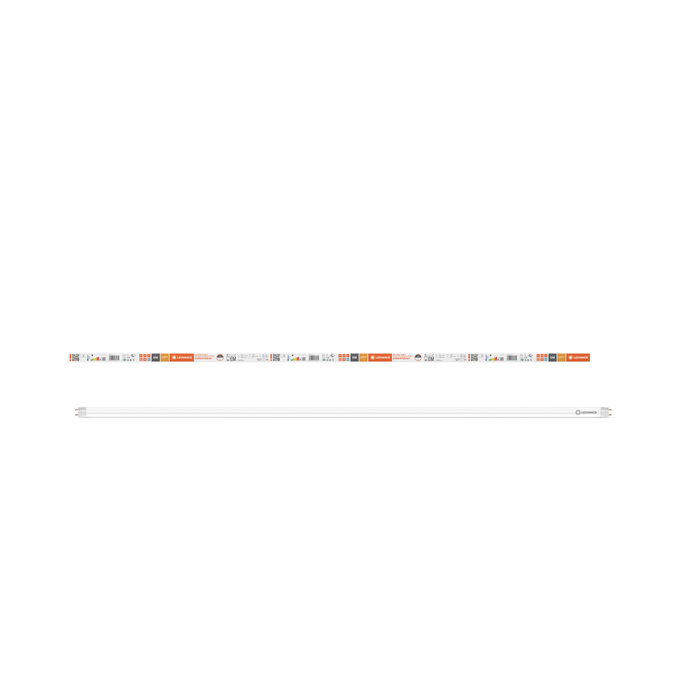

Combo Shot = Product Beauty Shot + Packaging Image
