VINTAGE 1906 LED DECORATIVE BULB WITH FILAMENT-MAGNETIC STYLE DIMMABLE

Vintage 1906 Big Elipse Oval 10 Magnetic DIM 4.8W 818 Smoke E27

GTIN: 4058075836488 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Very low energy consumption
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Type of protection: IP20, Ideal for indoor use
  • Decorative lamps with innovative LED "filament-magnetic" technology
  • No Filament Holder: Perfect for decorative installations
  • Available in various bulb shapes and diameters
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
Product features
  • Lifetime up to 15,000 h
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Lamp made of plastic
  • Pleasant light: Warm white comfort light color
  • Can be used directly as luminaire
  • Dimmable
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.8 W
Construction wattage 4.80 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 10 W
Nominal current 26 mA
Type of current AC
Inrush current 0.2 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 307
Max. lamp number on MCB B16 A 492
Total harmonic distortion ≤ 60 %
Power factor λ ≥ 0.40
Photometrical data
Luminous flux 100 lm
Luminous efficacy 20 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Comfort warm white
Color temperature 1800 K
Color rendering index Ra 80
Light color 818
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Light technical data
Beam angle 320 °
Warm-up time (60 %) 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 280.00 mm
Diameter 145.00 mm
Maximum diameter 145 mm
Product weight 255.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 49 °C
Lifespan
Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable Yes 1)
1) Check dimmer compatibility at ledvance.com/compatibility
Certificates & Standards
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG1
Country-specific categorizations
Order reference 1906LBELPOVD4,8
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Claim of equivalent power Yes
Length 280.00 mm
Height 145.00 mm
Width 145.00 mm
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor ≥0.5
LED light source replaces a fluorescent light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075836488 Folding box
1		 163 mm x 163 mm x 328 mm 453.00 g 8.71 dm³
4058075836495 Shipping box
4		 344 mm x 344 mm x 357 mm 2574.00 g 42.25 dm³
On-Pack-Info
ELR - exempt lamps
PDF (1.88 MB)
Declarations of conformity
LED lamp
PDF (331.34 KB)

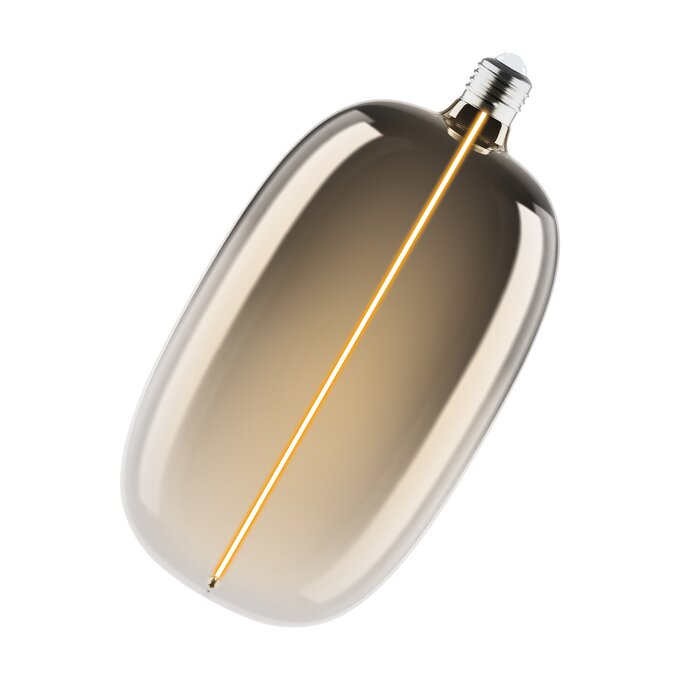

Product image: white background, diagonal
1906 LED BIG ELIPSE OVAL WG145 DIM 4,8W/818 230V FIL SmokeMAG E27OSRAM
JPG (1.9 MB)

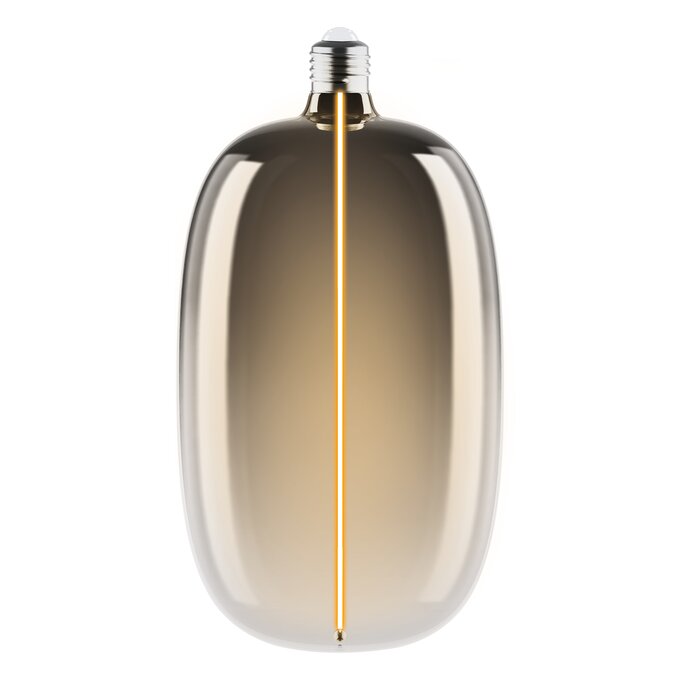

Product image: white background, upright
1906 LED BIG ELIPSE OVAL WG145 DIM 4,8W/818 230V FIL SmokeMAG E27OSRAM
JPG (1.69 MB)

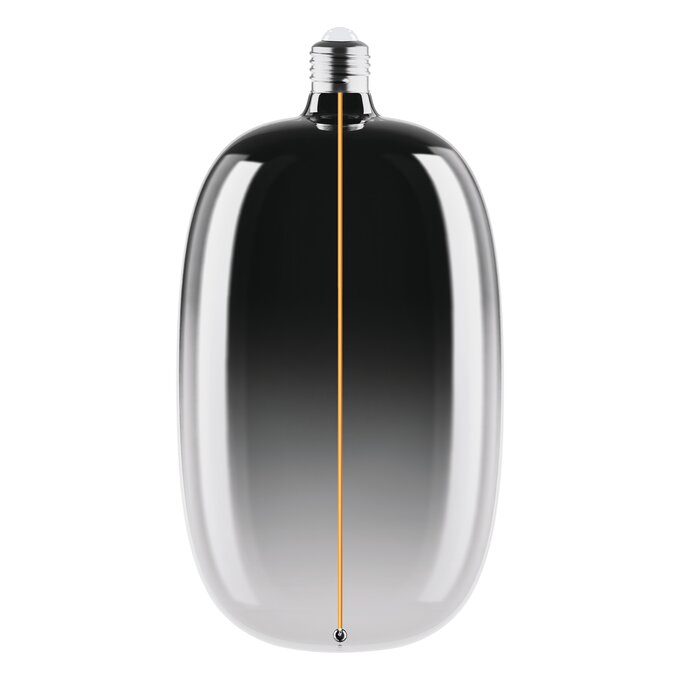

Product image: white background, upright, switched on
1906 LED BIG ELIPSE OVAL WG145 DIM 4,8W/818 230V FIL SmokeMAG E27OSRAM
JPG (1.73 MB)
Product line drawing with letters
1906 LED BIG ELIPSE OVAL WG145 DIM 4,8W/818 230V FIL SmokeMAG E27OSRAM
SVG (10.01 KB)
Product line drawing with numbers
1906 LED BIG ELIPSE OVAL WG145 DIM 4,8W/818 230V FIL SmokeMAG E27OSRAM
SVG (15.33 KB)
Product line drawing - technical
1906 LED BIG ELIPSE OVAL WG145 DIM 4,8W/818 230V FIL SmokeMAG E27OSRAM
SVG (6.14 KB)

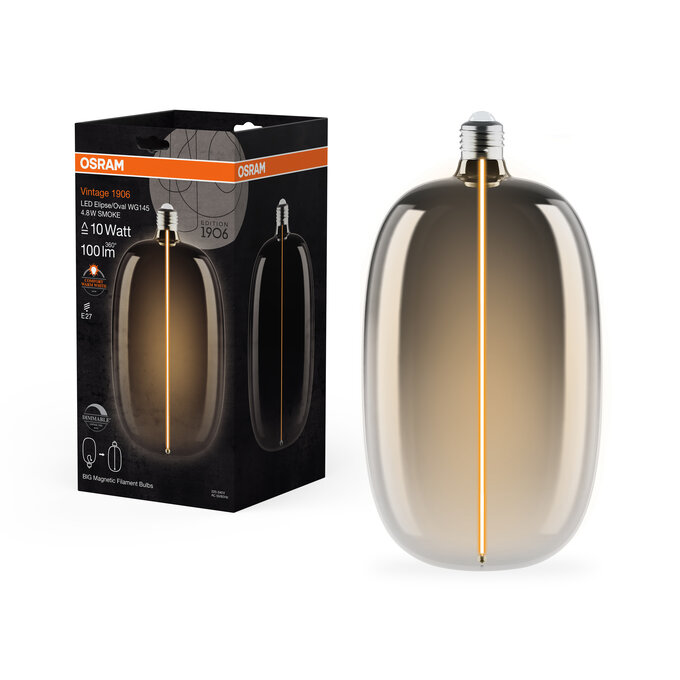

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 Elipse Oval WG145 DIM 4.8W 818 TBMAG E27
JPG (1.1 MB)

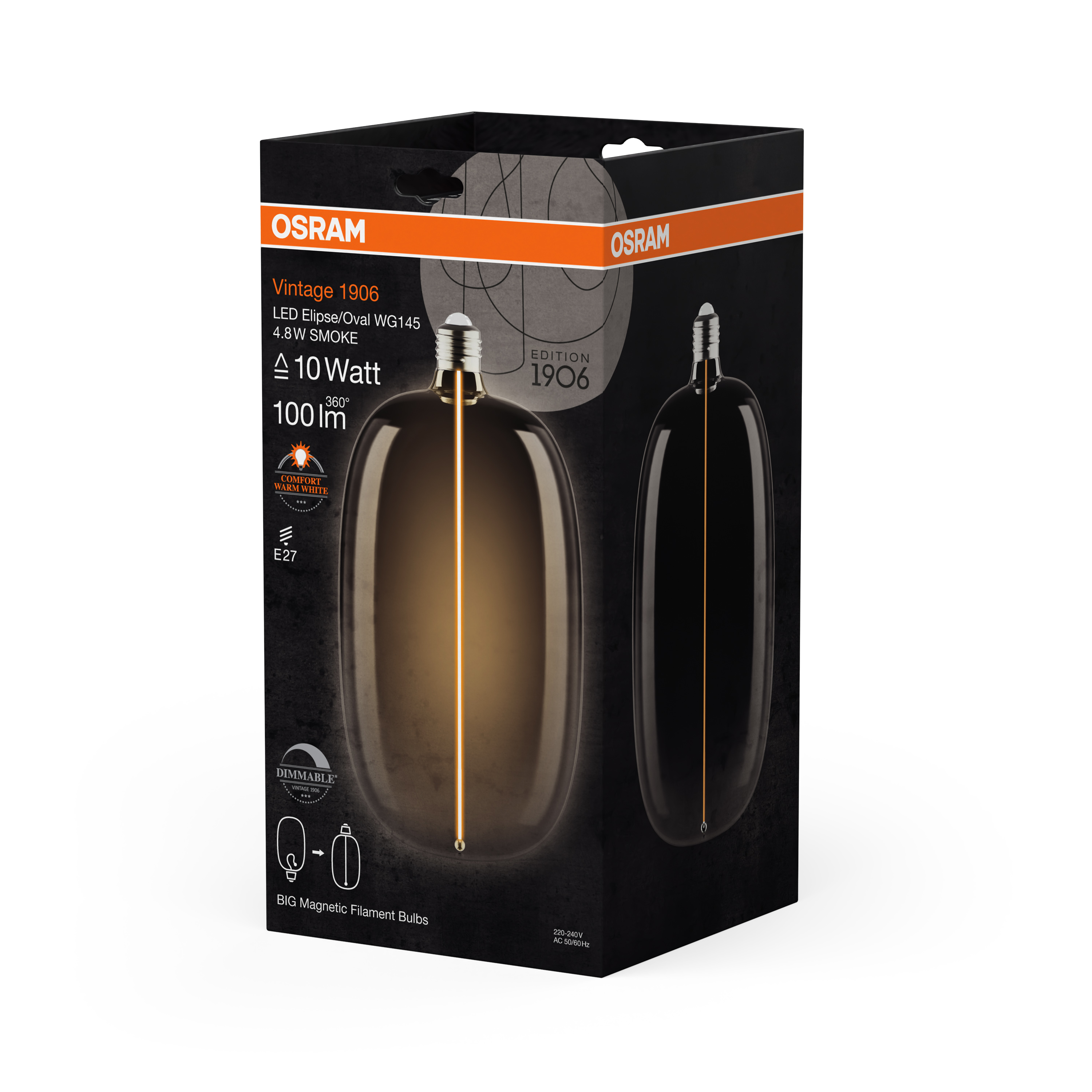

Packaging image, frontal
LED V1906 Elipse Oval WG145 DIM 4.8W 818 TBMAG E27
JPG (1.01 MB)
Packaging image, spacial
LED V1906 Elipse Oval WG145 DIM 4.8W 818 TBMAG E27
JPG (1.09 MB)

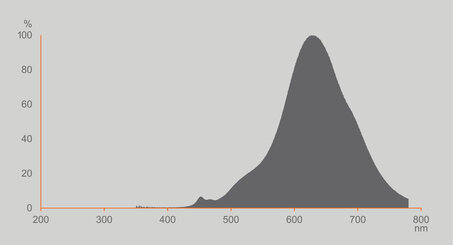

Spectral power distribution
Spectral graph Vintage 1800K MAG
JPG (178.51 KB)

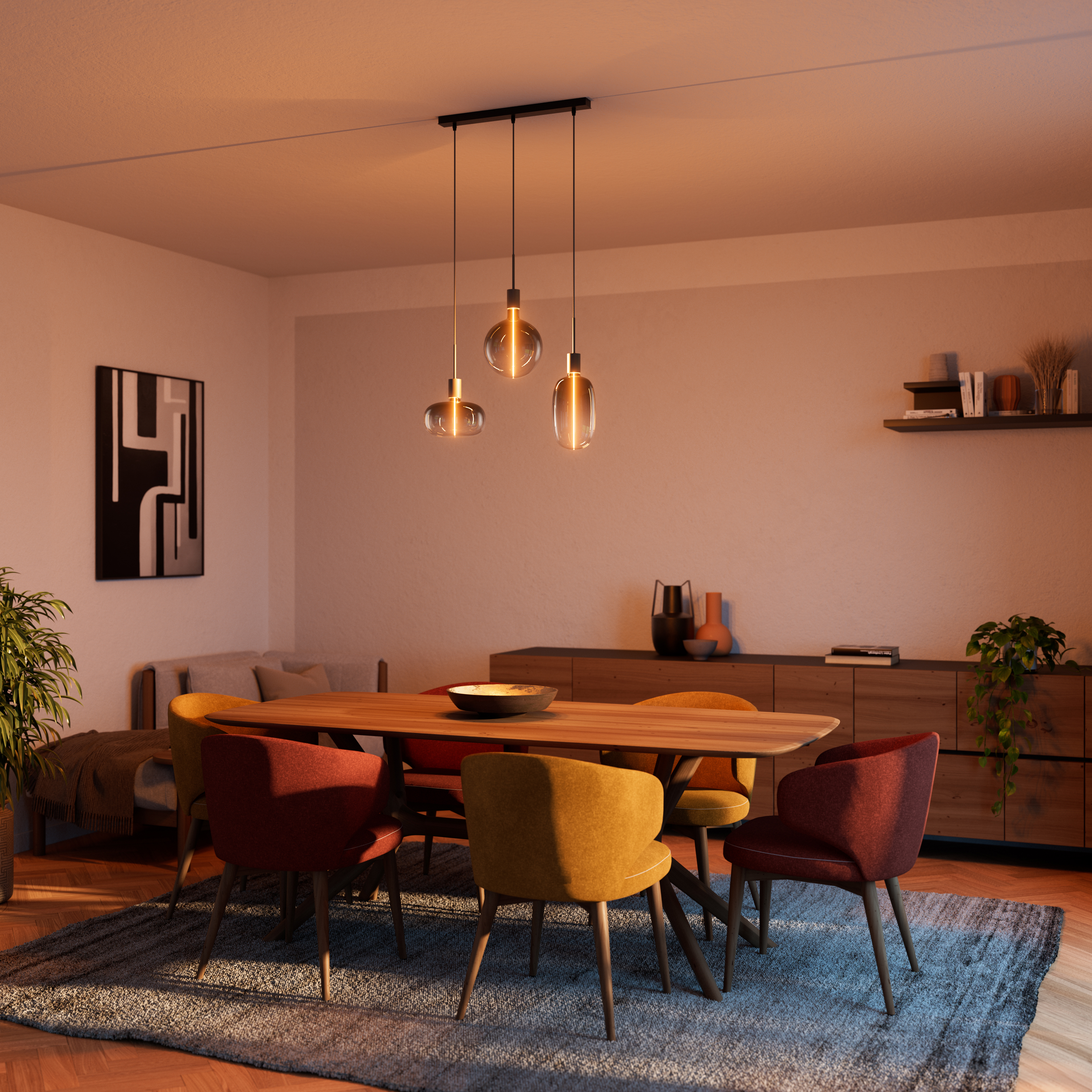

Application pictures
LED Big Magnetic Bulb Glass Smoke
JPG (7.57 MB)
EAN SEG number EFO number ELDAS number
4058075836488 8299718 3750488 941903610
