BULKHEAD COMBO ROUND BATTERY

BLKH CBO RD BAT 3.2V 1.8Ah 5.8Wh

GTIN: 4099854492518 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Suitable for BULKHEAD COMBO ROUND
Product features
  • Battery technology: LiFePO4
References / Links
Electrical data
Nominal voltage 3,2 V
Protection class I
Dimensions & Weight
Length 66.00 mm
Height 19.00 mm
Width 21.00 mm
Product weight 44.00 g
Materials & Colors
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range 0…+40 °C
Temperature range at storage -20…+40 °C
Type of connection Screwless terminal
Dimmable No
Replaceable light source No
BATTERY
Type of Battery LiFePO4
Battery size [GMS] Others
Certificates & Standards
Standards CE, CB, UKCA, EAC
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854492518 Folding box
1		 37 mm x 37 mm x 82 mm 53.00 g 0.11 dm³
4099854492525 Shipping box
50		 207 mm x 207 mm x 184 mm 2802.00 g 7.88 dm³
User instruction / safety instructions
BLKH CBO RD EM KIT
PDF (3.14 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Legal Insert G11231528
PDF (261.69 KB)
Declarations of conformity
BLKH CBO RD
PDF (230.74 KB)

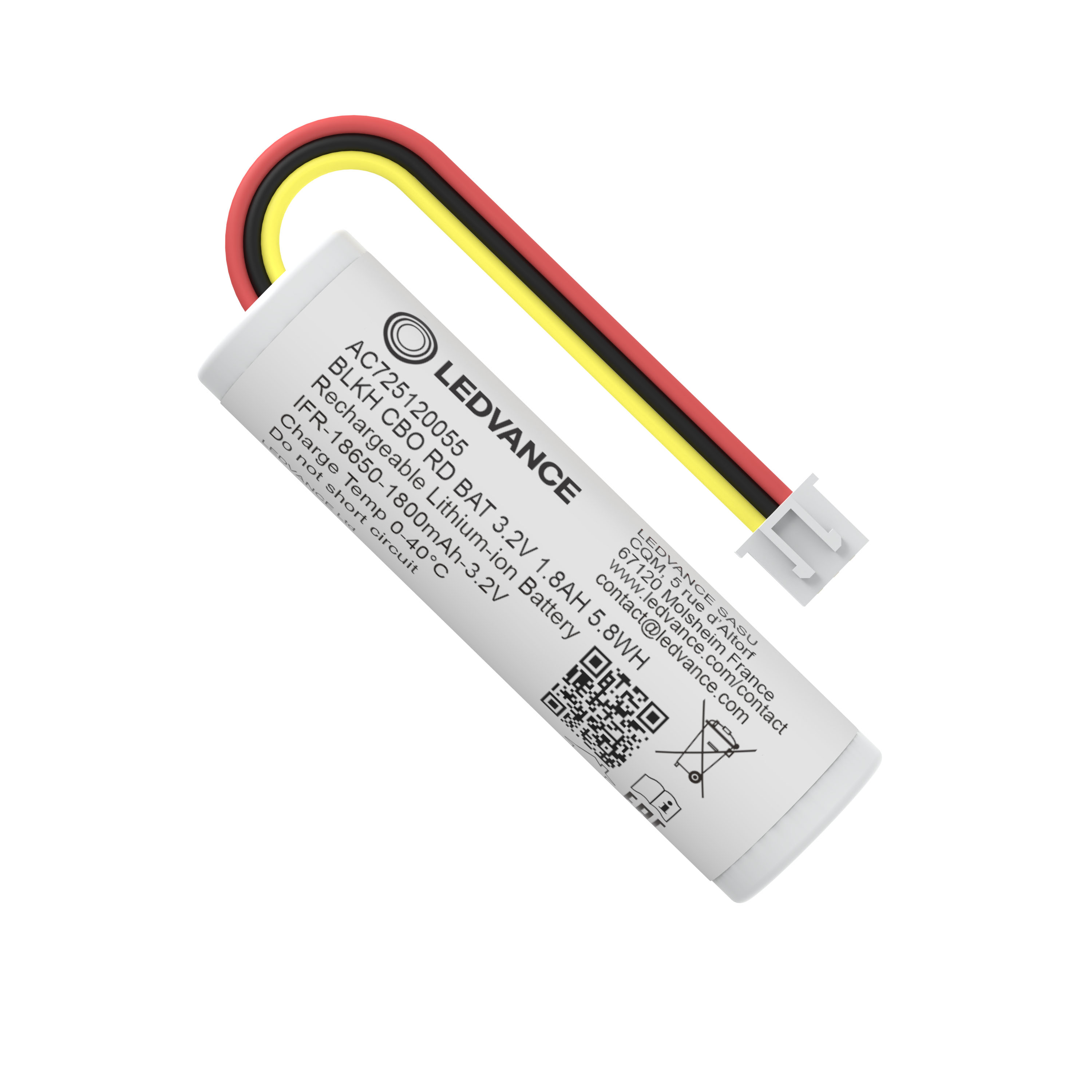

Product image: white background, diagonal
BLKH CBO RD BAT 3.2V 1.8AH 5.8WH
JPG (436.29 KB)

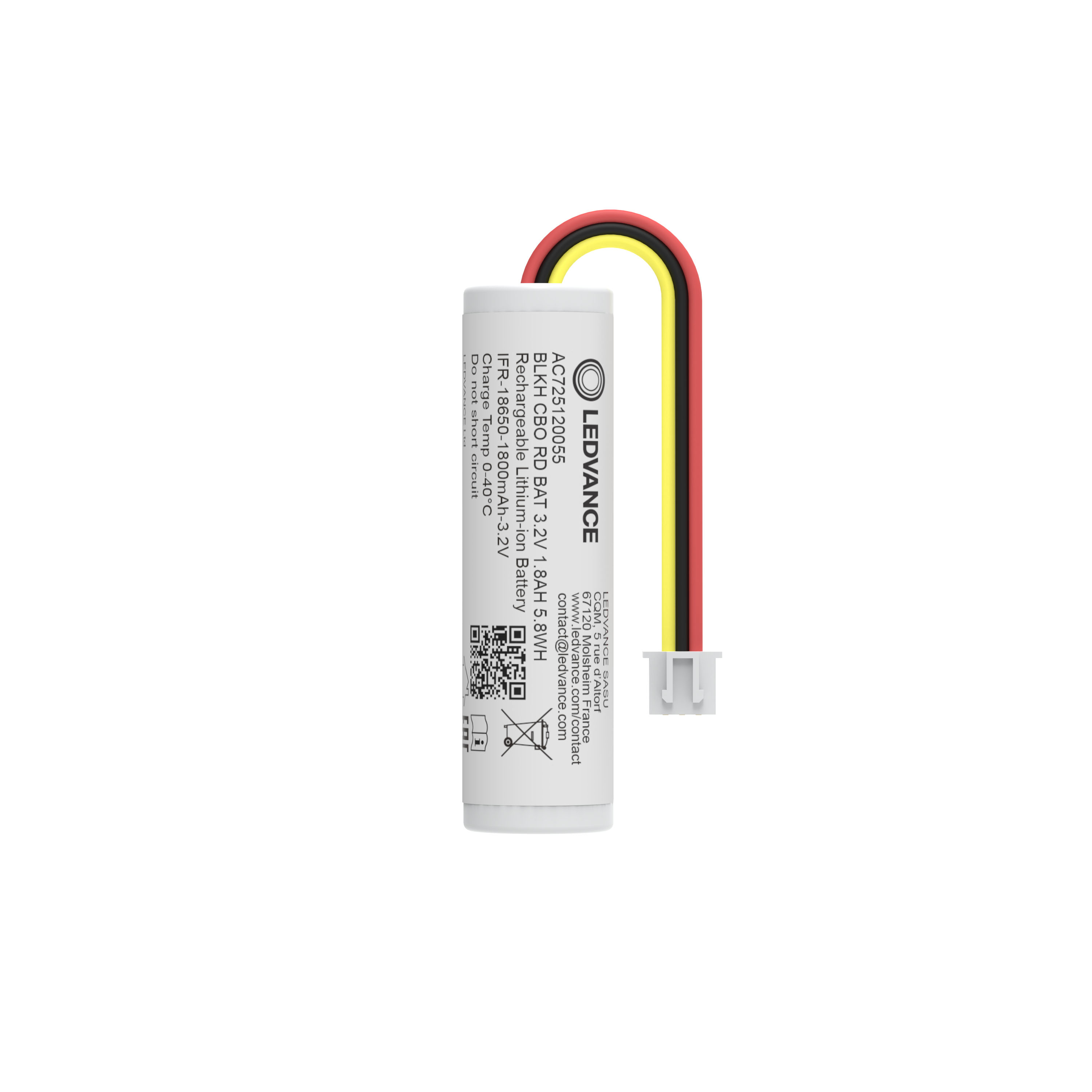

Product image: white background, horizontal
BLKH CBO RD BAT 3.2V 1.8AH 5.8WH
JPG (362.67 KB)
Product line drawing with letters
BLKH CBO RD BAT 3.2V 1.8AH 5.8WH
SVG (13.41 KB)
Product line drawing with numbers
BLKH CBO RD BAT 3.2V 1.8AH 5.8WH
SVG (18.89 KB)
Product line drawing - technical
BLKH CBO RD BAT 3.2V 1.8AH 5.8WH
SVG (9.63 KB)
Tender documents
BULKHEAD COMBO ROUND BATTERY BAT 3 2V 1 8Ah 5 8Wh-en
TXT (643 B)
EAN SEG number STK number UK Org
4099854492518 7706781 4161078 438157318
