BULKHEAD ROUND LIGHT SOURCES
LISOEV 300R 15W 830 840 BLKH
GTIN: 4099854311970
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- 3000 K and 4000 K LEDs integrated
- Diffuser with light source as one package
- Tool-free electrical connection with plug connectors
- Very homogenous light with a slight backlight effect
Areas of application
- Suitable for BULKHEAD ROUND
Product features
- Type of protection: IP20
- UV-stabilized polycarbonate (PC) housing, PC-diffuser
Equipment / Accessories
- Gasket included
- Connection wire for direct installation integrated
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 15 W |
| Nominal voltage | 37…44 V |
Photometrical data
| Luminous flux | 2270 lm |
| Luminous efficacy | 151 lm/W |
| Color temperature | 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 5 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 300.00 mm |
| Height | 38.00 mm |
| Product weight | 397.00 g |
Materials & Colors
| Product color | Transparent |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 70000 h |
| Lifespan L80/B10 at 25 °C | 55000 h |
| Lifespan L90/B10 at 25 °C | 35000 h |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC, ENEC, EL |
| Replaceable light source (EPREL) | By the end consumer |
Additional product data
| Added function | EVERLOOP, MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854311970 | Folding box 1 |
52 mm x 308 mm x 308 mm | 475.00 g | 4.93 dm³ |
| 4099854311987 | Shipping box 8 |
630 mm x 320 mm x 235 mm | 4400.00 g | 47.38 dm³ |
User instruction / safety instructions
LISOEV
LISOEV
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
LISOEV 830 840 BLKH
LISOEV 830 840 BLKH
Legal information
Legal Insert G11201956
Legal Insert G11201956
Legal information
Safety Insert G11218810
Safety Insert G11218810
Legal information
Light Source Insert G11202326
Light Source Insert G11202326
Declarations of conformity
BLKH RD/LISOEV
BLKH RD/LISOEV

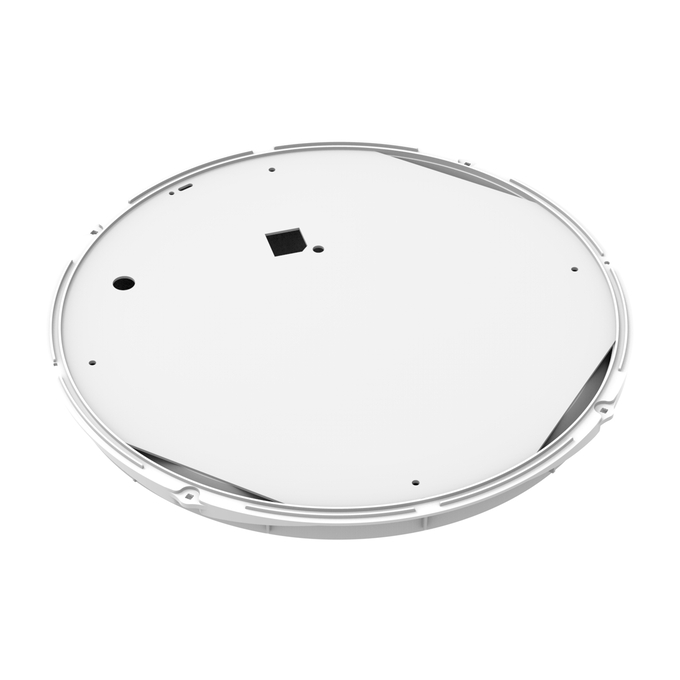

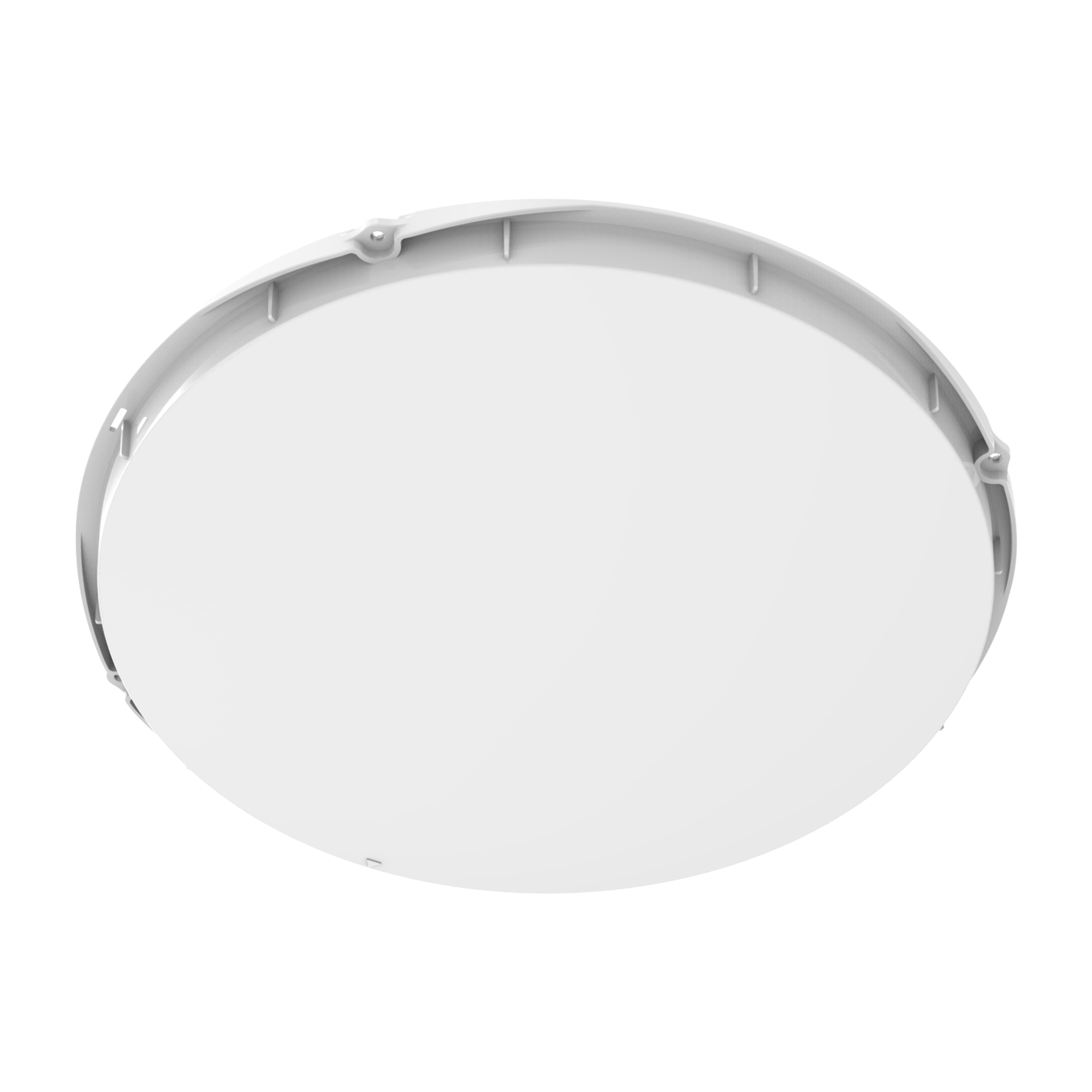

Product image: white background, diagonal
SF BULKHEAD G2 Light source
SF BULKHEAD G2 Light source

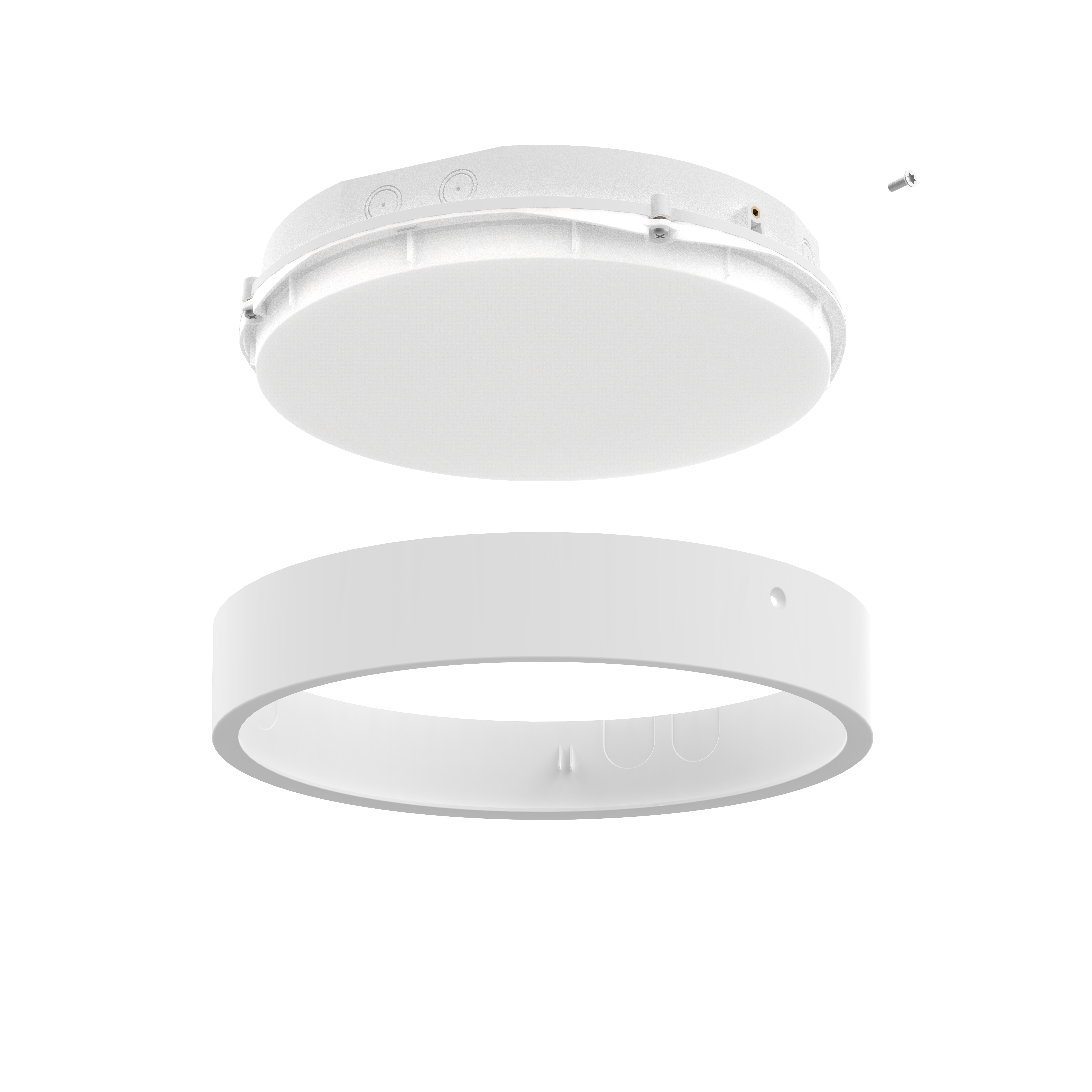

Product image: white background, explosion
Bulkhead Round Eveloop
Bulkhead Round Eveloop
Product line drawing with letters
SF BULKHEAD G2 Light source
SF BULKHEAD G2 Light source
Product line drawing with numbers
SF BULKHEAD G2 Light source
SF BULKHEAD G2 Light source

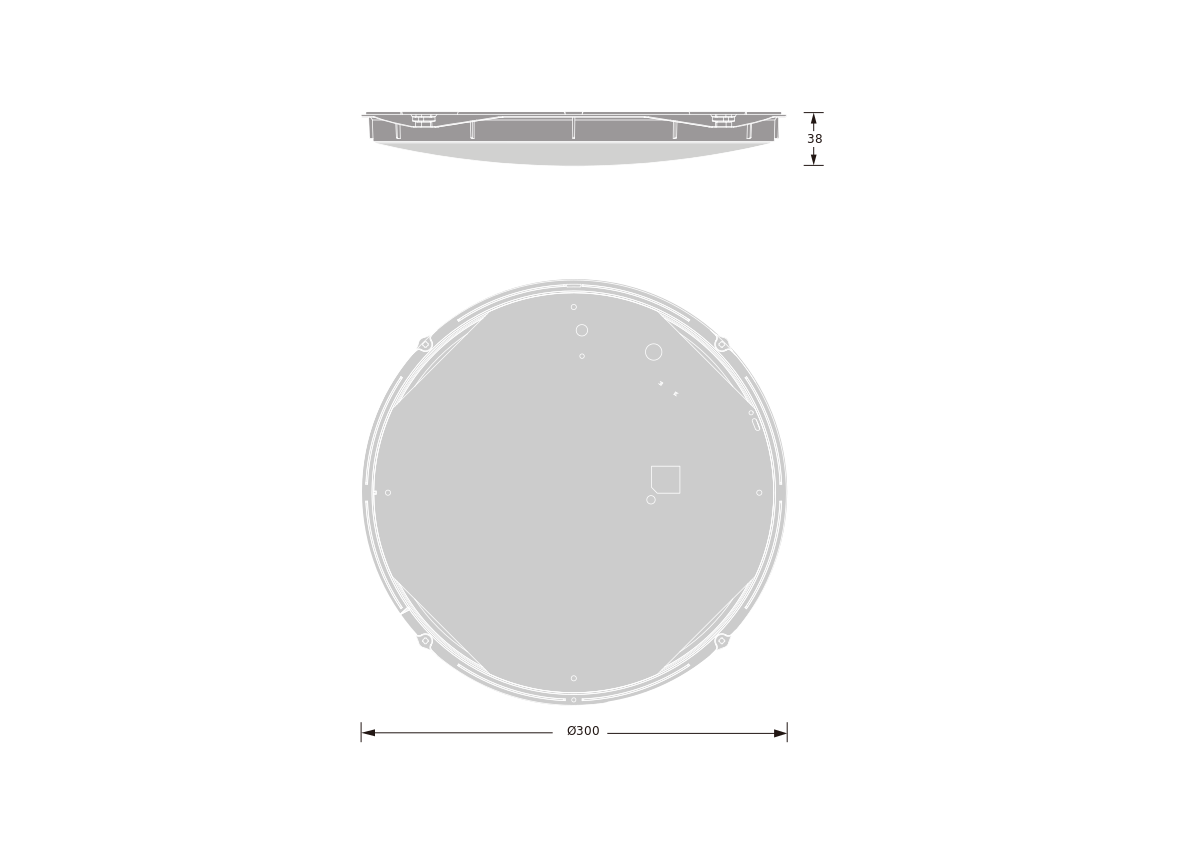

Product line drawing - technical
SF BULKHEAD G2 Light source
SF BULKHEAD G2 Light source

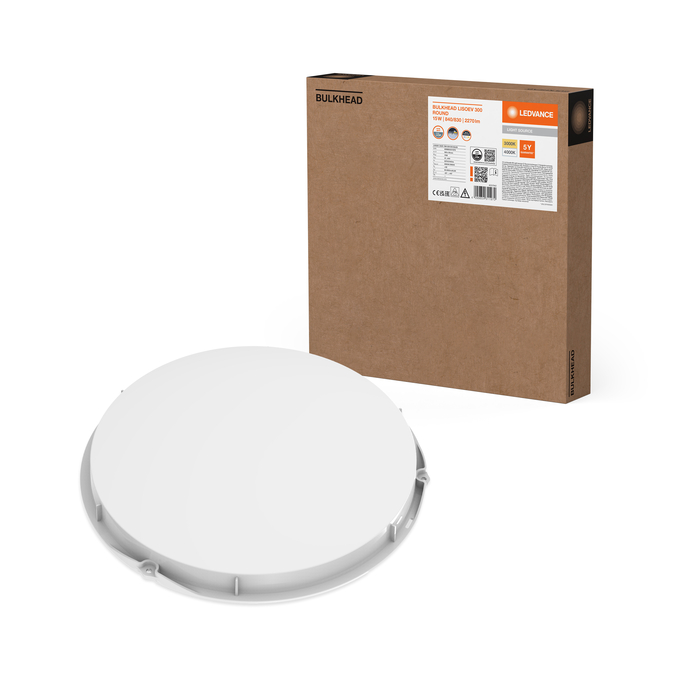

Combo Shot = Product Beauty Shot + Packaging Image
LISOEV 300R 15W 830 840 BLKH
LISOEV 300R 15W 830 840 BLKH
Packaging image, frontal
LISOEV 300R 15W 830 840 BLKH
LISOEV 300R 15W 830 840 BLKH
Packaging image, spacial
LISOEV 300R 15W 830 840 BLKH
LISOEV 300R 15W 830 840 BLKH
IES file (IES)
LISOEV 300R 15W 830 BLKH LEDV
LISOEV 300R 15W 830 BLKH LEDV
IES file (IES)
LISOEV 300R 15W 840 BLKH LEDV
LISOEV 300R 15W 840 BLKH LEDV
LDT file (Eulumdat)
LISOEV 300R 15W 830 BLKH LEDV
LISOEV 300R 15W 830 BLKH LEDV
LDT file (Eulumdat)
LISOEV 300R 15W 840 BLKH LEDV
LISOEV 300R 15W 840 BLKH LEDV
UGR file (UGR table)
LISOEV 300R 15W 830 BLKH LEDV
LISOEV 300R 15W 830 BLKH LEDV
UGR file (UGR table)
LISOEV 300R 15W 840 BLKH LEDV
LISOEV 300R 15W 840 BLKH LEDV
Light distribution curve type cone
LISOEV 300R 15W 830 BLKH LEDV
LISOEV 300R 15W 830 BLKH LEDV
Light distribution curve type cone
LISOEV 300R 15W 840 BLKH LEDV
LISOEV 300R 15W 840 BLKH LEDV
Light distribution curve type polar
LISOEV 300R 15W 830 BLKH LEDV
LISOEV 300R 15W 830 BLKH LEDV
Light distribution curve type polar
LISOEV 300R 15W 840 BLKH LEDV
LISOEV 300R 15W 840 BLKH LEDV
Tender documents
BULKHEAD ROUND LIGHT SOURCES 300R 15W 830 840 BLKH-EN
BULKHEAD ROUND LIGHT SOURCES 300R 15W 830 840 BLKH-EN
| EAN | SEG number | STK number | UK Org |
|---|---|---|---|
| 4099854311970 | 8100017 | 4152093 | 437370303 |
