CONNECTOR BOX

CONNECTOR BOX 3POLE L/N/E

GTIN: 4099854013508 BAG / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Through-wiring possible on the primary side
Areas of application
  • For use in recessed ceilings
Product features
  • Connector box with push wire terminal for tool-free connection
  • Suitable for recessed On-/Off-luminaires of the electric class II (L/N version)
Dimensions & Weight
Length 94.0 mm
Height 22.0 mm
Width 35.0 mm
Product weight 20.00 g
Materials & Colors
Product color White
Body material Polycarbonate (PC)
Application & Mounting
Ambient temperature range -20…+40 °C
Mounting location Ceiling
Replaceable light source No
Certificates & Standards
Standards CE, CB, UKCA, EAC
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854013508 BAG
1		 95 mm x 36 mm x 22 mm 24.00 g 0.08 dm³
4099854013515 Shipping box
20		 165 mm x 100 mm x 120 mm 533.00 g 1.98 dm³
4099854013522 Shipping box
360		 520 mm x 320 mm x 270 mm 1180.00 g 44.93 dm³
User instruction / safety instructions
UI SP FIX P and SP FIX ADJ
PDF (3.71 MB)
User instruction / safety instructions
UI SP DK FIX P
PDF (3.22 MB)
User instruction / safety instructions
UI SP AIR FIX P
PDF (4.12 MB)
User instruction / safety instructions
UI SP FP FIX P
PDF (3.22 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
CE Declaration of Conformity SPOTLIGHT ACCESSORY
PDF (206.8 KB)

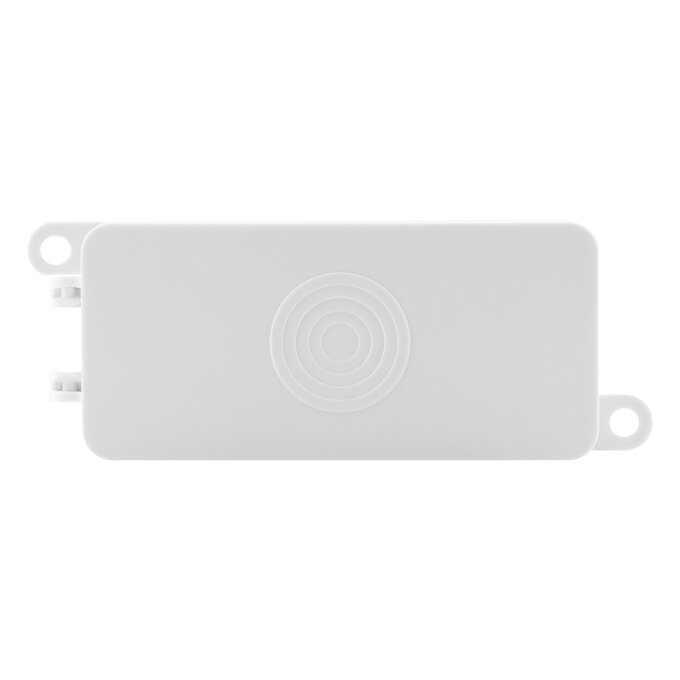

Product image: white background, horizontal
CONNECTOR BOX 3POLE L/N/E
JPG (1.03 MB)

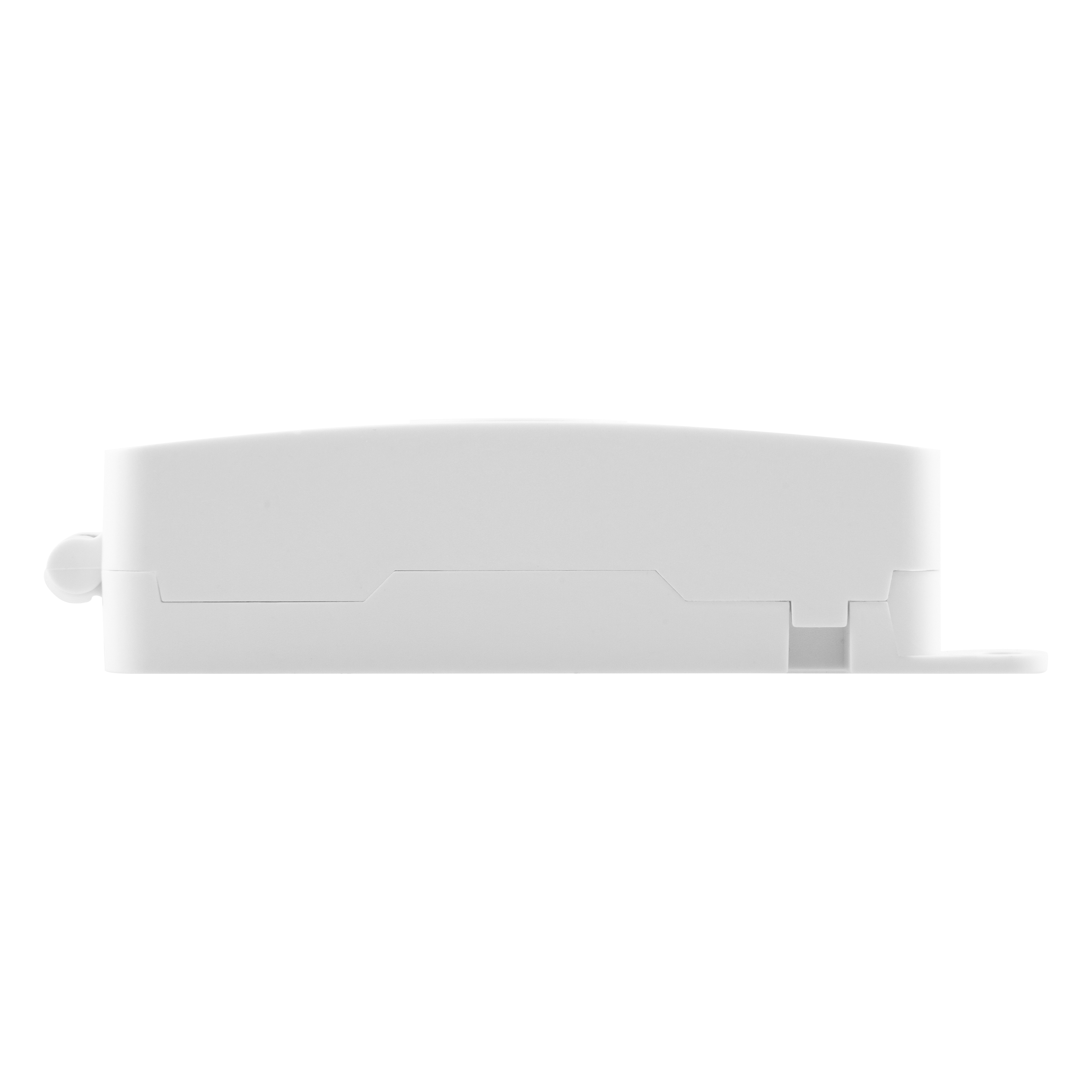

Product image: white background, upright
CONNECTOR BOX 3POLE L/N/E
JPG (1.26 MB)

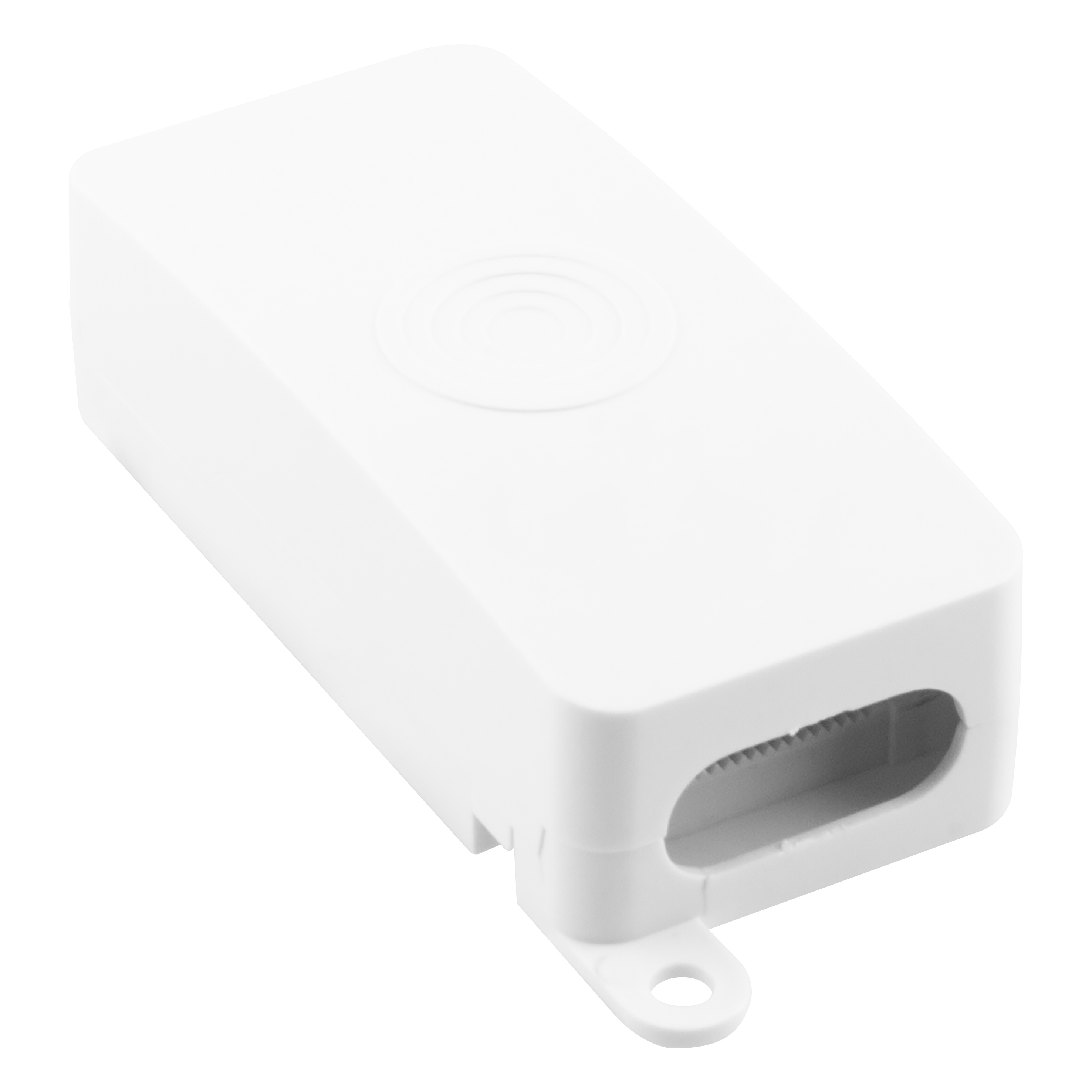

Product image: white background, spacial
