SPOT HOLDER
SP HOLDER DN68 H65
GTIN: 4099854013478
BAG / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Increase distance between spotlight and thermal insulation material
- Protects moisture barrier foil from hot surface of spotlight and driver
- Robust: 4-leg spacer to hold thermal insulation material
- Improved lifetime for LED and driver thanks to increased air-volume
Areas of application
- Ceilings in low energy houses
- Ceilings with thermal insulation material
Product features
- Material: fibre-reinforced polyamide PA66
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- Suitable only for LEDVANCE SPOTs in 68 mm cut-out
Safety advice
- This spacer is only allowed to be used in combination with SP AIR FIX or SP AIR ADJ!
Dimensions & Weight
| Length | 93.0 mm |
| Height | 73 mm |
| Width | 93.0 mm |
| Product weight | 19.00 g |
Materials & Colors
| Product color | Grey |
| Body material | Polyamid (PA) |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Mounting diameter | 68…83 mm |
| Mounting depth | 65,0 mm |
| Replaceable light source | No |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854013478 | BAG 1 |
95 mm x 95 mm x 73 mm | 23.00 g | 0.66 dm³ |
| 4099854013485 | Shipping box 20 |
175 mm x 175 mm x 135 mm | 522.00 g | 4.13 dm³ |
| 4099854013492 | Shipping box 360 |
550 mm x 545 mm x 300 mm | 2291.00 g | 89.93 dm³ |
User instruction / safety instructions
UI SP AIR FIX P
UI SP AIR FIX P
Declarations of conformity
CE Declaration of Conformity SPOTLIGHT ACCESSORY
CE Declaration of Conformity SPOTLIGHT ACCESSORY

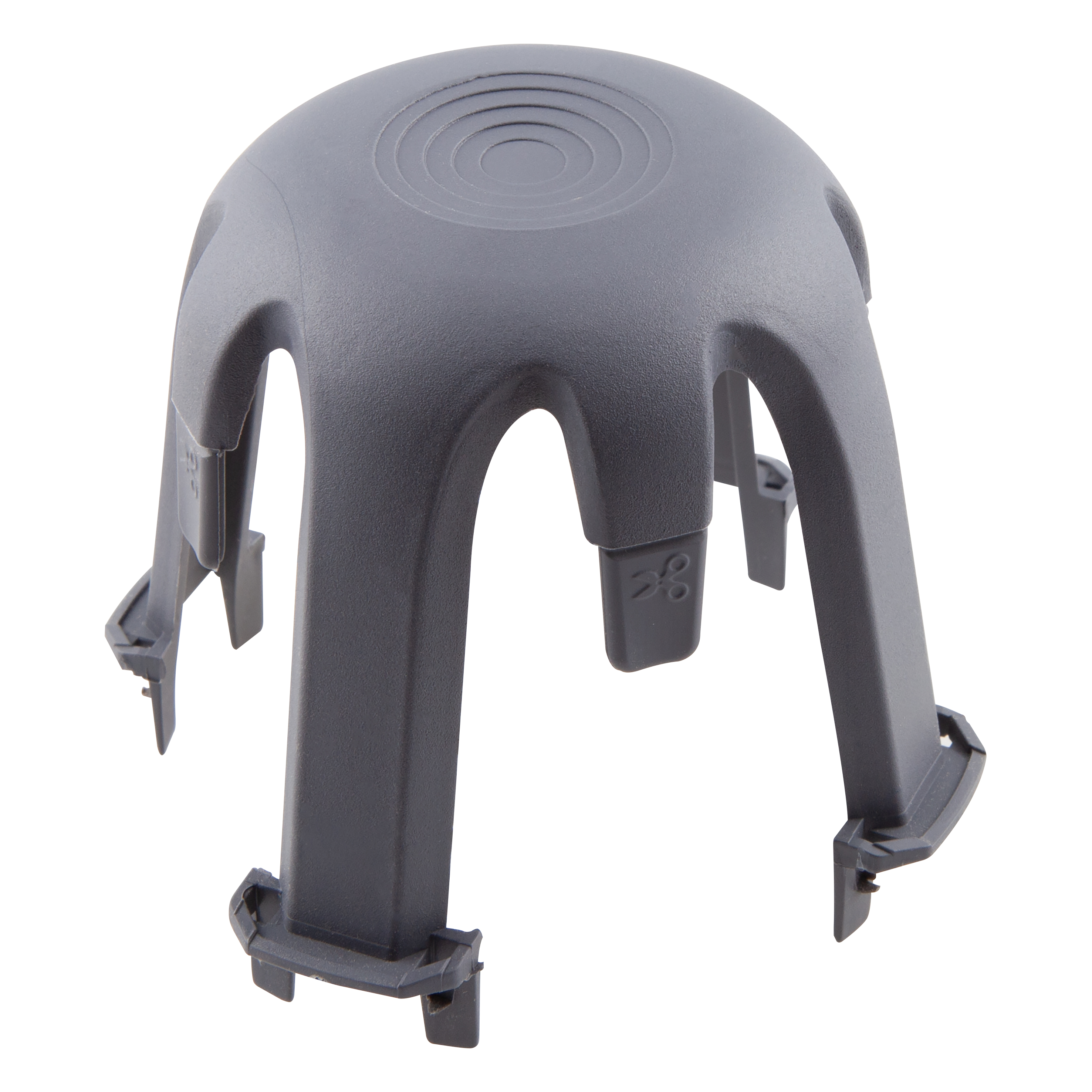

Product image: white background, diagonal
SP HOLDER DN68 H65
SP HOLDER DN68 H65

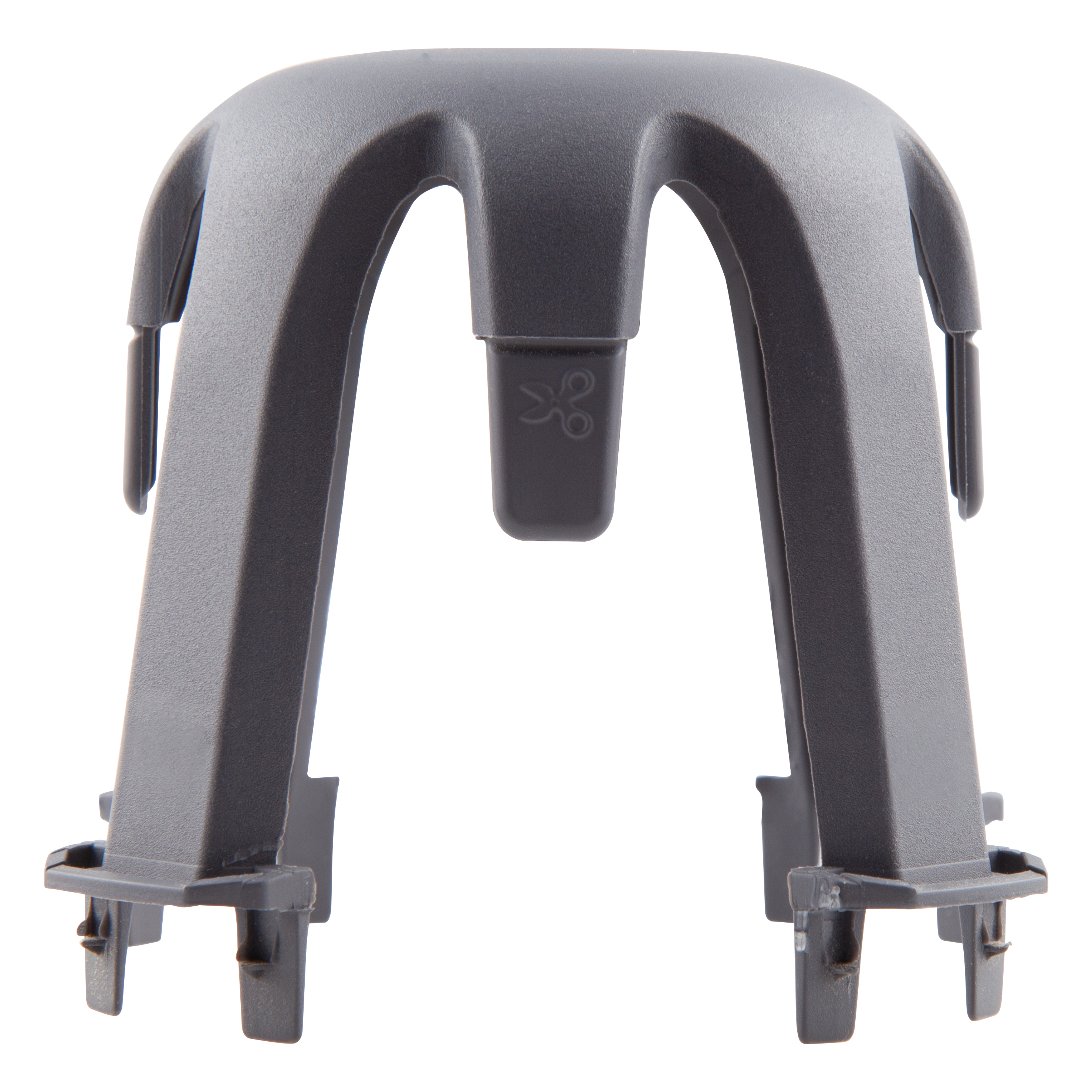

Product image: white background, upright
SP HOLDER DN68 H65
SP HOLDER DN68 H65
Product line drawing with letters
SP HOLDER DN68 H65
SP HOLDER DN68 H65
Product line drawing with numbers
SP HOLDER DN68 H65
SP HOLDER DN68 H65
Product line drawing - technical
SP HOLDER DN68 H65
SP HOLDER DN68 H65
Tender documents
SPOT HOLDER DN68 H65-EN
SPOT HOLDER DN68 H65-EN
| EAN | SEG number | STK number | EFO number | ELDAS number | UK Org |
|---|---|---|---|---|---|
| 4099854013478 | 7452940 | 4136166 | 3252692 | 941902620 | 435133034 |
