PRODUCT DETAILS
Product benefits
- Retrofit: Replacement of old recessed lights with LEDVANCE SPOTs FIX or ADJ in latest LED-technology
- Standardize: Reduce existing cut-outs to a standard cut-out of 68 mm
- Versatile: Refurbishment rings for padding cut-out holes from Ø68 - Ø90 or Ø68 - Ø115 or Ø115 - Ø160 mm
Areas of application
- Refurbishment of existing cut-outs in recessed ceilings
Product features
- Material: deep-drawn steel
- Suitable only for LEDVANCE SPOTs in 68 mm cut-out
- Silicon-pad protected springs
Dimensions & Weight
| Diameter | 133 mm |
| Height | 3 mm |
| Product weight | 62.00 g |
Materials & Colors
| Product color | Black |
| Body material | Steel |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Mounting diameter | 68…115 mm |
| Replaceable light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854013386 | BAG 1 |
135 mm x 135 mm x 3 mm | 66.00 g | 0.05 dm³ |
| 4099854013393 | Shipping box 20 |
145 mm x 145 mm x 60 mm | 1365.00 g | 1.26 dm³ |
| 4099854013409 | Shipping box 160 |
310 mm x 310 mm x 150 mm | 1818.00 g | 14.42 dm³ |
User instruction / safety instructions
UI SP FIX P and SP FIX ADJ
UI SP FIX P and SP FIX ADJ
User instruction / safety instructions
UI SP DK FIX P
UI SP DK FIX P
User instruction / safety instructions
UI SP AIR FIX P
UI SP AIR FIX P
Declarations of conformity
CE Declaration of Conformity SPOTLIGHT ACCESSORY
CE Declaration of Conformity SPOTLIGHT ACCESSORY

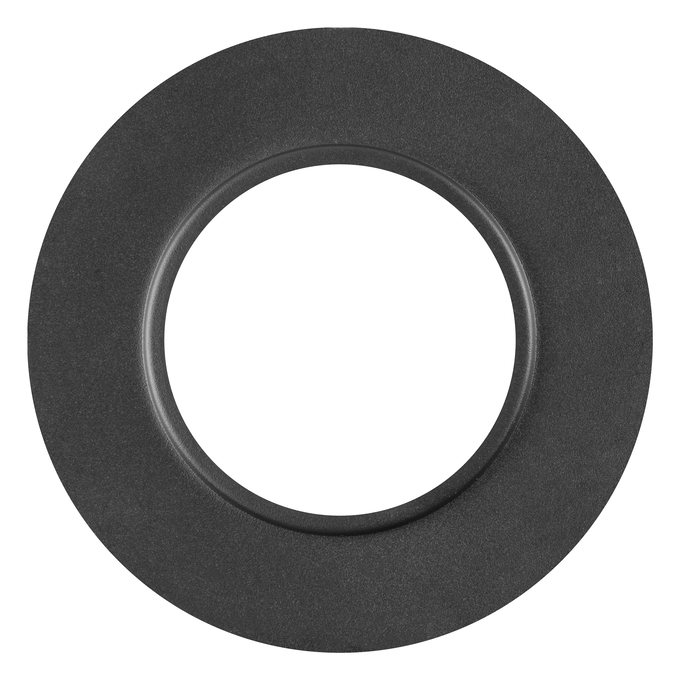

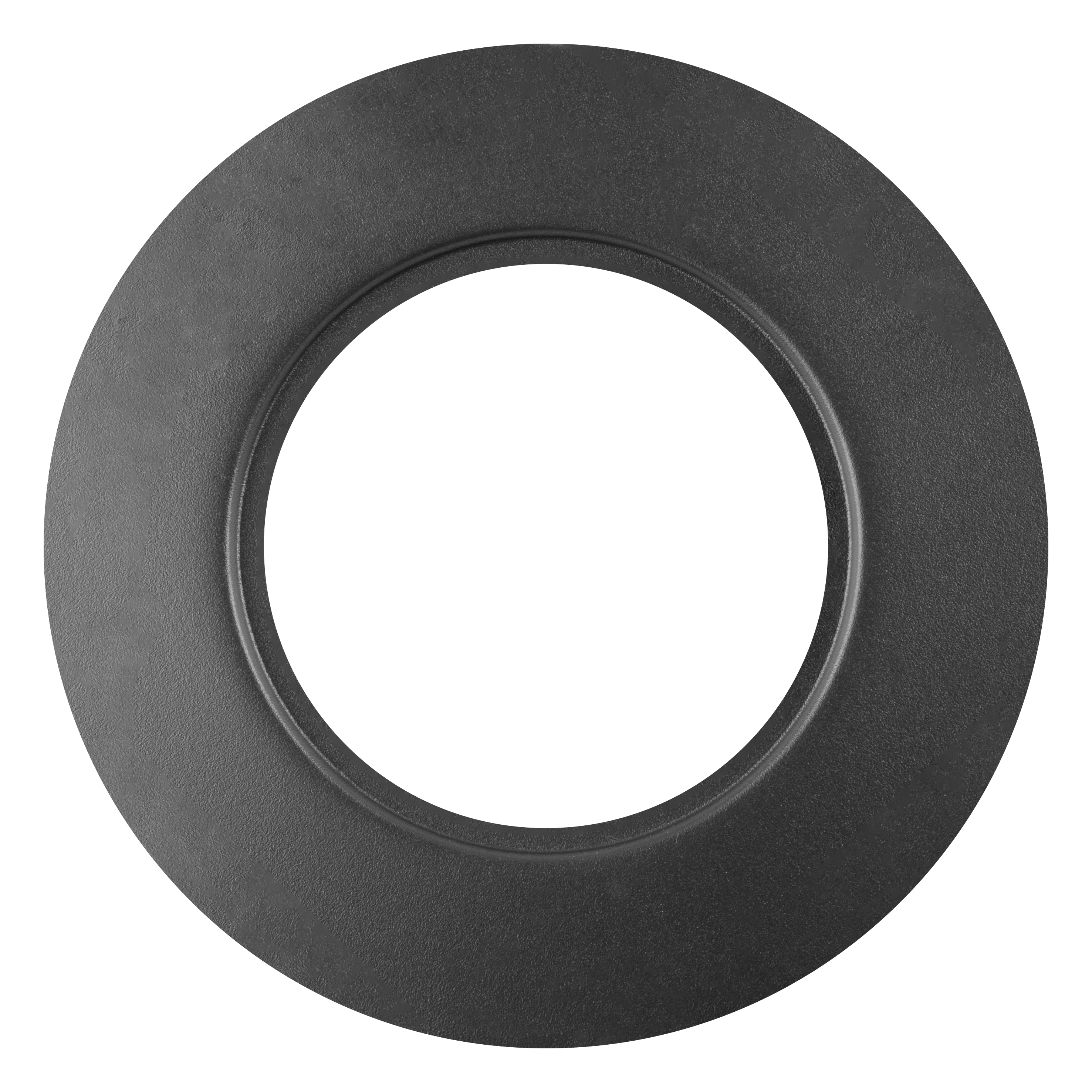

Product image: white background, upright
SP RING D133 BK
SP RING D133 BK

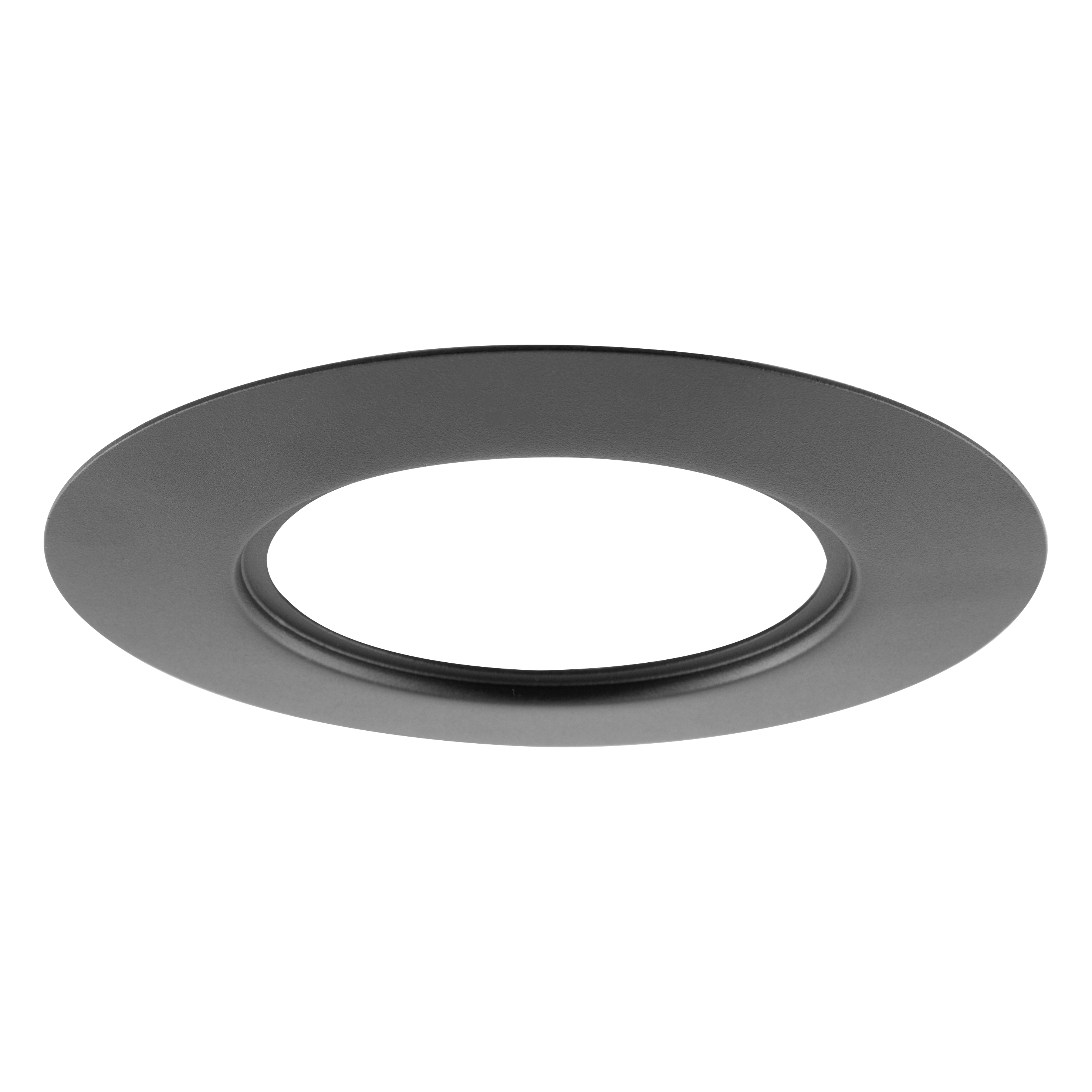

Product image: white background, upright
SP RING D133 BK
SP RING D133 BK
Product image: white background, upright, alternative image
SP RING D133 BK
SP RING D133 BK
Product line drawing with letters
SP RING
SP RING
Product line drawing with numbers
Product line drawing - technical
SP RING
SP RING

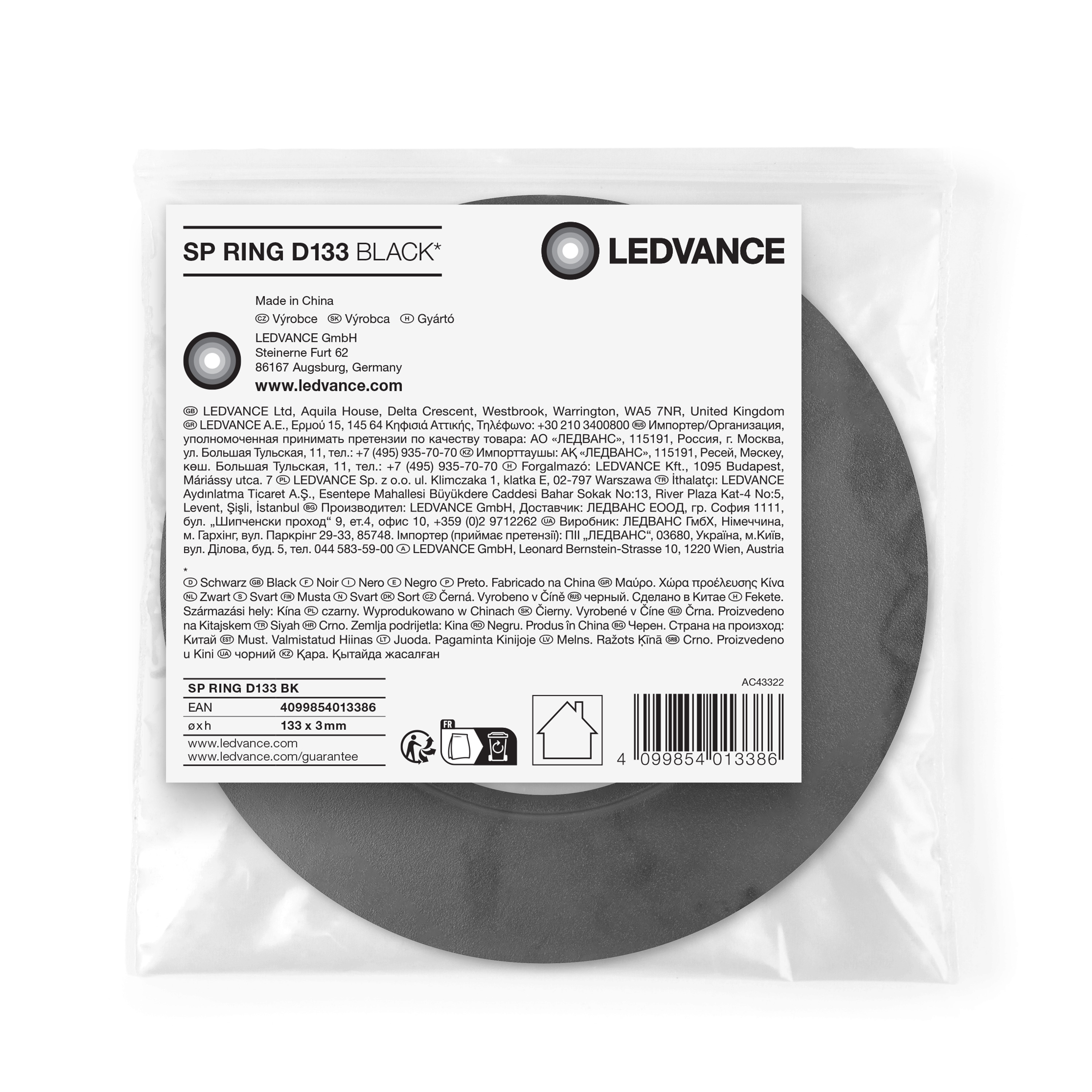

Packaging image, frontal
SP RING D133 BK
SP RING D133 BK
Tender documents
SPOT RING D133 BK-EN
SPOT RING D133 BK-EN
| EAN | SEG number | STK number | EFO number | ELDAS number | UK Org |
|---|---|---|---|---|---|
| 4099854013386 | 7452937 | 4136163 | 3252690 | 941902600 | 435132705 |
