SP DRIVER
SP DRIVER DALI 8W
GTIN: 4099854089558
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- DALI driver with individual luminaire current set-up already installed
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- Easy replacement of external driver thanks to plug with bayonet lock
Areas of application
- DALI installations
Product features
- IoT-ready driver with DALI-2 technology
- Push DIM function for dimming and switching directly on a pushbutton
- Suitable for emergency central battery installations acc. to EN 60598-2-22
- Twist & lock connector for ease of installation
Equipment / Accessories
- Can only be used with LEDVANCE SPOTs 8 W (CC 180mA)
Safety advice
- Do not cover with any thermal insulation material!
Electrical data
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Max. number of luminaires per miniature circuit breaker B16 | 130 |
| Power factor λ | 0.90 |
| Protection class | II |
Dimensions & Weight
| Length | 120.00 mm |
| Height | 30.00 mm |
| Width | 53.00 mm |
| Product weight | 100.00 g |
Materials & Colors
| Product color | Grey |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -42…+80 °C |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | DALI2 |
| Replaceable light source | No |
Control gear
| Output current | 180 mA |
Emergency lighting
| Wattage in emergency operation mode | 3,0 W |
| Luminous flux in emergency operation mode | 120 lm |
Certificates & Standards
| Standards | CE, UKCA, EAC |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854089558 | Folding box 1 |
35 mm x 220 mm x 62 mm | 205.00 g | 0.48 dm³ |
| 4099854089565 | Shipping box 4 |
227 mm x 155 mm x 74 mm | 1025.00 g | 2.60 dm³ |
User instruction / safety instructions
UI SP FIX P and SP FIX ADJ
UI SP FIX P and SP FIX ADJ
User instruction / safety instructions
UI SP DK FIX P
UI SP DK FIX P
User instruction / safety instructions
UI SP FP FIX P
UI SP FP FIX P
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
EU Data Act
DALI LED Driver and Luminaires
DALI LED Driver and Luminaires

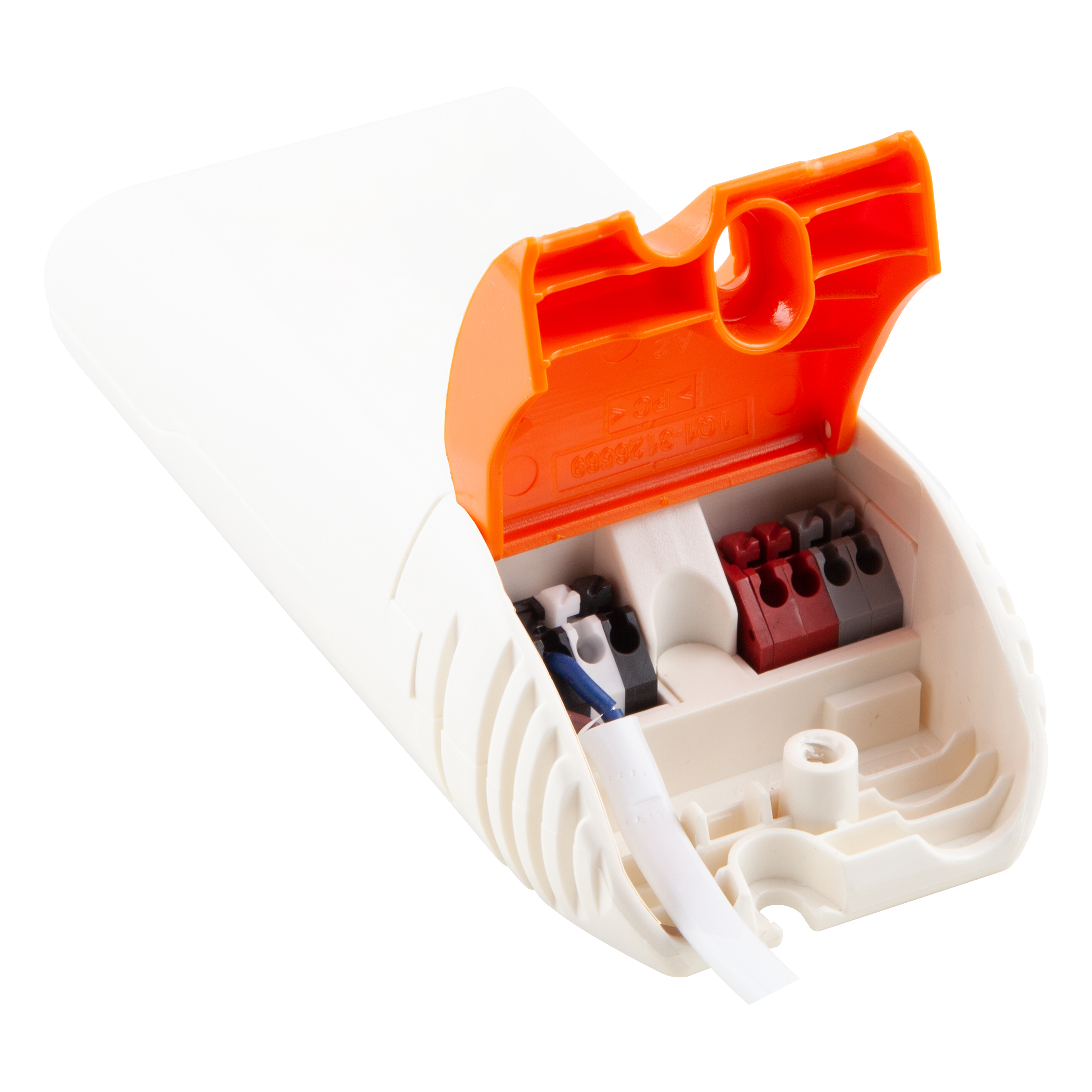

Product image: white background, upright
SP DRIVER DALI 8W
SP DRIVER DALI 8W

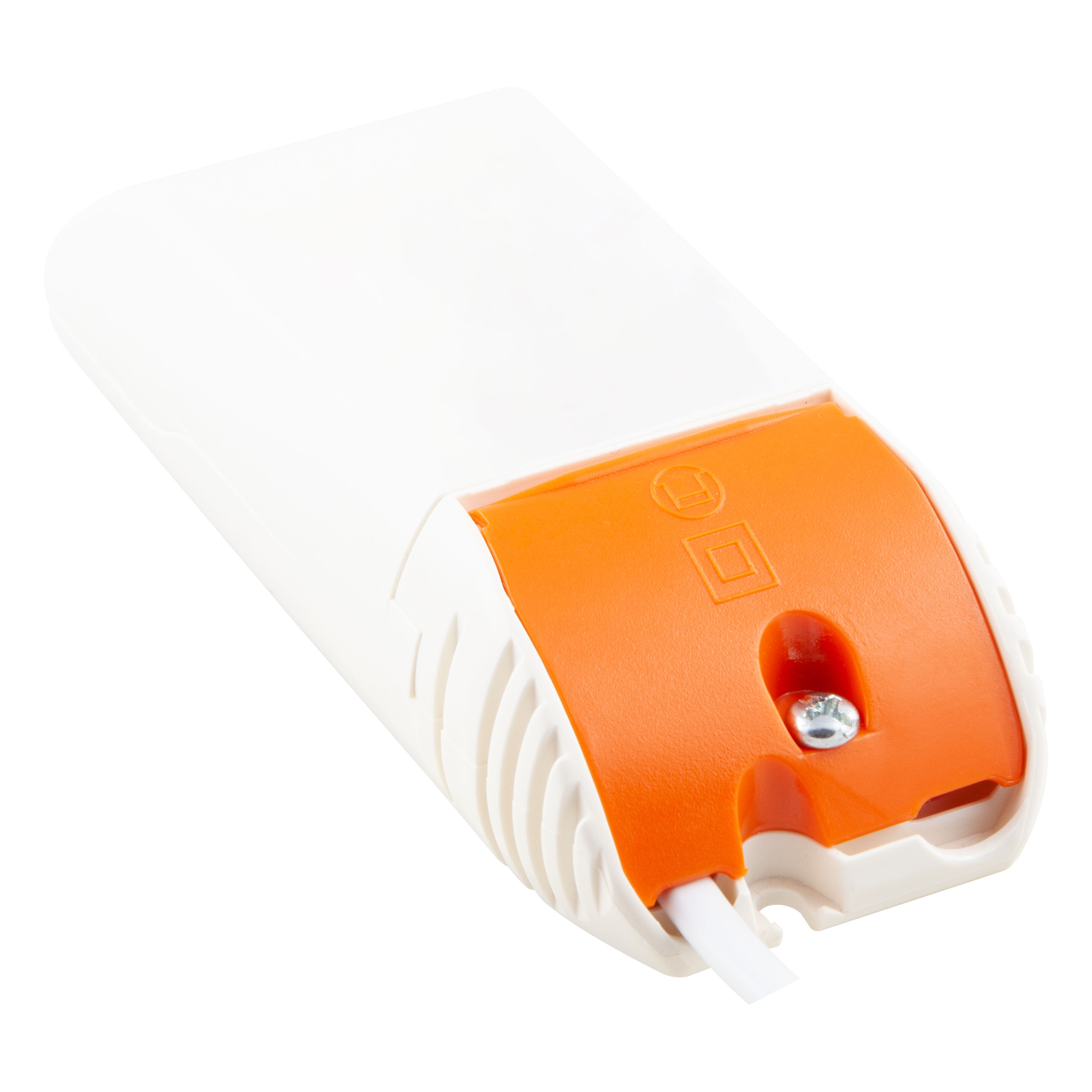

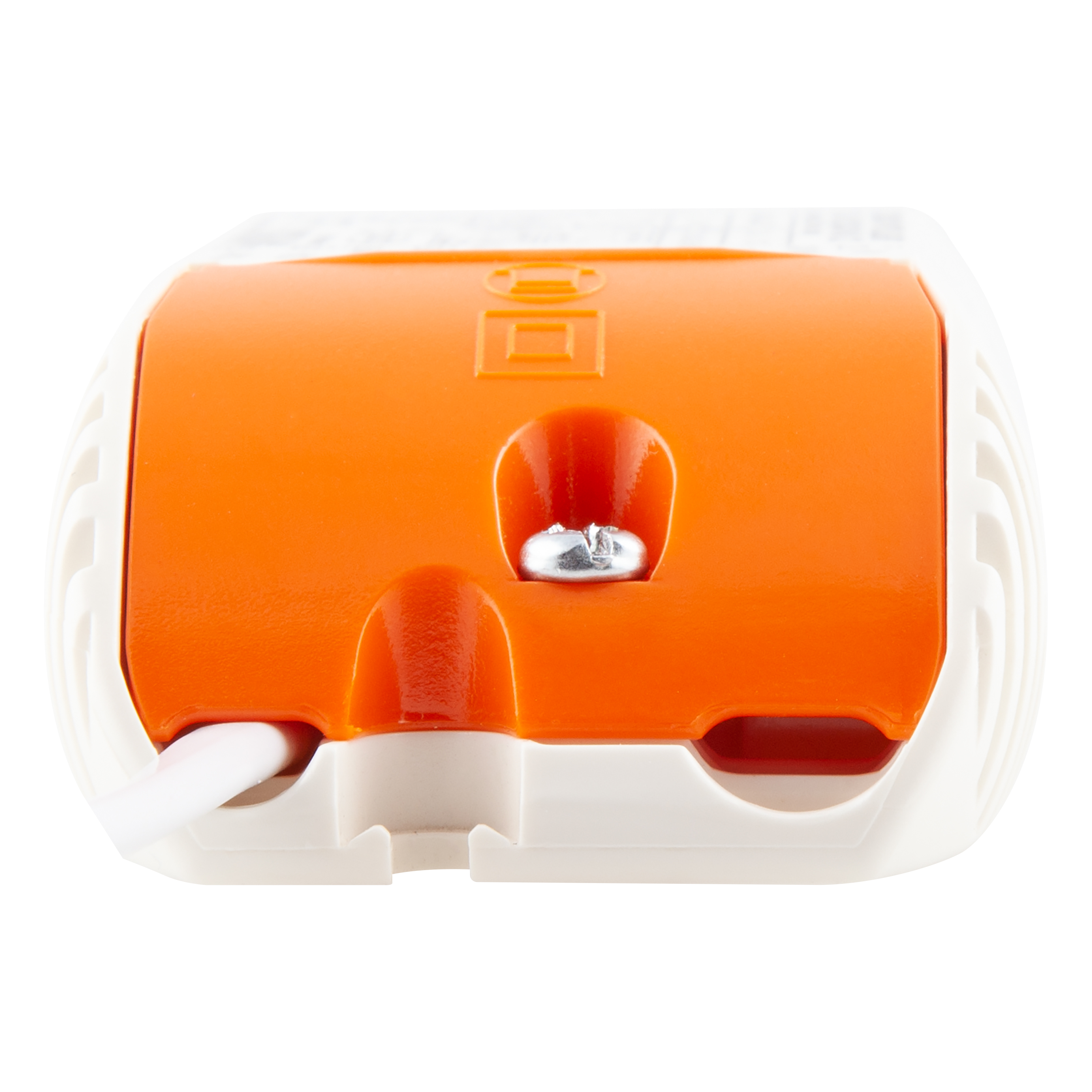

Product image: white background, spacial
SP DRIVER DALI 8W
SP DRIVER DALI 8W

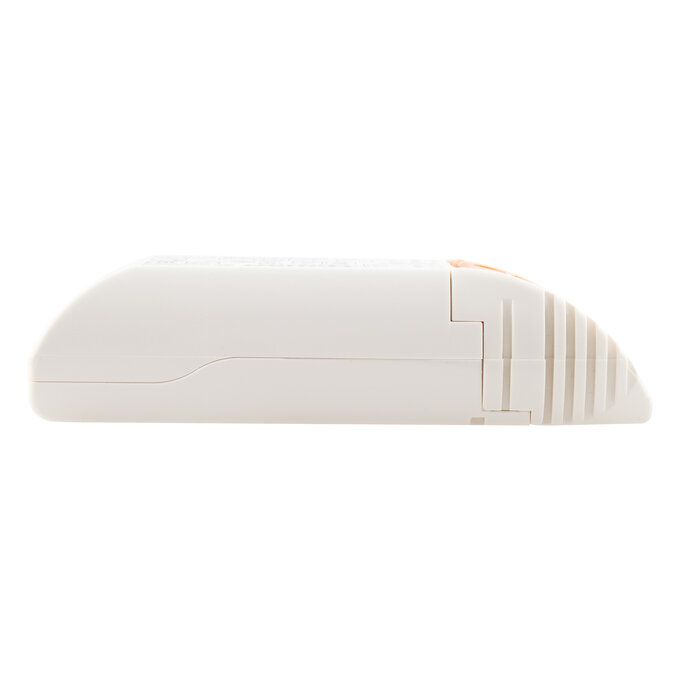

Product image: white background, spacial
SP DRIVER DALI 8W
SP DRIVER DALI 8W

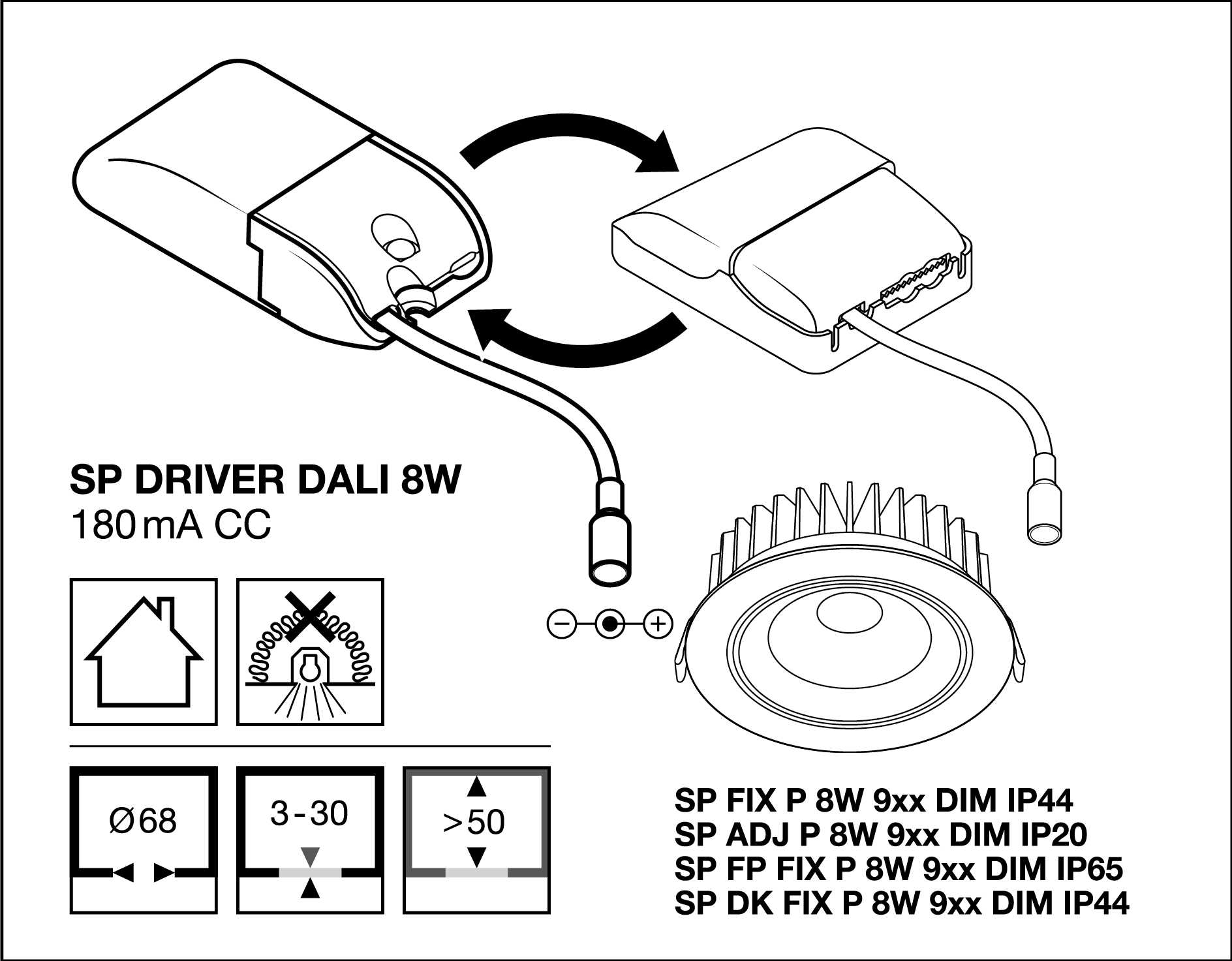

Product line drawing with letters
SP DRIVER DALI 8W
SP DRIVER DALI 8W
Product line drawing with numbers
SP DRIVER DALI 8W
SP DRIVER DALI 8W

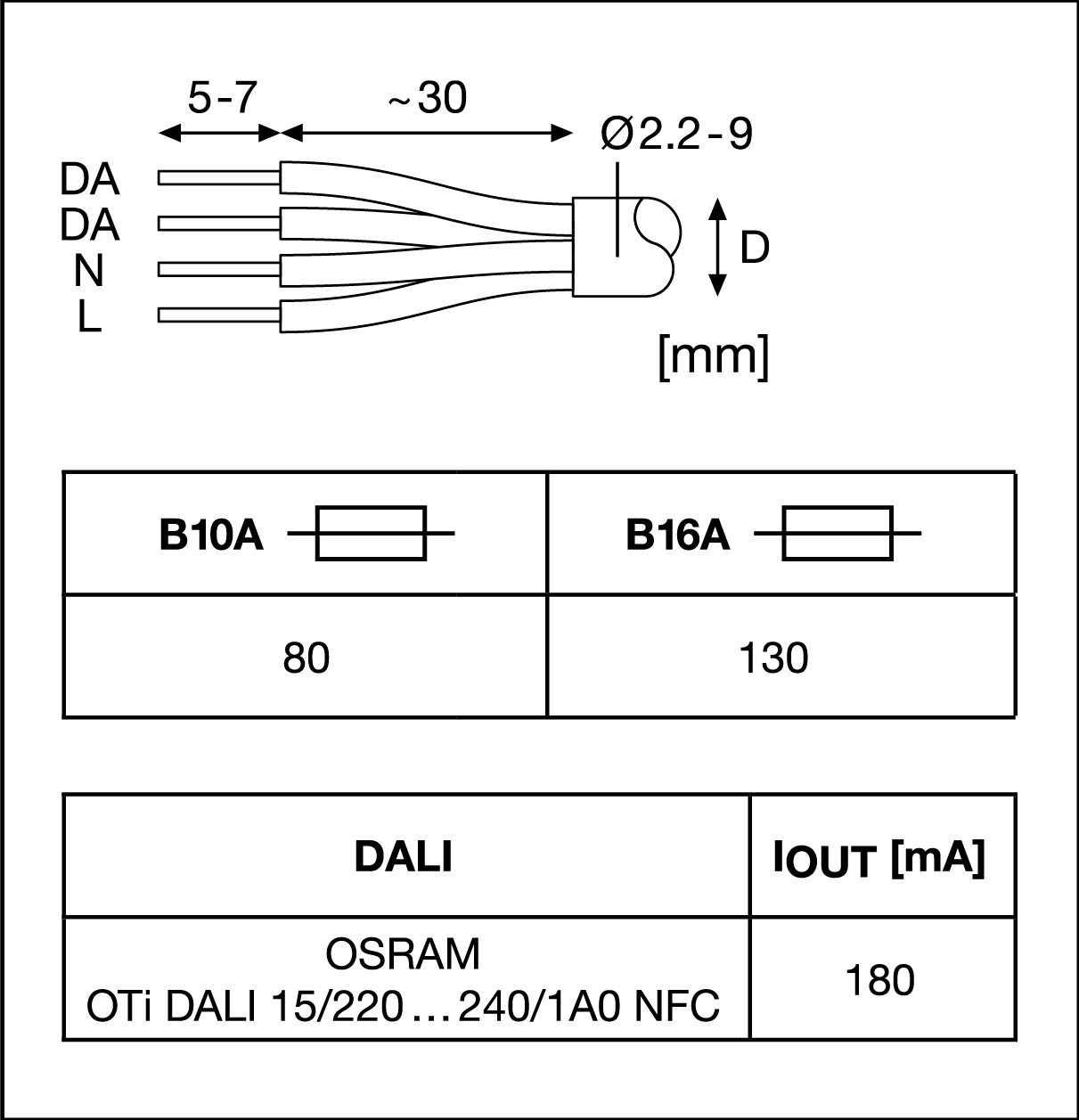

Product line drawing - technical
SP DRIVER DALI 8W
SP DRIVER DALI 8W
Catalog info 1
SP DRIVER DALI 8W
SP DRIVER DALI 8W
Catalog info 2
SP DRIVER DALI 8W
SP DRIVER DALI 8W
Tender documents
SP DRIVER DALI 8W-en
SP DRIVER DALI 8W-en

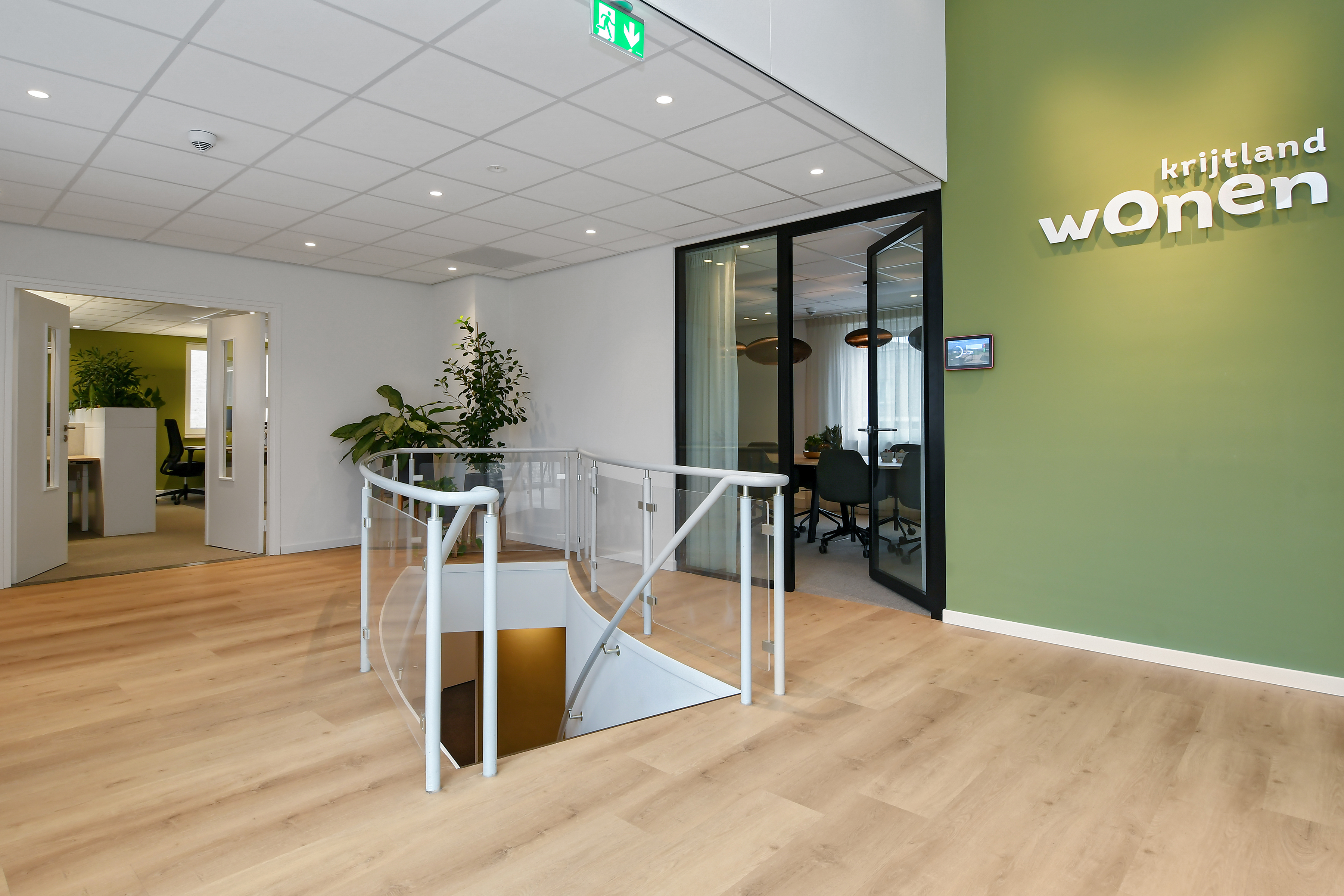

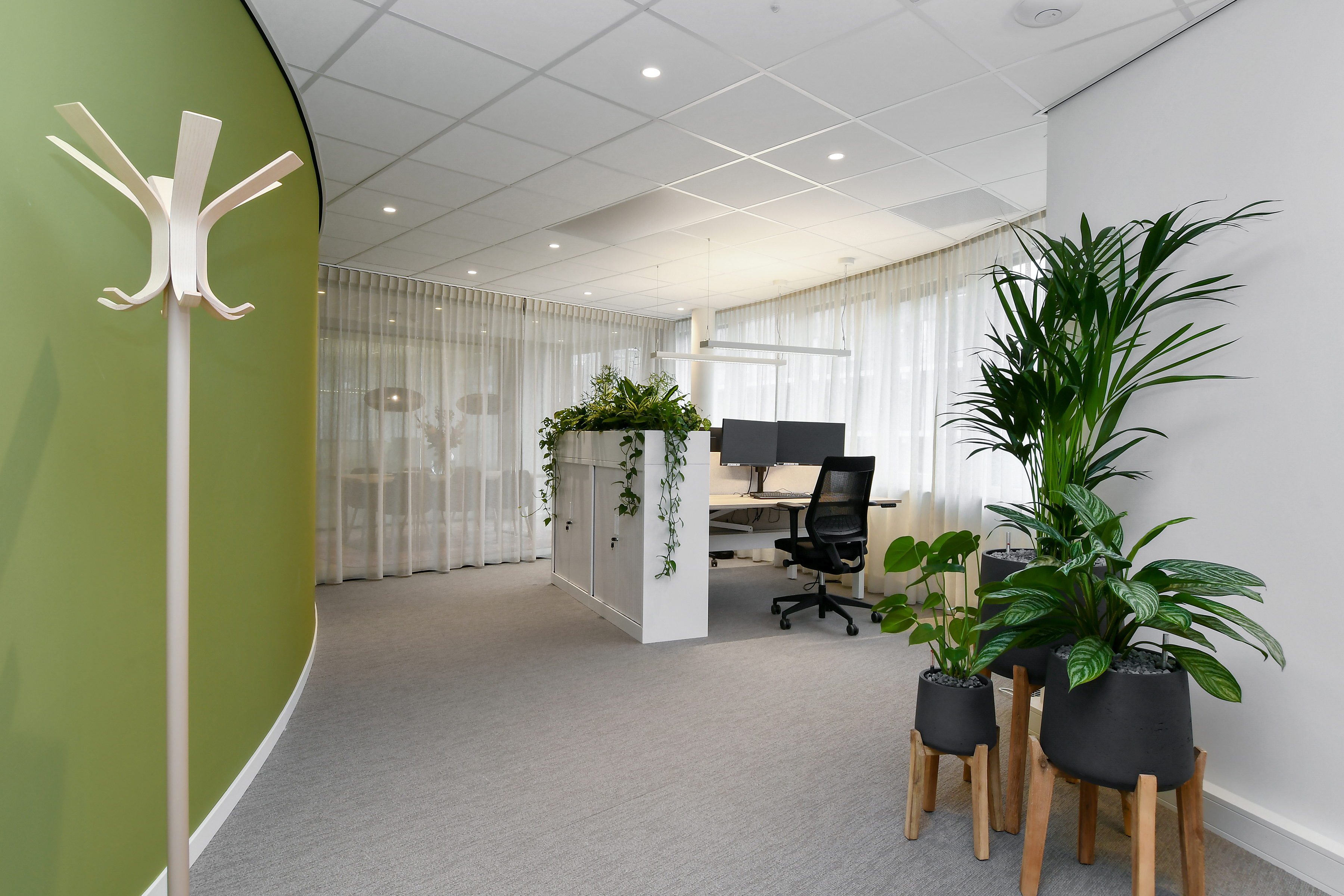

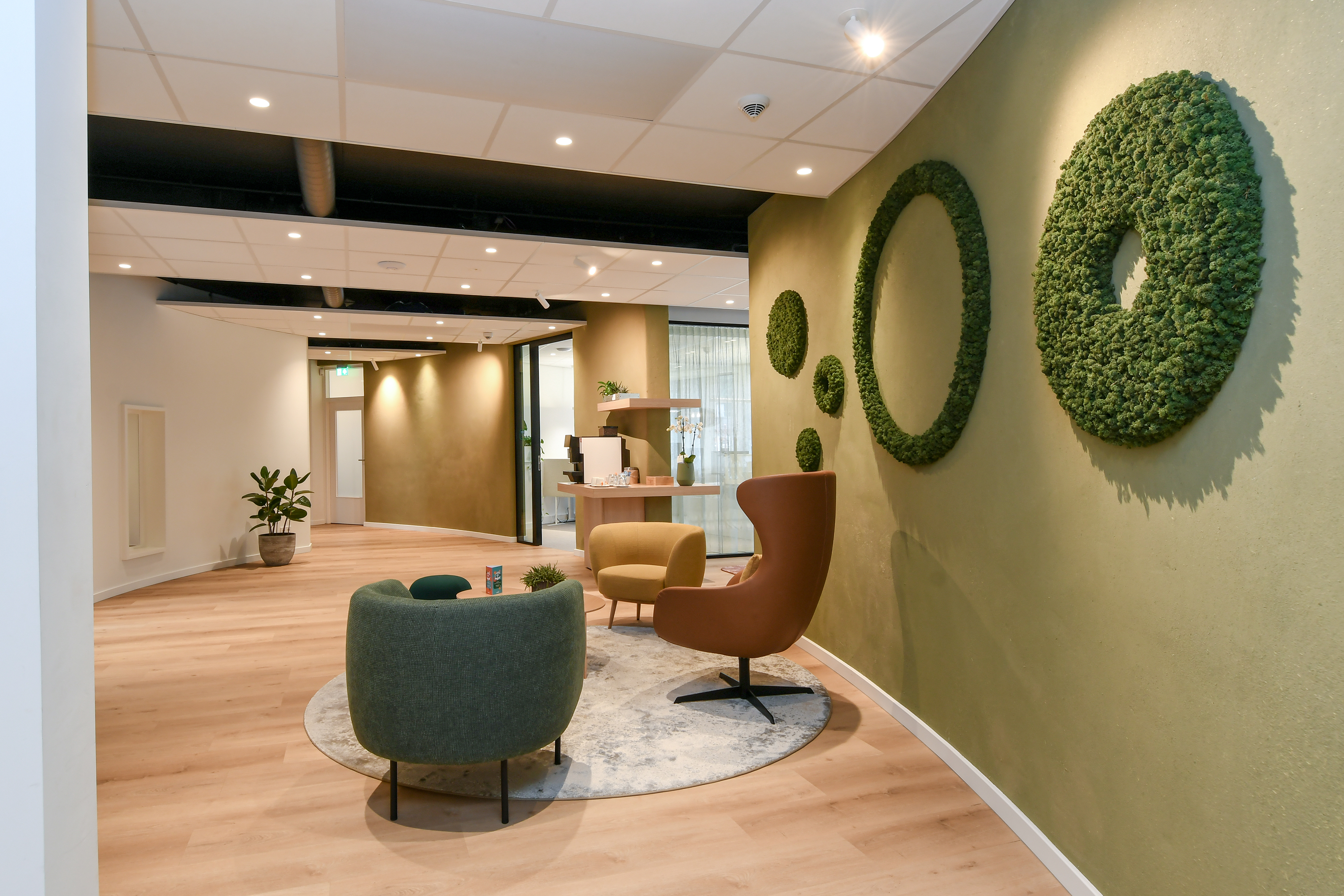

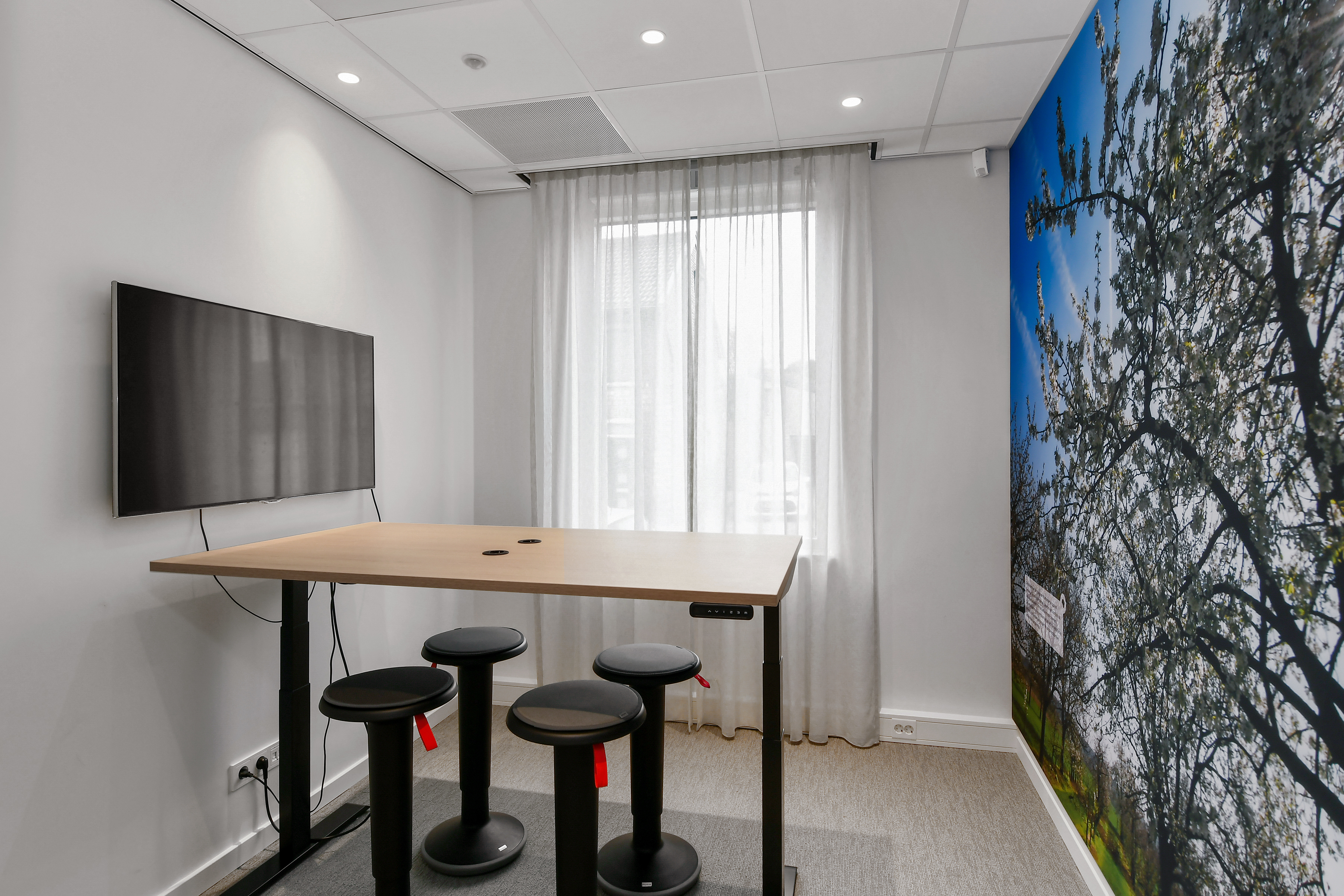

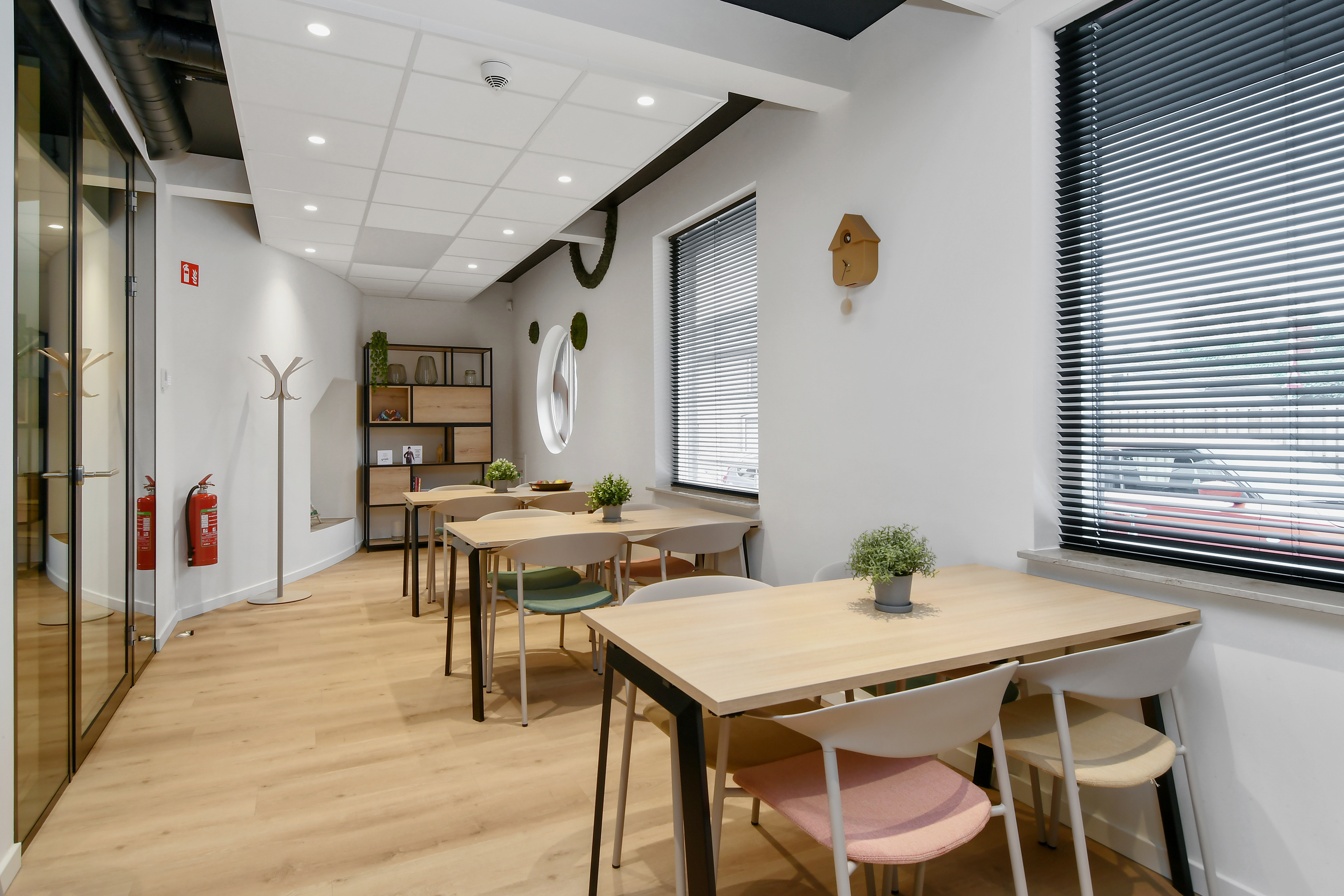

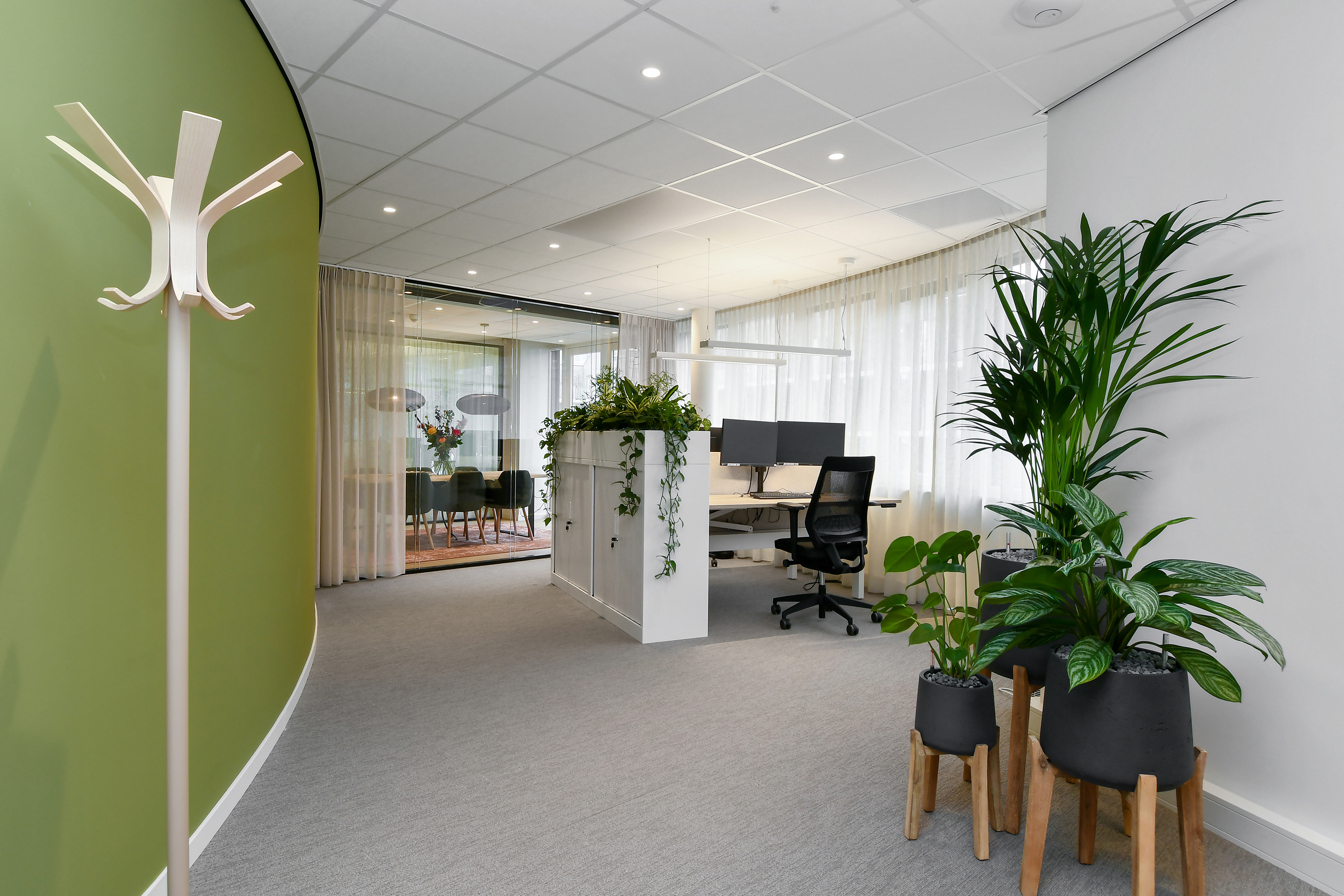

Application pictures
