LOW BAY FLEX SUSPENSION KIT

LB FLEX SUSPENSION KIT

GTIN: 4058075693722 BAG / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy installation with click-in suspension brackets
Product features
  • Wire suspension with bracket and 5 m adjustable steel cable
Equipment / Accessories
  • 5 m adjustable steel cable
Dimensions & Weight
Length 125.0 mm
Height 46 mm
Width 30 mm
Product weight 240.00 g
Cable length 5000 mm
Materials & Colors
Product color Steel
Body material Steel
Application & Mounting
Temperature range at storage -30…+80 °C
Mounting type Surface mounting
Mounting location Ceiling
Replaceable light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075693722 BAG
1
4058075693739 Shipping box
30		 421 mm x 282 mm x 173 mm 7650.00 g 20.54 dm³

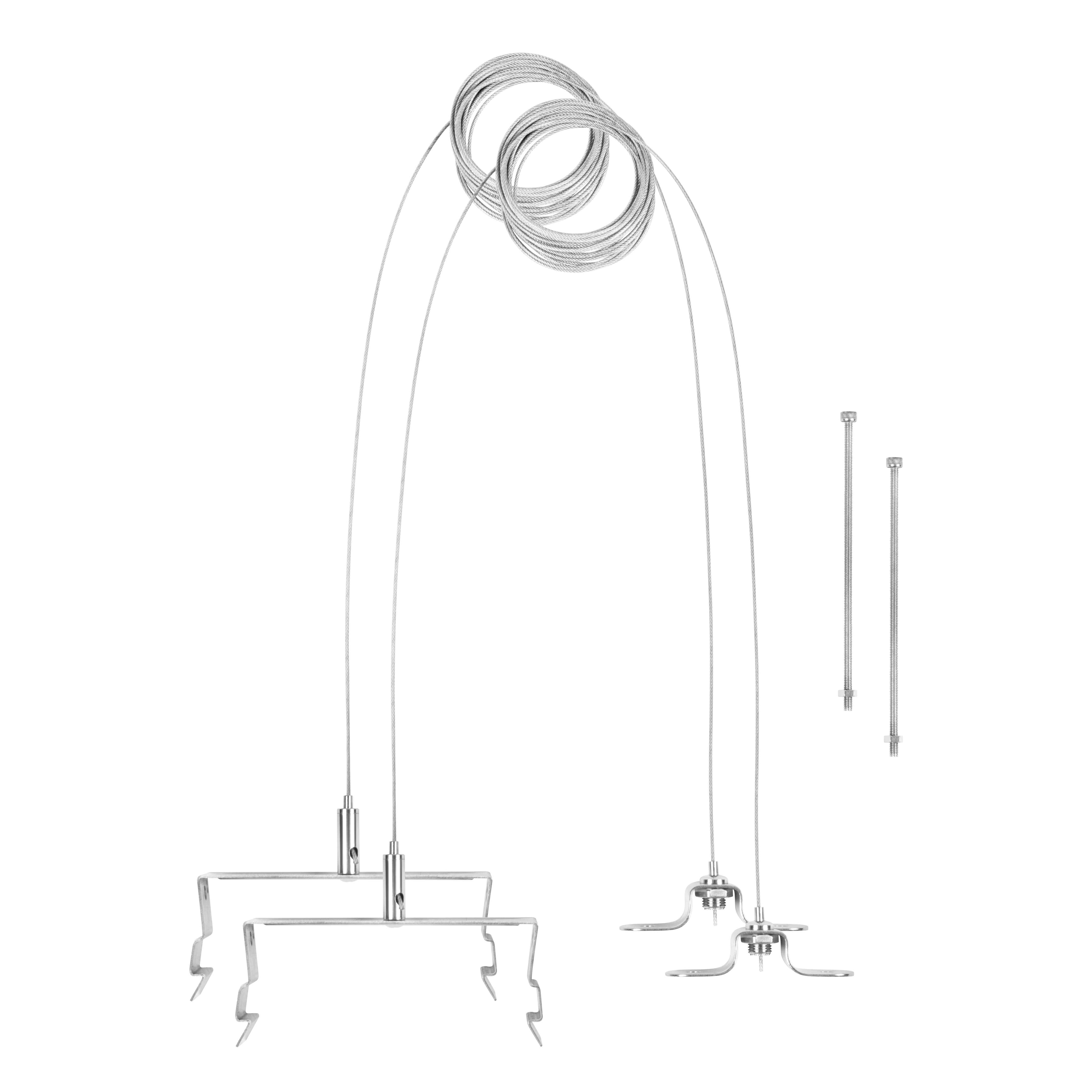

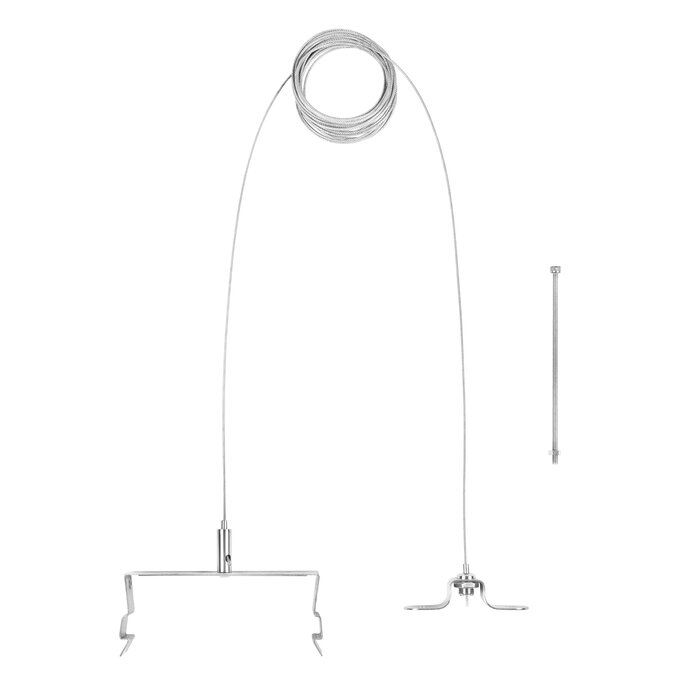

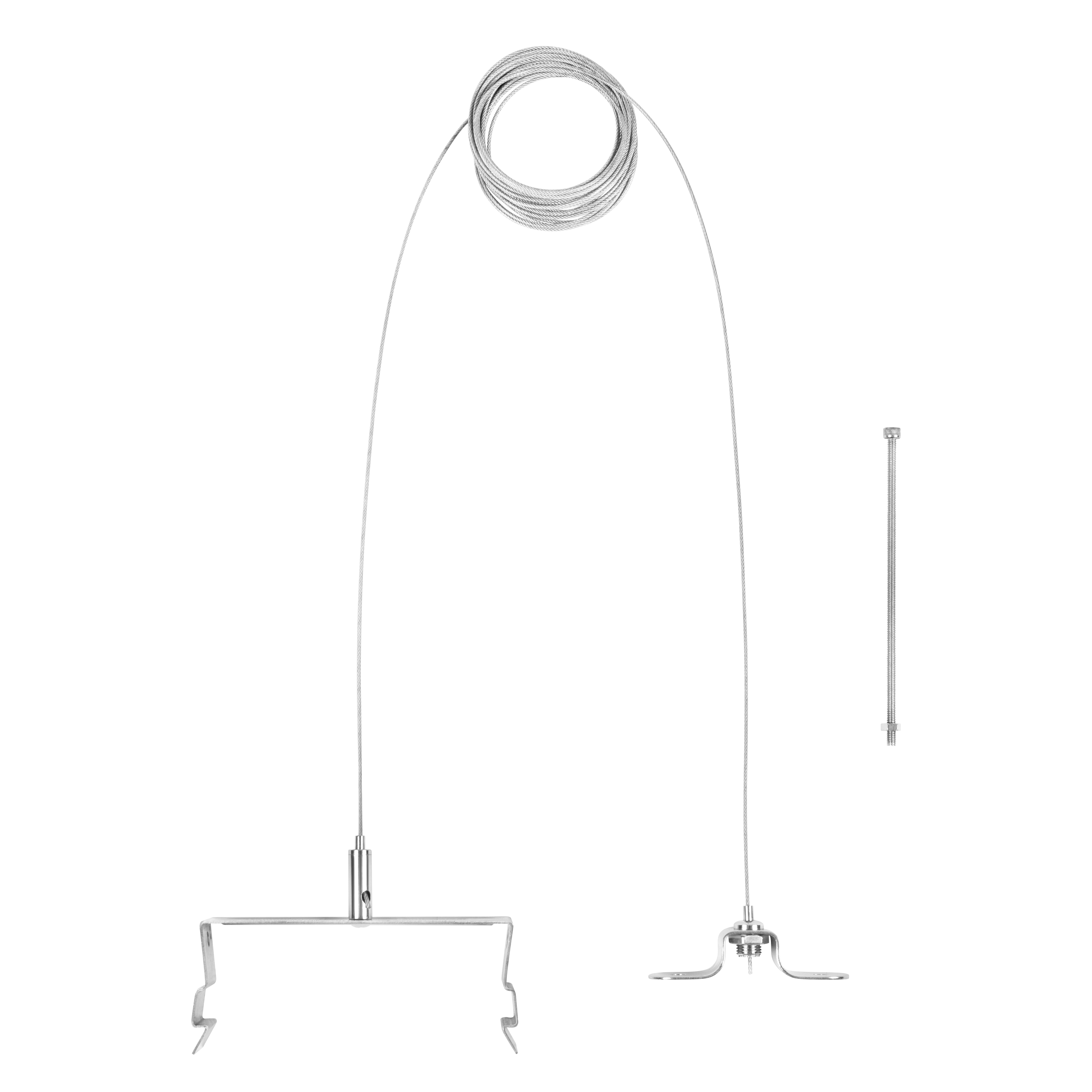

Product image: white background, upright
LOWBAY SUSPENSION KIT
JPG (2.06 MB)
Product image: white background, upright
LOWBAY SUSPENSION KIT
JPG (392.65 KB)
Product line drawing with letters
LOWBAY SUSPENSION KIT
EPS (2.3 MB)
Product line drawing with numbers
LOWBAY SUSPENSION KIT
EPS (2.31 MB)
Product line drawing - technical
LOWBAY SUSPENSION KIT
EPS (2.3 MB)
Catalog info 1
Lowbay Suspension Kit
PNG (82.49 KB)
Catalog info 2

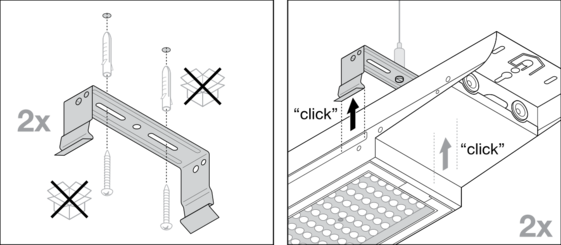

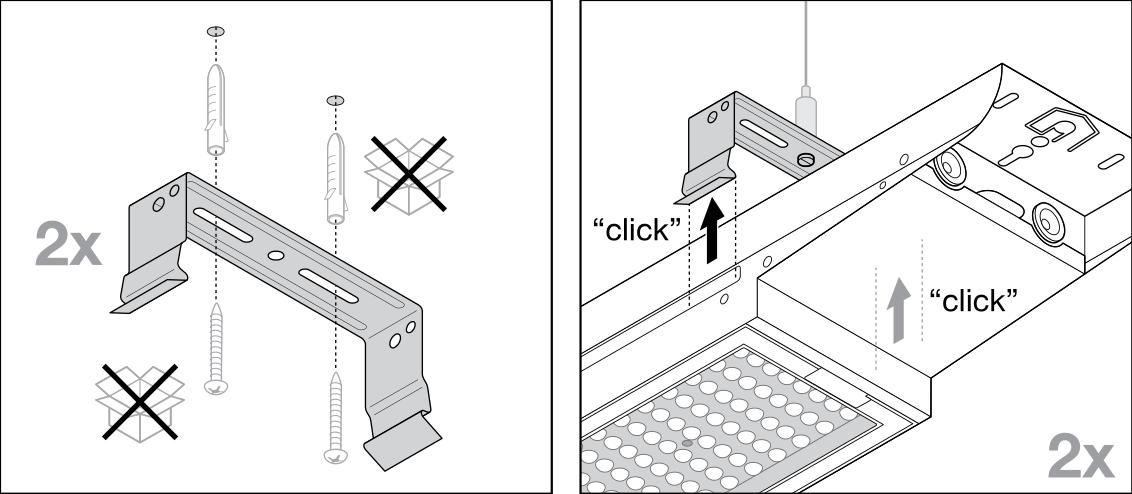

Lowbay Suspension Kit mounting
PNG (186.32 KB)
Tender documents
LOW BAY FLEX ACCESSORIES SUSPENSION KIT-EN
TXT (383 B)
Application pictures
Case Study Spjald School Denmark - Low bay ball proof in sports hall
JPG (37.49 MB)
Application pictures
Case Study Spjald School Denmark - Low bay ball proof in sports hall
JPG (34.57 MB)
Application pictures
Case Study Spjald School Denmark - Low bay ball proof in sports hall
JPG (31.45 MB)
Application pictures
Case Study Spjald School Denmark - Low bay ball proof in sports hall
JPG (19.21 MB)
Application pictures
Case Study Spjald School Denmark - Low bay ball proof in sports hall
JPG (22.54 MB)
EAN SEG number STK number EFO number ELDAS number UK Org
4058075693722 7216984 4324753 3304059 941902470 434470918
