HIGH BAY REFLECTOR GEN 5

HB ALU REFLECTOR 415

GTIN: 4058075844568 BAG / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product features
  • High-quality aluminum reflector
  • HB ALU REFLECTOR 415 suitable for HB P 75W versions (On-Off and DALI)
  • HB ALU REFLECTOR 500 suitable for HB P 150W and HB P 200W versions (On-Off and DALI)
References / Links
Photometrical data
Low flicker Yes
Beam angle 70 °
Dimensions & Weight
Diameter 415.00 mm
Height 205 mm
Product weight 300.00 g
Materials & Colors
Product color Silver
Body material Aluminium
Application & Mounting
Mounting type Surface
Mounting location Luminaire
Replaceable light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075844568 BAG
1		 670 mm x 650 mm 305.00 g
4058075844575 Shipping box
2		 432 mm x 432 mm x 271 mm 1816.00 g 50.58 dm³
User instruction / safety instructions
HB ACC UI
PDF (11.34 MB)
User instruction / safety instructions
HB ACC
PDF (12.82 MB)
Declarations of conformity
HIGHBAY P
PDF (238.62 KB)

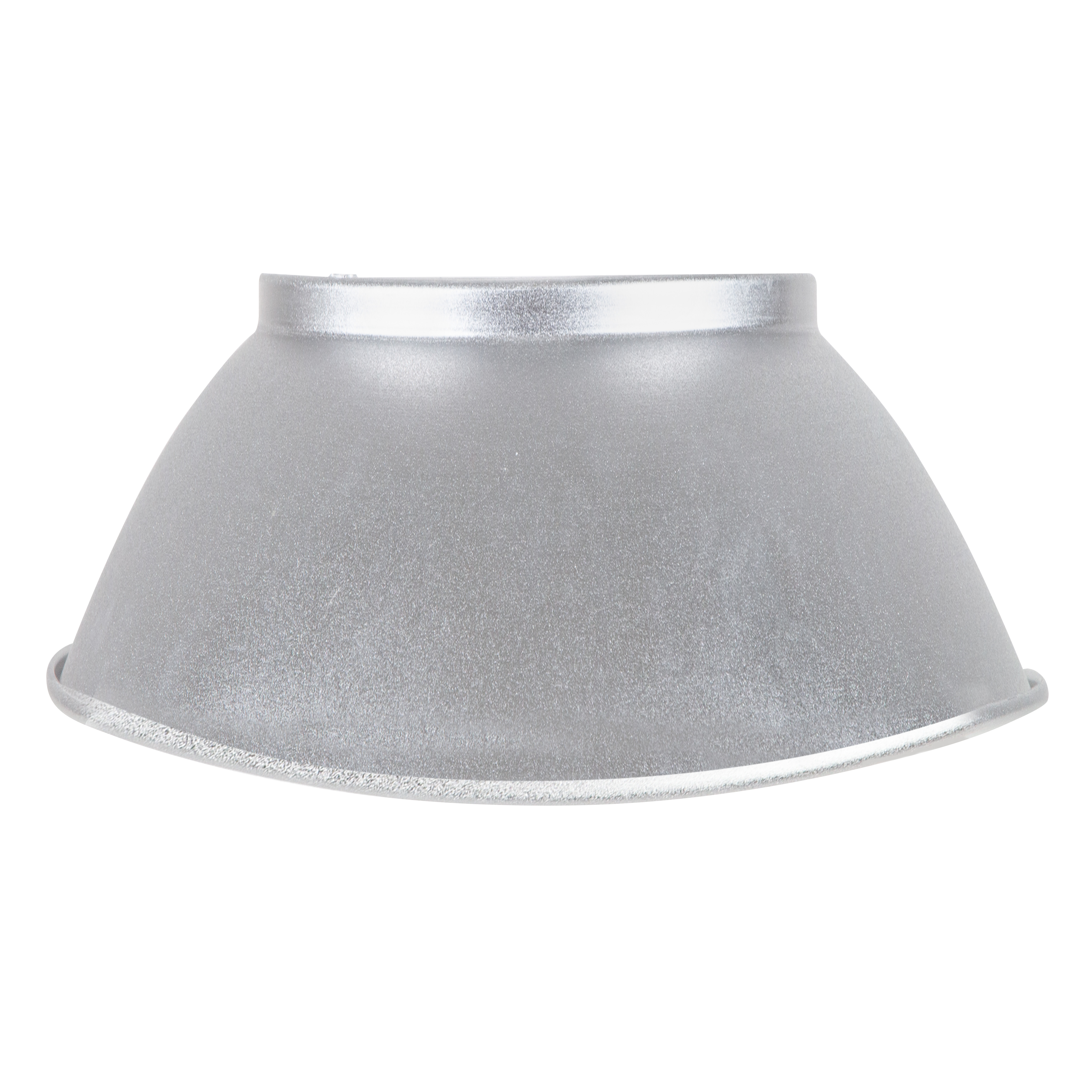

Product image: white background, horizontal
HB ALU REFLECTOR 155W-210W
JPG (2.61 MB)
Product line drawing with letters
HB ALU REFLECTOR 415
SVG (12.61 KB)
Product line drawing with numbers
HB ALU REFLECTOR 415
SVG (16.82 KB)
Product line drawing - technical
HB ALU REFLECTOR 415
SVG (9.92 KB)

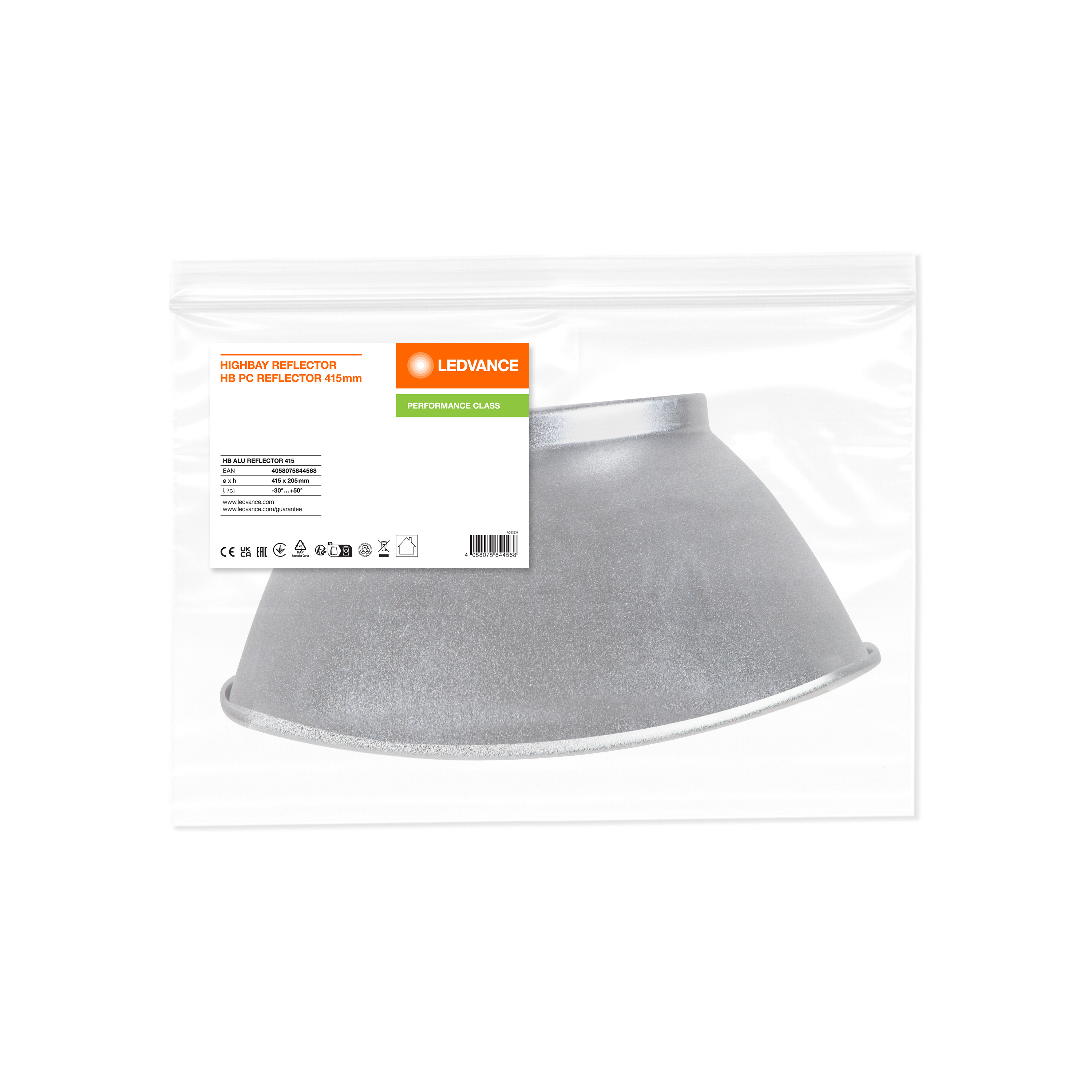

Packaging image, frontal
HB ALU REFLECTOR 415
JPG (1.24 MB)
Tender documents
HIGH BAY REFLECTOR GEN 5 415-EN
TXT (652 B)
EAN SEG number STK number EFO number ELDAS number
4058075844568 7220089 4325350 3352295 941903940
