DAMP PROOF HIGH EFFICIENCY LIGHT SOURCES
LISOEV 1145X26 46 29W 840 S120 AL
GTIN: 4099854416750
Sleeve / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy upgradeability of light source and driver (EVERLOOP design)
- Easy installation, no tools required for connection
- Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
Areas of application
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Beam angle: 120°
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 25.70 W |
| Nominal voltage | 127 V |
| Mains frequency | 0 Hz |
| Nominal current | 200.000 mA |
Photometrical data
| Luminous flux | 5140 lm |
| Luminous efficacy | 185 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 4 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 1145.00 mm |
| Height | 6.00 mm |
| Width | 26.00 mm |
| Product weight | 192.00 g |
Materials & Colors
| Product color | Grey |
| Housing color | Grey |
| Body material | Aluminum |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Connector |
| Dimmable | Yes |
| Mounting type | Surface |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h |
| Lifespan L80/B10 at 25 °C | 100000 h |
| Lifespan L90/B10 at 25 °C | 55000 h |
| Number of switching cycles | 50000 |
Certificates & Standards
| Standards | CE, UKCA, EAC, ENEC |
Additional product data
| Added function | EVERLOOP |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854416750 | Sleeve 1 |
1,210 mm x 23 mm x 23 mm | 238.00 g | 0.64 dm³ |
| 4099854416767 | Shipping box 25 |
1,227 mm x 133 mm x 144 mm | 6342.00 g | 23.50 dm³ |
User instruction / safety instructions
DP HE IP65 REPLACEMENT PARTS
DP HE IP65 REPLACEMENT PARTS
Legal information
Safety Insert G11201420
Safety Insert G11201420
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
LSI DAMP PROOF HE LISOEV
LSI DAMP PROOF HE LISOEV
Declarations of conformity
DP HE
DP HE

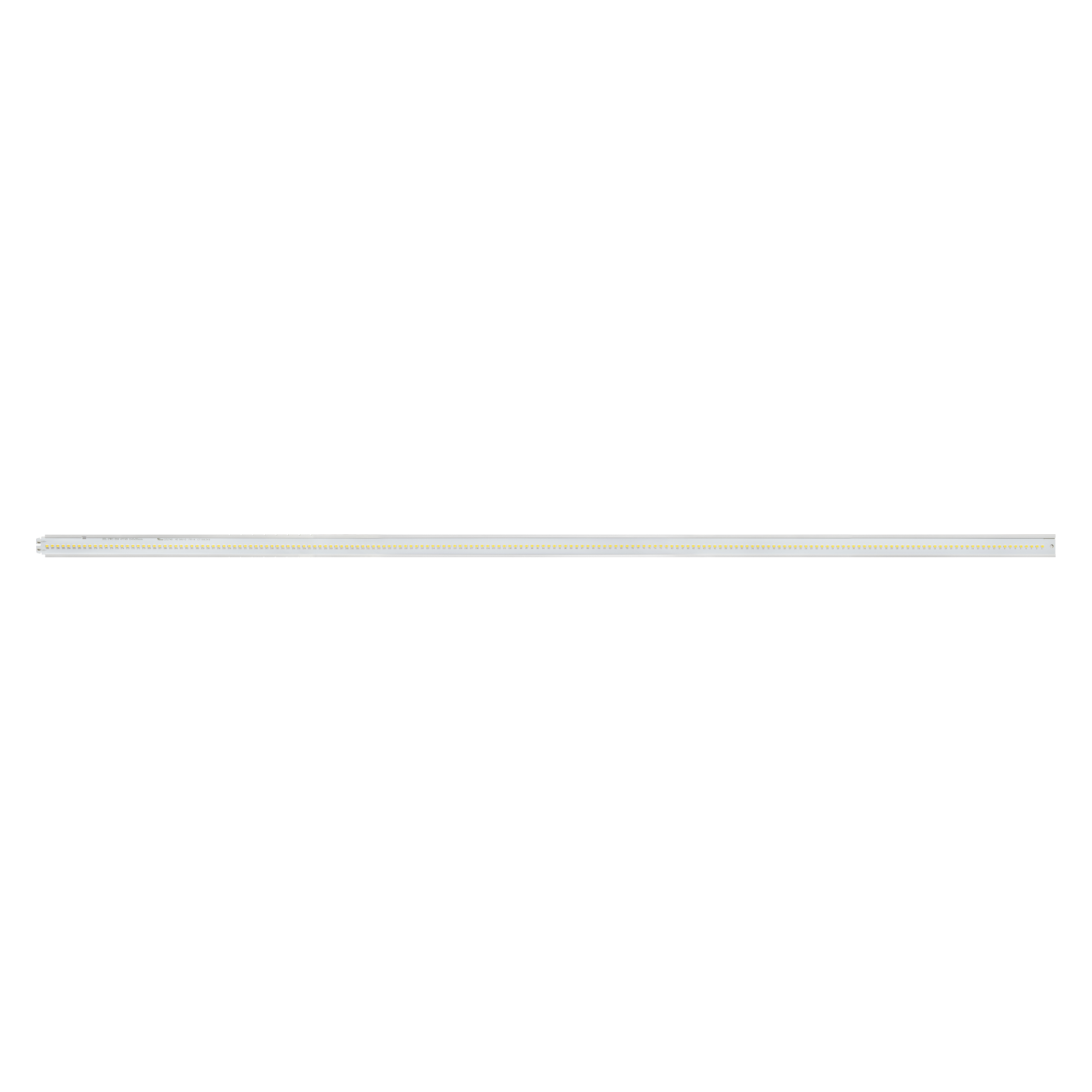

Product image: white background, upright
