SMART+ Matter Recess Slim Downlight 225mm Tunable White

Coming soon

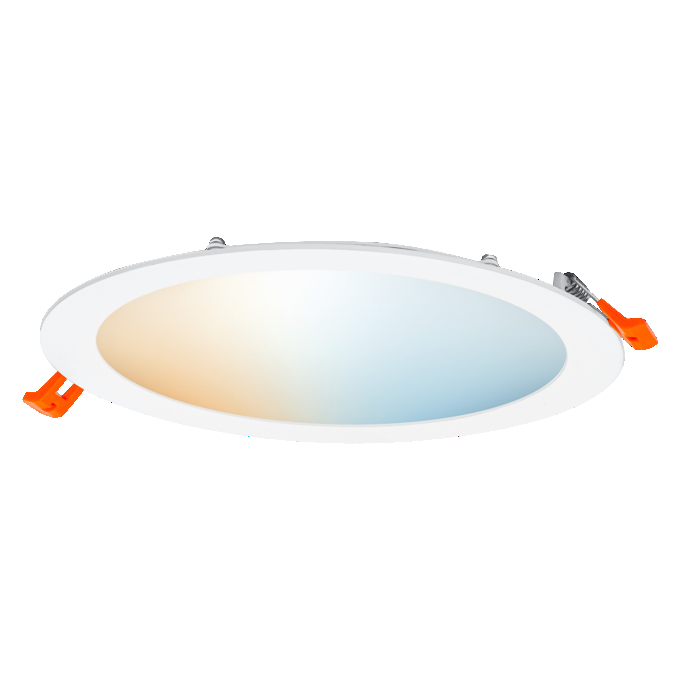

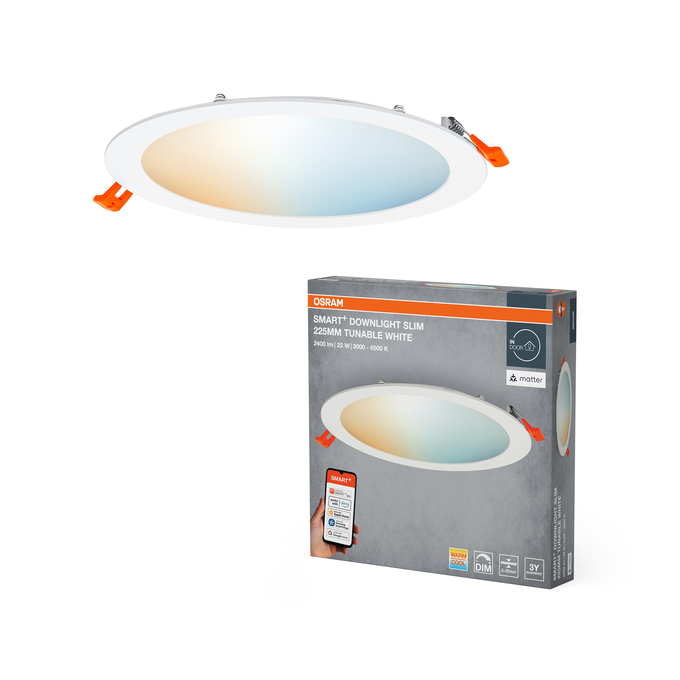

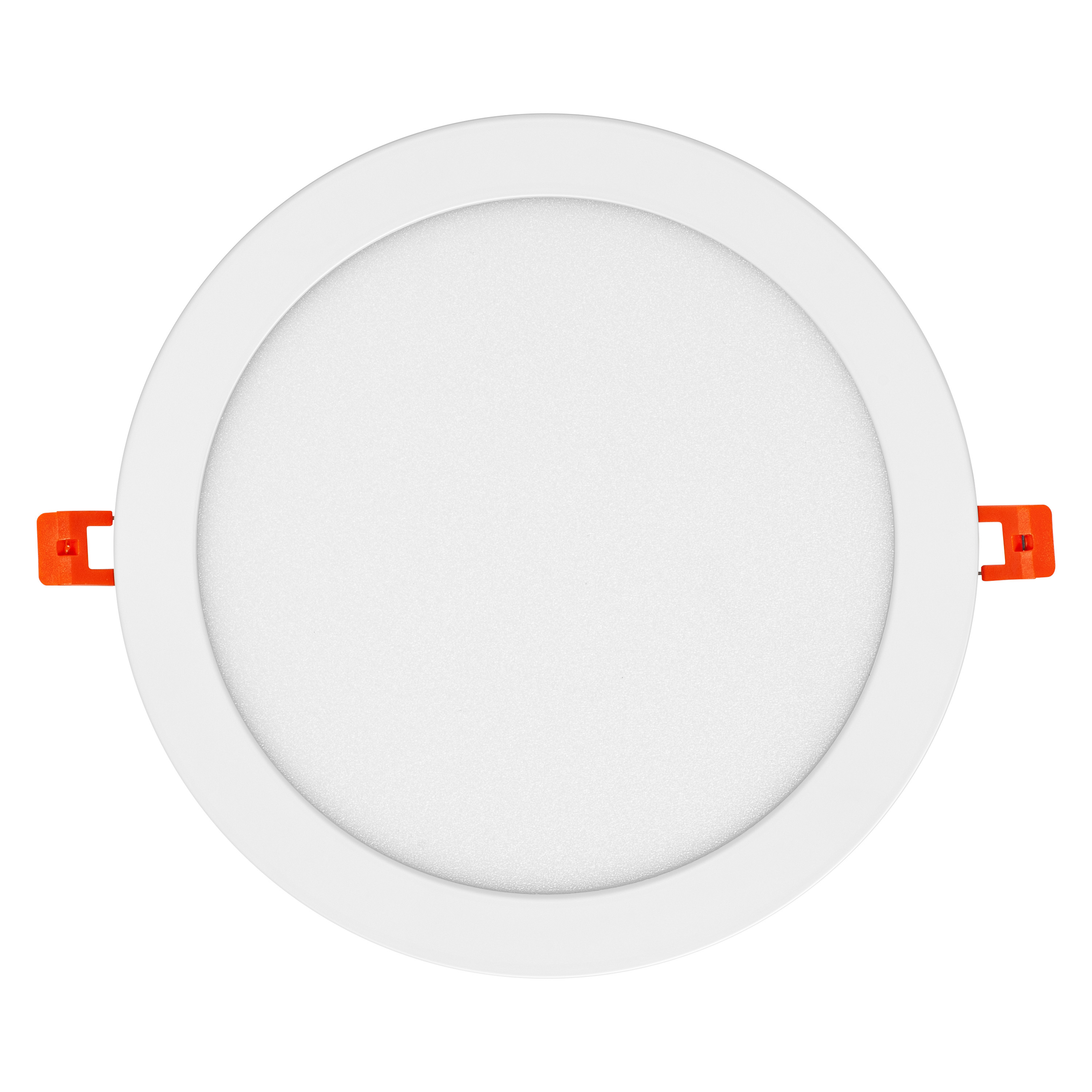

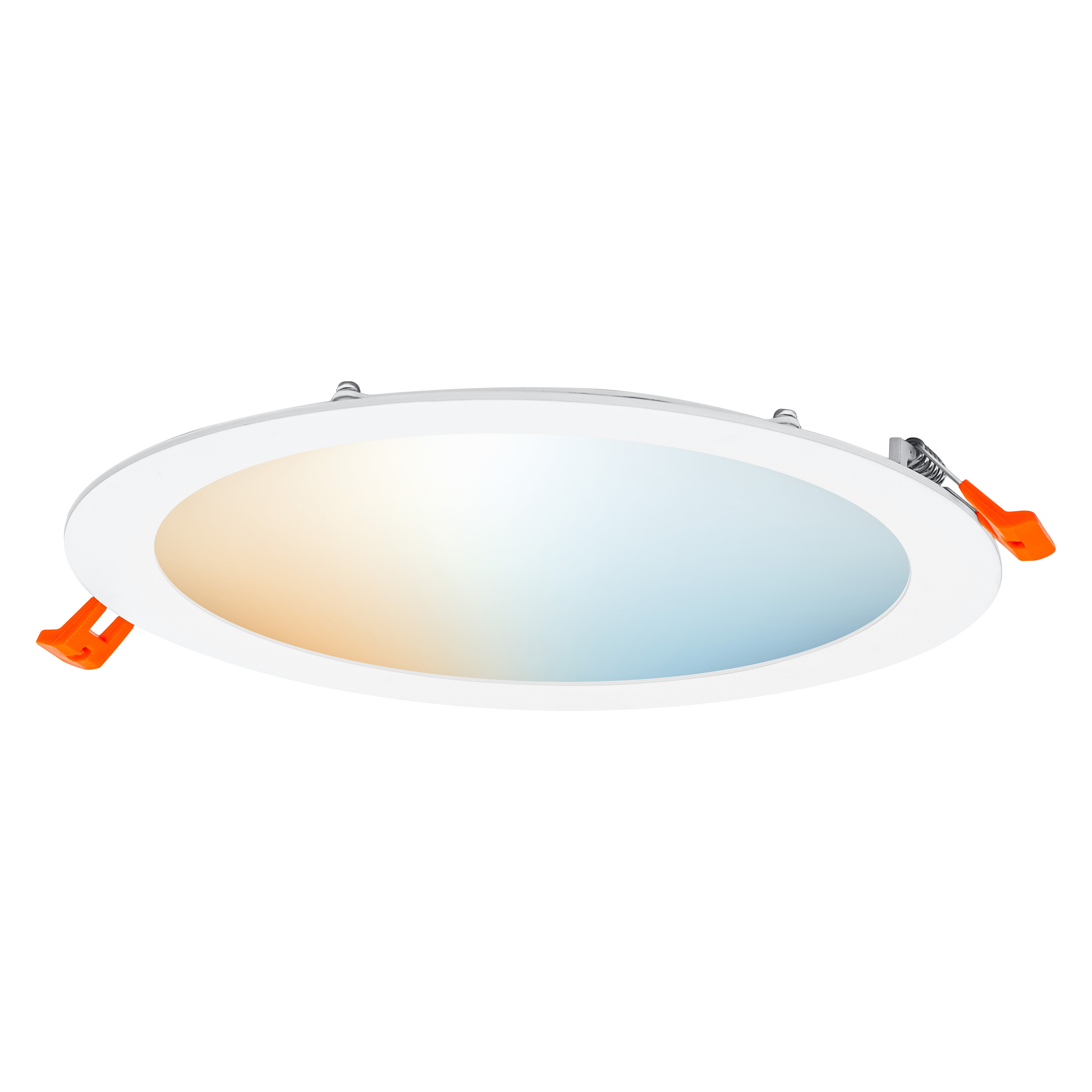

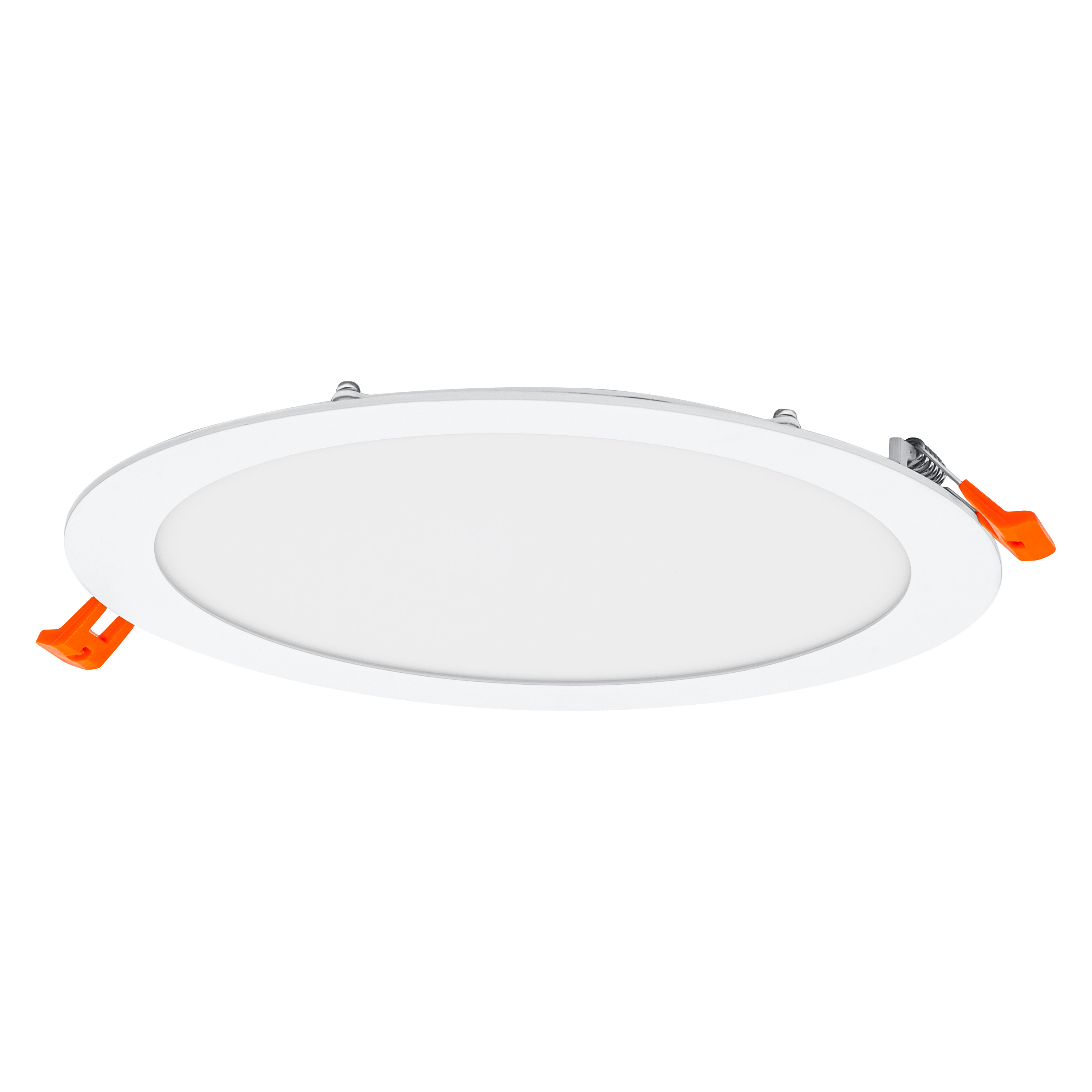

SMART+ Matter Recess Slim Downlight

GTIN: 4099854475351 Folding box / 1 Show all packages

Download data sheet

Our warranty conditions

PRODUCT DETAILS

Product benefits

Creating individual light scenes according to your needs with cold white to warm white (3000 K to 6500 K)
Ideal when few space in the ceiling
Very slim design

Areas of application

Indoor applications
Corridors, entrance areas, stairwells, living rooms, basements
Bedrooms
Kitchens

Product features

Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
Controllable via voice control available: Google Assistant or Amazon Alexa
Adjustable color temperature via Tunable White: 3,000…6,500 K
Dimmable
Network protocol: Matter over WiFi (2.4 GHz)

Equipment / Accessories

For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Control via app or voice control requires compatible Smart home system
Complete mounting and connecting accessories included

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
The luminaires are not suitable for covering with thermally insulated material.
Check wall-ceiling for suitability. If uncertain, seek professional advice.

References / Links

Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq

Electrical data

Nominal wattage	22.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	150.000 mA
Inrush current time T_h50	< 1500 µs
Power factor λ	> 0.70
Total harmonic distortion	< 20 %
Protection class	II
Operating mode	External LED driver

Photometrical data

Luminous flux	2000 lm
Total luminous flux of contained light sources	2400 lm
Luminous efficacy	90 lm/W
Color temperature	3000…6500 K
Light color (designation)	Tunable White
Color rendering index Ra	≥80
Standard deviation of color matching	< 6 sdcm
Photobiological safety group acc. to EN62778	RG0
Photobiological safety group acc. to EN62471	RG0
Beam angle	110 °

Dimensions & Weight

Diameter	225.00 mm
Height	32.00 mm
Product weight	273.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Plastic
Cover material	Polystyrene (PS)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+40 °C
Temperature range at storage	-20…+70 °C
Type of connection	Screw terminal
Type of protection	IP20
Protection class IK (shock resistance)	IK03
Dimmable	Yes
Type of dimming	WiFi
Mounting type	Recessed
Application environment	Indoor
Mounting diameter	200 mm
Mounting depth	35,0 mm
With light source	Yes

Lifespan

Lifespan L70/B50 at 25 °C	25000 h
Number of switching cycles	15000

Emergency lighting

Type of emergency operation test

None

Certificates & Standards

Standards	CE, UKCA
Luminaire with limited surface temperature, "D sign"	No
Replaceable light source (EPREL)	Not replaceable

Additional product data

Product remark

Available from October 2025, Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
