Coming soon
SMART+ Matter Cylinder
SMART+ Matter Cylinder 450mm Tunable White
GTIN: 4099854473005
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: WiFi
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Mounting bracket included
- Mounting screws and dowels included
- Control via app or voice control requires compatible Smart home system
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 24.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 180.000 mA |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 930 lm |
| Total luminous flux of contained light sources | 2490 lm |
| Luminous efficacy | 96 lm/W |
| Color temperature | 3000…6500 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 150 ° |
Dimensions & Weight
| Diameter | 450.00 mm |
| Height | 134.00 mm |
| Product weight | 2820.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polymethylmethacrylate (PMMA) |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from October 2025, Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854473005 | Folding box 1 |
502 mm x 148 mm x 504 mm | 4444.00 g | 37.45 dm³ |
| 4099854473012 | Shipping box 3 |
525 mm x 463 mm x 528 mm | 13333.00 g | 128.34 dm³ |
User instruction / safety instructions
G11240107 SMART WIFI MAT CYLINDER
G11240107 SMART WIFI MAT CYLINDER
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11243082
Safety insert G11243082
Legal information
Legal Insert G11229428
Legal Insert G11229428
Declarations of conformity
SMART WIFI ORBIS CYLNR RD 450 TW GRLEDV
SMART WIFI ORBIS CYLNR RD 450 TW GRLEDV
EU Data Act
SMART MATTER Lamps Luminaires Plugs
SMART MATTER Lamps Luminaires Plugs
EU Data Act
SMART WiFi Lamps and Luminaires
SMART WiFi Lamps and Luminaires

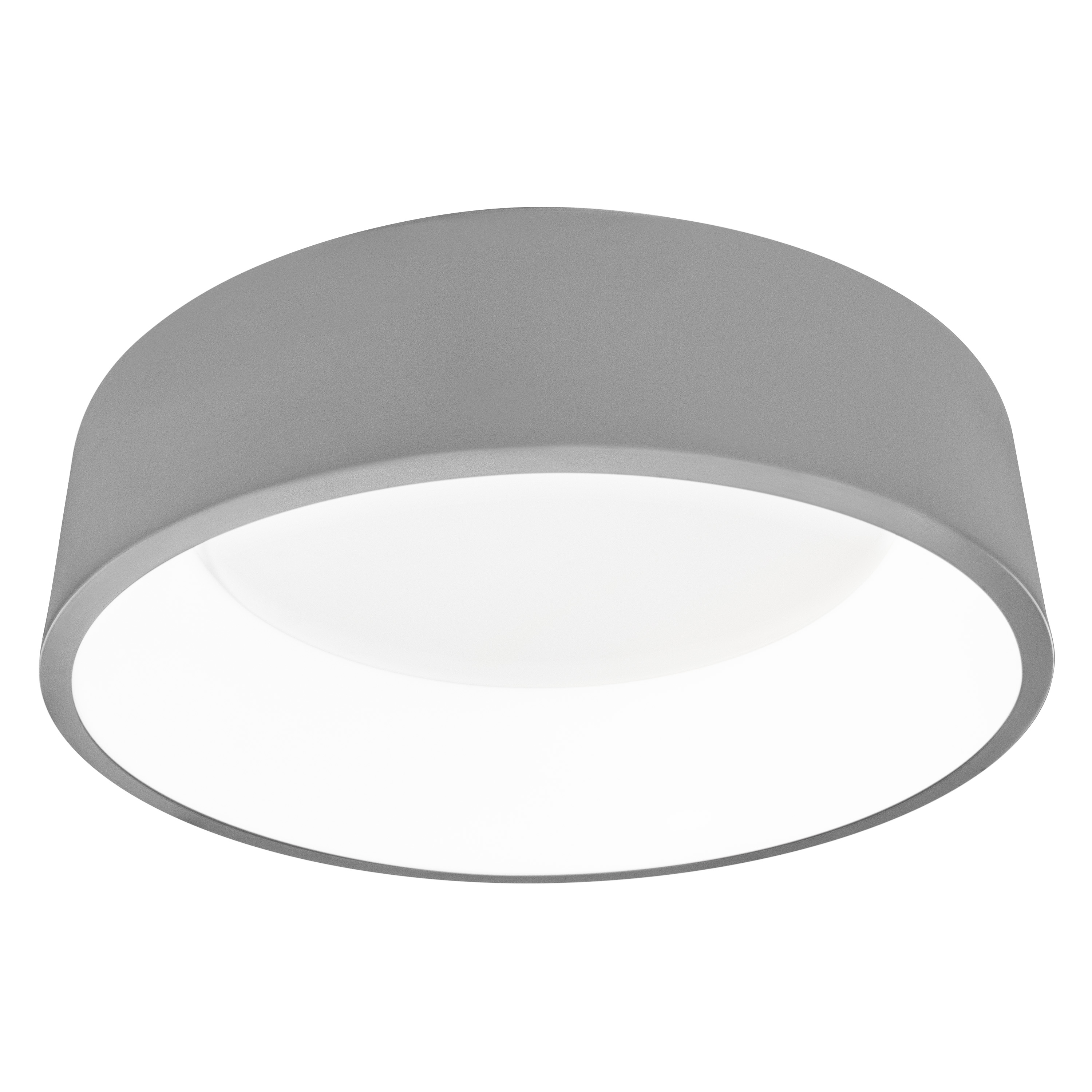

Product image: white background, upright
SMART WIFI ORBIS CYLNR RD 450 TW GR
SMART WIFI ORBIS CYLNR RD 450 TW GR

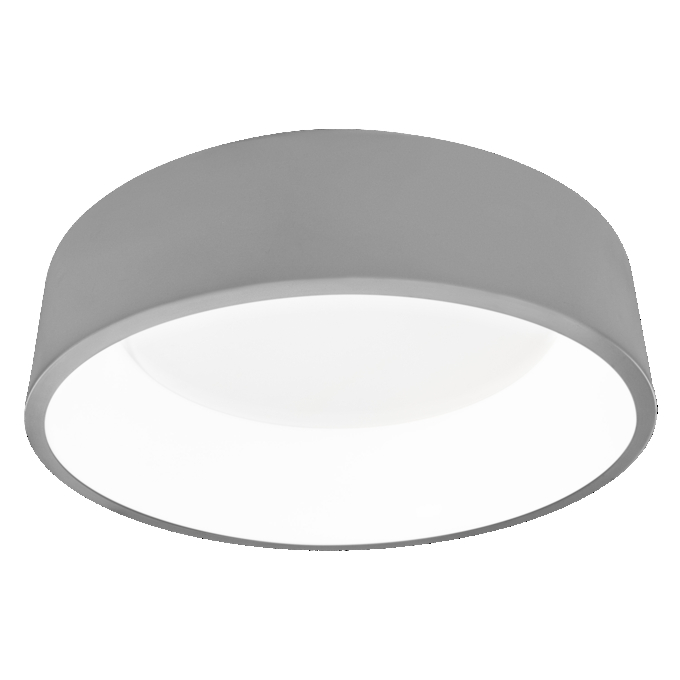

Product image: white background, upright, alternative image
SMART WIFI ORBIS CYLNR RD 450 TW GR
SMART WIFI ORBIS CYLNR RD 450 TW GR
Product image: white background, upright, switched on
SMART WIFI ORBIS CYLNR RD 450 TW GR
SMART WIFI ORBIS CYLNR RD 450 TW GR
Product infographic (application image with text and graphic)
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
SMART WIFI ORBIS CYLNR RD 450 TW
SMART WIFI ORBIS CYLNR RD 450 TW
Product line drawing with numbers
SMART WIFI ORBIS CYLNR RD 450 TW
SMART WIFI ORBIS CYLNR RD 450 TW

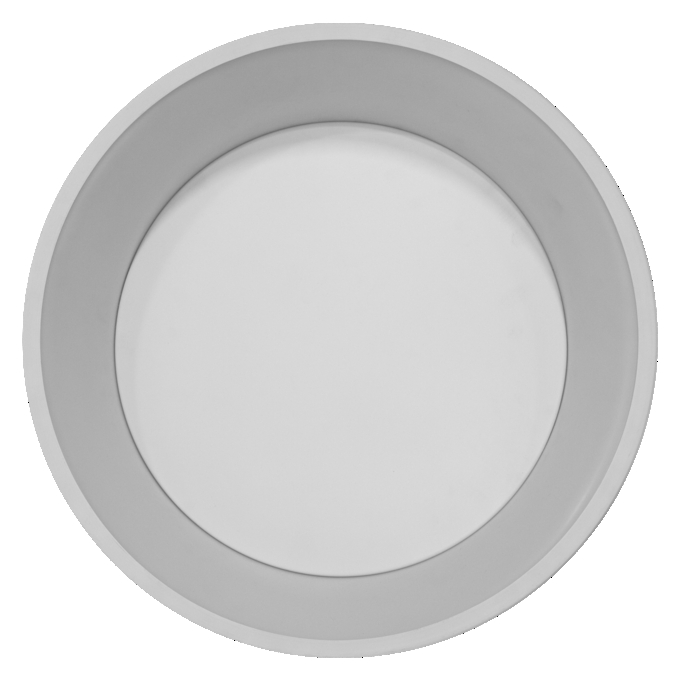

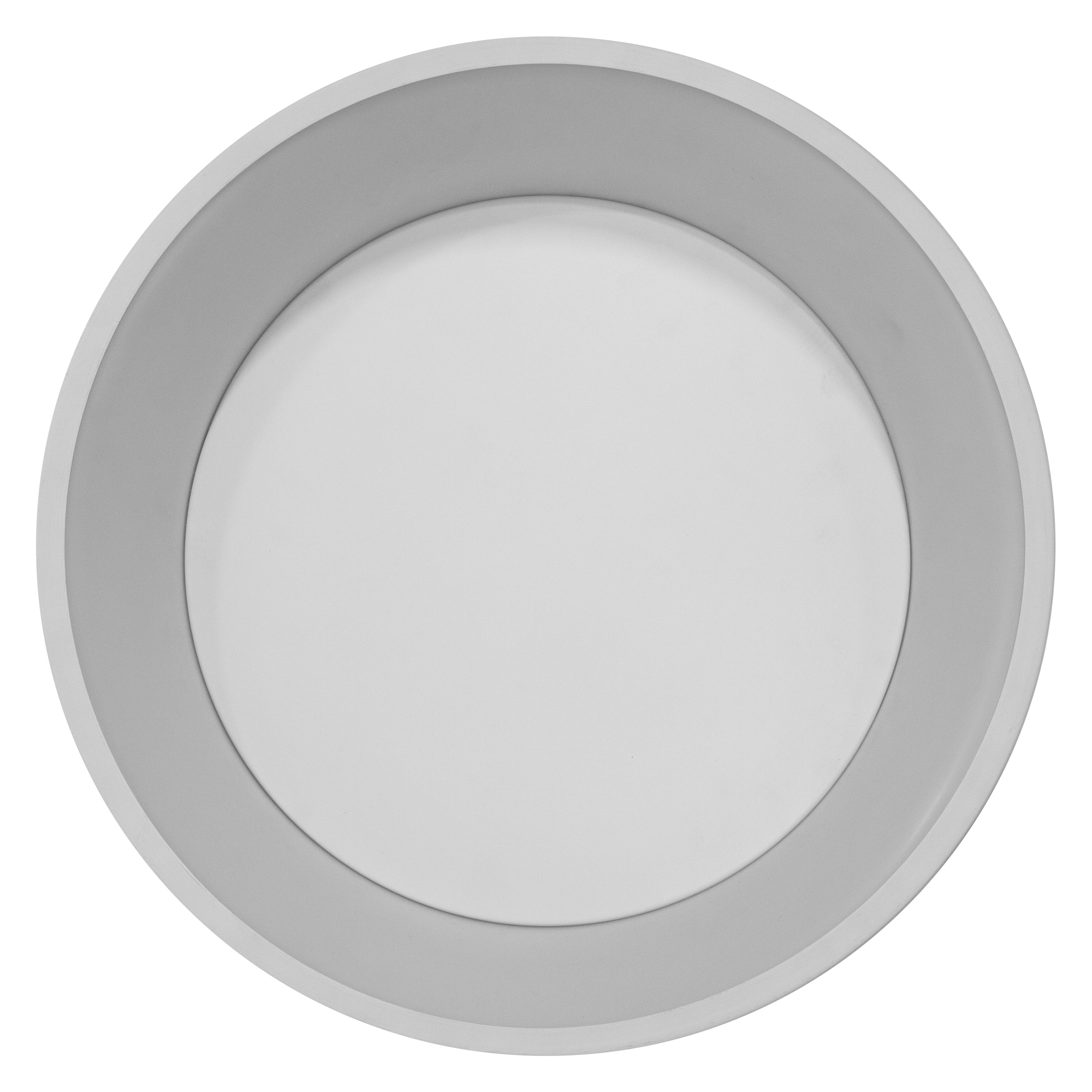

Product line drawing, front, no dimensions
SMART WIFI ORBIS CYLNR RD 450 TW
SMART WIFI ORBIS CYLNR RD 450 TW

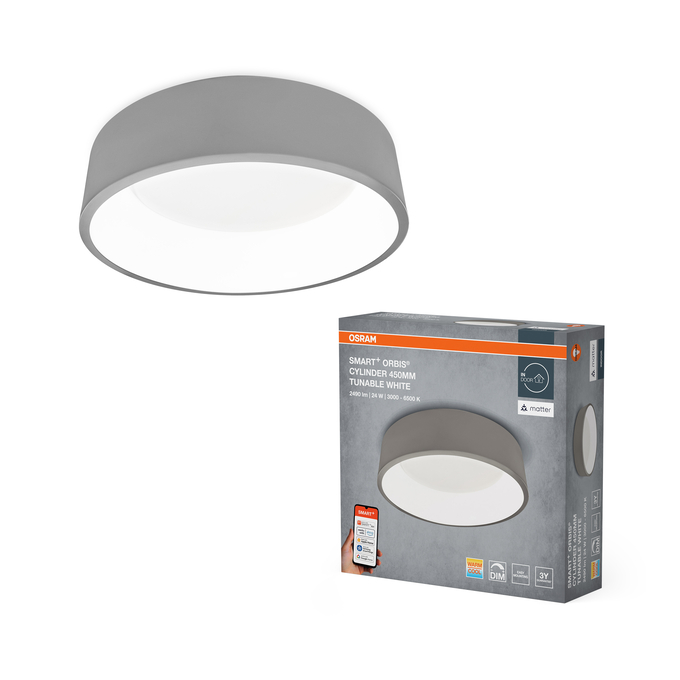

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WFMAT CYLINDER TW GR OSRAM
SH FC WFMAT CYLINDER TW GR OSRAM
Packaging image, frontal
SH FC WFMAT CYLINDER TW GR OSRAM
SH FC WFMAT CYLINDER TW GR OSRAM
Packaging image, spacial
SH FC WFMAT CYLINDER TW GR OSRAM
SH FC WFMAT CYLINDER TW GR OSRAM
Application pictures
Smart+ Kitchen
Smart+ Kitchen

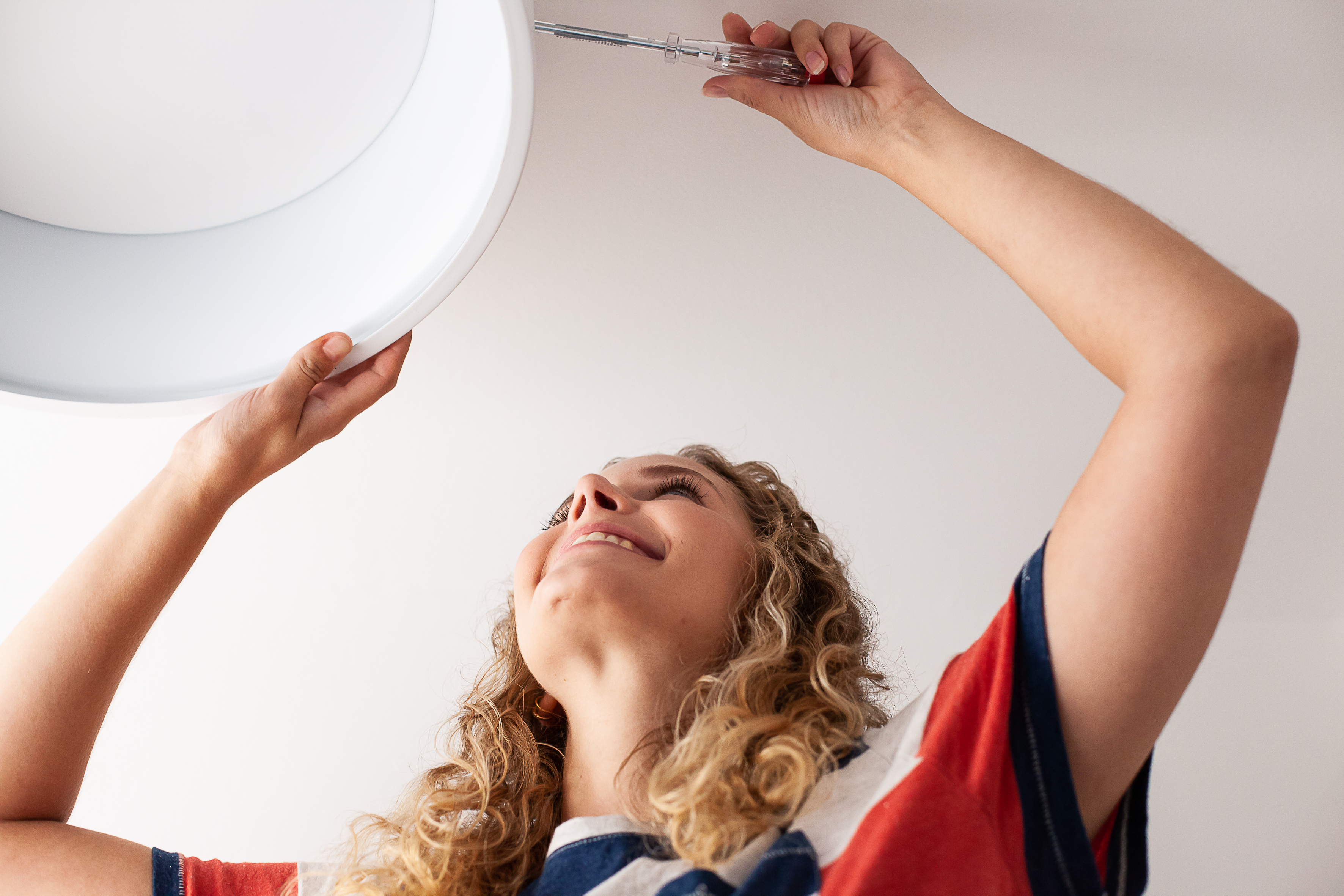

Application pictures
