SMART+ MATTER FILAMENT CLASSIC shapes DIMMABLE

SMART+ MATTER Classic P40 4W 827 FILAMENT DIM E14

GTIN: 4099854530029 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Wireless control via app or voice control
  • Seamless integration with Matter-compatible systems
  • Simplified set up process due to the standard user-friendly installation steps
  • Enhanced security by implementing strong encryption and authentication protocols
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination through smart home technology
  • Professional applications (hotels, bars, boutiques etc.) utilizing dynamic and robust ambient lighting effects
  • When users want to mix and match smart home products from different manufacturers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
  • Light color of the Clear version: 2700 K (Warm white), light color of the Gold version: 2400 K (Extra warm white)
  • Dimmable
  • Network protocol: Matter over WiFi
  • Lifetime up to 15,000 h
  • Compatible with Alexa, Google Home, Apple Home and other Matter-compatible platforms
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Nominal current 32 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.40
Claimed equiv. conventional lamp power 40 W
Operating mode AC Mains
Photometrical data
Light color (designation) Warm White
Lumen main.fact.at end of nom.life time 0.93
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 470 lm
Luminous flux 470 lm
Luminous efficacy 117 lm/W
Color temperature 2700 K
Color rendering index Ra 80
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Light technical data
Beam angle 300 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 26.00 g
Diameter 45.00 mm
Maximum diameter 45 mm
Length 110.00 mm
Width 45.00 mm
Height 45.00 mm
Outer bulb [PICOS] P45
Lifespan
Number of switching cycles 100000
Lifespan 15000 h
Lumen maintenance at end of service lifetime 0.93
Colors & materials
Product color Clear
Housing color White
Body material Glass
Temperatures & operating conditions
Ambient temperature range -20…40 °C
Additional product data
Mercury-free Yes
Base (standard designation) E14
Capabilities
Dimmable Yes 1)
1) Via App
Certificates & Standards
Energy efficiency class E
Energy consumption 4.00 kWh/1000h
Standards UKCA, CE
Type of protection IP20
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS <0.5
Claim of equivalent power Yes
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.5
LED light source replaces a fluorescent light source No
EPREL ID 2240741
Model number AC73903
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854530029 Folding box
1
48 mm x 78 mm x 114 mm 47.00 g 0.43 dm³
4099854530036 Shipping box
4
164 mm x 106 mm x 128 mm 261.00 g 2.23 dm³
Extended installation guide
SMTMAT 230

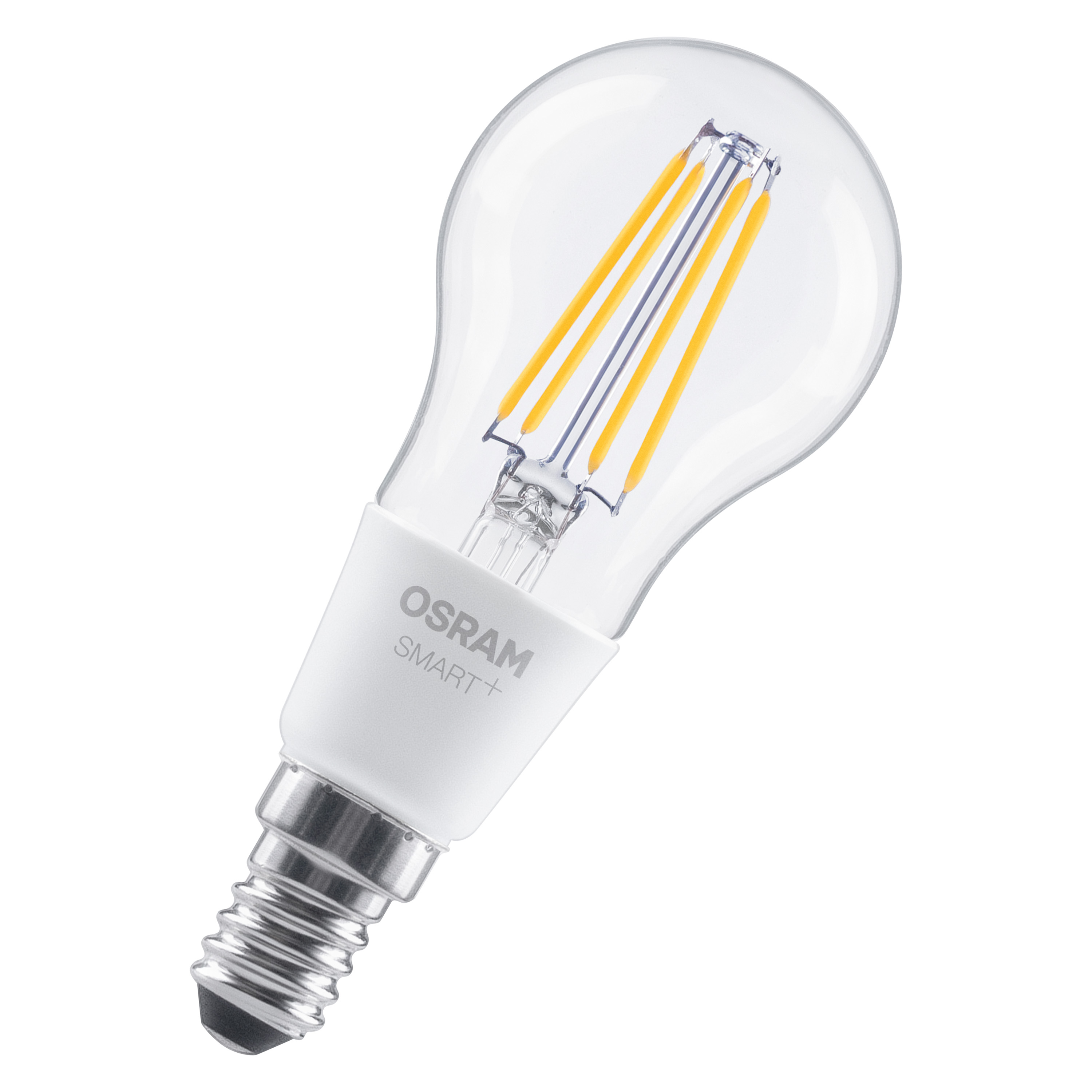

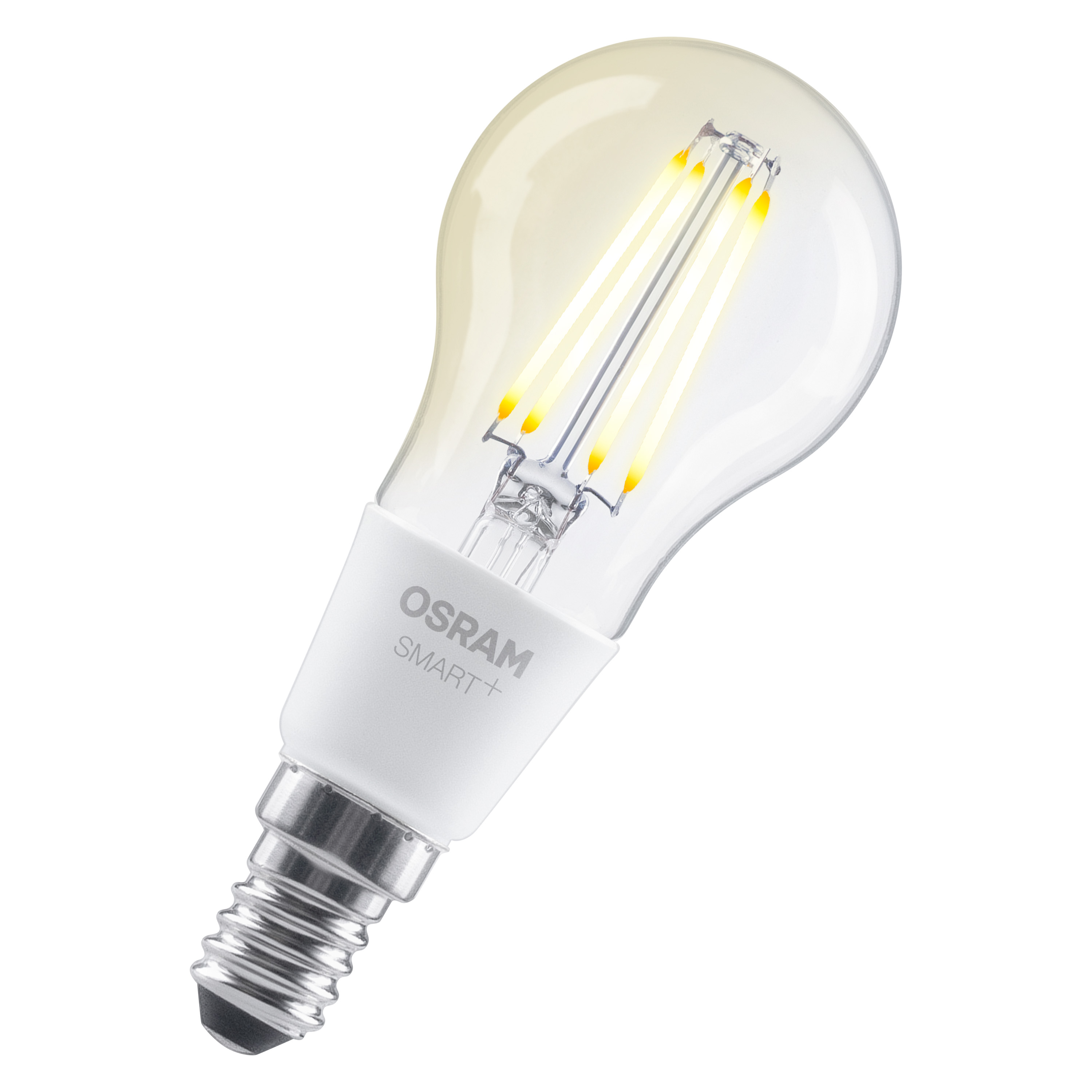

Product image: white background, diagonal with OSRAM logo
SMTMAT 230V
Product image: white background, diagonal with OSRAM logo
SMTMAT 230V

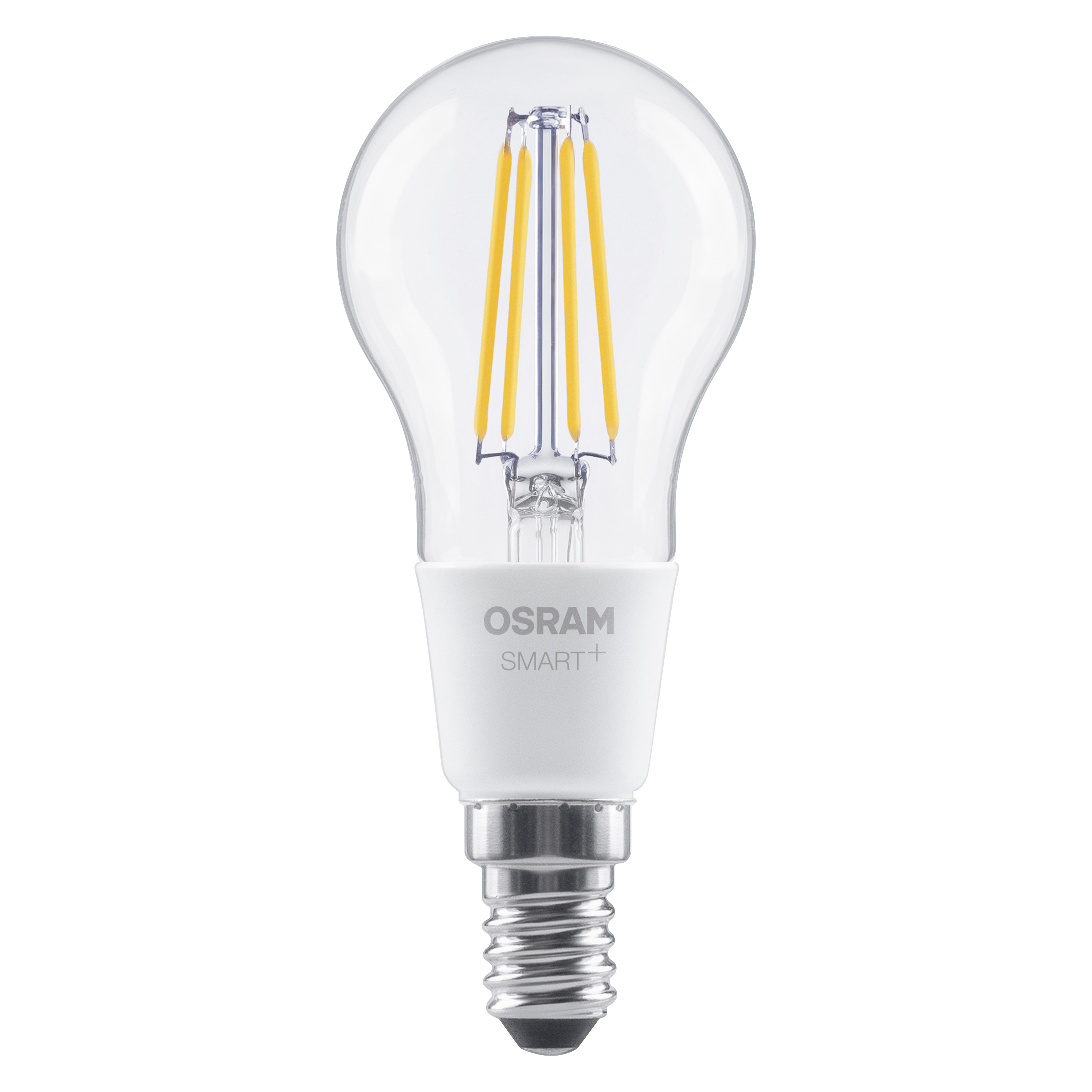

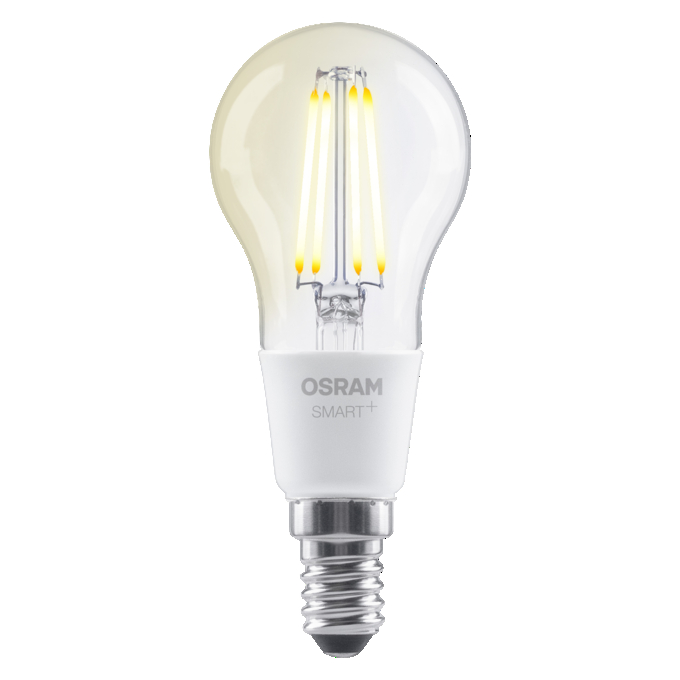

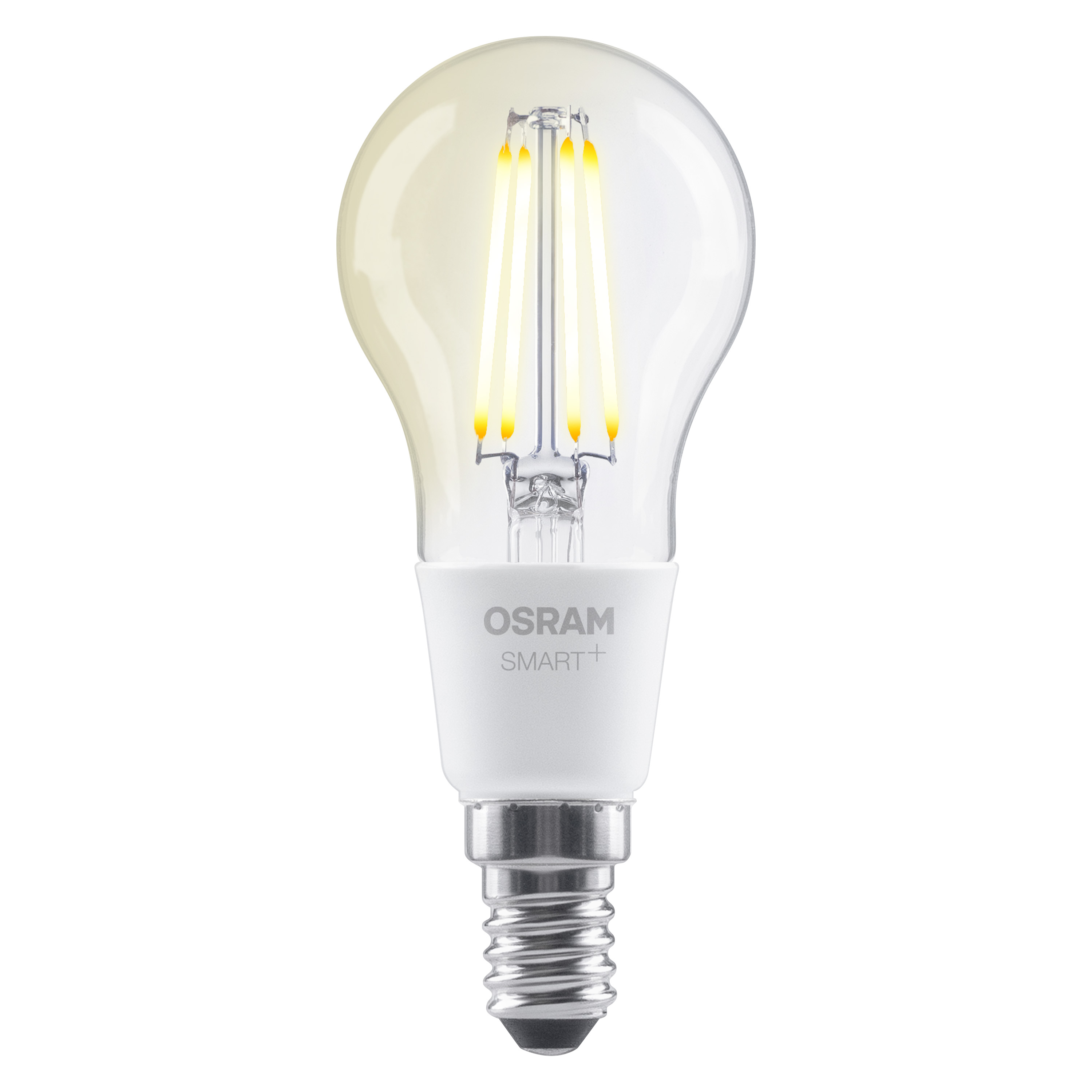

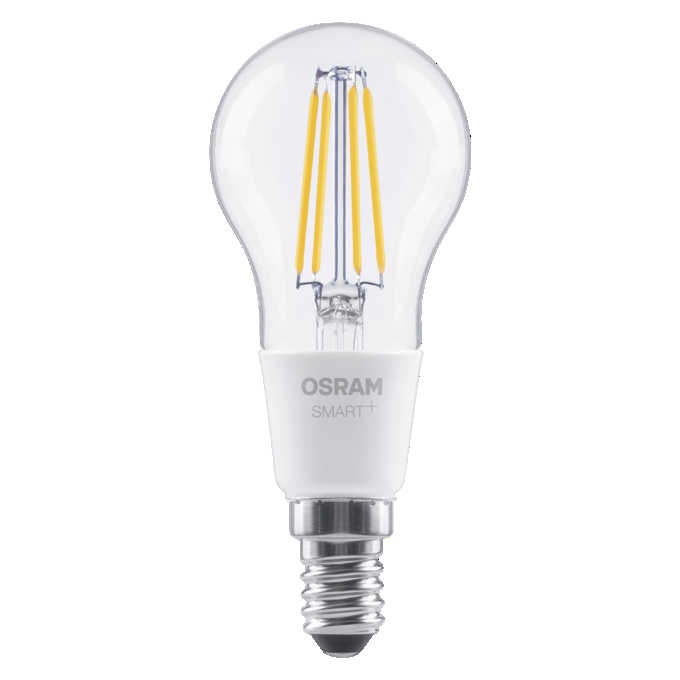

Product image: white background, upright, OSRAM logo
SMTMAT 230V
Product image: white background, upright, OSRAM logo
SMTMAT 230V
Product line drawing with letters
SMTMAT 230V
Product line drawing with numbers
SMTMAT 230V
Product line drawing, front, no dimensions
SMTMAT 230V

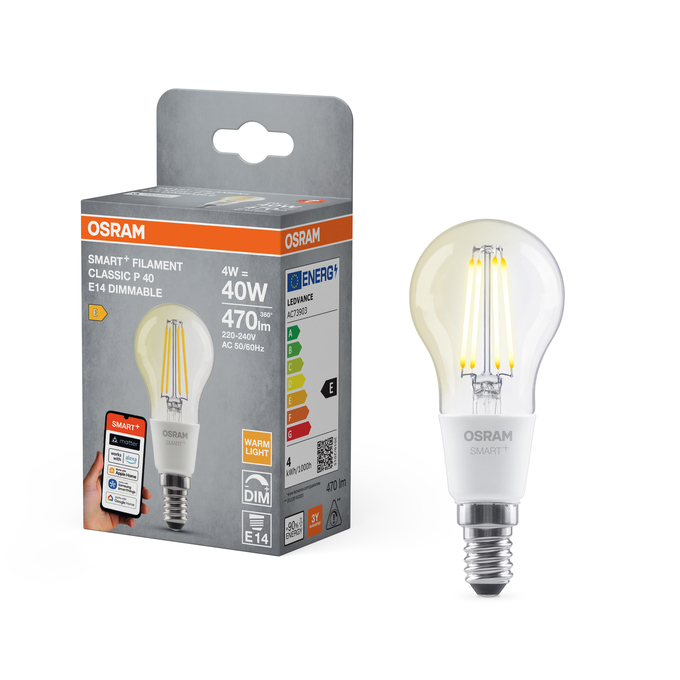

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WFMAT P40D FIL E14 1 OSRAM
Packaging image, frontal
SH FC WFMAT P40D FIL E14 1 OSRAM
Packaging image, spacial
SH FC WFMAT P40D FIL E14 1 OSRAM
Energy label
EL-4099854530029-AC739 03
Spectral power distribution
Spectral graph SMART FILAMENT DIM
