SMART+ MATTER CLASSIC shapes Tunable white

SMART+ MATTER Classic A60 9W 827...865 TW E27 SINGLE PACK

GTIN: 4099854528798 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Wireless control via app or voice control
  • Seamless integration with Matter-compatible systems
  • Simplified set up process due to the standard user-friendly installation steps
  • Enhanced security by implementing strong encryption and authentication protocols
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination through smart home technology
  • Professional applications (hotels, bars, boutiques etc.) utilizing dynamic and robust ambient lighting effects
  • When users want to mix and match smart home products from different manufacturers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
  • Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
  • Dimmable
  • Network protocol: Matter over WiFi
  • Lifetime: up to 20,000 h
  • Compatible with Alexa, Google Home, Apple Home and other Matter-compatible platforms
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Nominal current 60 mA
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ 0.50
Claimed equiv. conventional lamp power 60 W
Operating mode AC Mains
Photometrical data
Light color (designation) Tunable White
Lumen main.fact.at end of nom.life time 0.95
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 806 lm
Luminous flux 806 lm
Luminous efficacy 89 lm/W
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra 80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 200 °
Starting time 0.5 s
Warm-up time (60 %) 0.50 s
Dimensions & Weight
Product weight 38.00 g
Diameter 60.00 mm
Maximum diameter 60 mm
Length 112.00 mm
Width 60.00 mm
Height 60.00 mm
Outer bulb [PICOS] A60
Lifespan
Number of switching cycles 100000
Lifespan 20000 h
Lumen maintenance at end of service lifetime 0.95
Colors & materials
Product color White
Housing color White
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
1) Via App
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 9.00 kWh/1000h
Standards CE, UKCA
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power 0 W
Networked standby power for CLS <0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor >0.5
LED light source replaces a fluorescent light source No
EPREL ID 2240723
Model number AC73904
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854528798 Folding box
1
61 mm x 78 mm x 114 mm 61.00 g 0.54 dm³
4099854528804 Shipping box
4
164 mm x 130 mm x 128 mm 324.00 g 2.73 dm³
Extended installation guide
SMTMAT 230V
Declarations of conformity
SMART MAT

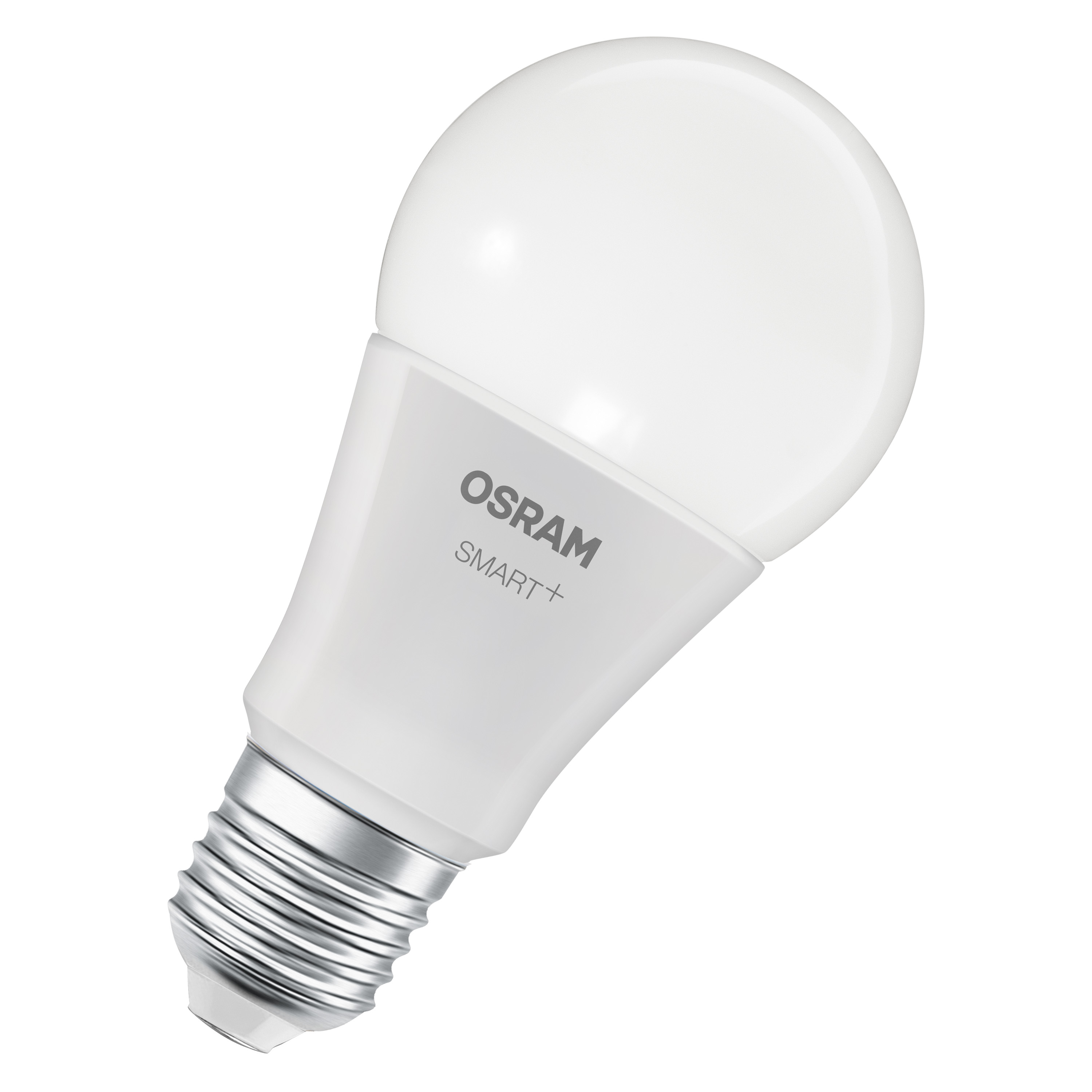

Product image: white background, diagonal with OSRAM logo
SMARTMAT 827 230V
Product image: white background, diagonal with OSRAM logo
SMARTMAT 827 230V

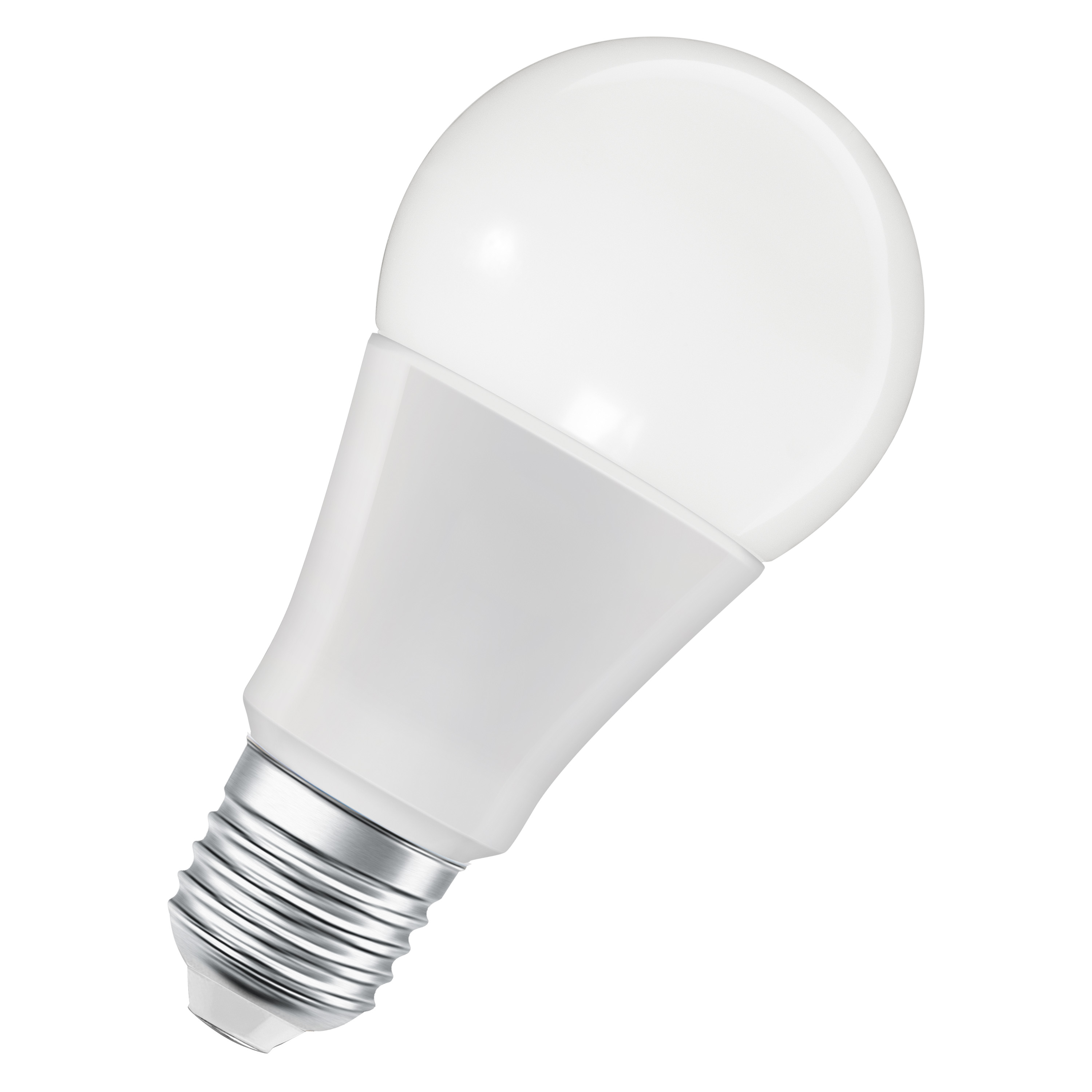

Product image: white background, diagonal
SMARTMAT 827 230V

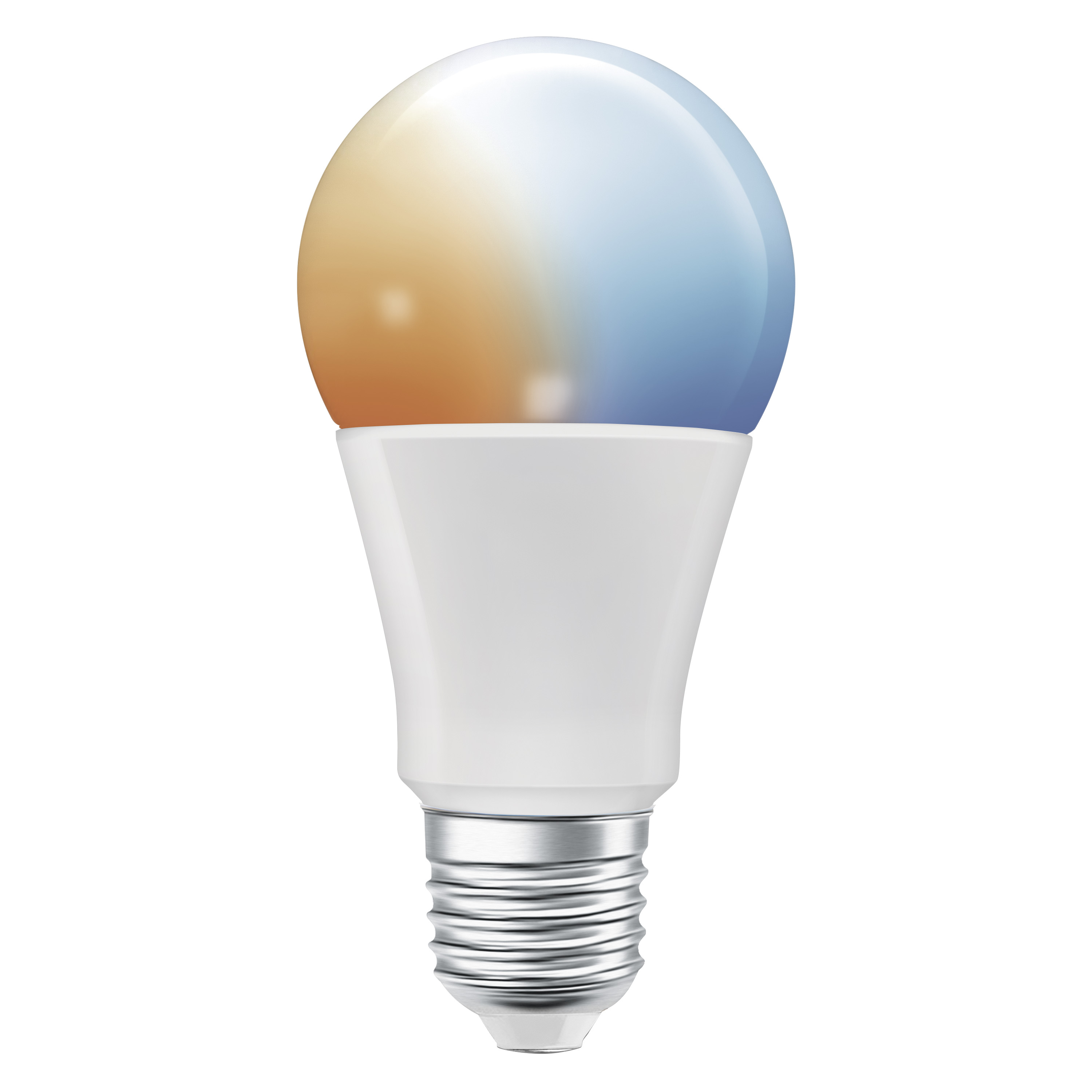

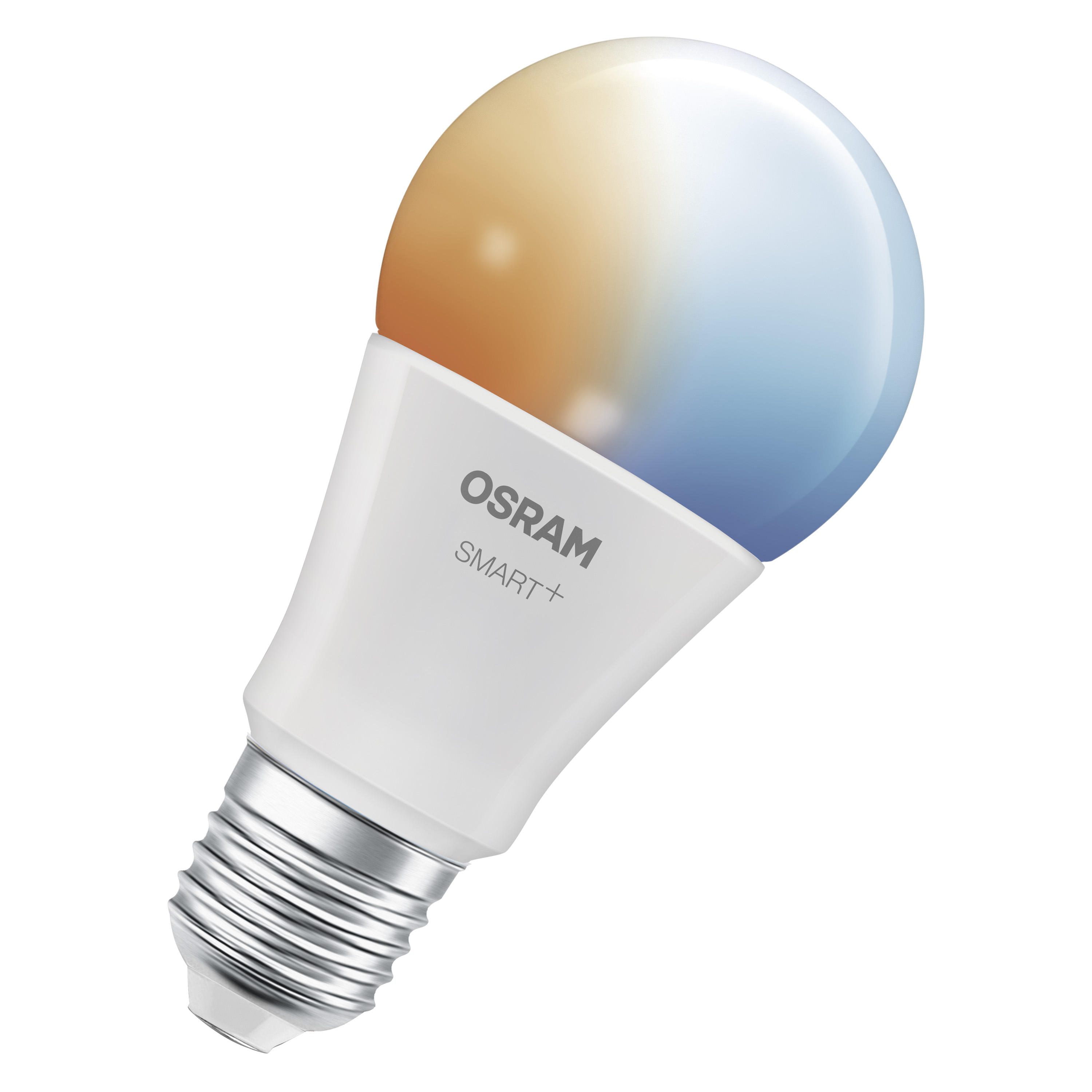

Product image: white background, diagonal, switched on
SMARTMAT 827 230V

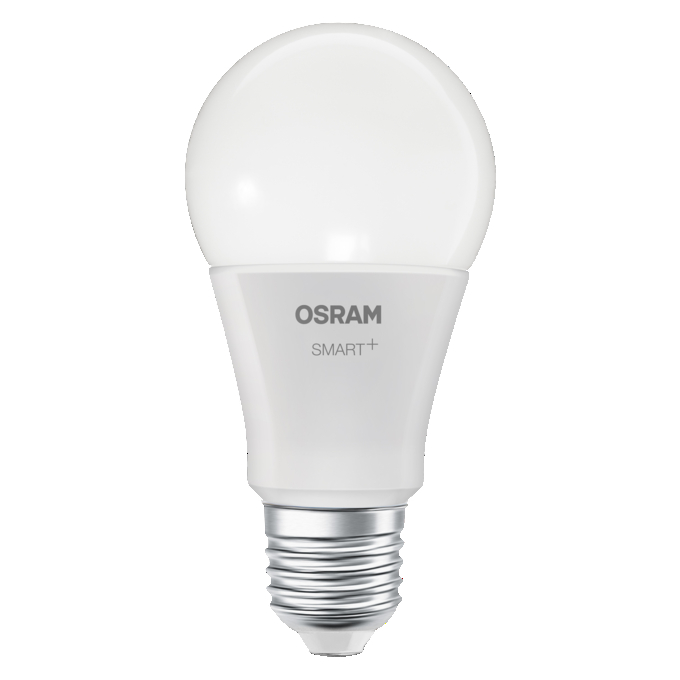

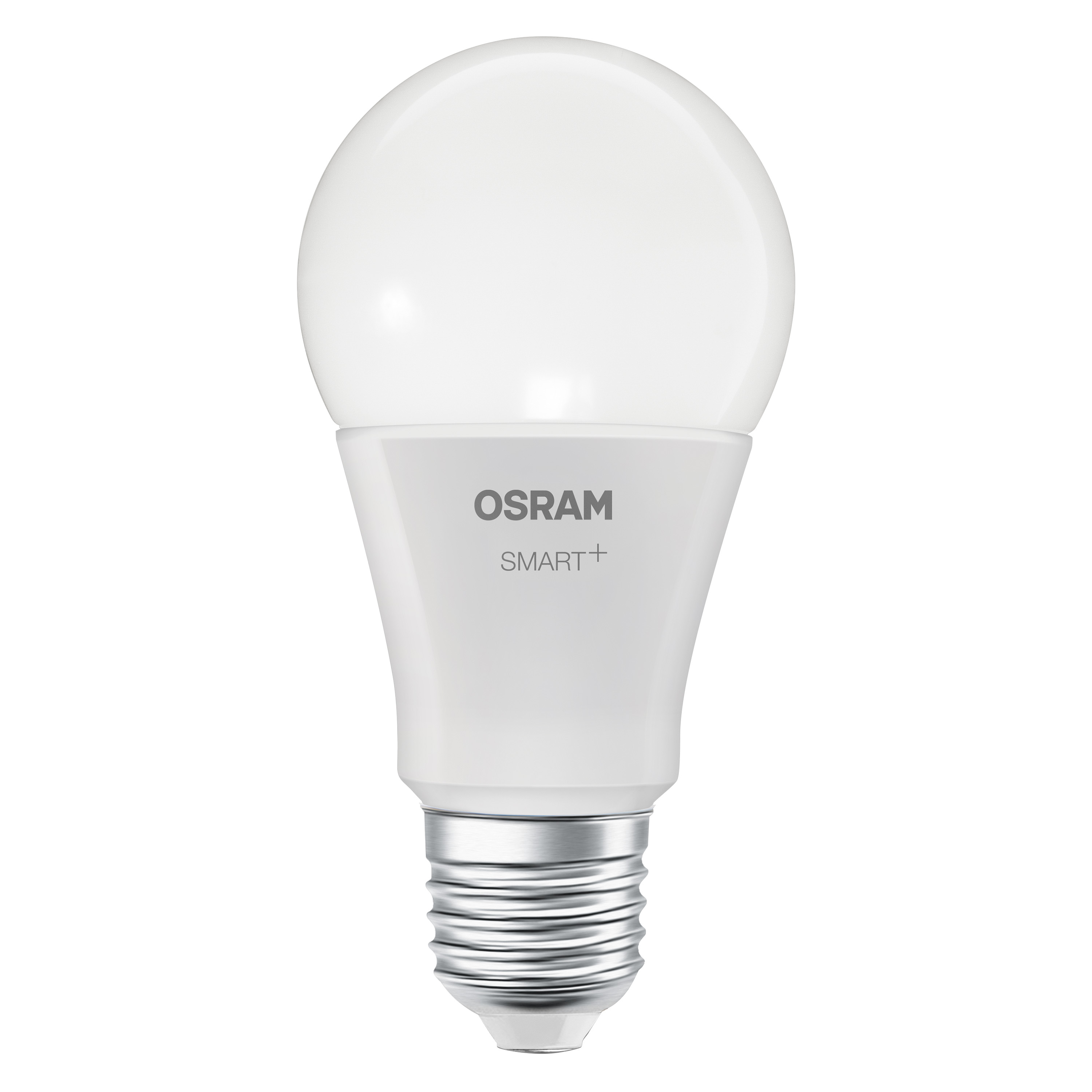

Product image: white background, upright, OSRAM logo
SMARTMAT 827 230V
Product image: white background, upright, OSRAM logo
SMARTMAT 827 230V

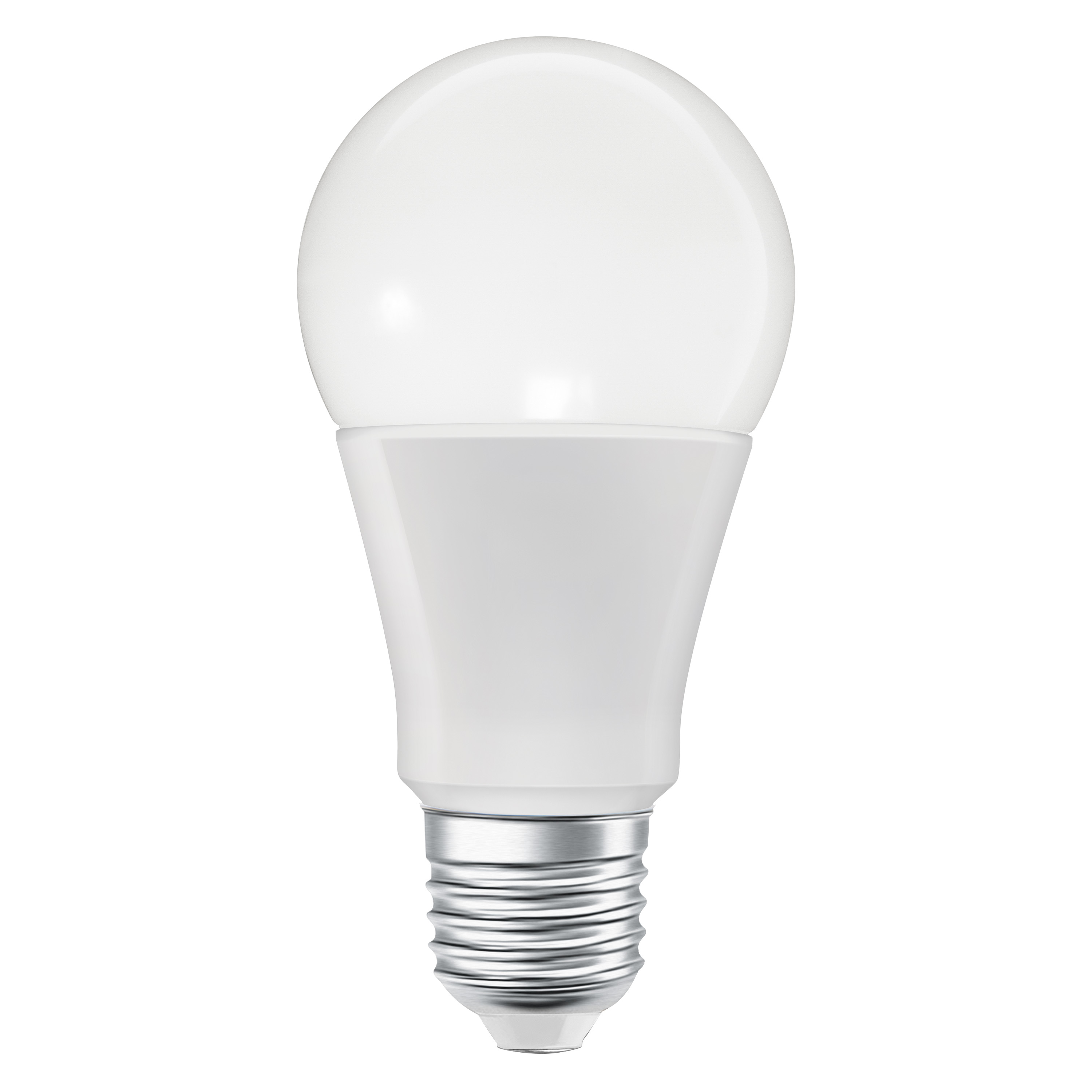

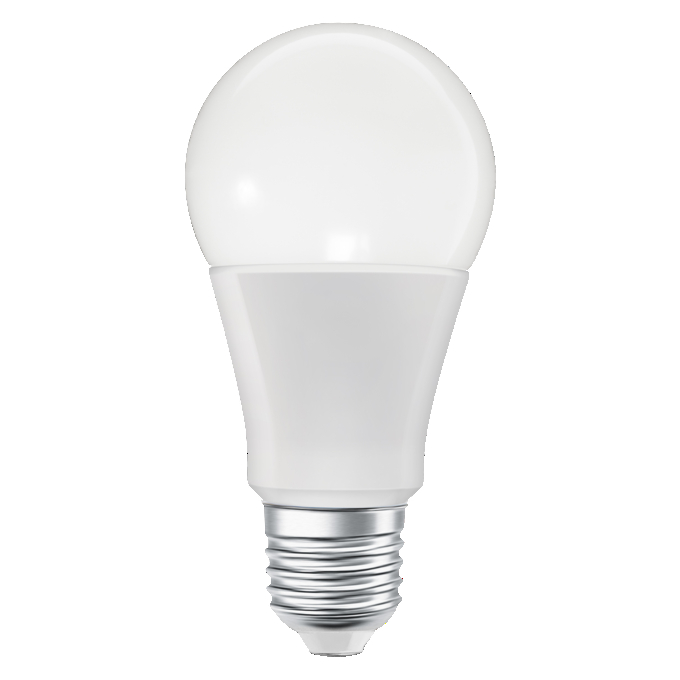

Product image: white background, upright
SMARTMAT 827 230V
Product image: white background, upright, switched on
SMARTMAT 827 230V
Product line drawing with letters
SMARTMAT 827 230V
Product line drawing with numbers
SMARTMAT 827 230V
Product line drawing, front, no dimensions
SMARTMAT 827 230V

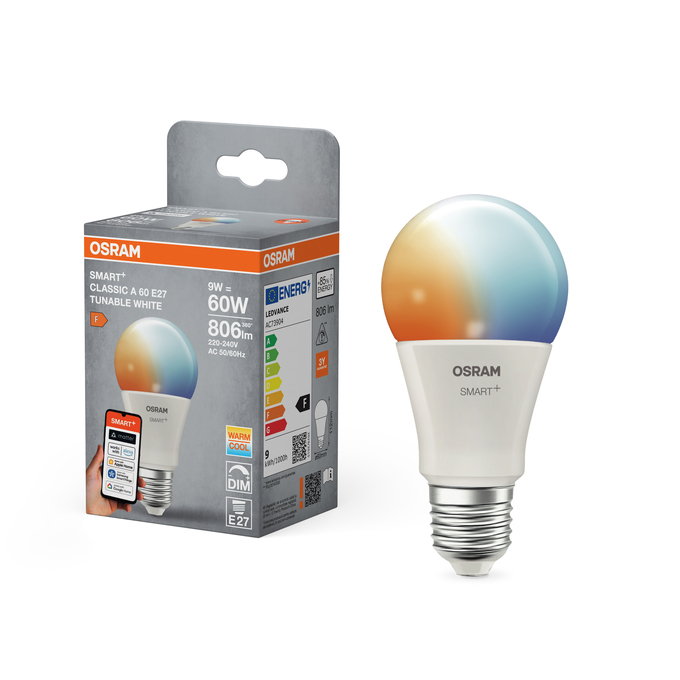

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WFMAT A60 TW FR E27 1 OSRAM
Packaging image, frontal
SH FC WFMAT A60 TW FR E27 1 OSRAM
Packaging image, spacial
SH FC WFMAT A60 TW FR E27 1 OSRAM
Energy label
EL-4099854528798-AC739 04

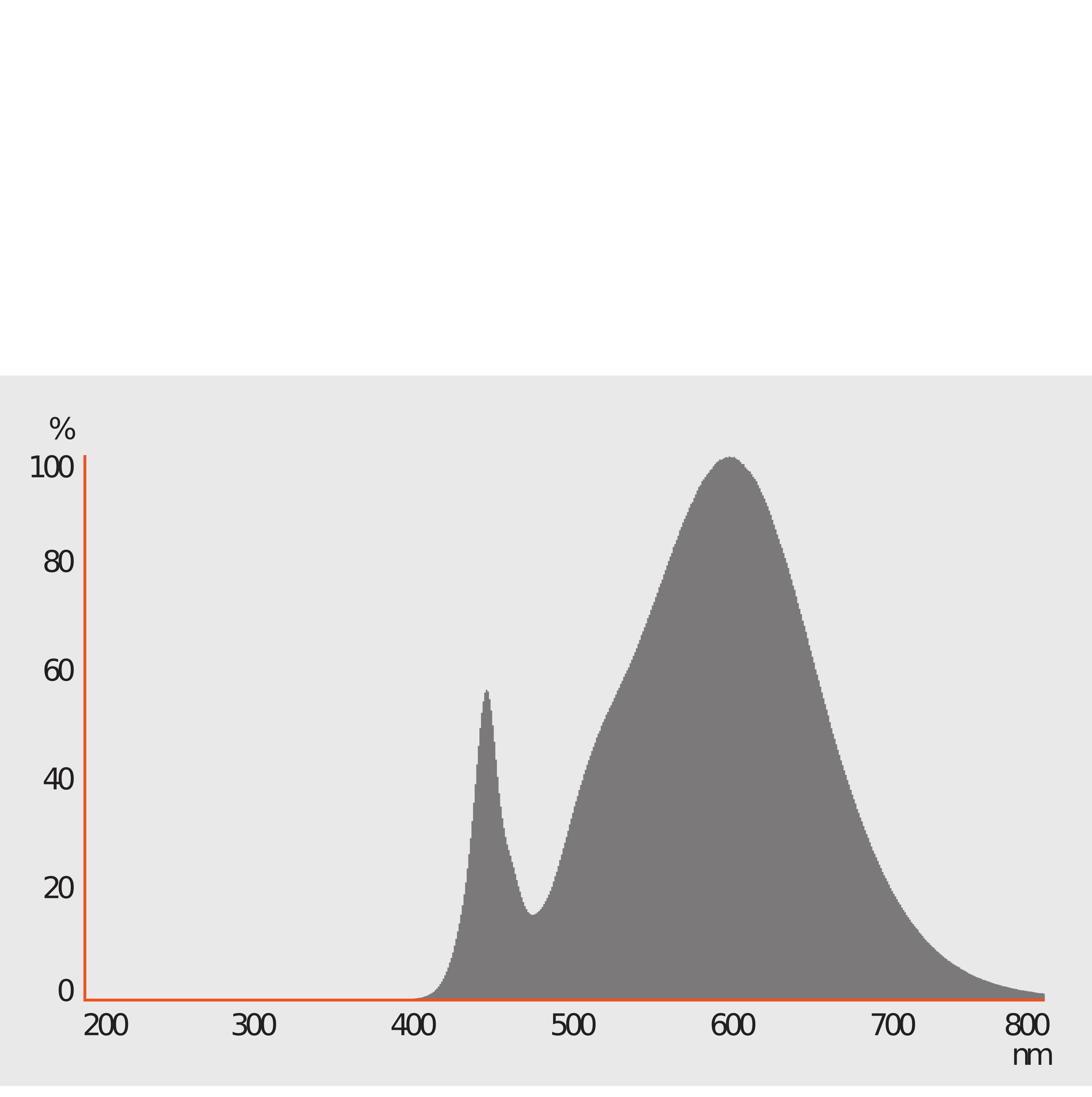

Spectral power distribution
