SMART+ WIFI MULTIPOWER SOCKET EU GEN2

SMART+ WIFI MULTIPOWER SOCKET EU White

GTIN: 4099854418198 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Smart Multi power socket: Simple connection of electric devices via smart sockets and smart USB ports
  • Monitors energy usage of connected devices and tracks the energy consumption
  • Integrates conventional electric equipment into compatible smart home systems
  • Enables switching of conventional light sources and other electric devices
  • Wireless control via app or voice control
Areas of application
  • Wherever non-smart devices need to be integrated into compatible smart home systems
  • USB ports available for power supply
Product features
  • Smart 4 standard sockets and smart 4 USB ports for charging (2 ports each Type A and C)
  • USB charger: Fast charging with USB Power Delivery (USB PD) up to 20W power
  • Power sockets can be controlled individually and USB ports are controlled as one group
  • High switching power: up to 3,680 W / 16 A
  • Energy meter
  • Scheduling
  • 1.5 m power cable for flexible installation
  • Network protocol: WiFi (2.4 GHz)
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Controllable via SMART+ WiFi Remote Controller
Safety advice
  • Disconnect devices which generate heat from the mains, i.e. from the SMART+ Multi Power Socket, after use in order to avoid them being accidentally switched on.
  • Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
  • Do not use the SMART+ Multi Power Socket in conjunction with medical equipment.
  • To be connected to an automatic circuit breaker (for max. 16 A)
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal voltage 230 V
Nominal current 16 A
Mains frequency 50 Hz
Dimensions & Weight
Product weight 586.00 g
Length 315 mm
Width 62 mm
Height 40 mm
Lifespan
Number of switching cycles 10000
Colors & materials
Product color White
Temperatures & operating conditions
Ambient temperature range -5…+40 °C
Capabilities
Type of connection Plug
Compatible smart home technology Amazon Alexa, Google Assistant
Certificates & Standards
Standards CE
Protection class I
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854418198 Folding box
1
76 mm x 76 mm x 377 mm 633.00 g 2.18 dm³
4099854418204 Shipping box
4
390 mm x 165 mm x 165 mm 2764.00 g 10.62 dm³
User instruction / safety instructions
SMART+ MULTIPOWER SOCKET
Legal information
Safety insert G11234413
Declarations of conformity
SMART WIFI MULTIPOWER SOCKET EU
EU Data Act
SMART WiFi Plugs

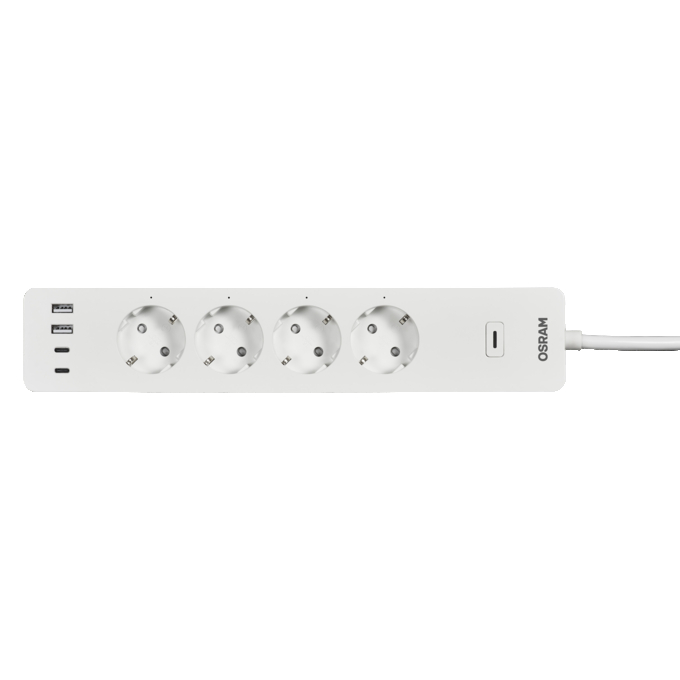

Product image: white background, upright
SMART WIFI MAT MULTIPOWER SOCKET EU

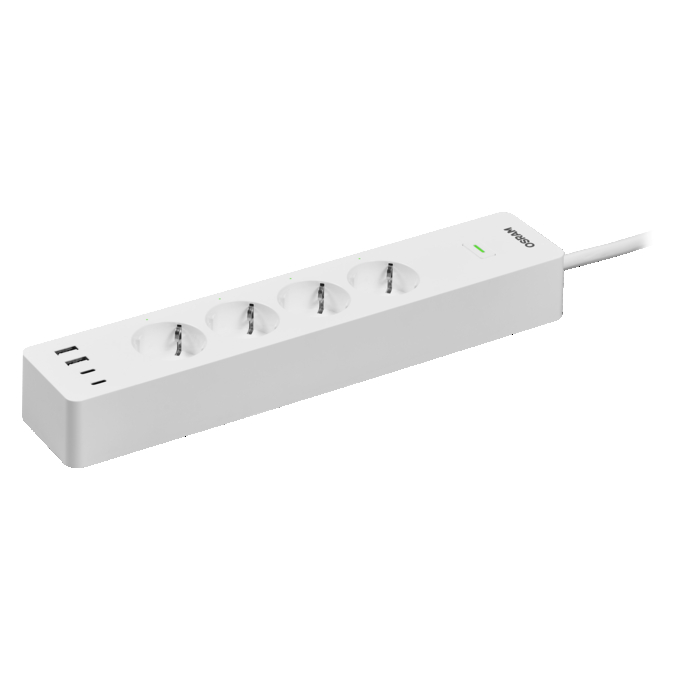

Product image: white background, upright, alternative image
SMART WIFI MAT MULTIPOWER SOCKET EU
Product image: white background, upright, switched on
SMART WIFI MAT MULTIPOWER SOCKET EU
Product infographic (application image with text and graphic)
Matter E-Com Grafik V2 1200x1200px 2023 EN
Product infographic (application image with text and graphic)
Matter E-Com Grafik V1 1200x1200px 2023 EN
Product line drawing with letters
SMART WIFI MAT MULTIPOWER SOCKET EU
Product line drawing with numbers
SMART WIFI MAT MULTIPOWER SOCKET EU
Product line drawing, front, no dimensions
SMART WIFI MAT MULTIPOWER SOCKET EU

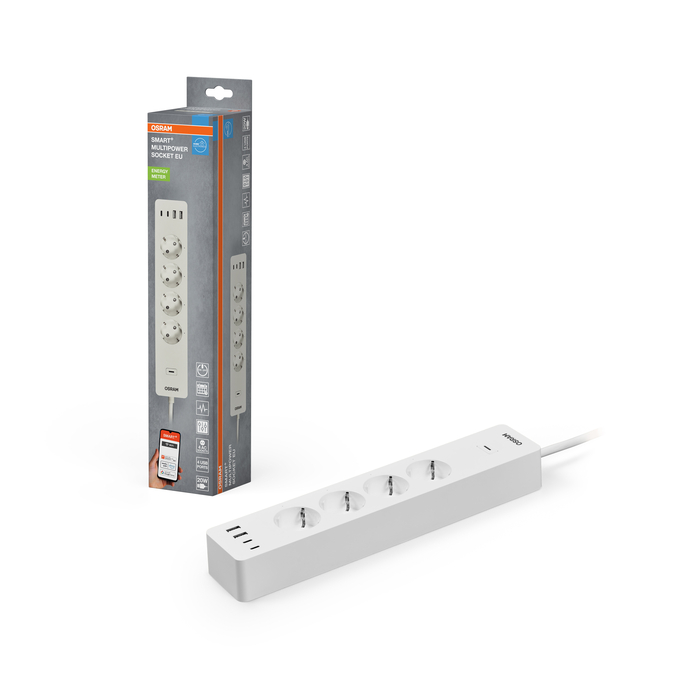

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WFMAT MULTIP SOCKET EU OSRAM
Packaging image, frontal
SH FC WFMAT MULTIP SOCKET EU OSRAM
Packaging image, spacial
SH FC WFMAT MULTIP SOCKET EU OSRAM

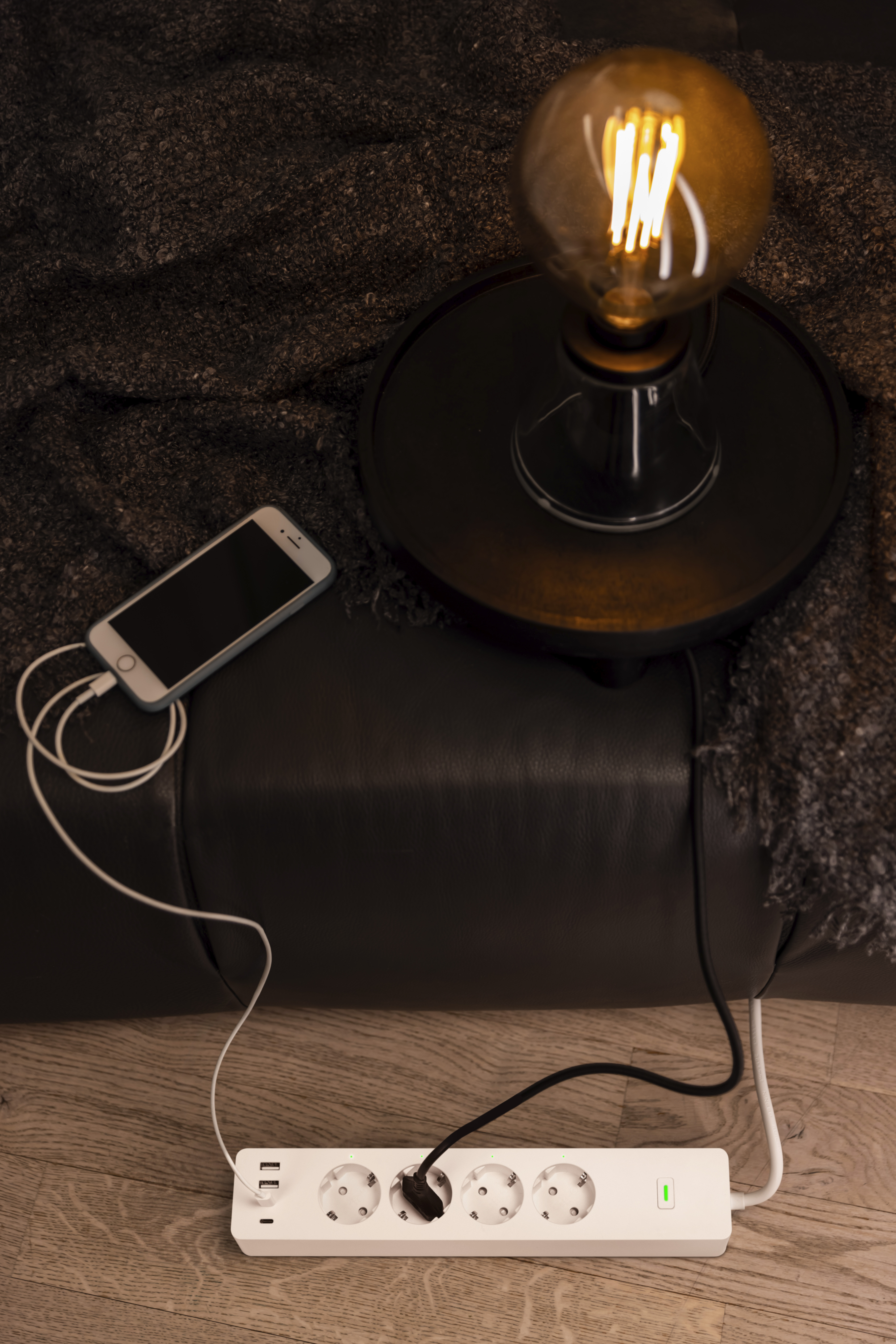

Application pictures
SMART WIFI MULTI POWER SOCKET EU 3

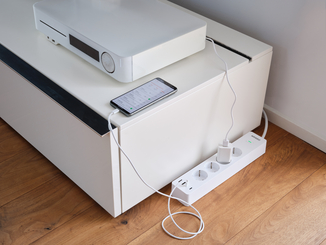

Application pictures
SMART PLUS WIFI MULTI POWER SOCKET EU OSRAM-Ambient
Application pictures
SMART PLUS WIFI MULTI POWER SOCKET EU OSRAM-CloseUp
Application pictures
SMART PLUS APP WIFI

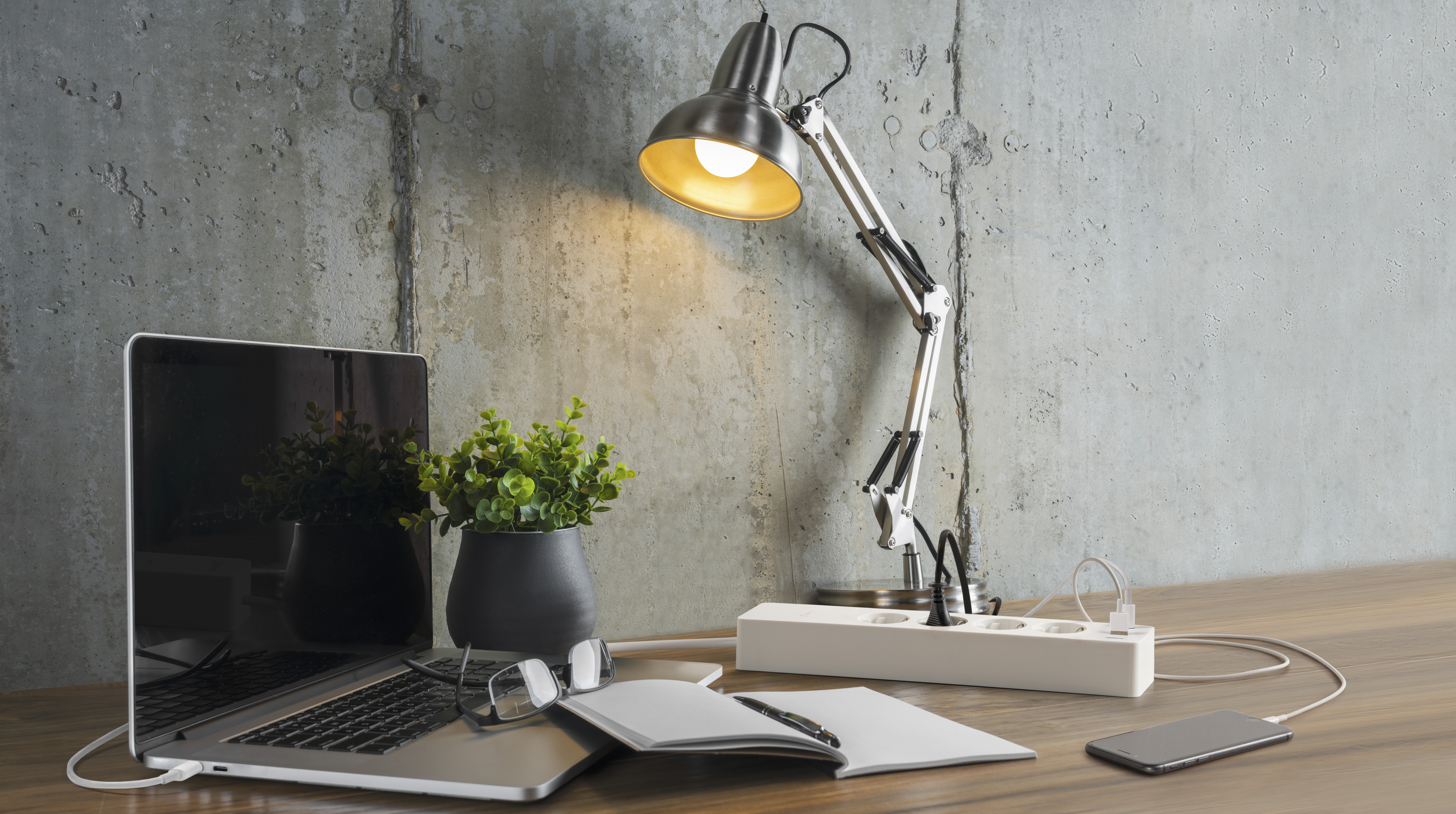

Application pictures Getty
