ENDURA STYLE PYRAMID

ENDURA Style Pyramid 50cm Post 9W

GTIN: 4099854461743 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Energy-efficient thanks to LED technology
Areas of application
  • Building facades
  • Entrance lighting
  • Patios, balconies
Product features
  • Bright and functional outdoor LED luminaires
  • Stainless steel housing
  • Type of protection: IP44
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
Nominal wattage 9.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ > 0.5
Protection class I
Operating mode Mains voltage
Photometrical data
Luminous flux 600 lm
Luminous efficacy 67 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Beam angle 90 °
Dimensions & Weight
Length 100.00 mm
Height 500.00 mm
Width 100.00 mm
Product weight 1800.00 g
Materials & Colors
Product color Steel
Housing color Steel
Body material Stainless steel
Cover material Polycarbonate (PC)
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP44
Dimmable No
Mounting type Surface
Application environment Outdoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 25000 h 1)
Number of switching cycles 12500
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854461743 Folding box
1		 120 mm x 120 mm x 520 mm 1928.00 g 7.49 dm³
4099854461750 Shipping box
2		 540 mm x 260 mm x 140 mm 4308.00 g 19.66 dm³
User instruction / safety instructions
ENDURA STYLE PYRAMID
PDF (871.36 KB)
Legal information
Safety insert G11219578
PDF (266.48 KB)
Declarations of conformity
ENDURA STYLE PYRAMID WALL 9W ST LEDV
PDF (298.7 KB)

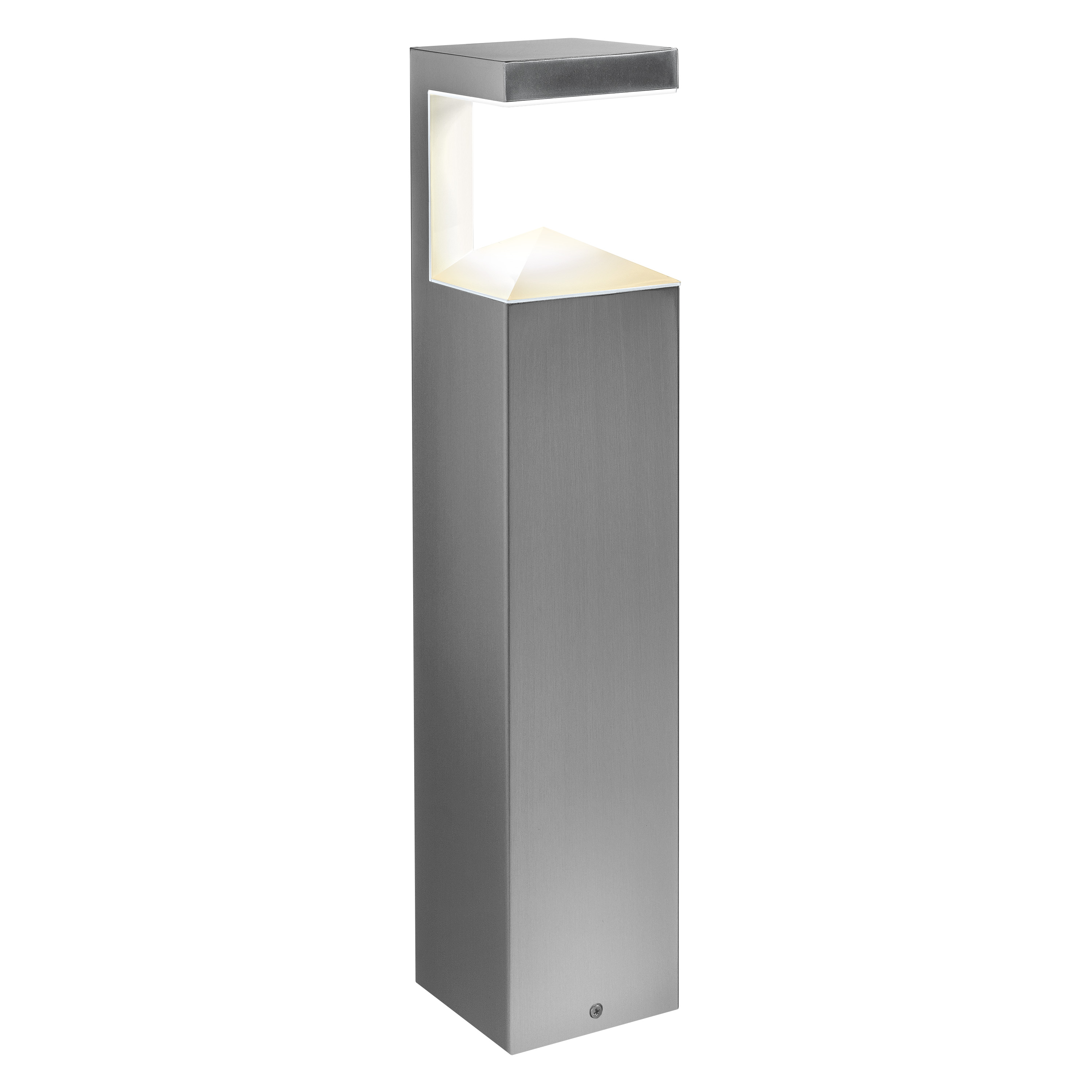

Product image: white background, upright
ENDURA STYLE PYRAMID 50CM 8W SI
JPG (661.3 KB)

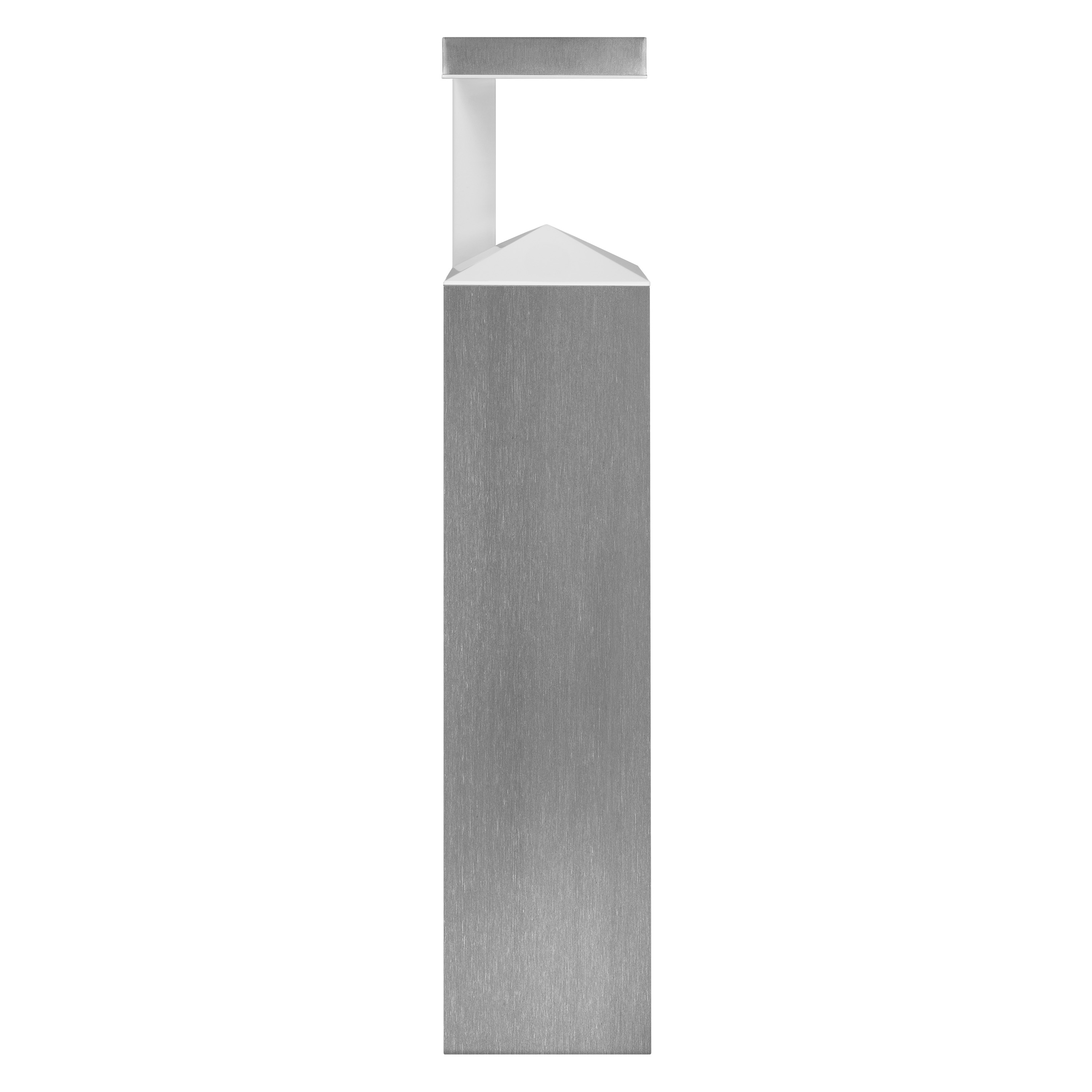

Product image: white background, upright, alternative image
ENDURA STYLE PYRAMID 50CM 8W SI
JPG (583.44 KB)
Product image: white background, upright, switched on
ENDURA STYLE PYRAMID 50CM 8W SI
JPG (669.08 KB)
Product line drawing with letters
ENDURA STYLE PYRAMID 50CM 8W SI
SVG (10.12 KB)
Product line drawing with numbers
ENDURA STYLE PYRAMID 50CM 8W SI
SVG (10.29 KB)
Product line drawing, front, no dimensions
ENDURA STYLE PYRAMID 50CM 8W SI
SVG (4.5 KB)

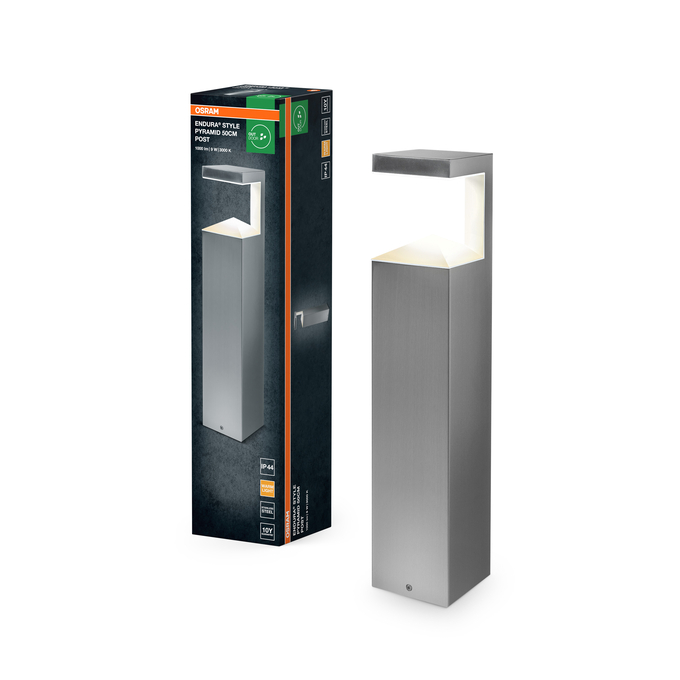

Combo Shot = Product Beauty Shot + Packaging Image
