UNDERCABINET PANEL FRAMELESS

Undercabinet Panel Frameless 30x10cm CCT DIM Black

GTIN: 4058075842687 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick series connection thanks to simple plug system
  • Connection of up to 3 luminaires in a row via enclosed connector cable
  • Highly versatile due to selectable CCT
Areas of application
  • Kitchens, Living areas, Shelf and undercabinet lighting
Product features
  • Low voltage luminaire for DC operation with external driver
  • Easy and fast mounting on nearly every surface (adhesive tape)
  • Color temperature adjustable in three steps
  • Switch on and off and color change by movements with max. 6 cm distance in front of the infrared motion sensor
  • Stepless dimming by covering the infrared motion sensor in max. 6 cm distance for at more than one second
  • 2 different lengths available
  • Lifetime up to 30,000 h
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
Nominal wattage 5.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 45.000 mA
Inrush current 5.8 A
Inrush current time Th50 245 µs
Max. number of luminaires per miniature circuit breaker B16 57
Max. number of luminaires per miniature circuit breaker C10 51
Max. number of luminaires per miniature circuit breaker C16 82
Power factor λ ≥0.5
Total harmonic distortion < 130 %
Protection class III
Operating mode Mains voltage
Photometrical data
Luminous flux 220 lm
Total luminous flux of contained light sources 250 lm
Luminous efficacy 44 lm/W
Color temperature 3000 K / 4000 K / 6500 K
Light color (designation) Warm White, Cool White, Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °
Dimensions & Weight
Length 300.00 mm
Height 8.00 mm
Width 100.00 mm
Product weight 330.00 g
Cable length 1500 mm
Materials & Colors
Product color Black
Housing color Black
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Type of dimming PIR STEP
Mounting type Surface
Mounting location Wall, Cabinet undersides
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 15000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Infrared sensor
Sensor technology Passive infrared (PIR)
Detection range of motion sensor 60 mm
Certificates & Standards
Standards CE
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075842687 Folding box
1		 57 mm x 122 mm x 418 mm 460.00 g 2.91 dm³
4058075842694 Shipping box
4		 434 mm x 244 mm x 148 mm 2305.00 g 15.67 dm³
User instruction / safety instructions
Undercabinet Panel
PDF (655.23 KB)
Legal information
TRACKLIGHT SPOT ZOOM D85
PDF (591.69 KB)
Declarations of conformity
EU-Declaration of Conformity_PANEL_ANGLE .pdf
PDF (248.93 KB)

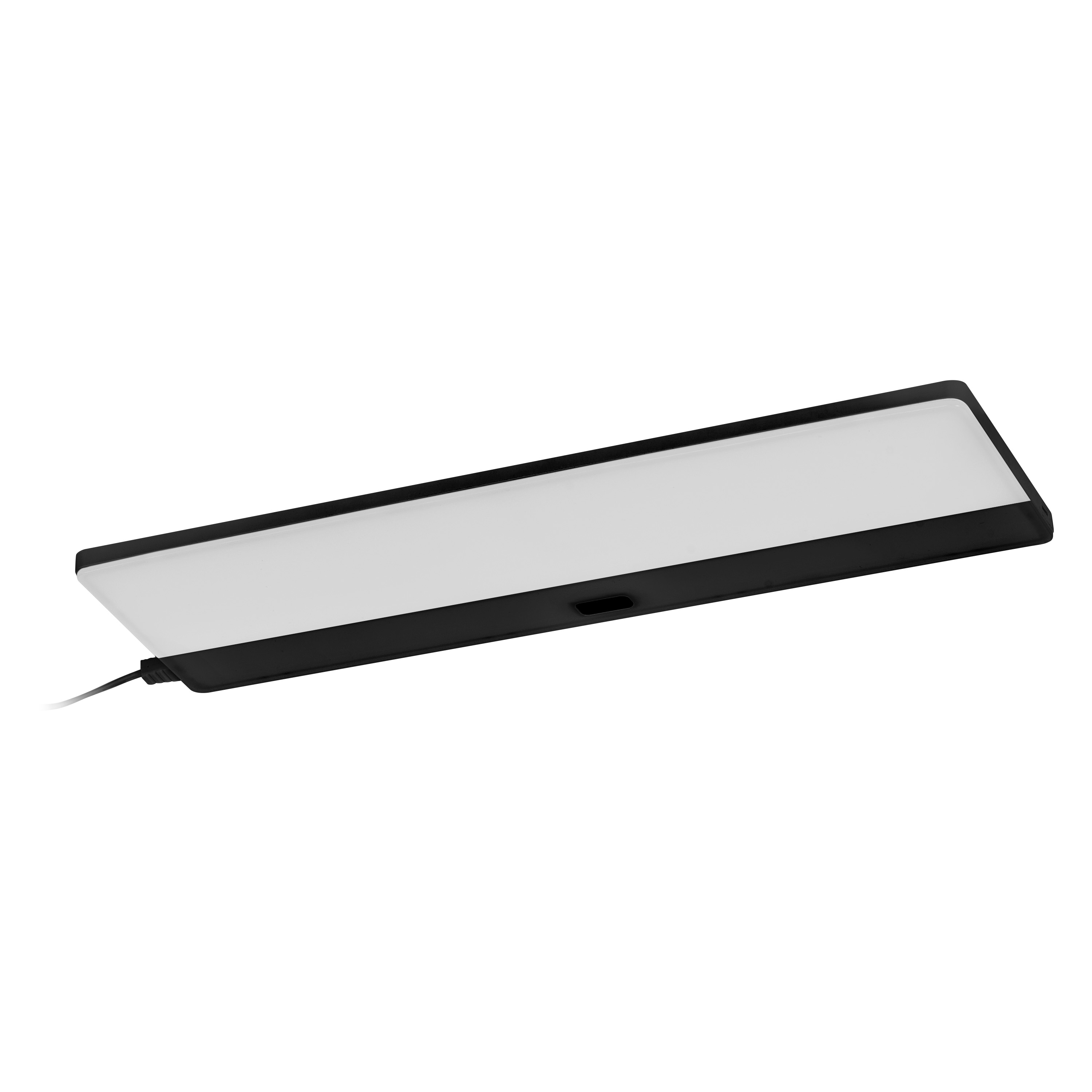

Product image: white background, upright
UNDERCABINET PANEL FL 30X10CCT D BK image
JPG (386.53 KB)
Product image: white background, upright, alternative image
UNDERCABINET PANEL FL 30X10CCT D BK image
JPG (435.93 KB)

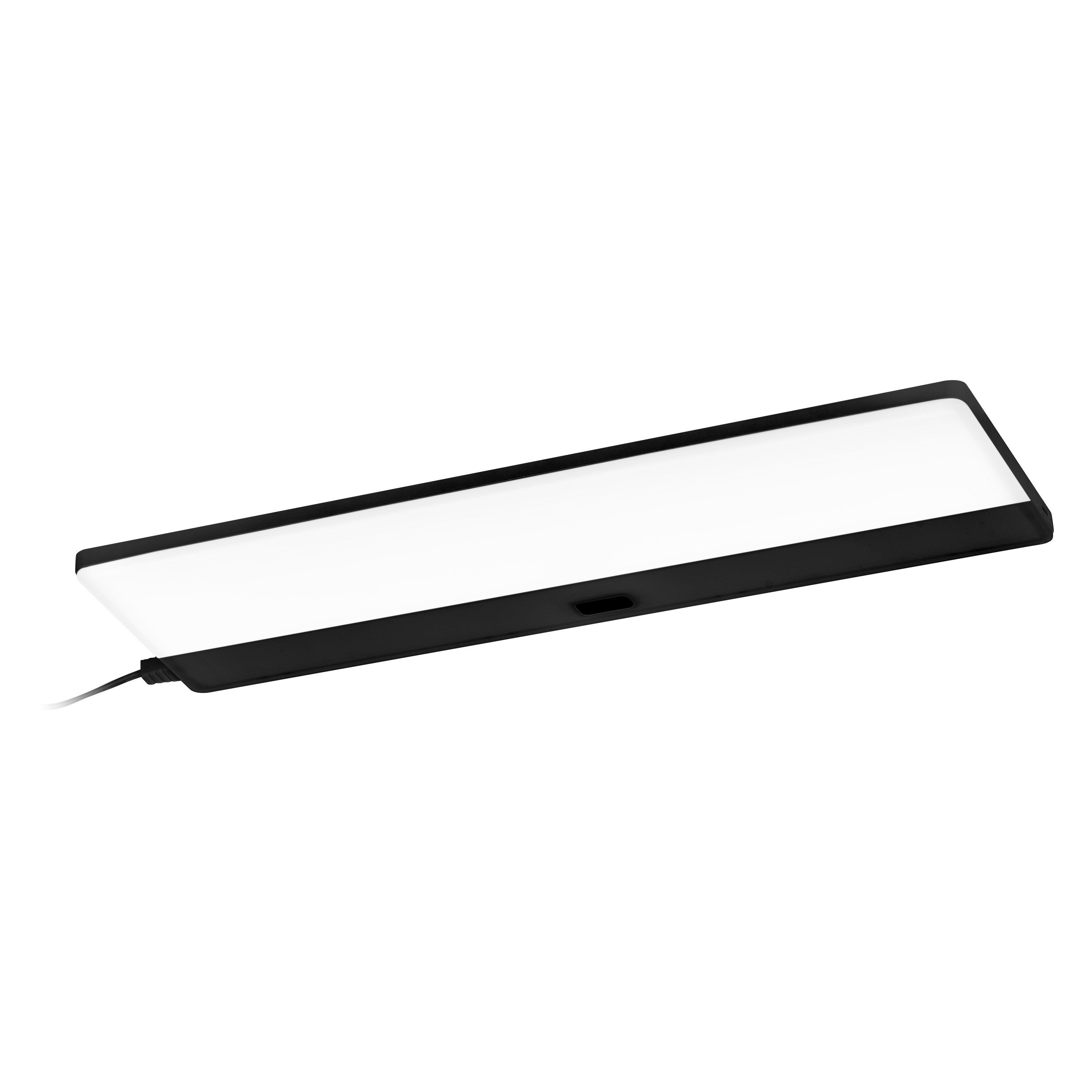

Product image: white background, upright, switched on
UNDERCABINET PANEL FL 30X10CCT D BK image
JPG (374.97 KB)
Product infographic (application image with text and graphic)
Mobile luminaires e-Com graphic 1200x1200px 2024 EN
JPG (484.72 KB)
Product line drawing with letters
UNDERCABINET PANEL FL 30X10CCT D BK line drawing
SVG (87.41 KB)
Product line drawing with numbers
UNDERCABINET PANEL FL 30X10CCT D BK line drawing
SVG (50.61 KB)

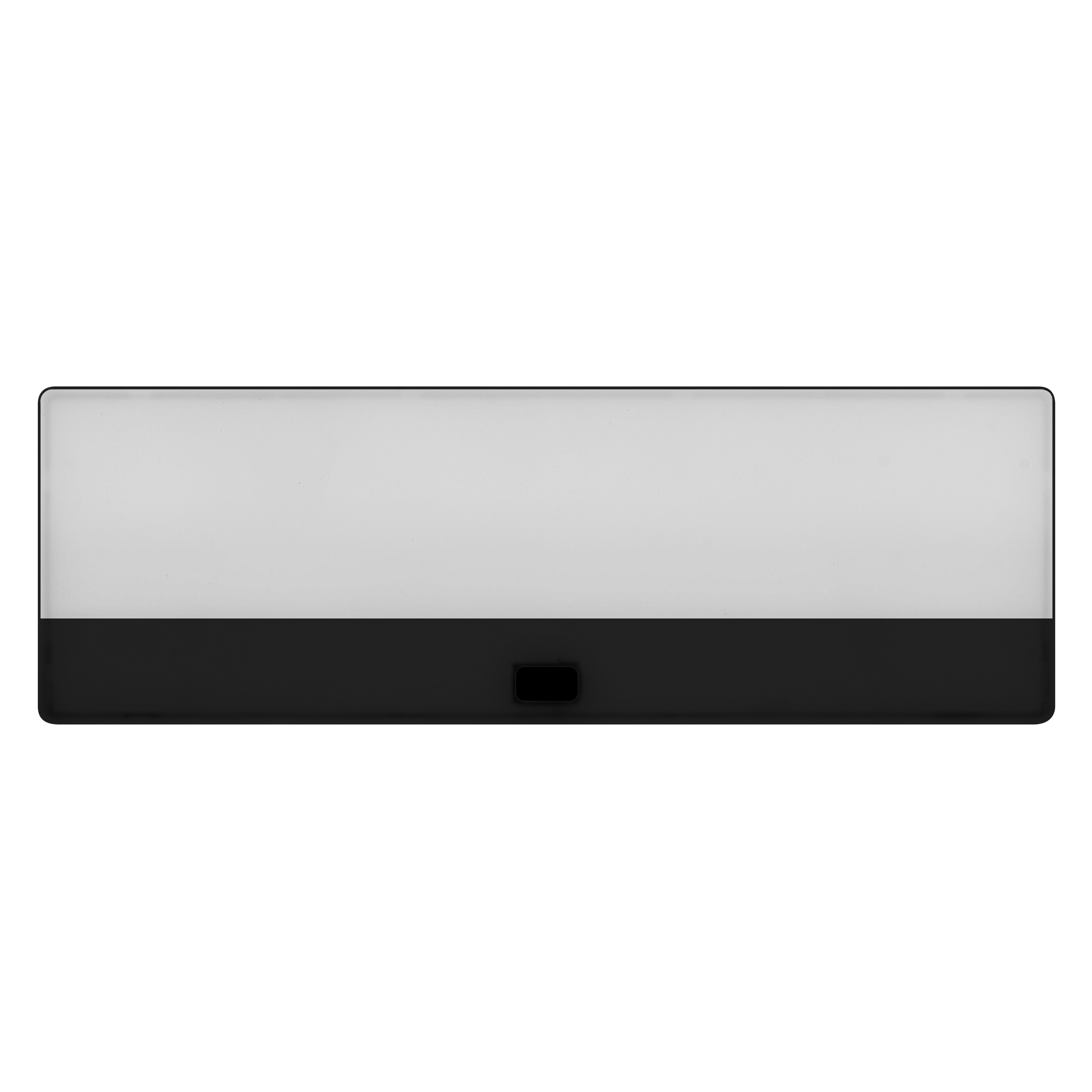

Product line drawing, front, no dimensions
