Tracklight Spot Cylinder

Tracklight Spot Cylinder GU10 Black

GTIN: 4099854455308 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Can be rotated and swiveled for optimum illumination
  • Timeless elegant design
  • Quick and easy lamp replacement
  • High-quality materials
Areas of application
  • Kitchens, living rooms, children's rooms or home offices
  • Entrance areas
Product features
  • Customisable modular tracklight system
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class II
Dimensions & Weight
Length 140.00 mm
Height 130.00 mm
Width 55.00 mm
Product weight 270.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Steel
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of protection IP20
Dimmable No
Mounting type Surface
Application environment Indoor
With light source No
Replaceable light source No
Holder designation GU10
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Additional product data
Number of illuminants 1
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854455308 Folding box
1		 82 mm x 82 mm x 183 mm 365.00 g 1.23 dm³
4099854455315 Shipping box
4		 178 mm x 178 mm x 198 mm 1460.00 g 6.27 dm³
User instruction / safety instructions
TRACKLIGHT SPOT MINICYLINDER_CYLINDER
PDF (700.03 KB)
Legal information
Safety insert G11219301
PDF (417.04 KB)
Declarations of conformity
TRACKLIGHT SPOT
PDF (298.23 KB)

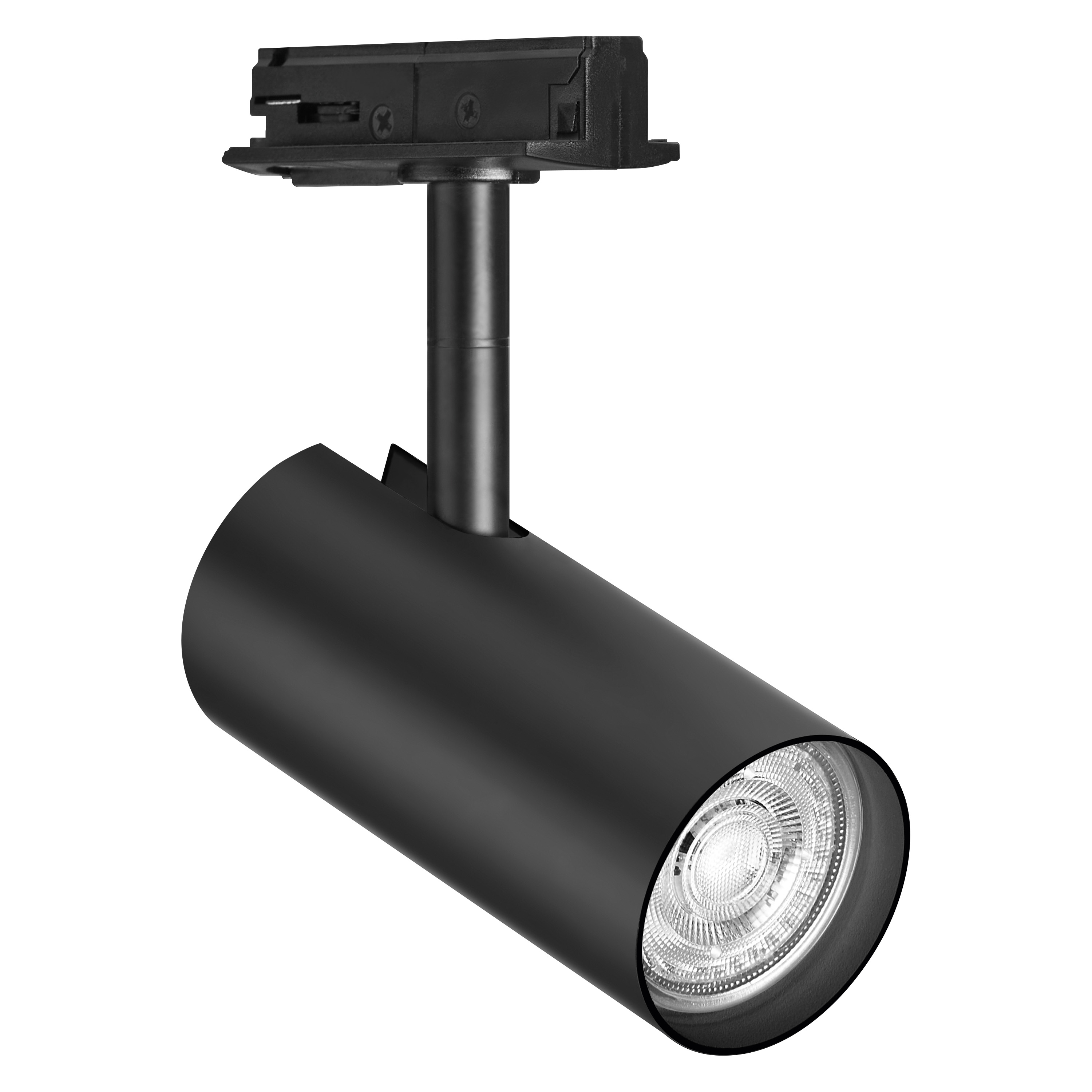

Product image: white background, upright
PBTRACKLIGHT SPOT CYLINDER BK GU10Upright Off
JPG (576.26 KB)

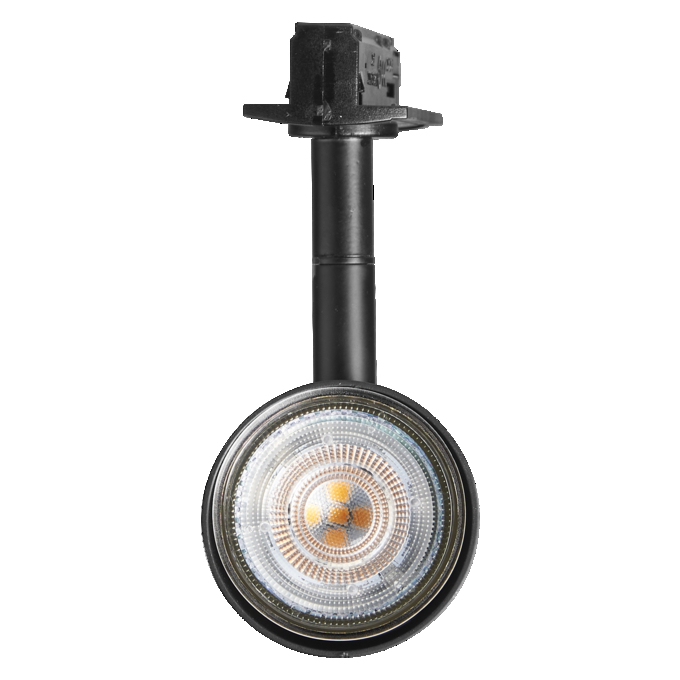

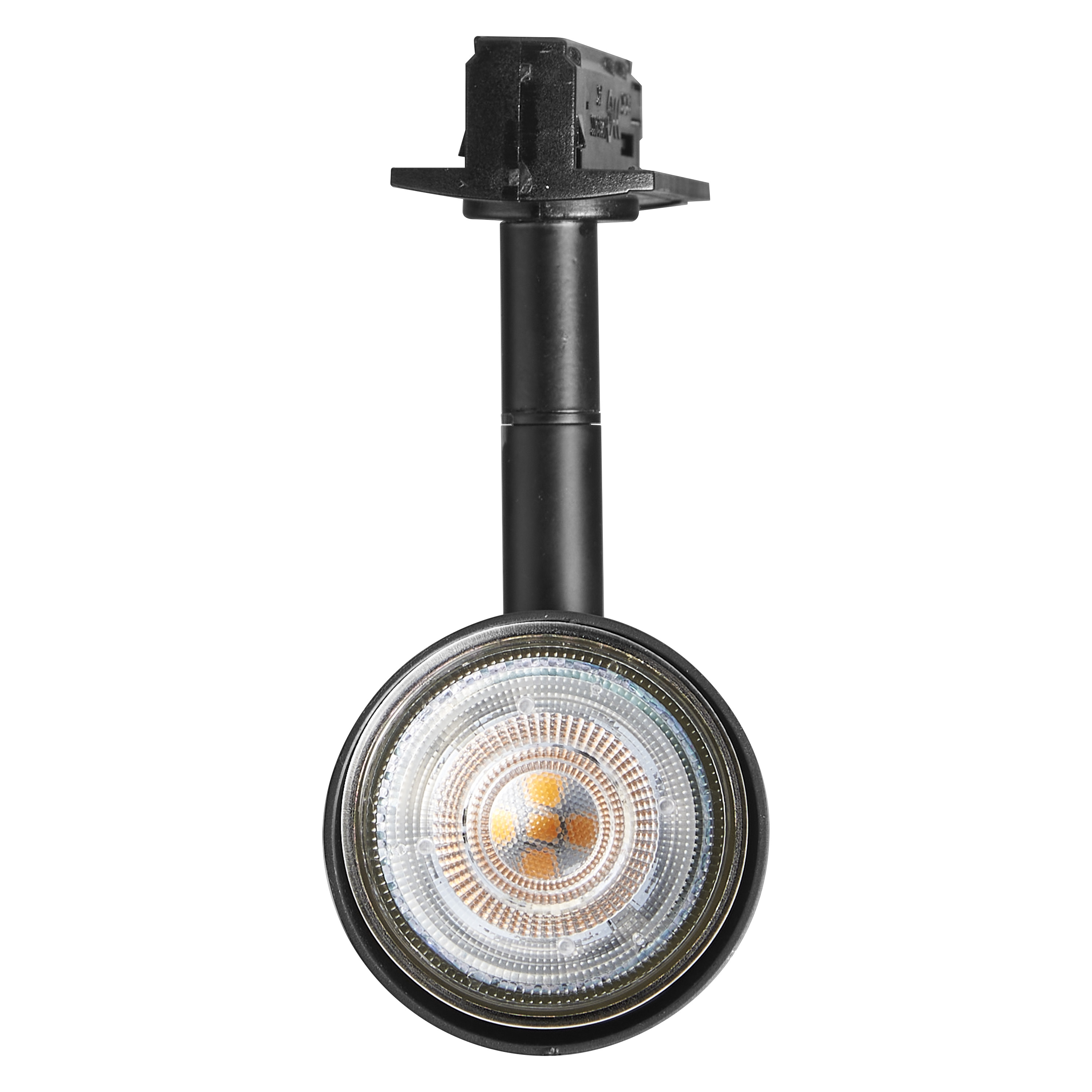

Product image: white background, upright, alternative image
PBTRACKLIGHT SPOT CYLINDER BK GU10Front Off
JPG (734.35 KB)
Product image: white background, upright, switched on
PBTRACKLIGHT SPOT CYLINDER BK GU10Upright On
JPG (555.13 KB)
Product infographic (application image with text and graphic)
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN
JPG (725.24 KB)
Product infographic (application image with text and graphic)
Tracklight assortment E-Com-Grafik V1 1200x1200px 2023 EN
JPG (510.34 KB)

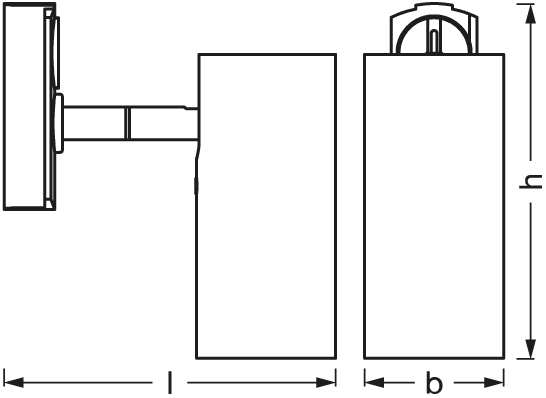

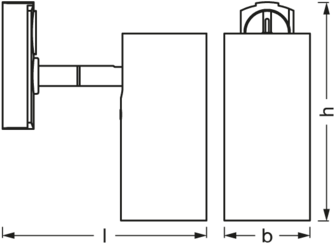

Product line drawing with letters
PGTRACKLIGHT SPOT CYLINDER BK GU10MiPRCmlk
PNG (8.3 KB)

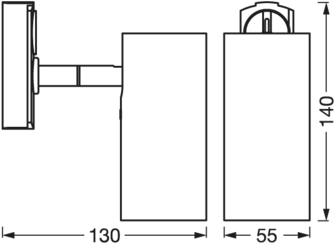

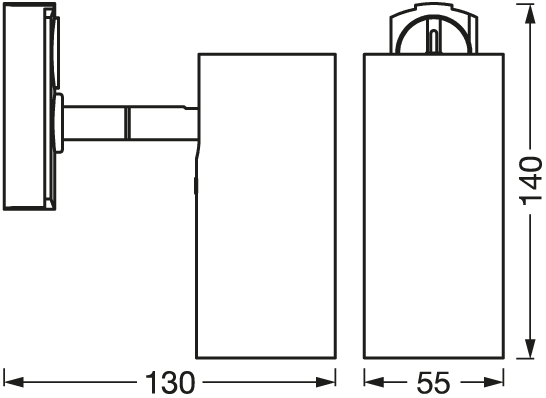

Product line drawing with numbers
PGTRACKLIGHT SPOT CYLINDER BK GU10MiPRCmnk
PNG (9.78 KB)

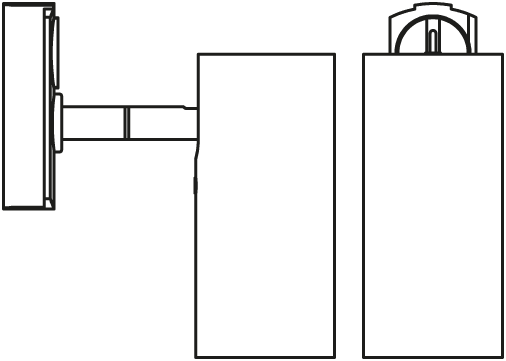

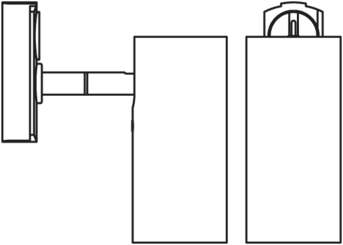

Product line drawing, front, no dimensions
PGTRACKLIGHT SPOT CYLINDER BK GU10MiPRCk
PNG (6.31 KB)

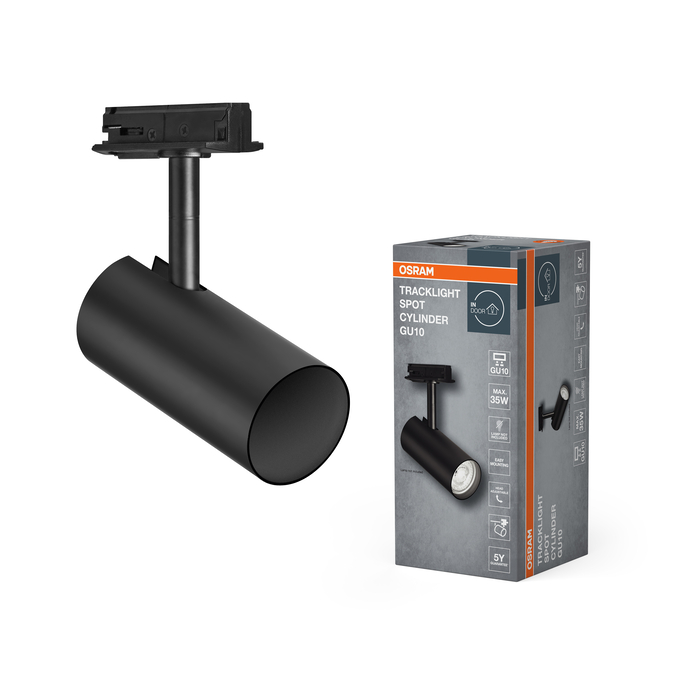

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC TL SPOT CYL BK GU10 OSRAM
JPG (1.06 MB)
Packaging image, frontal
LUM FC TL SPOT CYL BK GU10 OSRAM
JPG (1.03 MB)
Packaging image, spacial
LUM FC TL SPOT CYL BK GU10 OSRAM
JPG (1.2 MB)

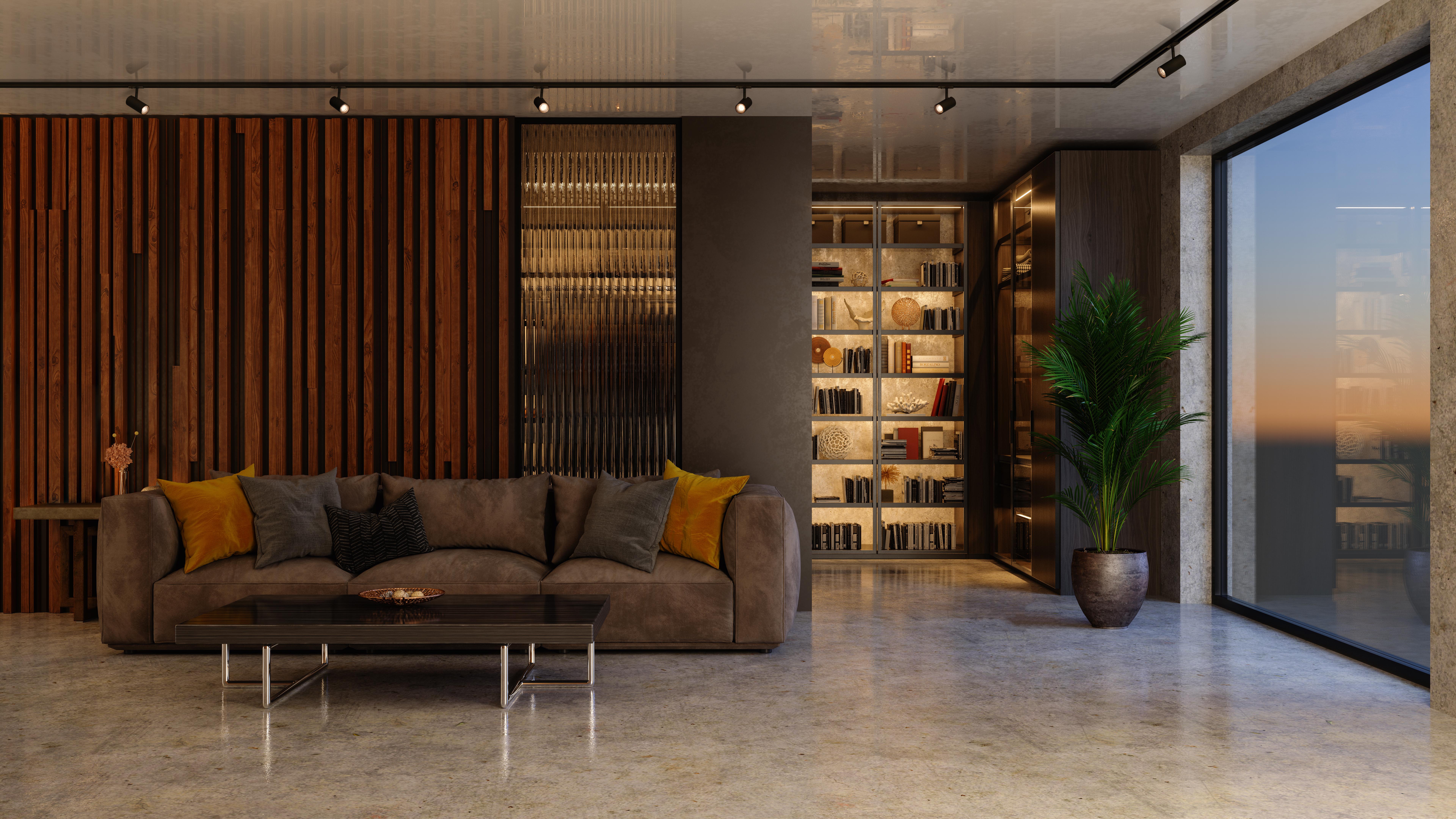

Application pictures Getty
