Tracklight rail and base

Tracklight Rail 1M Black

GTIN: 4099854507717 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Timeless elegant design
  • Made of solid aluminum with high-quality appearance
Areas of application
  • Kitchens, living rooms, children's rooms or home offices
  • Entrance areas
Product features
  • Customisable modular tracklight system
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Protection class I
Dimensions & Weight
Length 1000 mm
Height 18.0 mm
Width 35.0 mm
Product weight 460.00 g
Materials & Colors
Product color Black
Body material Aluminum
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Terminal, 2-pin
Mounting type Surface
With light source No
Replaceable light source No
Certificates & Standards
Standards CE, UKCA
Ball shot safe No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854507717 Folding box
1
22 mm x 48 mm x 1,008 mm 567.00 g 1.06 dm³
4099854507724 Shipping box
4
106 mm x 54 mm x 1,020 mm 2448.00 g 5.84 dm³
4099854507731 Shipping box
24
1,036 mm x 230 mm x 170 mm 15503.00 g 40.51 dm³
User instruction / safety instructions
TRACKLIGHT RAIL
Legal information
Safety insert G11219601
Declarations of conformity
TRACKLIGHT

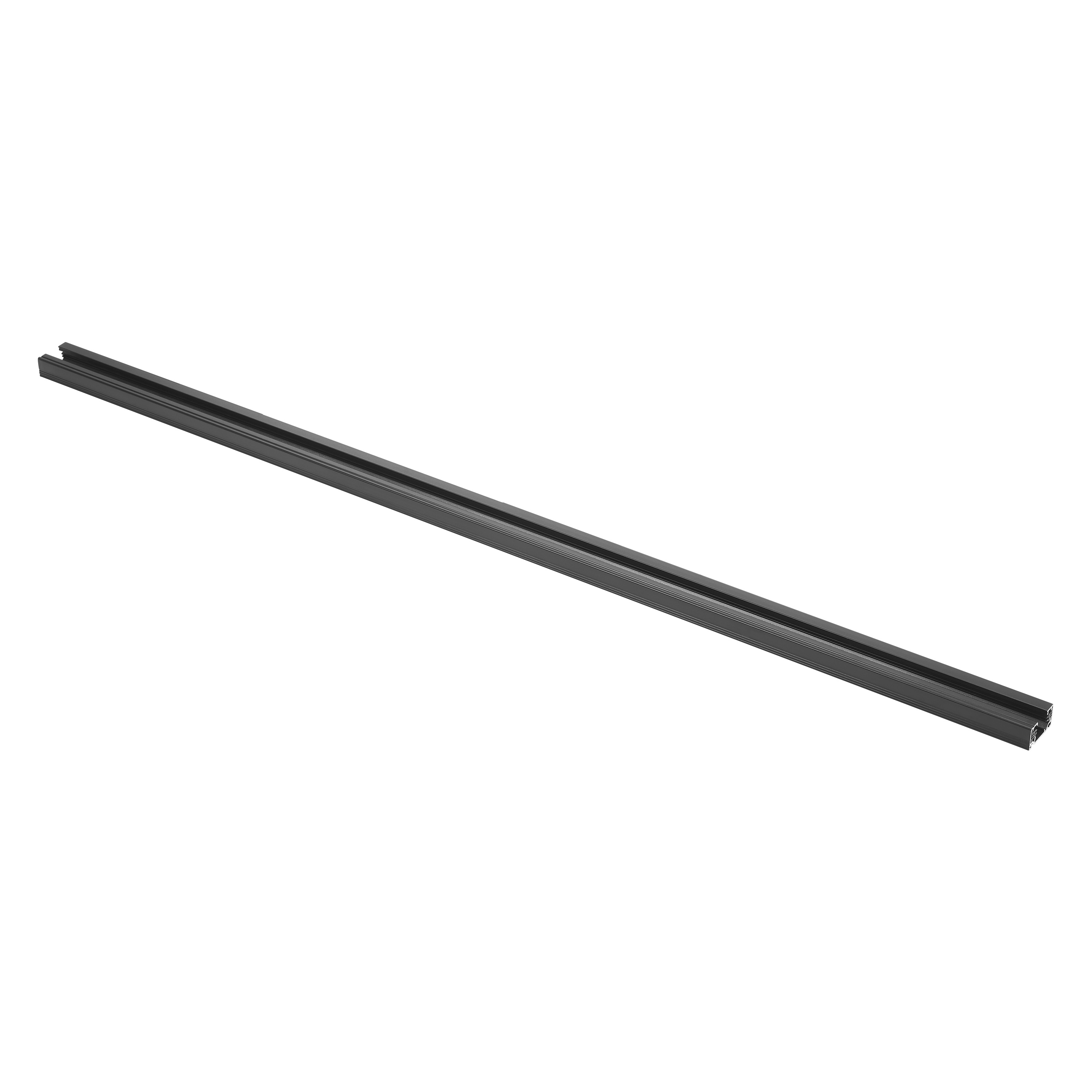

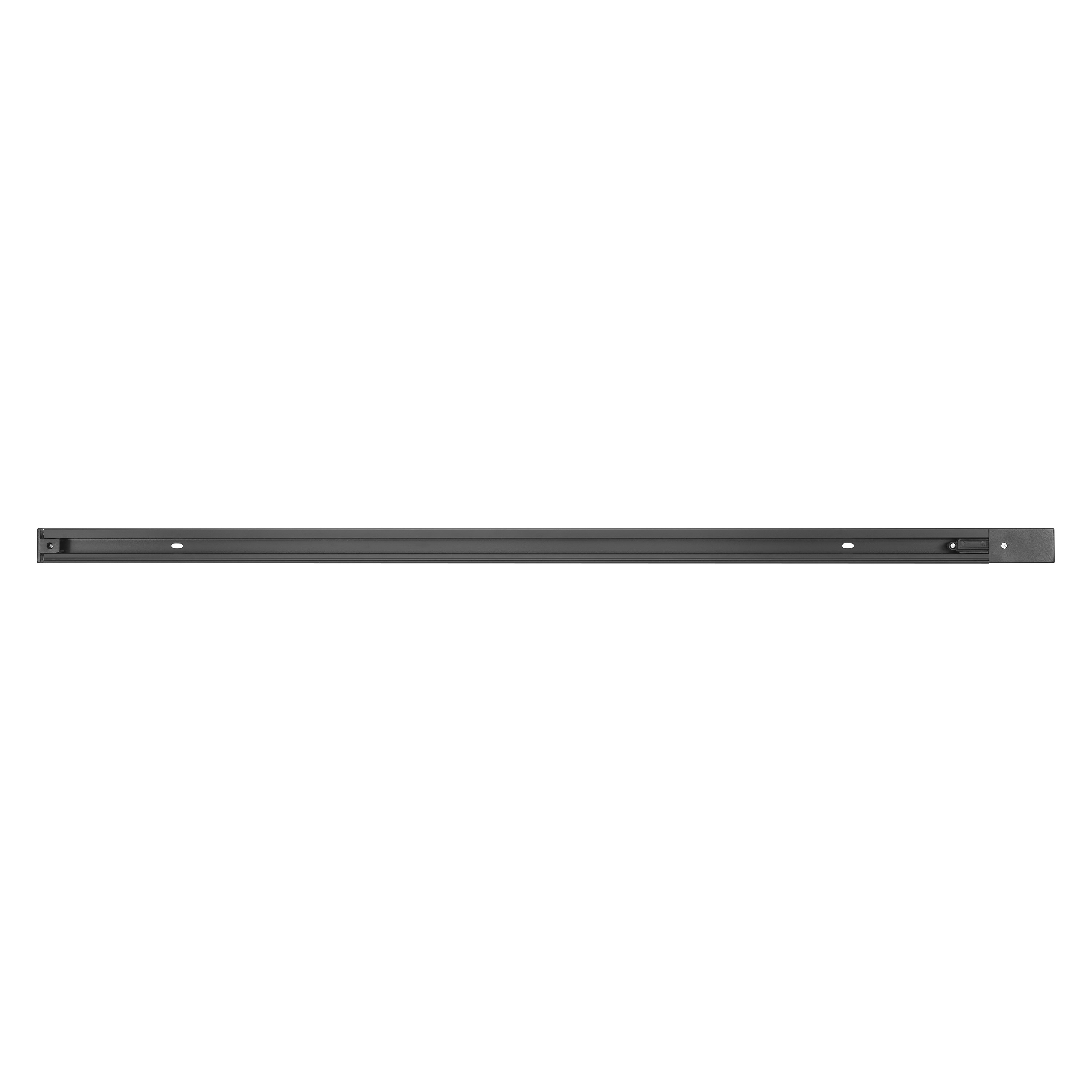

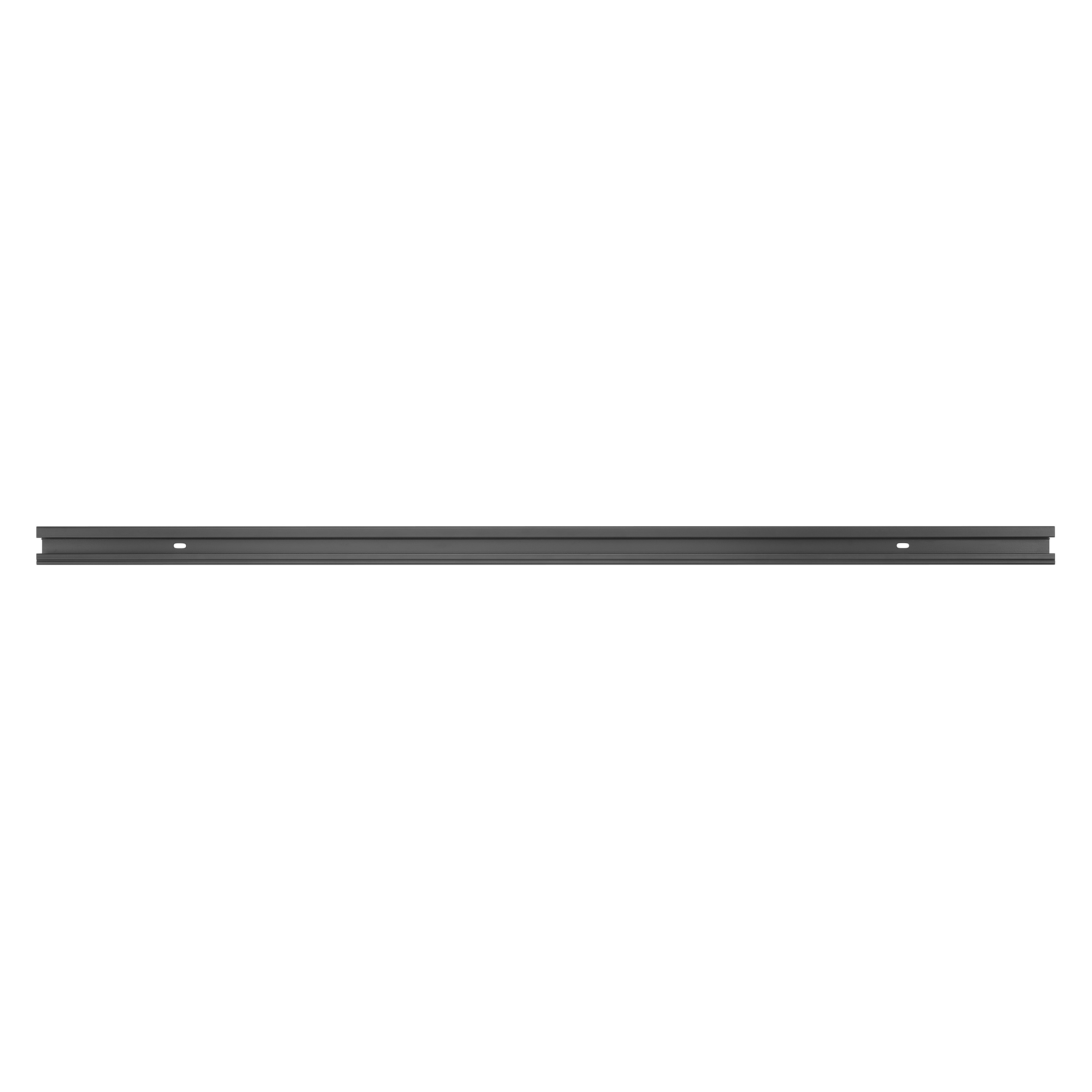

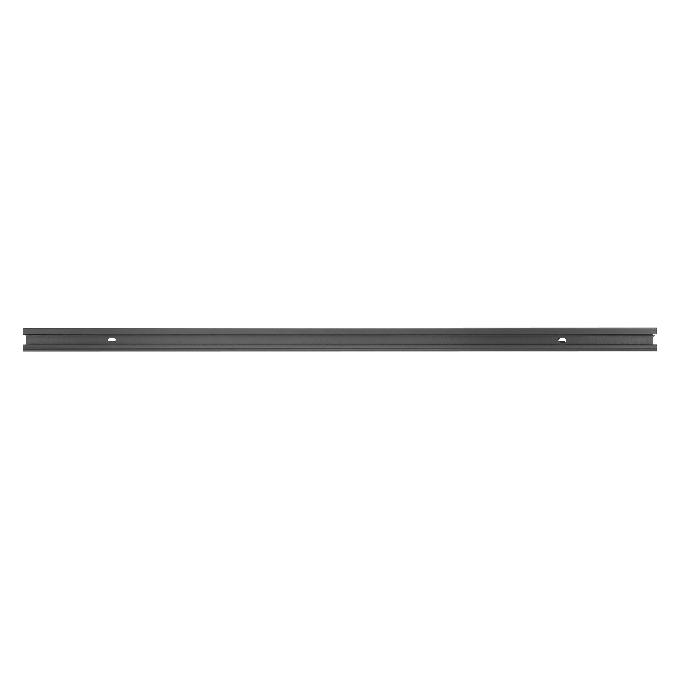

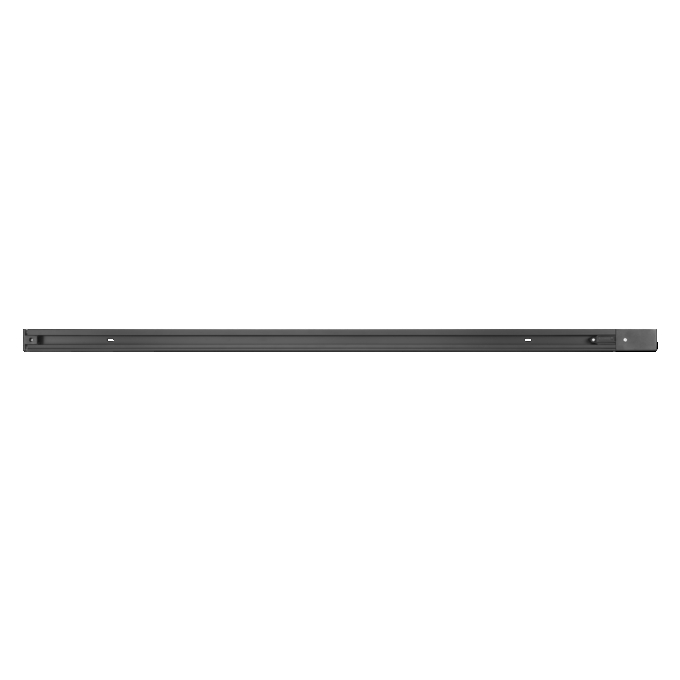

Product image: white background, upright
TRACKLIGHT RAIL 1M BK

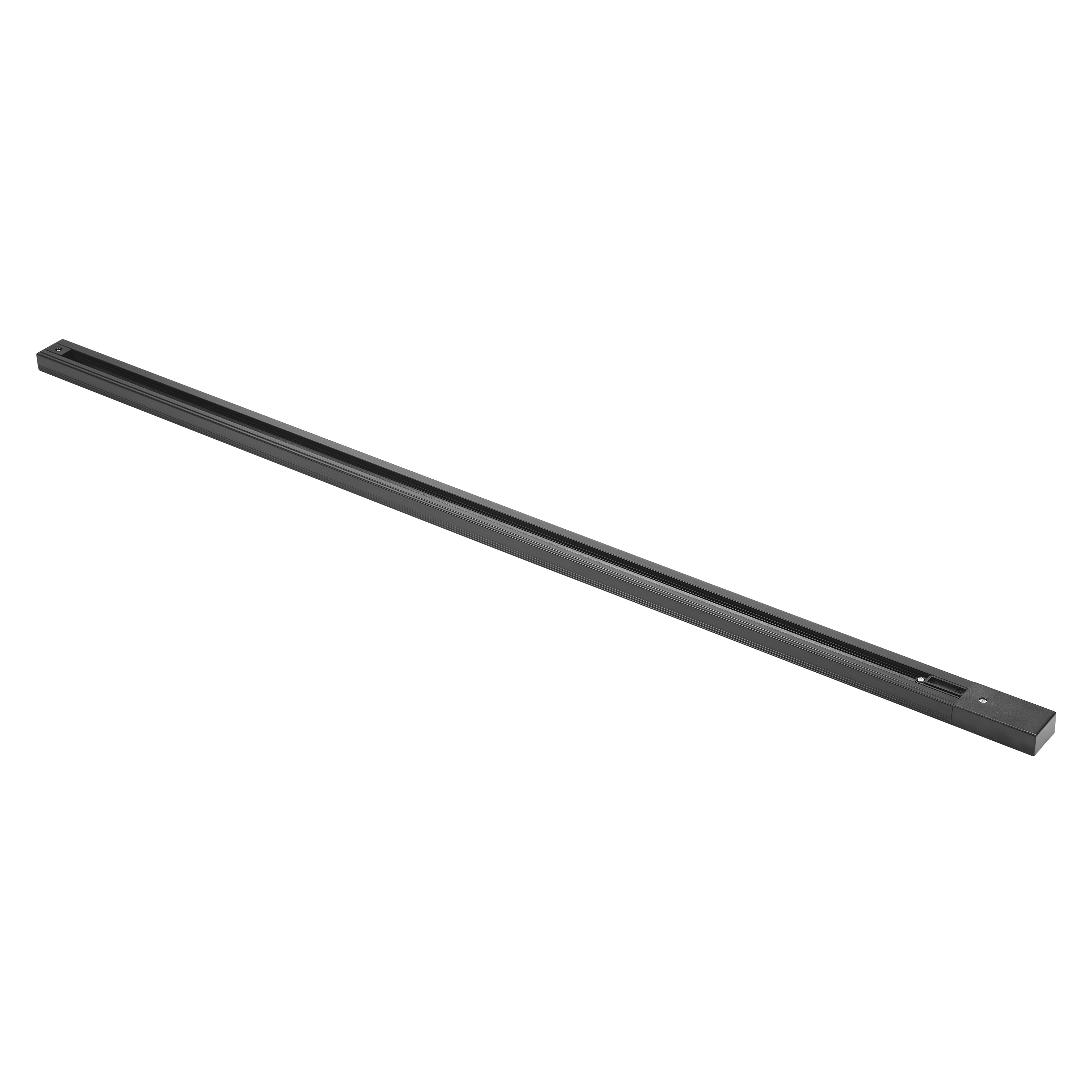

Product image: white background, upright
TRACKLIGHT RAIL 1M BK
Product image: white background, upright
TRACKLIGHT RAIL 1M BK

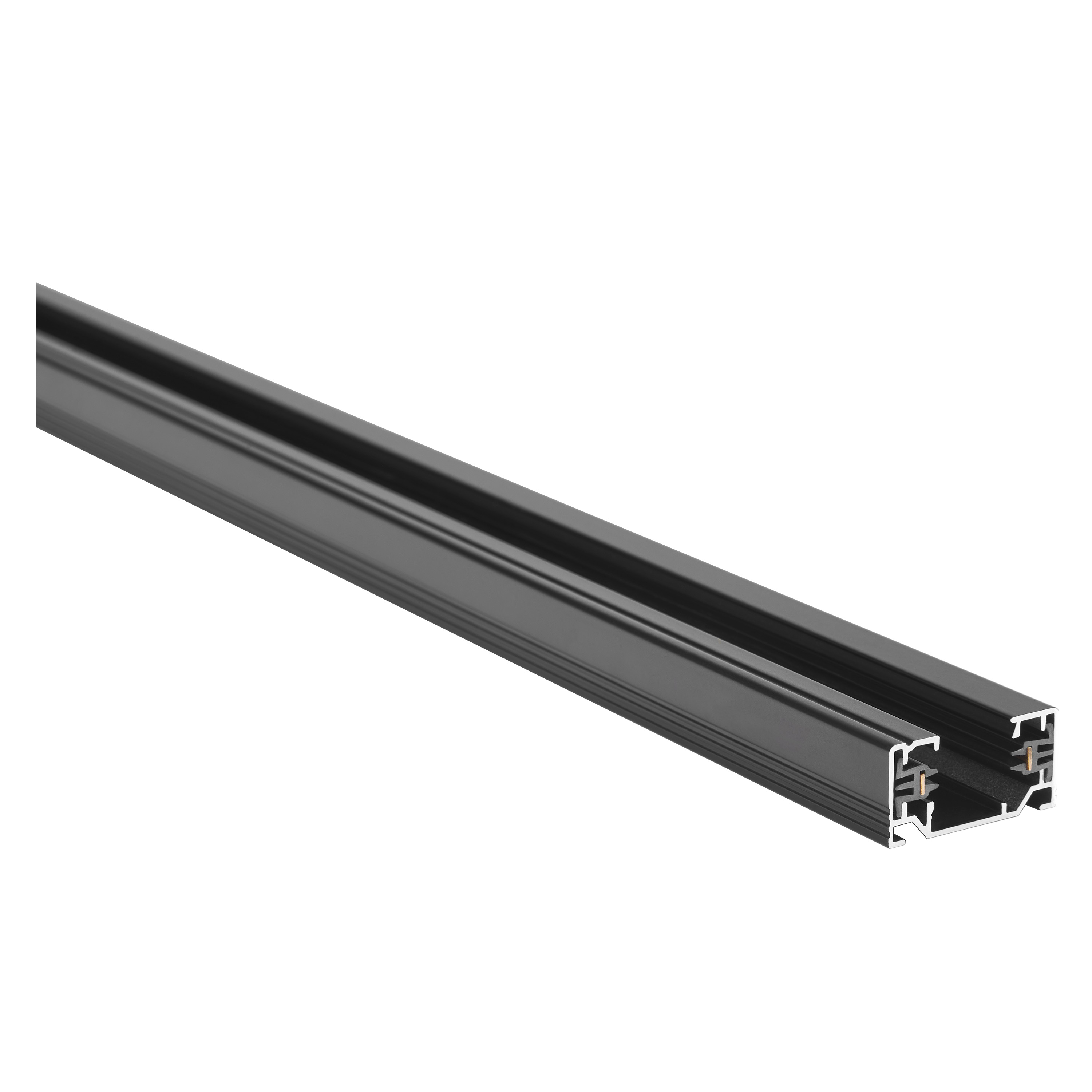

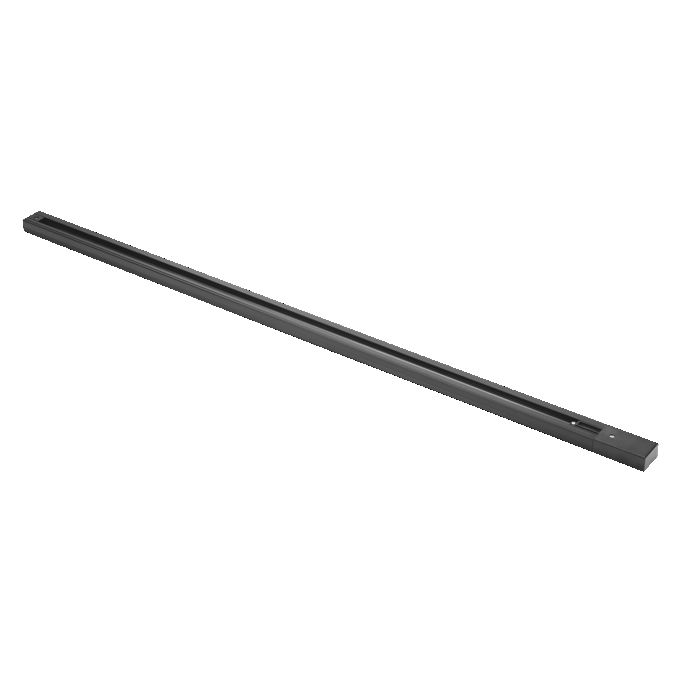

Product image: white background, upright, alternative image
TRACKLIGHT RAIL 1M BK
Product image: white background, upright, alternative image
TRACKLIGHT RAIL 1M BK

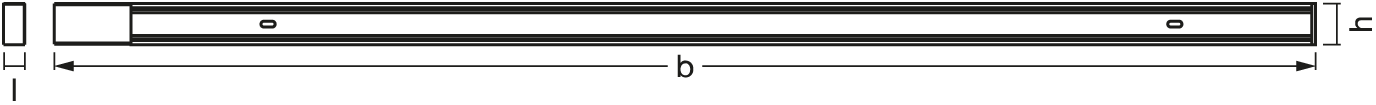

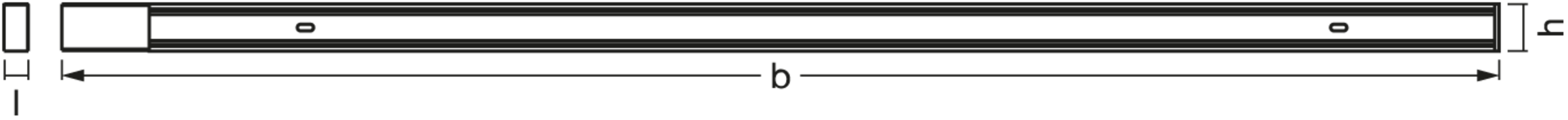

Product line drawing with letters
TRACKLIGHT RAIL 1M WT

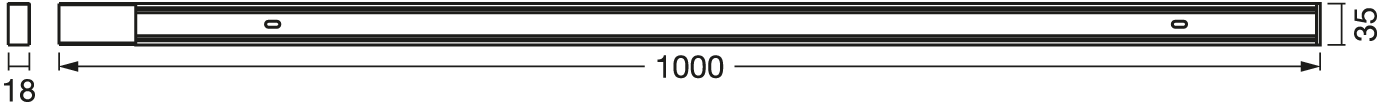

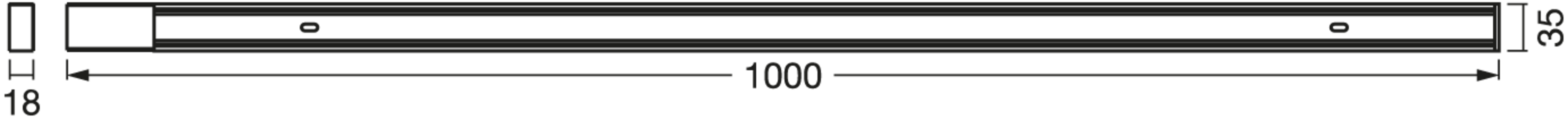

Product line drawing with numbers
TRACKLIGHT RAIL 1M WT

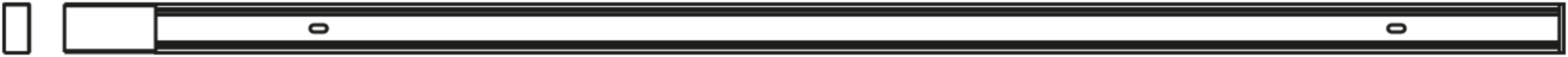

Product line drawing, front, no dimensions
TRACKLIGHT RAIL 1M WT

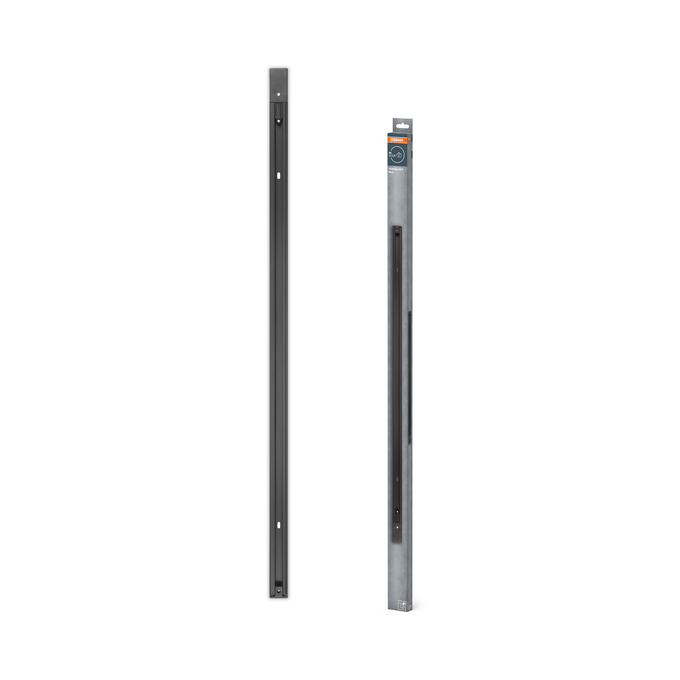

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC TRACKLIGHT RAIL 1M BK OSRAM
Packaging image, frontal
LUM FC TRACKLIGHT RAIL 1M BK OSRAM
Packaging image, spacial
LUM FC TRACKLIGHT RAIL 1M BK OSRAM

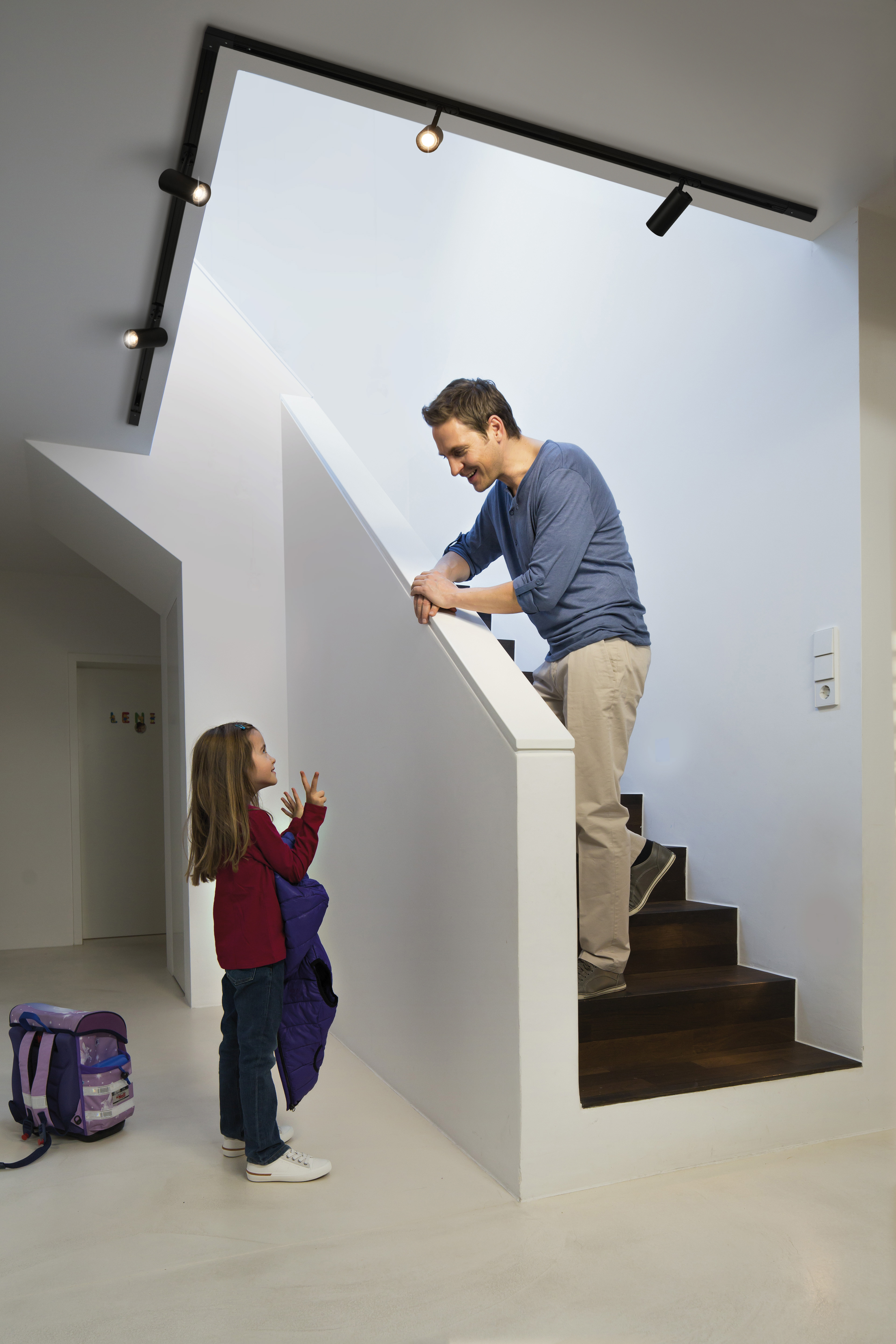

Application pictures
TRACKLIGHT RAIL 1M BK

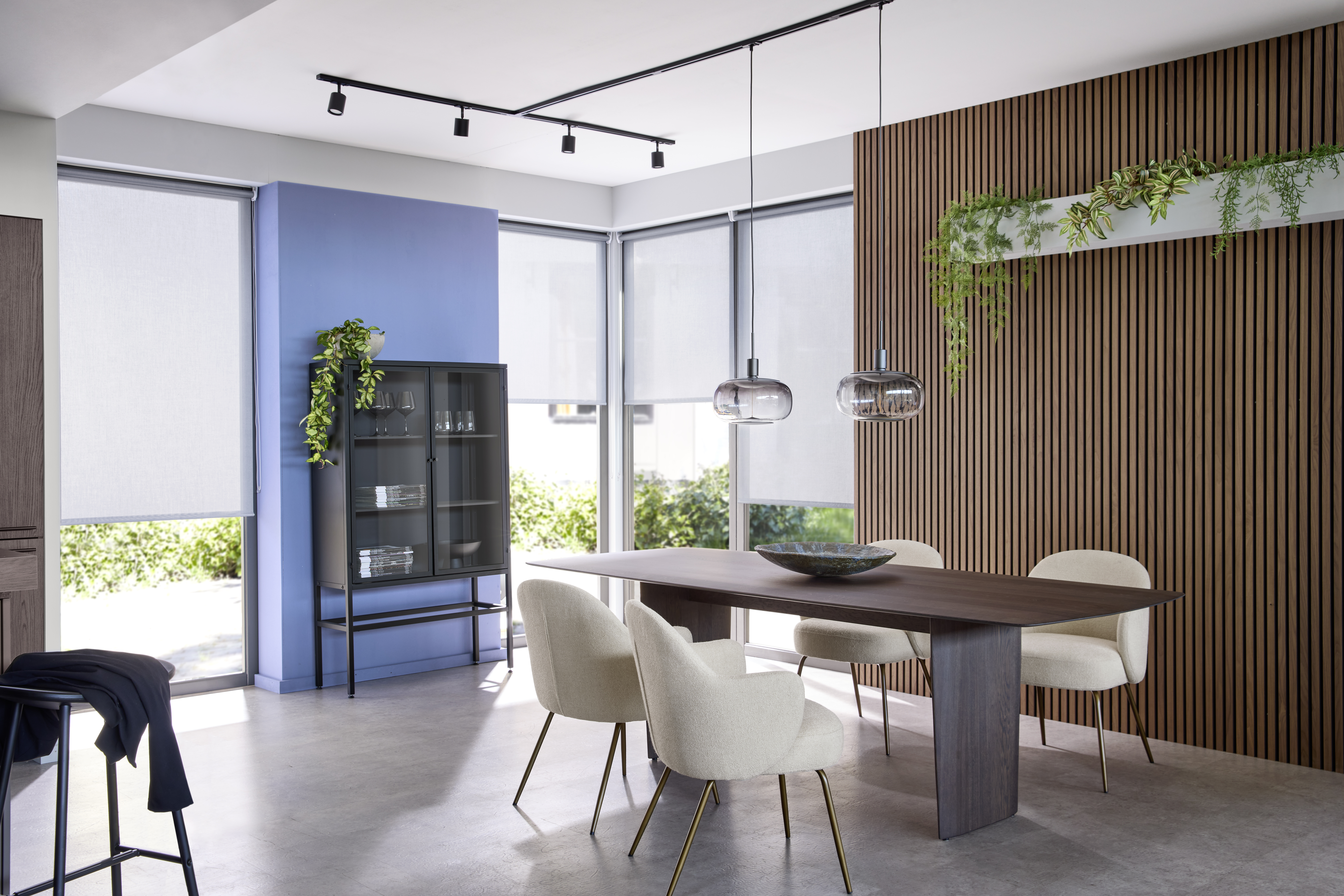

Application pictures
Studioraum Kitchen 1

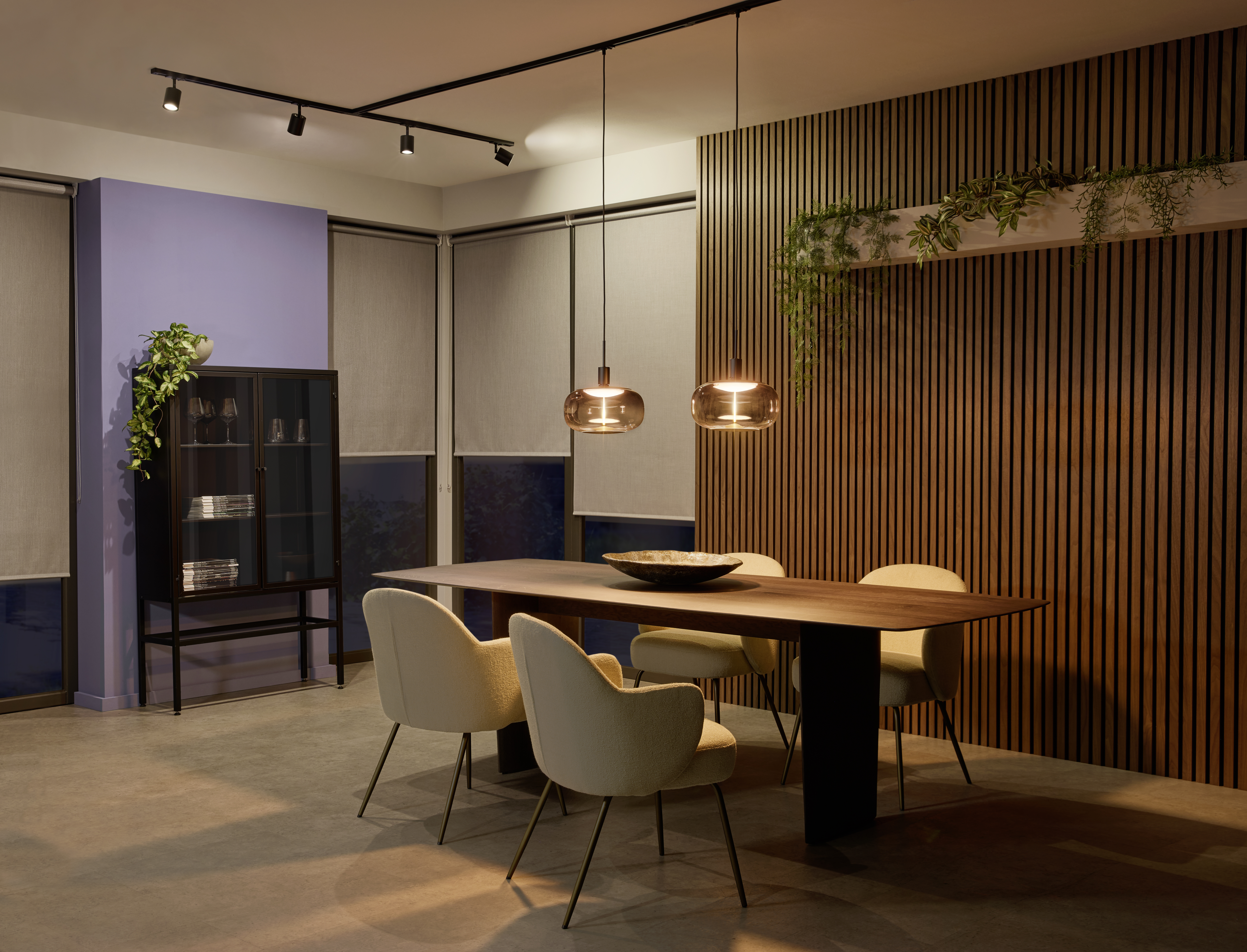

Application pictures
