LED Mini Spot Set
LED Mini Spot Set 6W 830 120° Black
GTIN: 4099854596391
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Spotlights for Undercabinet illumination
- Easy mounting
Areas of application
- Bathrooms
- Workshops, garages, covered outdoor storage areas
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Recessed ceiling mounting
- Color temperature: 3,000 K
- Type of protection, front side: IP44
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 6.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 32.000 mA |
| Inrush current | 0.032 A |
| Inrush current time Th50 | 14 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 24 |
| Max. number of luminaires per miniature circuit breaker C10 | 19 |
| Max. number of luminaires per miniature circuit breaker C16 | 31 |
| Power factor λ | > 0.7 |
| Total harmonic distortion | < 55 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 450 lm |
| Total luminous flux of contained light sources | 550 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 20 ° |
Dimensions & Weight
| Diameter | 42.00 mm |
| Height | 35.00 mm |
| Product weight | 210.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP44/IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 30.00 mm |
| Mounting depth | 35 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 10000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from October 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854596391 | Folding box 1 |
65 mm x 140 mm x 141 mm | 252.00 g | 1.28 dm³ |
| 4099854596407 | Shipping box 8 |
306 mm x 282 mm x 173 mm | 2415.00 g | 14.93 dm³ |
User instruction / safety instructions
LED SPOT MINI
LED SPOT MINI

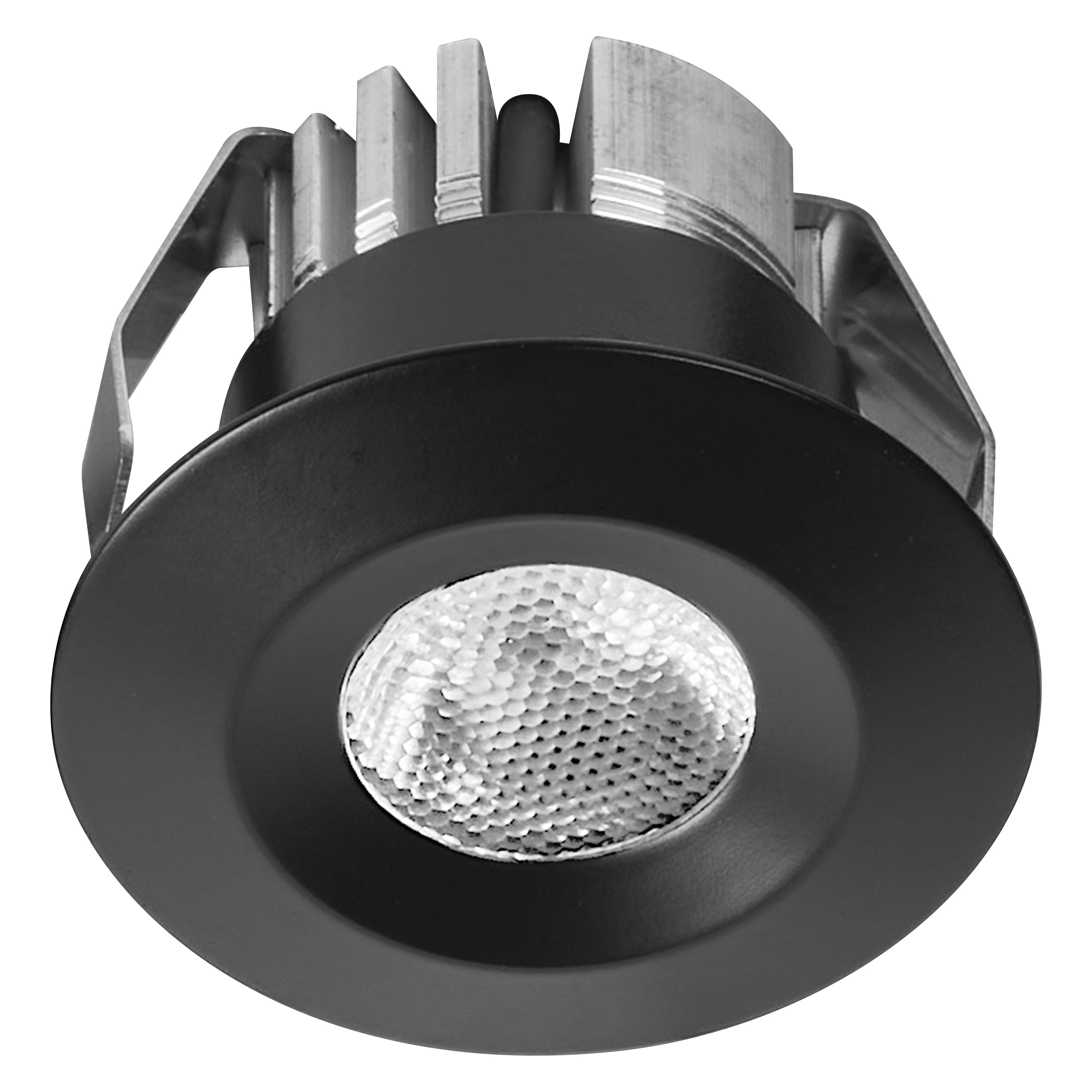

Product image: white background, upright
LED 5XSPOT MINI 6W 830 BK
LED 5XSPOT MINI 6W 830 BK

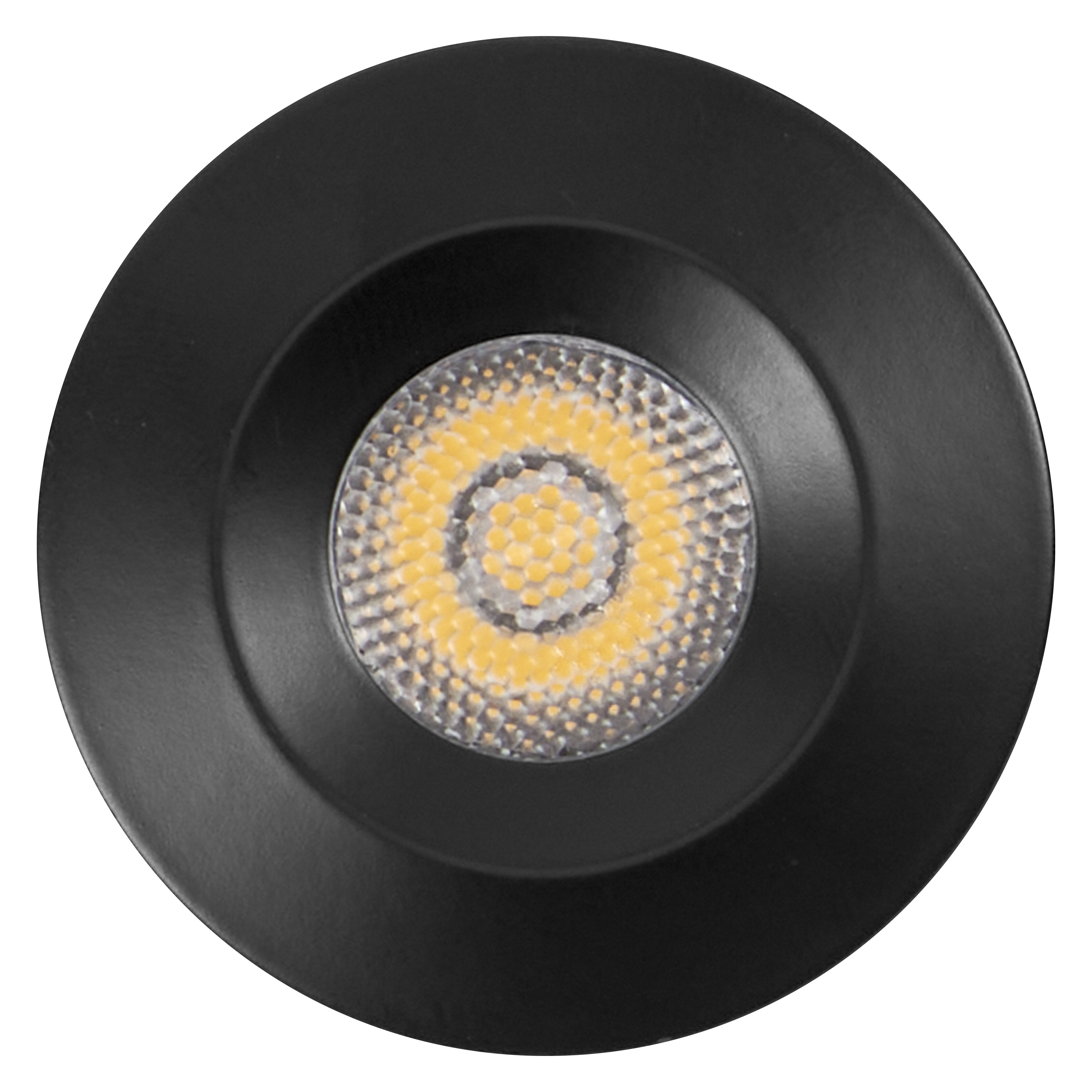

Product image: white background, upright, alternative image
LED 5XSPOT MINI 6W 830 BK
LED 5XSPOT MINI 6W 830 BK

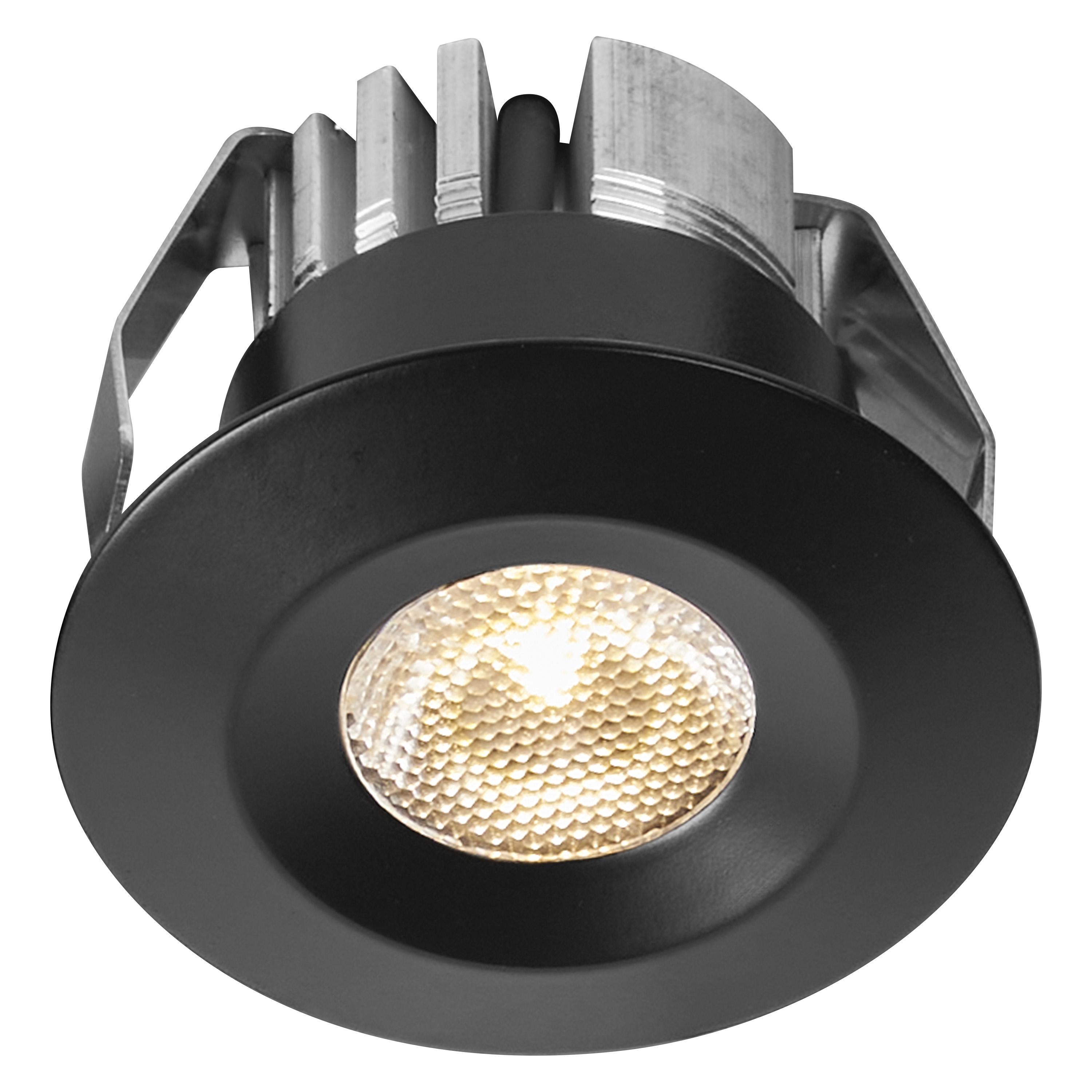

Product image: white background, upright, switched on
LED 5XSPOT MINI 6W 830 BK
LED 5XSPOT MINI 6W 830 BK
Product line drawing with letters
LED 5XSPOT MINI 6W 830
LED 5XSPOT MINI 6W 830
Product line drawing with numbers
LED 5XSPOT MINI 6W 830
LED 5XSPOT MINI 6W 830
Product line drawing, front, no dimensions
LED 5XSPOT MINI 6W 830
LED 5XSPOT MINI 6W 830

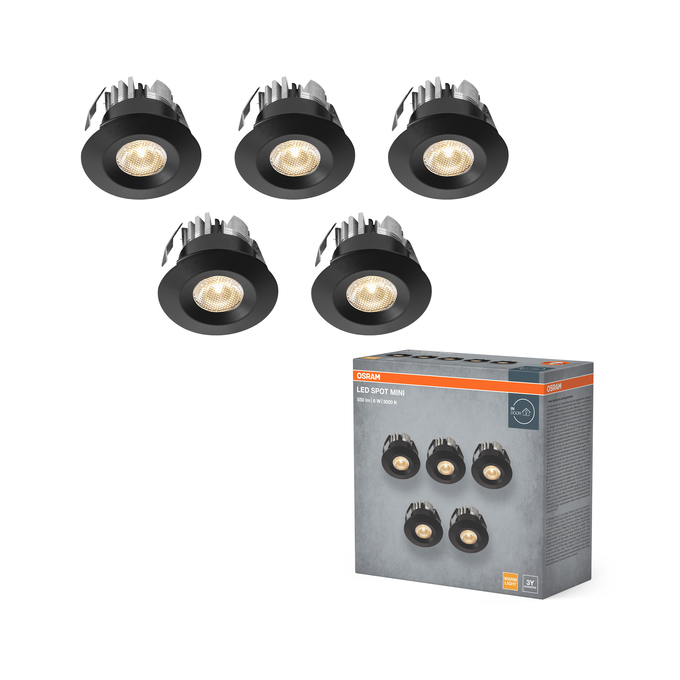

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SPOT 5X MINI 6W 830 BK OSRAM
LUM FC SPOT 5X MINI 6W 830 BK OSRAM
Packaging image, frontal
LUM FC SPOT 5X MINI 6W 830 BK OSRAM
LUM FC SPOT 5X MINI 6W 830 BK OSRAM
Packaging image, spacial
LUM FC SPOT 5X MINI 6W 830 BK OSRAM
LUM FC SPOT 5X MINI 6W 830 BK OSRAM

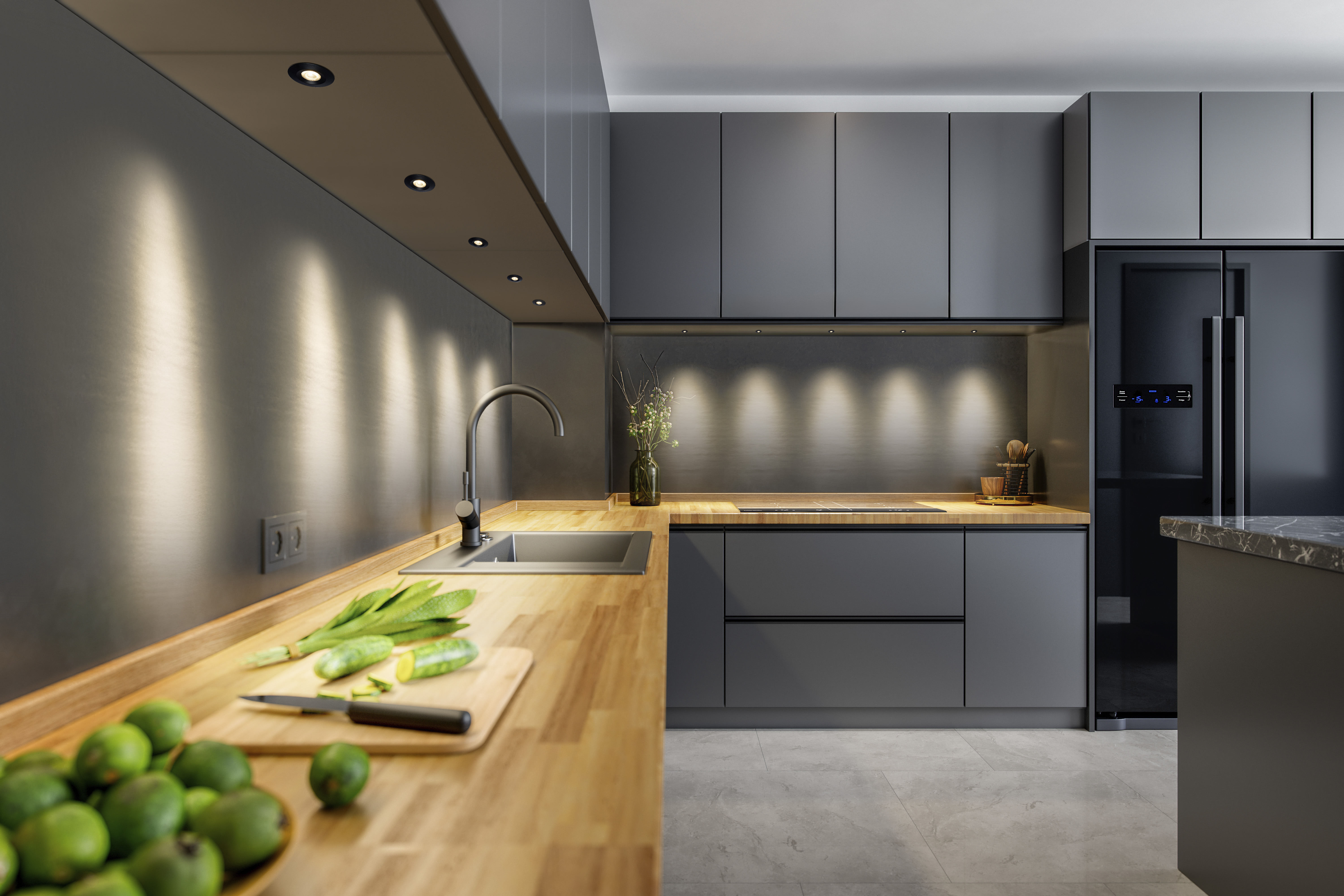

Application pictures Getty
