NEW
Essential Panel Round
Essential Panel Round 420mm 28W 830 White
GTIN: 4058075854499
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Long lifetime thanks to LED technology
- Excellent price/performance ratio
- Easy mounting thanks to included steel hooks on the back
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Durable housing material
- Color temperature: 3,000 K
- Lifetime up to 25,000 h
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 28.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 125 mA |
| Inrush current | 0.125 A |
| Inrush current time Th50 | 184 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 51 |
| Max. number of luminaires per miniature circuit breaker C10 | 47 |
| Max. number of luminaires per miniature circuit breaker C16 | 75 |
| Power factor λ | > 0.9 |
| Total harmonic distortion | 10.54 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 2700 lm |
| Total luminous flux of contained light sources | 3200 lm |
| Luminous efficacy | 96 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Diameter | 420.00 mm |
| Height | 29.00 mm |
| Product weight | 1050.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polyprophylene (PP) |
| Cover material | Polypropylene (PP) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+70 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Ceiling |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 12500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from September 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075854499 | Folding box 1 |
35 mm x 427 mm x 431 mm | 1301.00 g | 6.44 dm³ |
| 4058075854505 | Shipping box 5 |
440 mm x 190 mm x 455 mm | 6908.00 g | 38.04 dm³ |
User instruction / safety instructions
Panel Essential Round
Panel Essential Round
Declarations of conformity
CE Declaration Panel Essential
CE Declaration Panel Essential

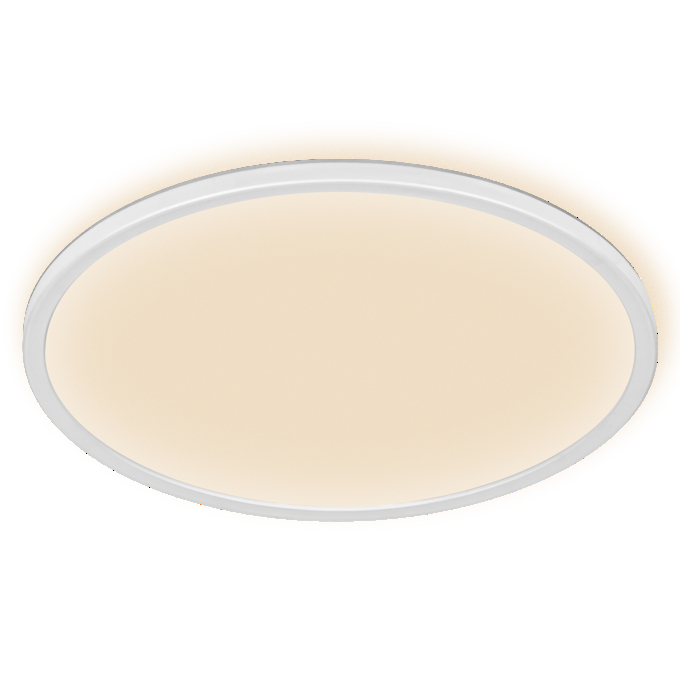

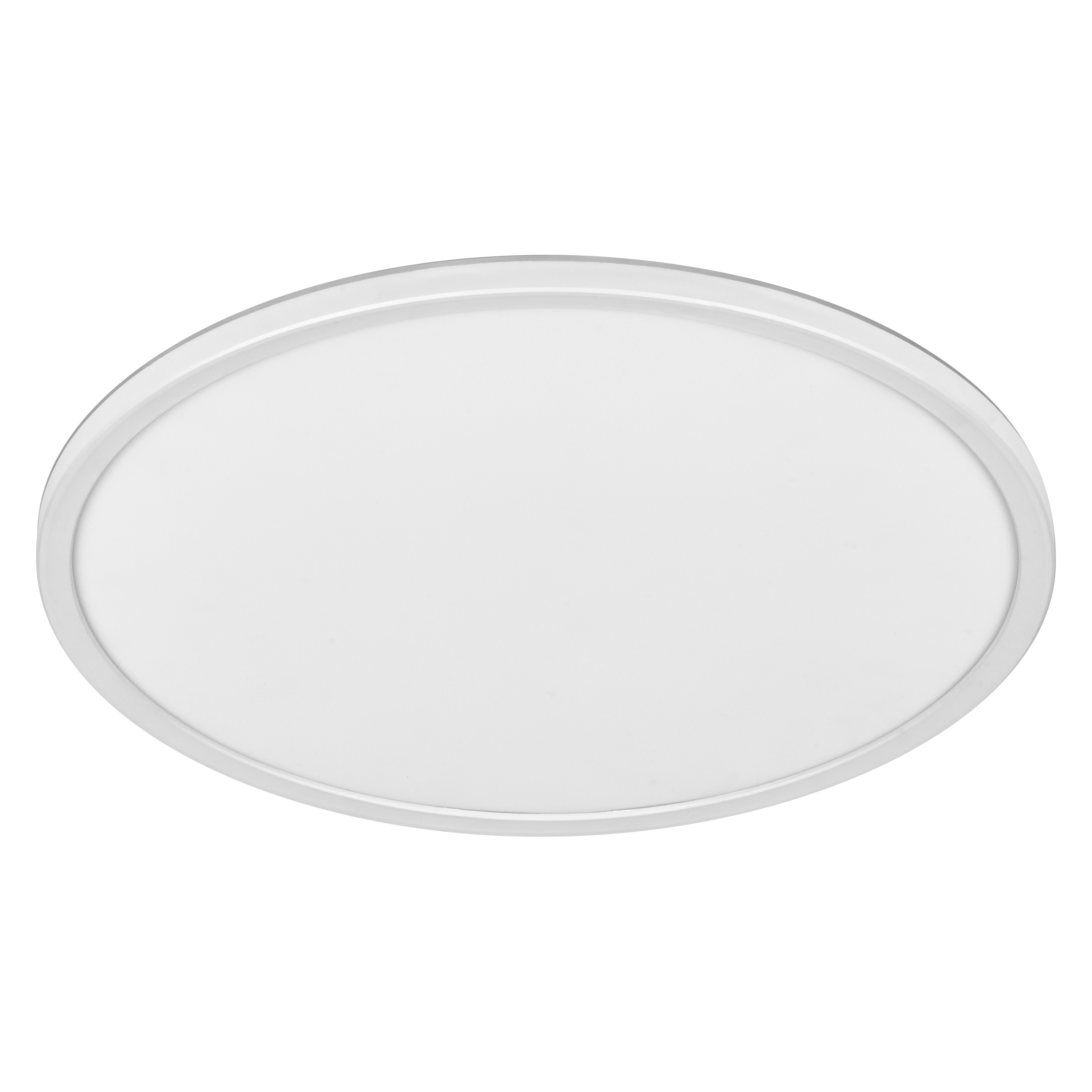

Product image: white background, upright
PANEL ESSENTIAL 420 28W 830 WT
PANEL ESSENTIAL 420 28W 830 WT

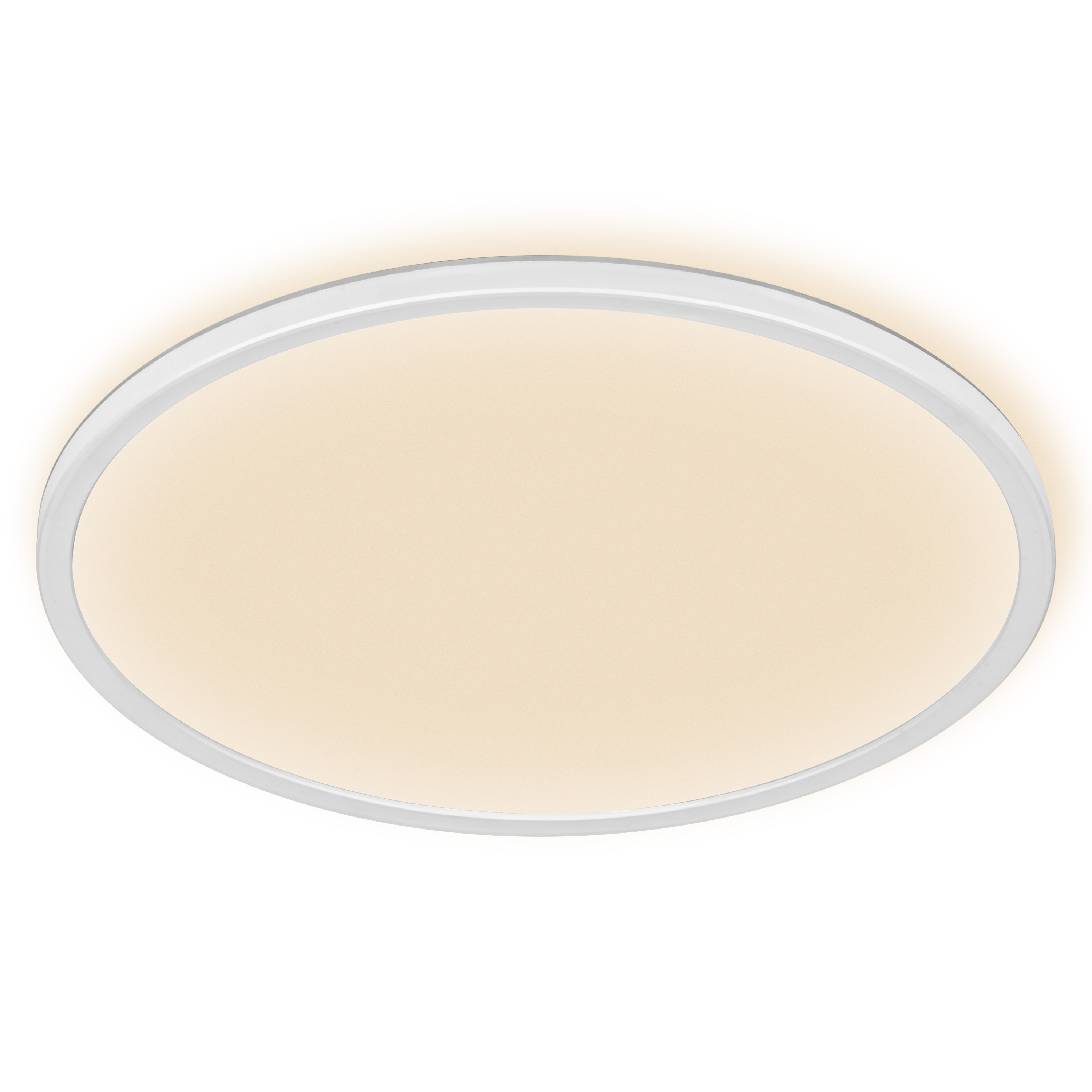

Product image: white background, upright, switched on
PANEL ESSENTIAL 420 28W 830 WT
PANEL ESSENTIAL 420 28W 830 WT
Product line drawing with letters
PANEL ESSENTIAL 420 28W 840 WT
PANEL ESSENTIAL 420 28W 840 WT
Product line drawing with numbers
PANEL ESSENTIAL 420 28W 840 WT
PANEL ESSENTIAL 420 28W 840 WT
Product line drawing - technical
PANEL ESSENTIAL 420 28W 840 WT
PANEL ESSENTIAL 420 28W 840 WT

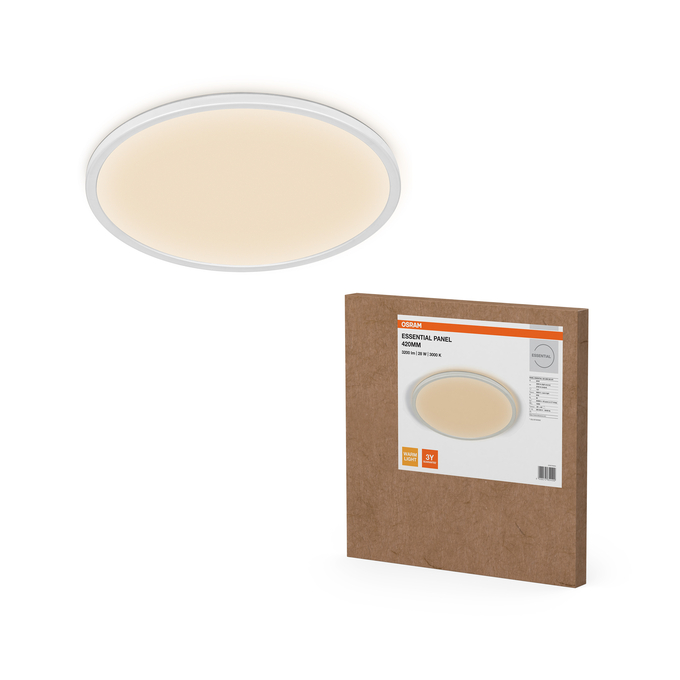

Combo Shot = Product Beauty Shot + Packaging Image
LUM StickerM ESS P 420 830 WT OSRAM
LUM StickerM ESS P 420 830 WT OSRAM
Packaging image, frontal
LUM StickerM ESS P 420 830 WT OSRAM
LUM StickerM ESS P 420 830 WT OSRAM
Packaging image, spacial
LUM StickerM ESS P 420 830 WT OSRAM
LUM StickerM ESS P 420 830 WT OSRAM

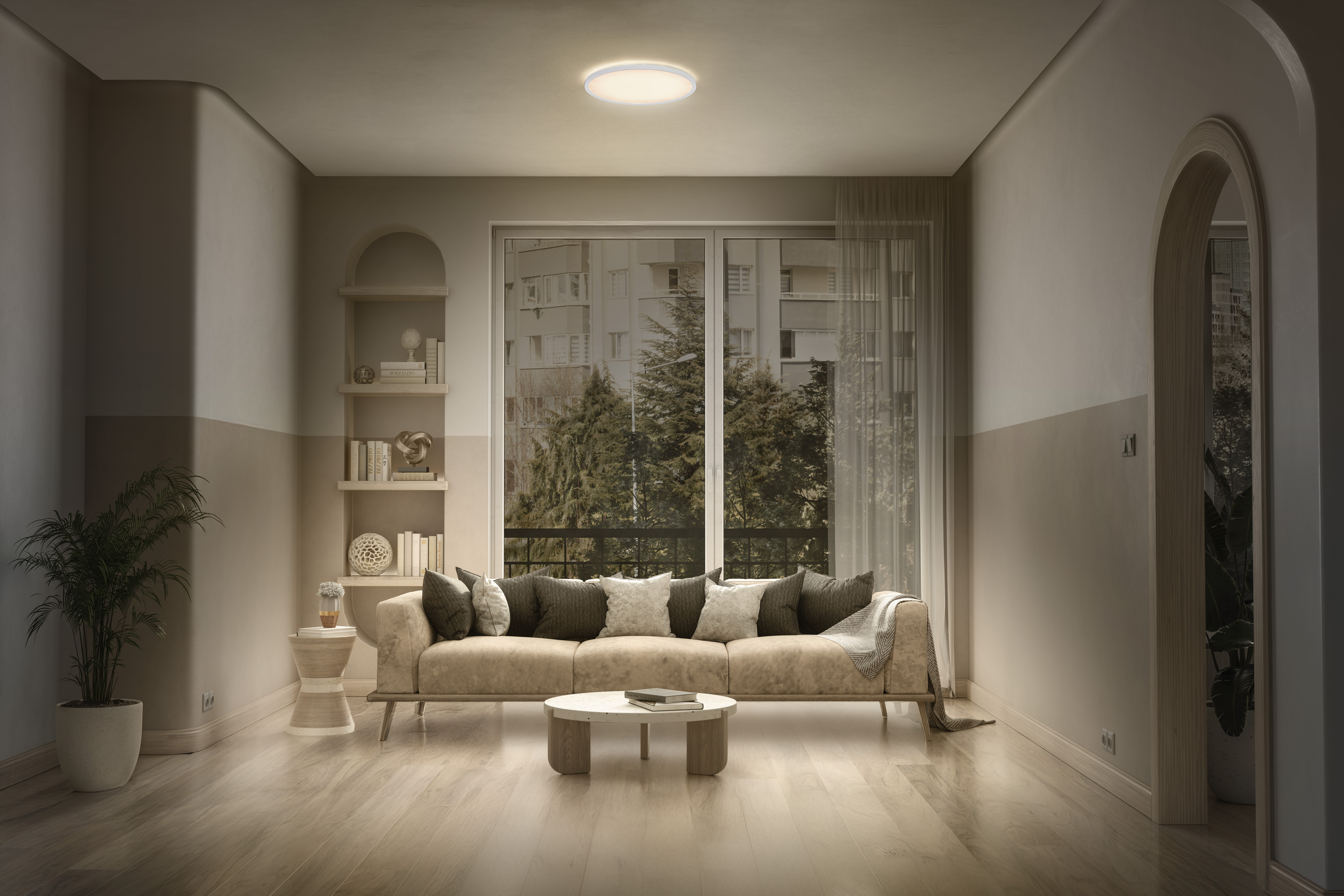

Application pictures Getty
