Decor Puck
Decor Puck Wall 11W 930 Black
GTIN: 4058075846500
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Geometric shapes meet even illumination
- Minimalistic style fits to every room
- Different types of luminaires with the same design language maintain a consistent style at home
- Two options for easy wall installation (via EU plug on cable or direct wiring)
- Movable head for directional light
- Easy mounting
- High CRI value of 90 for natural-looking colors
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal
- High-power LED
- Color temperature: 3,000 K
- Optional 1.5m cable provided with fitted EU plug (only for wall luminaire)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
Electrical data
| Nominal wattage | 11.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 120.000 mA |
| Inrush current | 5.3 A |
| Inrush current time Th50 | 46 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 36 |
| Max. number of luminaires per miniature circuit breaker C10 | 22 |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 370 lm |
| Total luminous flux of contained light sources | 735 lm |
| Luminous efficacy | 35 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 90 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 150.00 mm |
| Height | 125.00 mm |
| Width | 180.00 mm |
| Product weight | 700.00 g |
| Cable length | 1600 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE |
Additional product data
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075846500 | Folding box 1 |
172 mm x 202 mm x 242 mm | 914.00 g | 8.41 dm³ |
| 4058075846517 | Shipping box 4 |
427 mm x 367 mm x 270 mm | 4441.00 g | 42.31 dm³ |
User instruction / safety instructions
DECOR PUCK WALL
DECOR PUCK WALL
Declarations of conformity
DECOR PUCK_KYOTO_930
DECOR PUCK_KYOTO_930

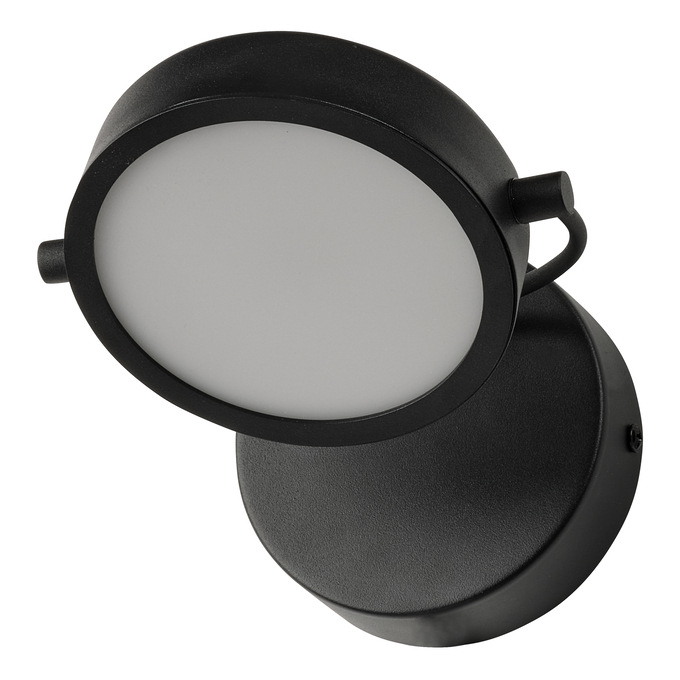

Product image: white background, upright
DECOR PUCK WALL 8W 930 BK side off
DECOR PUCK WALL 8W 930 BK side off

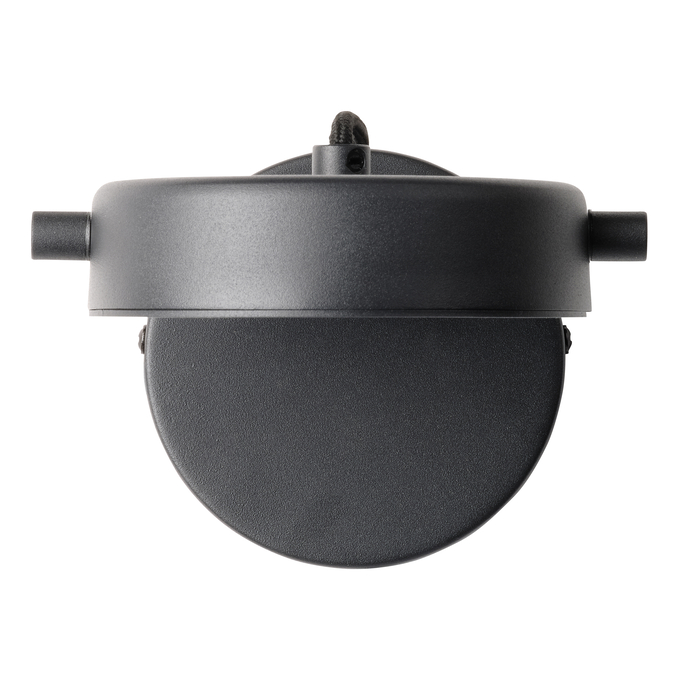

Product image: white background, upright, alternative image
DECOR PUCK WALL 8W 930 BK front
DECOR PUCK WALL 8W 930 BK front

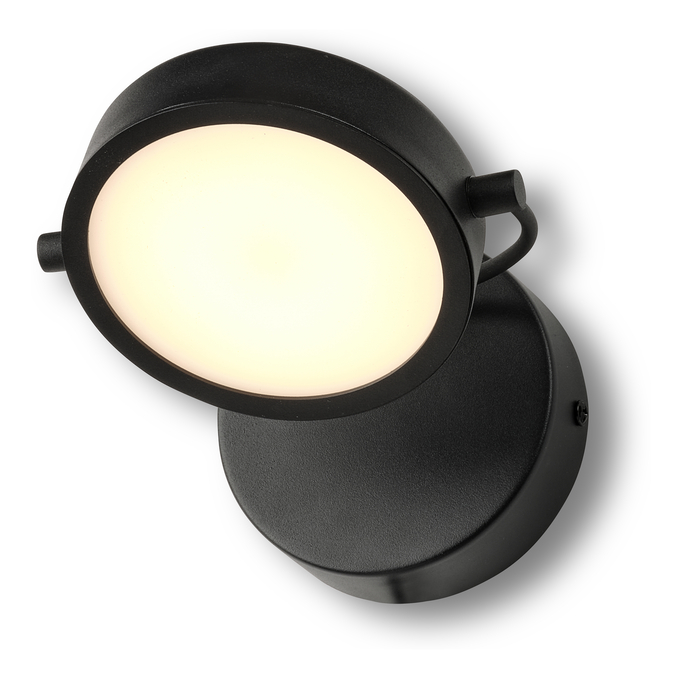

Product image: white background, upright, switched on
DECOR PUCK WALL 8W 930 BK side on
DECOR PUCK WALL 8W 930 BK side on
Product line drawing with letters
DECOR PUCK WALL 11W 930 BK
DECOR PUCK WALL 11W 930 BK
Product line drawing with numbers
DECOR PUCK WALL 11W 930 BK
DECOR PUCK WALL 11W 930 BK
Product line drawing - technical
DECOR PUCK WALL 11W 930 BK
DECOR PUCK WALL 11W 930 BK

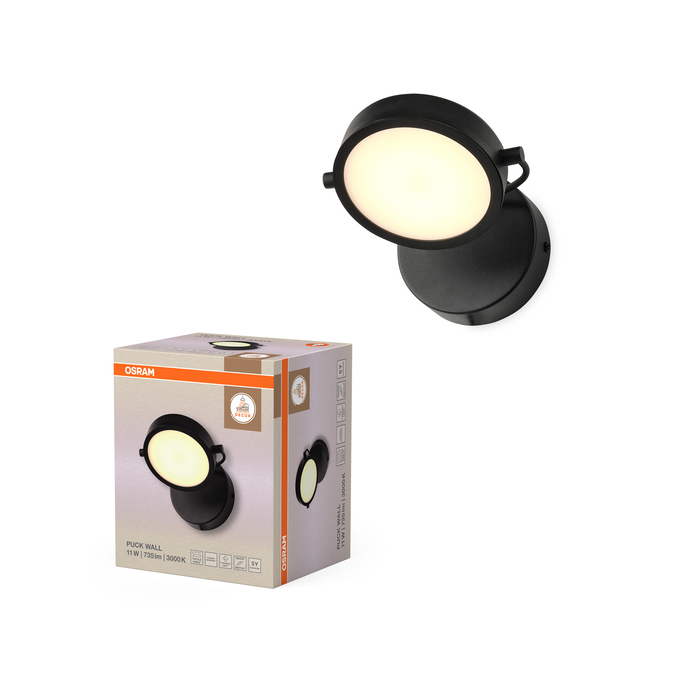

Combo Shot = Product Beauty Shot + Packaging Image
FC DECOR24 PUCK WALL 12W 930 BK
FC DECOR24 PUCK WALL 12W 930 BK
Packaging image, frontal
FC DECOR24 PUCK WALL 12W 930 BK
FC DECOR24 PUCK WALL 12W 930 BK
Packaging image, spacial
FC DECOR24 PUCK WALL 12W 930 BK
FC DECOR24 PUCK WALL 12W 930 BK
Product infographic with environment and dimensions
DECOR PUCK WALL 11W 930 BK
DECOR PUCK WALL 11W 930 BK
Product image with graphic and measurements
DECOR PUCK WALL 11W 930 BK
DECOR PUCK WALL 11W 930 BK

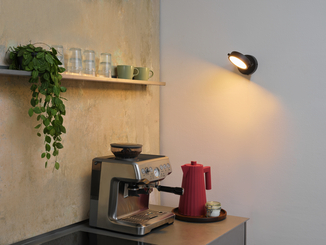

Application pictures
