Decor Curve Felt
Decor Curve Felt Pendant 33W 830 Dark Grey
GTIN: 4058075847606
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Eye-catching luminaire made of felt
- Design delights your home with a warm atmosphere
- Different types of luminaires with the same design language maintain a consistent style at home
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: felt and metal
- Textile cable
- High-power LED
- Color temperature: 3,000 K
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 33.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 150.000 mA |
| Inrush current time Th50 | 192 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 387 |
| Max. number of luminaires per miniature circuit breaker C10 | 242 |
| Max. number of luminaires per miniature circuit breaker C16 | 387 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1000 lm |
| Total luminous flux of contained light sources | 3250 lm |
| Luminous efficacy | 30 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Beam angle | 90 ° |
Dimensions & Weight
| Diameter | 430.00 mm |
| Height | 1500.00 mm |
| Product weight | 1100.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Felt|Aluminium |
| Cover material | Silicone |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Suspended |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075847606 | Folding box 1 |
232 mm x 462 mm x 453 mm | 1643.00 g | 48.55 dm³ |
| 4058075847613 | Shipping box 2 |
478 mm x 478 mm x 489 mm | 4714.00 g | 111.73 dm³ |
User instruction / safety instructions
DECOR CURVE FELT WALL+CEILING+PENDANT
DECOR CURVE FELT WALL+CEILING+PENDANT
Declarations of conformity
LUM DECOR holder series
LUM DECOR holder series
Product image: white background, upright
DECOR CURVE FELT PENDANT 33W 830 DG side off
DECOR CURVE FELT PENDANT 33W 830 DG side off
Product image: white background, upright, alternative image

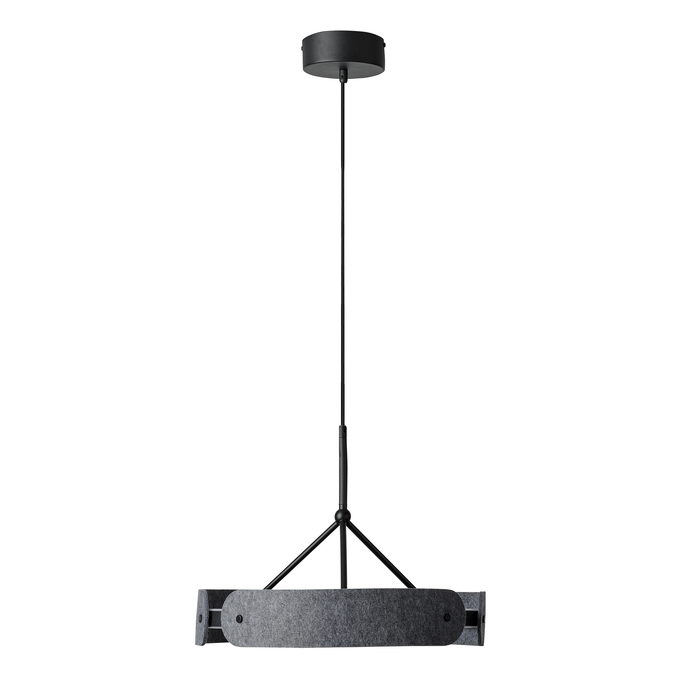

DECOR CURVE FELT PENDANT 33W 830 DG front
DECOR CURVE FELT PENDANT 33W 830 DG front
Product image: white background, upright, switched on

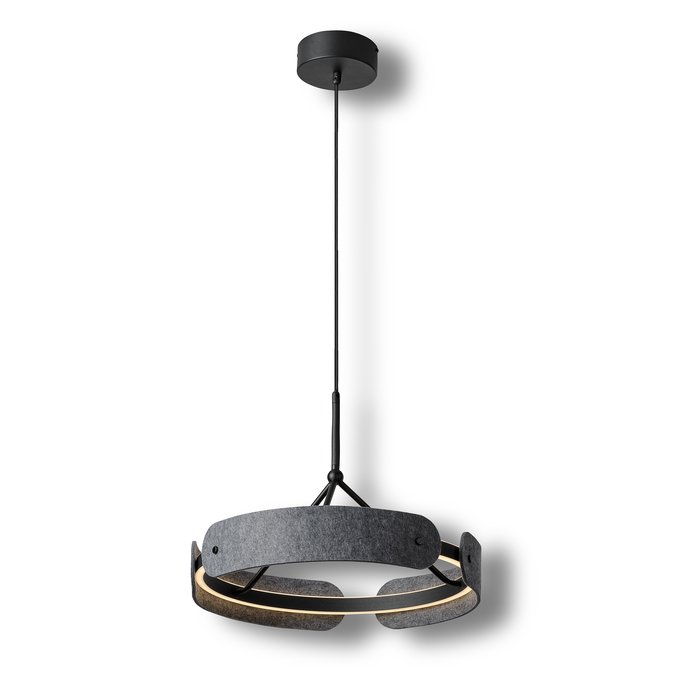

DECOR CURVE FELT PENDANT 33W 830 DG side on
DECOR CURVE FELT PENDANT 33W 830 DG side on
Product line drawing with letters
DECOR CURVE FELT PENDANT 830
DECOR CURVE FELT PENDANT 830
Product line drawing with numbers
DECOR CURVE FELT PENDANT 830
DECOR CURVE FELT PENDANT 830
Product line drawing - technical
DECOR CURVE FELT PENDANT 830
DECOR CURVE FELT PENDANT 830

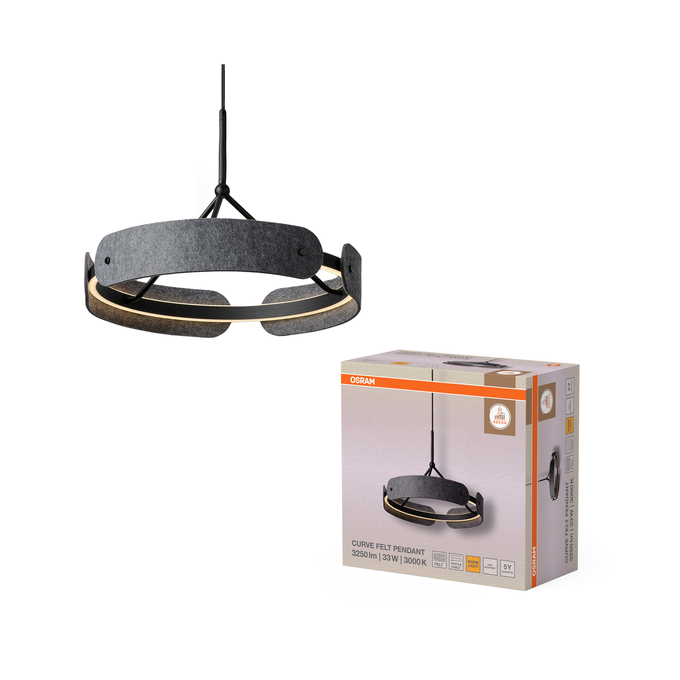

Combo Shot = Product Beauty Shot + Packaging Image
