Decor Celestio
Decor Celestio Pendant 21W 830 Click DIM
GTIN: 4058075842168
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Even filament illumination
- Click dim function by wall switch
- Minimalistic style fits to every room
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: polycarbonate (PC)
- High-power LED
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 21.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 95.000 mA |
| Inrush current | 0.095 A |
| Inrush current time Th50 | 150 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 34 |
| Max. number of luminaires per miniature circuit breaker C10 | 26 |
| Max. number of luminaires per miniature circuit breaker C16 | 45 |
| Power factor λ | ≥0.5 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 2400 lm |
| Total luminous flux of contained light sources | 3200 lm |
| Luminous efficacy | 96 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0,4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 360 ° |
Dimensions & Weight
| Length | 498.00 mm |
| Height | 800.00 mm |
| Width | 456.00 mm |
| Product weight | 1500.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | CLICKSWITC |
| Mounting type | Suspended |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075842168 | Folding box 1 |
62 mm x 533 mm x 524 mm | 1944.00 g | 17.32 dm³ |
| 4058075842175 | Shipping box 5 |
544 mm x 335 mm x 554 mm | 10878.00 g | 100.96 dm³ |
User instruction / safety instructions
DECOR CELESTIO PEND CLICK DIM
DECOR CELESTIO PEND CLICK DIM
Declarations of conformity
CE Declaration Decor LUM
CE Declaration Decor LUM

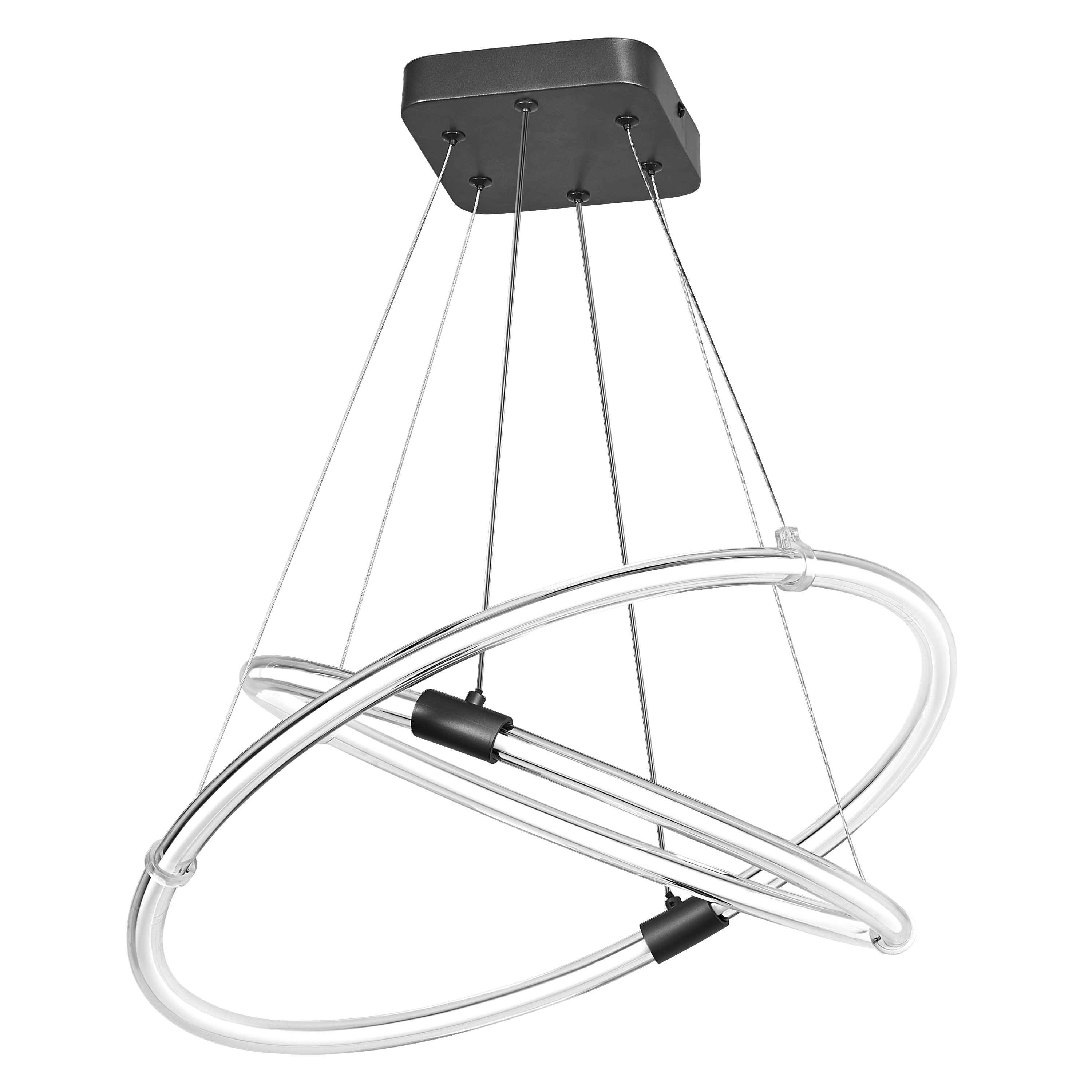

Product image: white background, upright
DECOR CELESTIO PEND 21W 830 CLICKD
DECOR CELESTIO PEND 21W 830 CLICKD

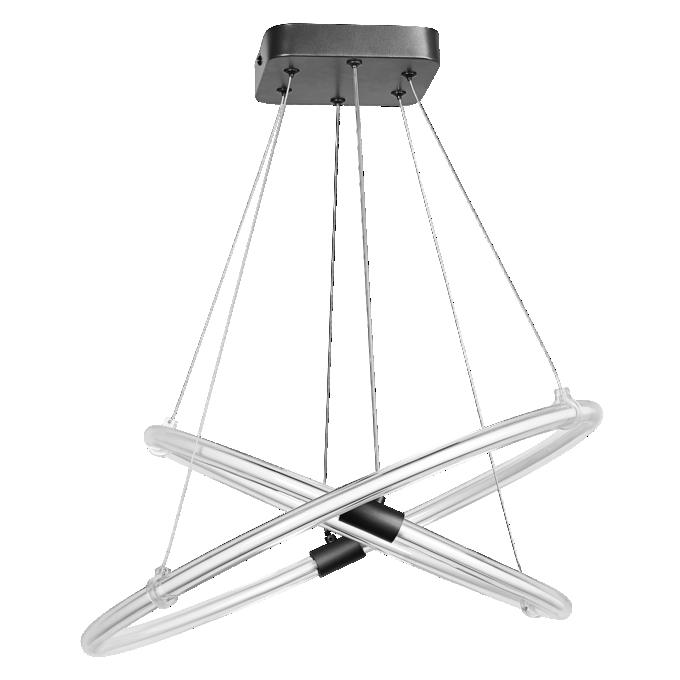

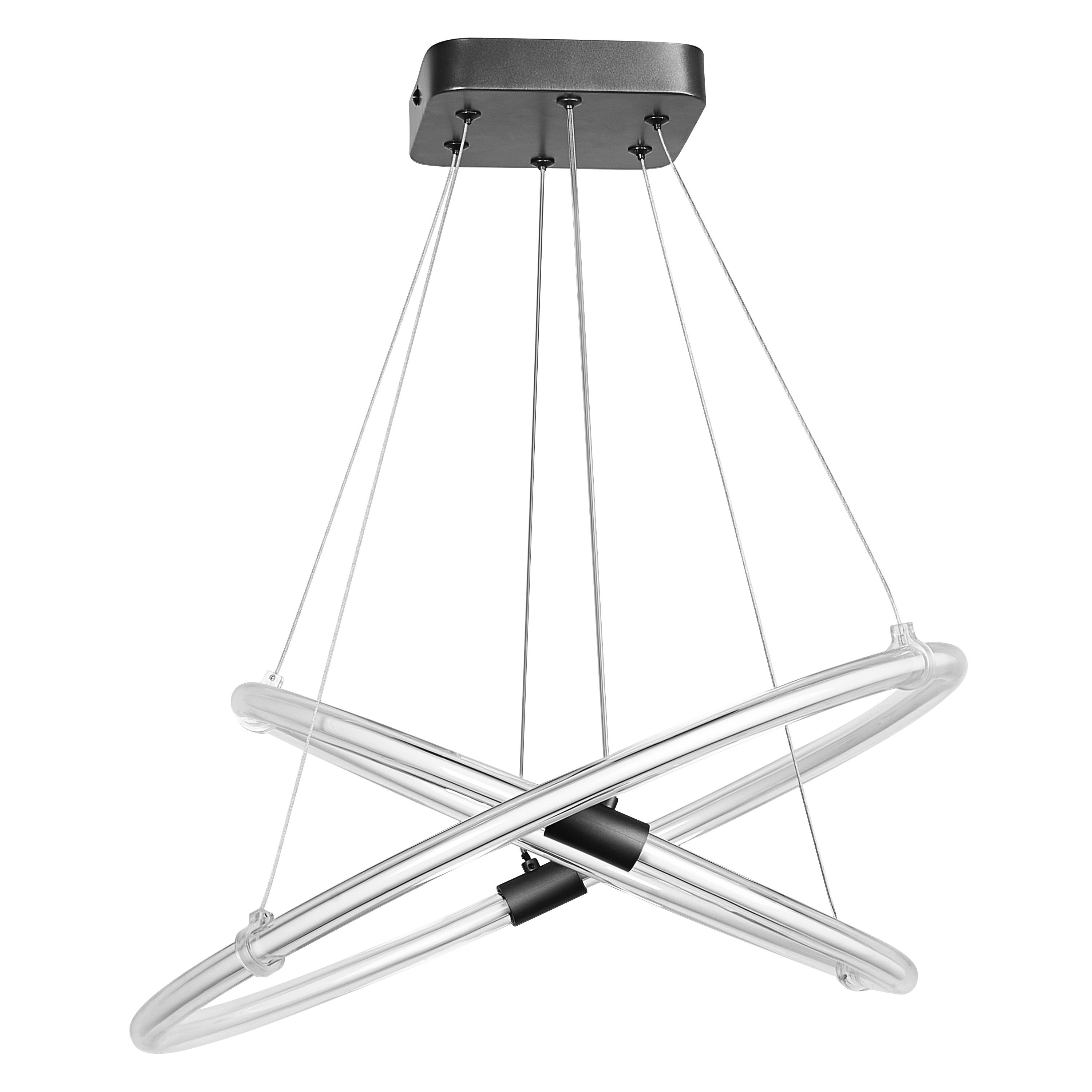

Product image: white background, upright, alternative image
DECOR CELESTIO PEND 21W 830 CLICKD
DECOR CELESTIO PEND 21W 830 CLICKD

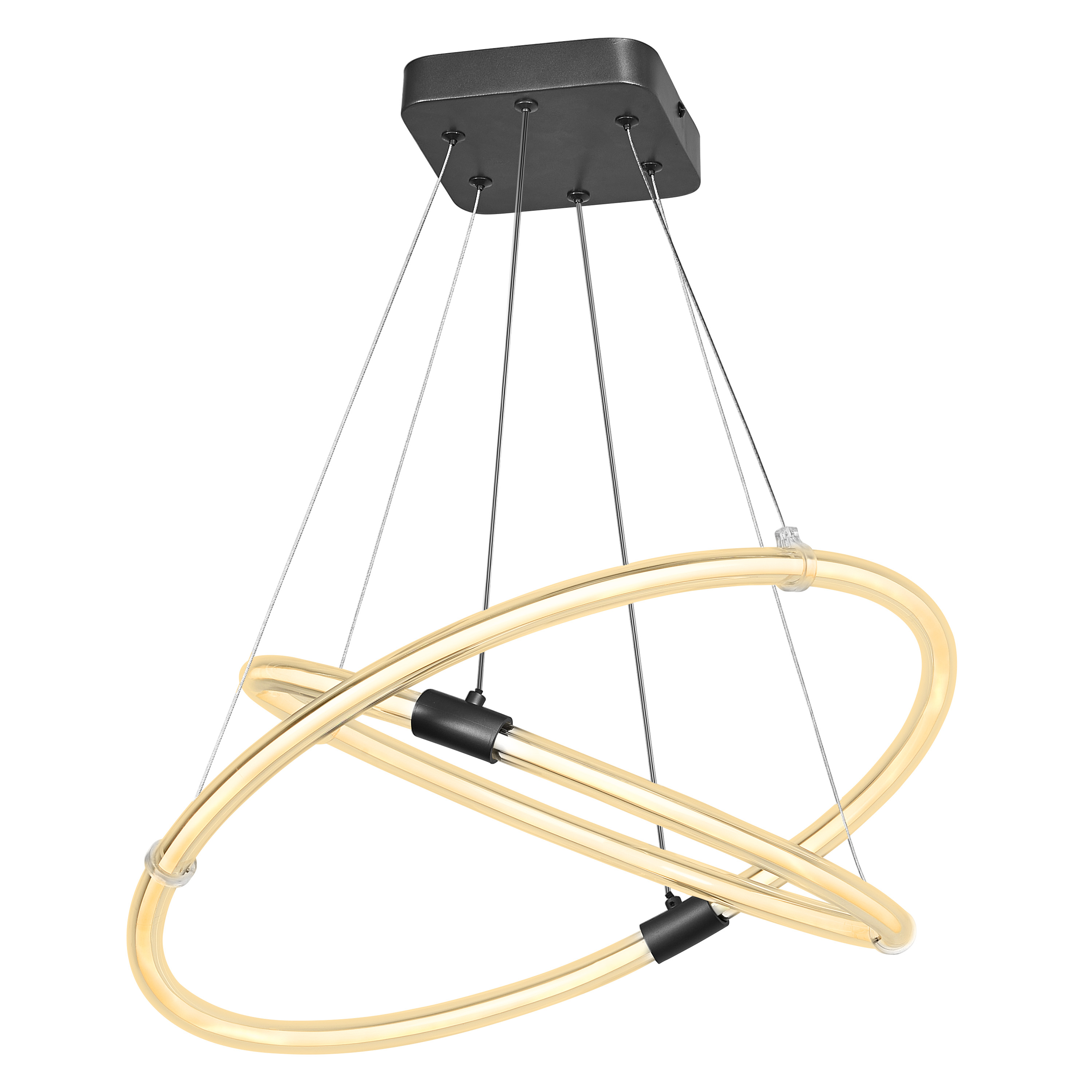

Product image: white background, upright, switched on
DECOR CELESTIO PEND 21W 830 CLICKD
DECOR CELESTIO PEND 21W 830 CLICKD
Product line drawing with letters
DECOR CELESTIO PEND 21W 830 CLICKD
DECOR CELESTIO PEND 21W 830 CLICKD
Product line drawing with numbers
DECOR CELESTIO PEND 21W 830 CLICKD
DECOR CELESTIO PEND 21W 830 CLICKD
Product line drawing, front, no dimensions
DECOR CELESTIO PEND 21W 830 CLICKD
DECOR CELESTIO PEND 21W 830 CLICKD

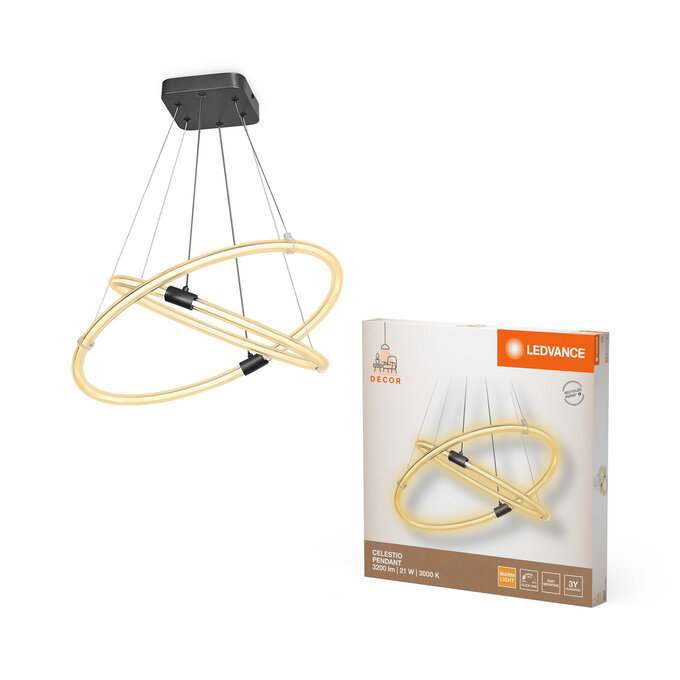

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC D CELESTIO PEND 21W CD
LUM FC D CELESTIO PEND 21W CD
Packaging image, frontal
LUM FC D CELESTIO PEND 21W CD
LUM FC D CELESTIO PEND 21W CD
Packaging image, spacial
LUM FC D CELESTIO PEND 21W CD
LUM FC D CELESTIO PEND 21W CD
Application pictures

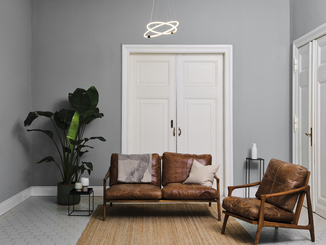

DECOR CELESTIO PEND 23W 830 CLICKD Ambient
DECOR CELESTIO PEND 23W 830 CLICKD Ambient
Application pictures
DECOR CELESTIO PEND 23W 830 CLICKD Closeup 1
DECOR CELESTIO PEND 23W 830 CLICKD Closeup 1
Application pictures
DECOR CELESTIO PEND 23W 830 CLICKD Closeup 2
DECOR CELESTIO PEND 23W 830 CLICKD Closeup 2
Application pictures

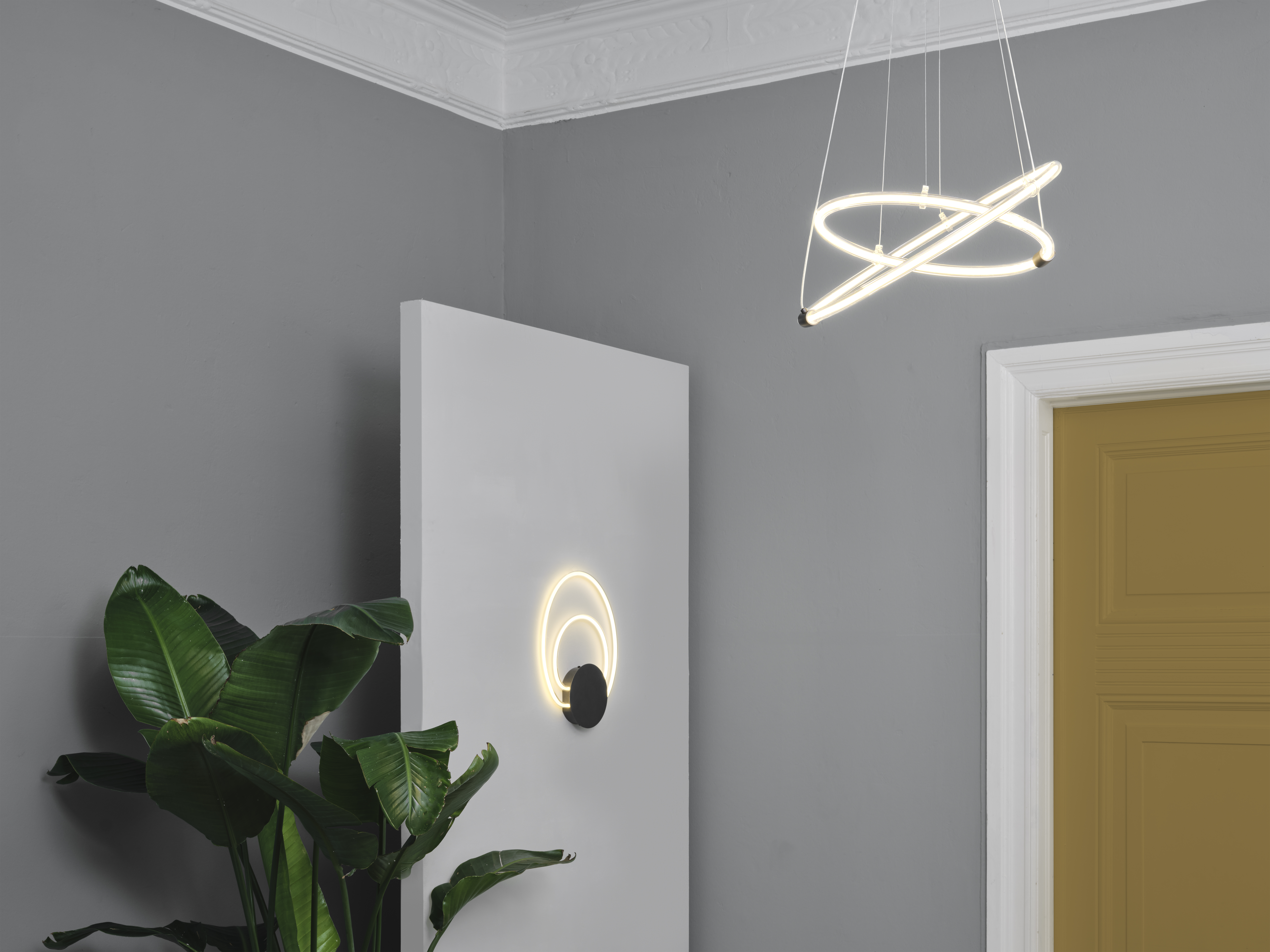

DECOR HELIOS & CELESTIO Family
DECOR HELIOS & CELESTIO Family

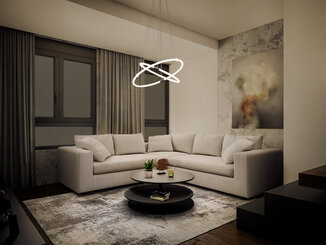

Application pictures Getty
DECOR CELESTIO PEND 21W 830 CLICK DIM
DECOR CELESTIO PEND 21W 830 CLICK DIM
| EAN | ELDAS number |
|---|---|
| 4058075842168 | 941201100 |
