Orbis Quickfix Round
Orbis Quickfix 245mm 20W Click Dim 830 Black
GTIN: 4099854604126
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Click dim function by wall switch
- Through-wiring possible with included connector box
- Easy mounting
- Excellent price/performance ratio
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Easy operation and installation
- Click-DIM version: dimmable in three steps by repeated switching
- Through wiring possible
- Housing material: Plastic and Metal
- Color temperature: 3,000 K
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 180.000 mA |
| Inrush current | 0.125 A |
| Max. number of luminaires per miniature circuit breaker B16 | 68 |
| Max. number of luminaires per miniature circuit breaker C10 | 57 |
| Max. number of luminaires per miniature circuit breaker C16 | 92 |
| Power factor λ | 0.50 |
| Total harmonic distortion | 63 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 2100 lm |
| Total luminous flux of contained light sources | 3500 lm |
| Luminous efficacy | 105 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 115 ° |
Dimensions & Weight
| Diameter | 245.00 mm |
| Height | 24.00 mm |
| Product weight | 540.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Metal|Acrylonitrile butadiene styrene (ABS) |
| Cover material | Polystyrene (PS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | 3 DIM |
| Mounting type | Surface |
| Mounting location | Ceiling |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from November 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854604126 | Folding box 1 |
33 mm x 273 mm x 273 mm | 693.00 g | 2.46 dm³ |
| 4099854604133 | Shipping box 8 |
290 mm x 260 mm x 290 mm | 6054.00 g | 21.87 dm³ |
User instruction / safety instructions
G11238893 UI ORBIS QUICKFIX
G11238893 UI ORBIS QUICKFIX
Declarations of conformity
CE Declaration Orbis Quick Fix
CE Declaration Orbis Quick Fix

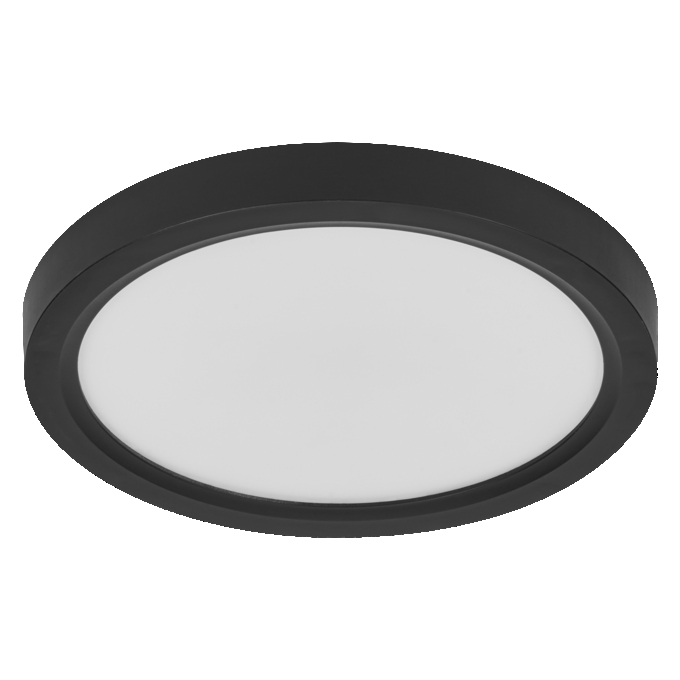

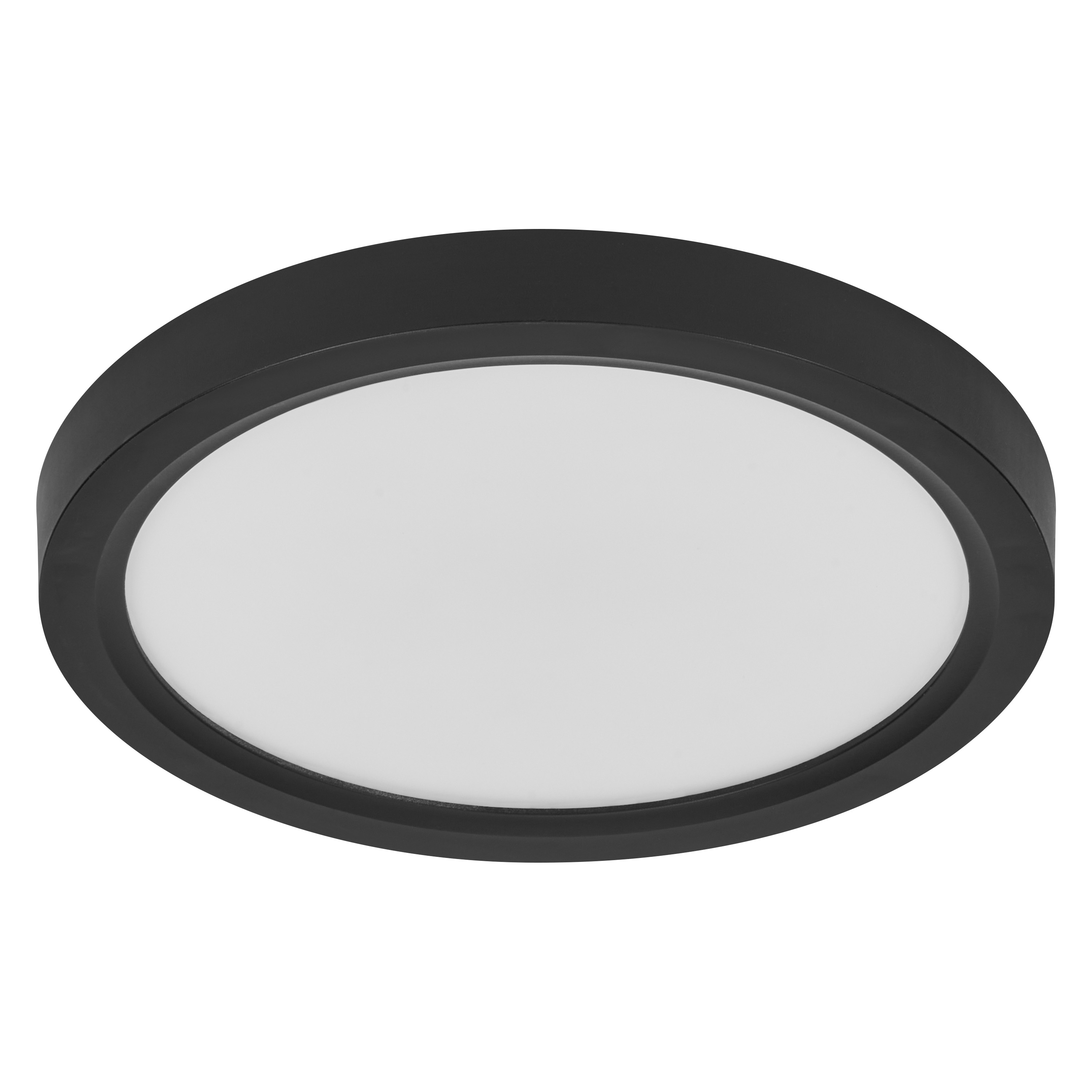

Product image: white background, upright
ORBIS QUICKFIX 230 20W CLICKD 830BK
ORBIS QUICKFIX 230 20W CLICKD 830BK

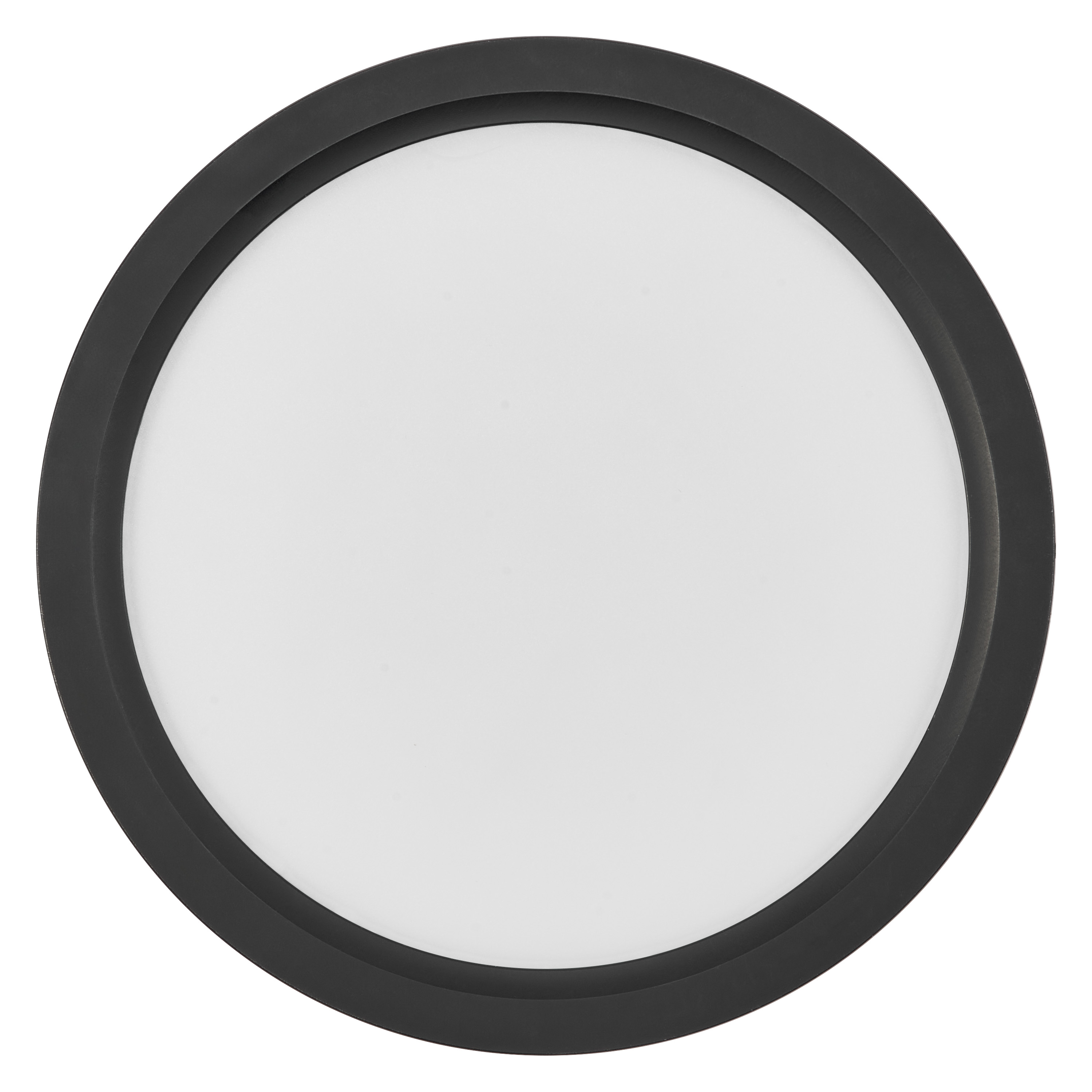

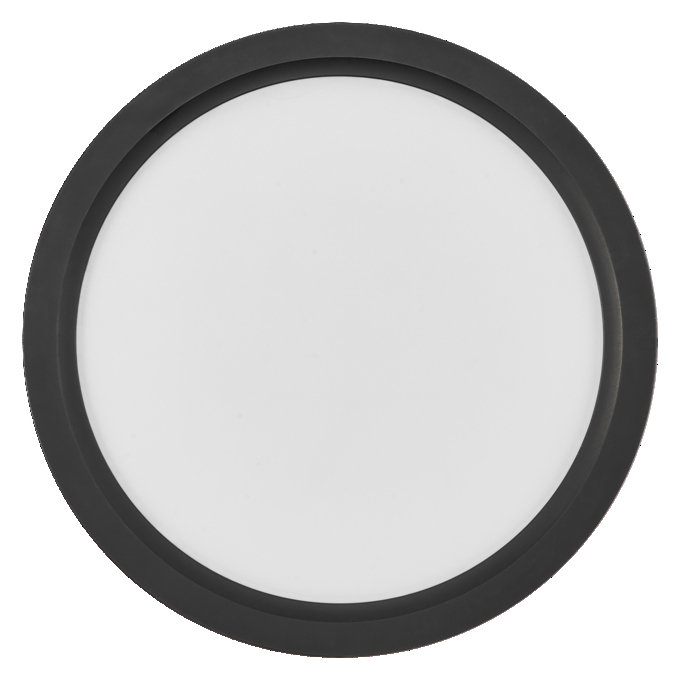

Product image: white background, upright, alternative image
ORBIS QUICKFIX 230 20W CLICKD 830BK
ORBIS QUICKFIX 230 20W CLICKD 830BK

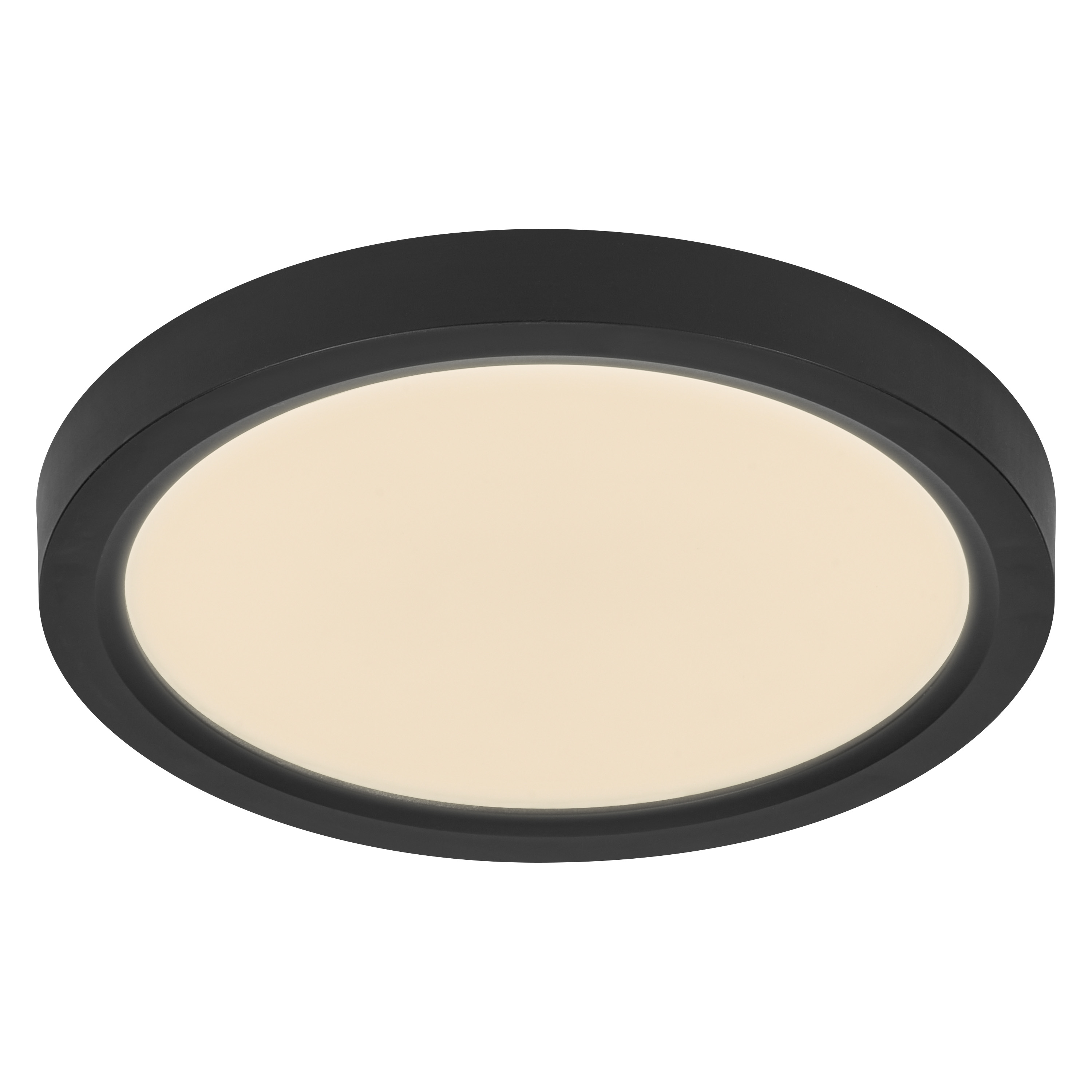

Product image: white background, upright, switched on
ORBIS QUICKFIX 230 20W CLICKD 830BK
ORBIS QUICKFIX 230 20W CLICKD 830BK
Product line drawing with letters
ORBIS QUICKFIX 300 24W CLICKD 830
ORBIS QUICKFIX 300 24W CLICKD 830
Product line drawing with numbers
ORBIS QUICKFIX 230 20W CLICKD 830
ORBIS QUICKFIX 230 20W CLICKD 830
Product line drawing - technical
ORBIS QUICKFIX 300 24W CLICKD 830
ORBIS QUICKFIX 300 24W CLICKD 830

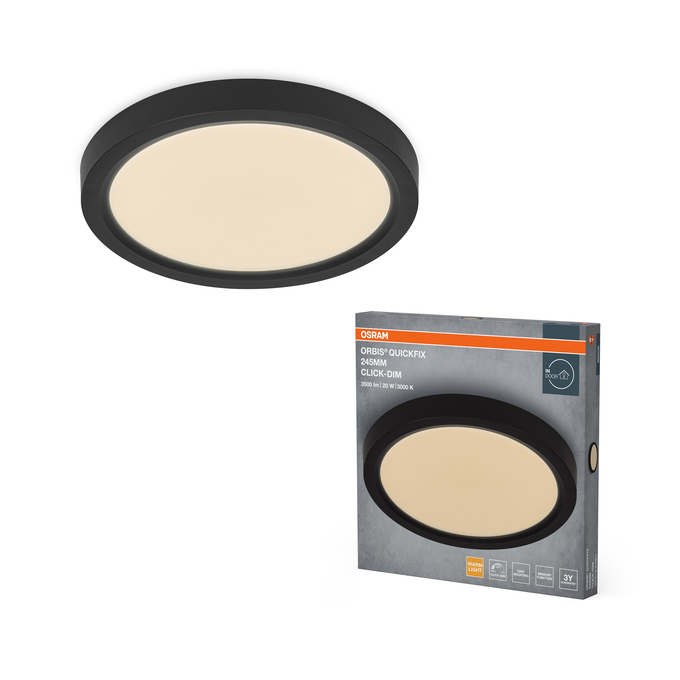

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC O QUICKFIX 245RD CD BK OSRAM
LUM FC O QUICKFIX 245RD CD BK OSRAM
Packaging image, frontal
LUM FC O QUICKFIX 245RD CD BK OSRAM
LUM FC O QUICKFIX 245RD CD BK OSRAM
Packaging image, spacial
LUM FC O QUICKFIX 245RD CD BK OSRAM
LUM FC O QUICKFIX 245RD CD BK OSRAM

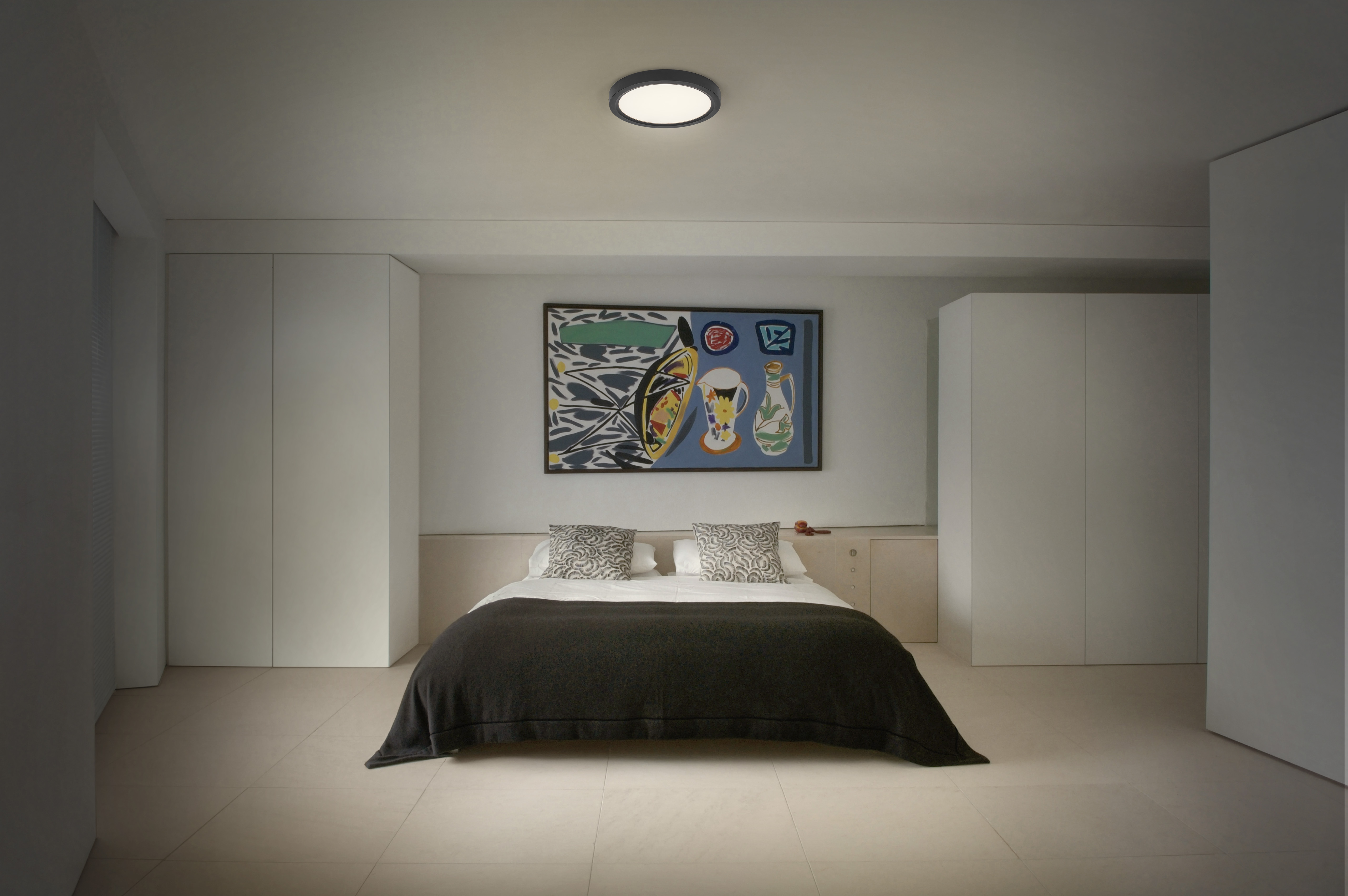

Application pictures Getty
