ORBIS CLICK SENSOR
Orbis Square Click Sensor 530x530mm 60W
GTIN: 4058075472839
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
Areas of application
- Corridors, entrance areas
Product features
- Luminaires activated by sensor mode or conventional wall switch
- Operating mode easily changed by three clicks of wall switch
- Motion sensor (microwave technology) with adjustable detection parameters
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 60.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.70 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 4450 lm |
| Total luminous flux of contained light sources | 8000 lm |
| Luminous efficacy | 74 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 530.00 mm |
| Height | 80.00 mm |
| Width | 530.00 mm |
| Product weight | 2210.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…40 °C |
| Type of connection | Push button terminal, 2-pole |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | Light, Motion |
| Sensor technology | Microwave |
| Sensor detection angle | 120 ° |
| Sensor controlled switching time | 5 s…30 min |
| Detection range of motion sensor | 2…6 m |
| Detection threshold of daylight sensor | 2…50 lx |
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075472839 | Folding box 1 |
642 mm x 142 mm x 647 mm | 2959.00 g | 58.98 dm³ |
| 4058075472846 | Shipping box 5 |
737 mm x 657 mm x 670 mm | 17713.00 g | 324.42 dm³ |
User instruction / safety instructions
ORBIS SQUARE
ORBIS SQUARE
Legal information
Legal insert
Legal insert
Declarations of conformity
ORBIS CLICK SEN
ORBIS CLICK SEN
Product datasheet -> old version of product
4058075472839 ORBIS SQUARE CLICK SENSOR 530 60W en old
4058075472839 ORBIS SQUARE CLICK SENSOR 530 60W en old

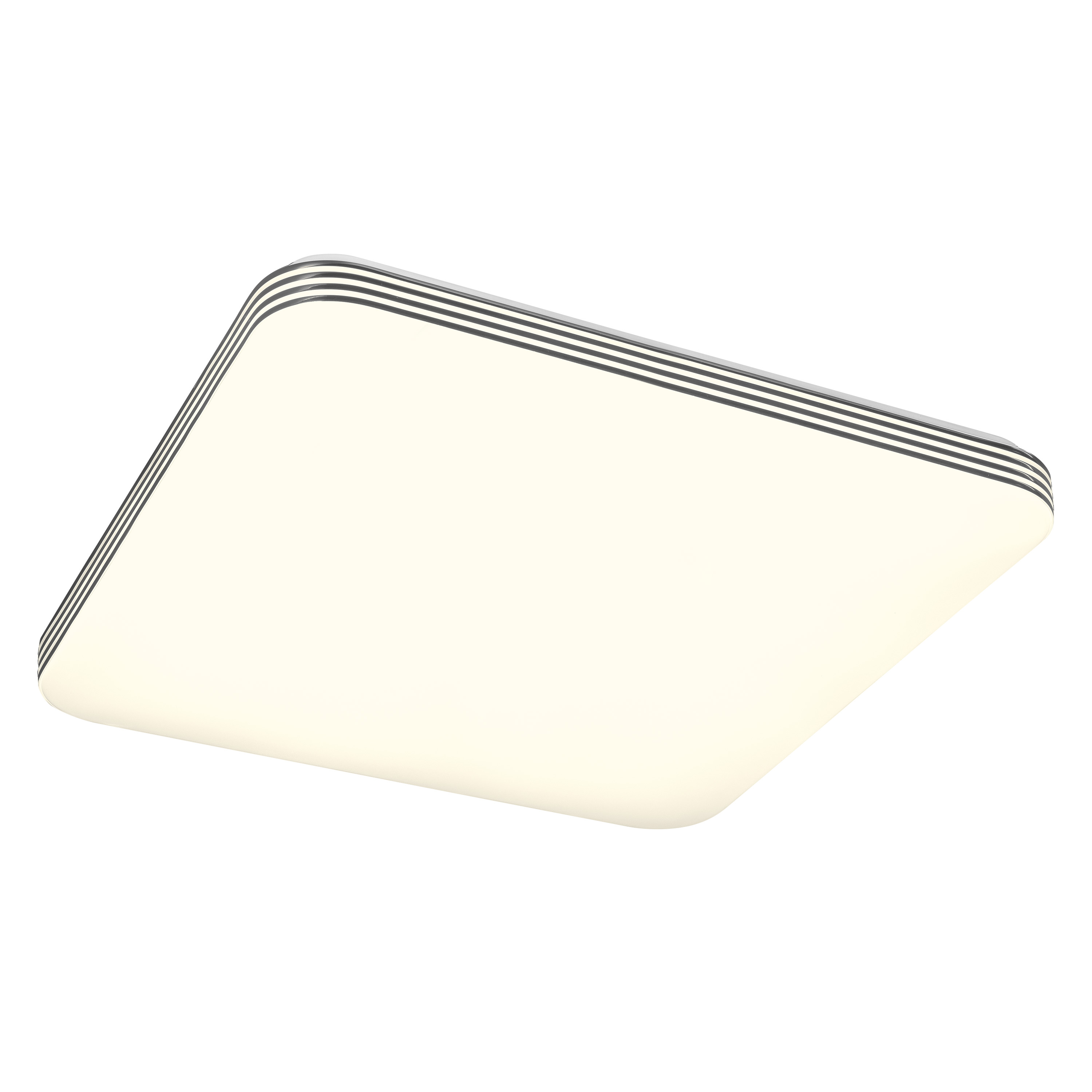

Product image: white background, upright
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
Product image: white background, upright, alternative image
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
ORBIS SQUARE 530 SQ 60W830 CLICKSEN

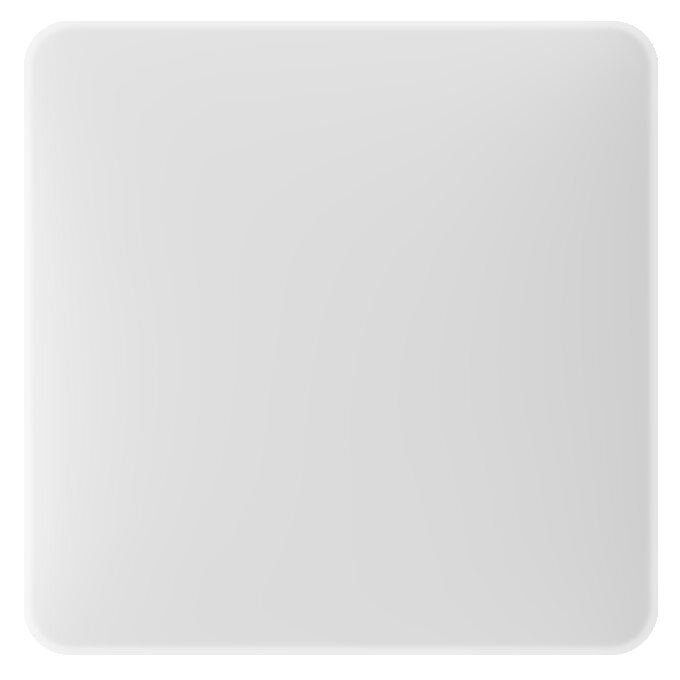

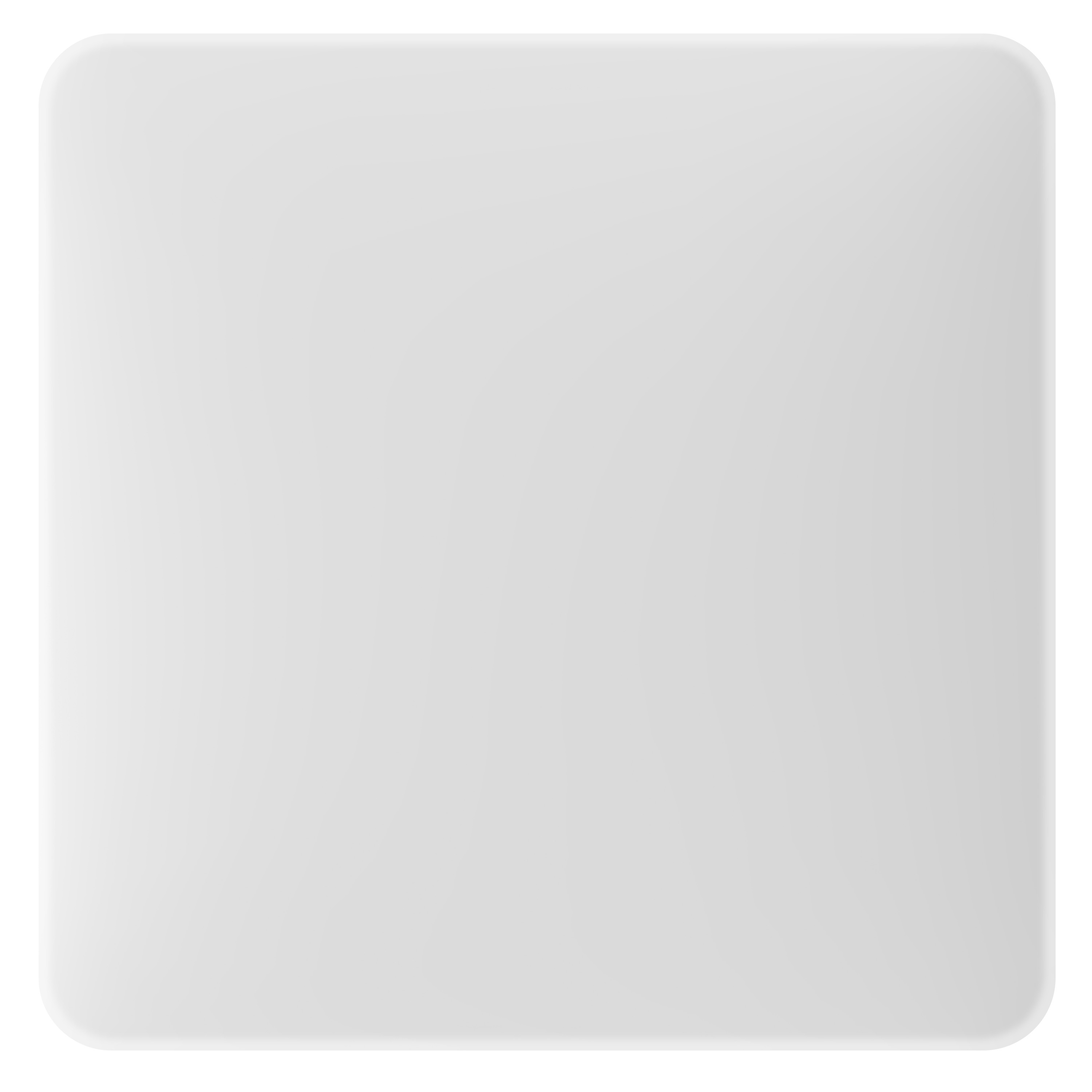

Product image: white background, upright, switched on
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
Product line drawing with letters
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
Product line drawing with numbers
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
Product line drawing, front, no dimensions
ORBIS SQUARE 530 SQ 60W830 CLICKSEN
ORBIS SQUARE 530 SQ 60W830 CLICKSEN

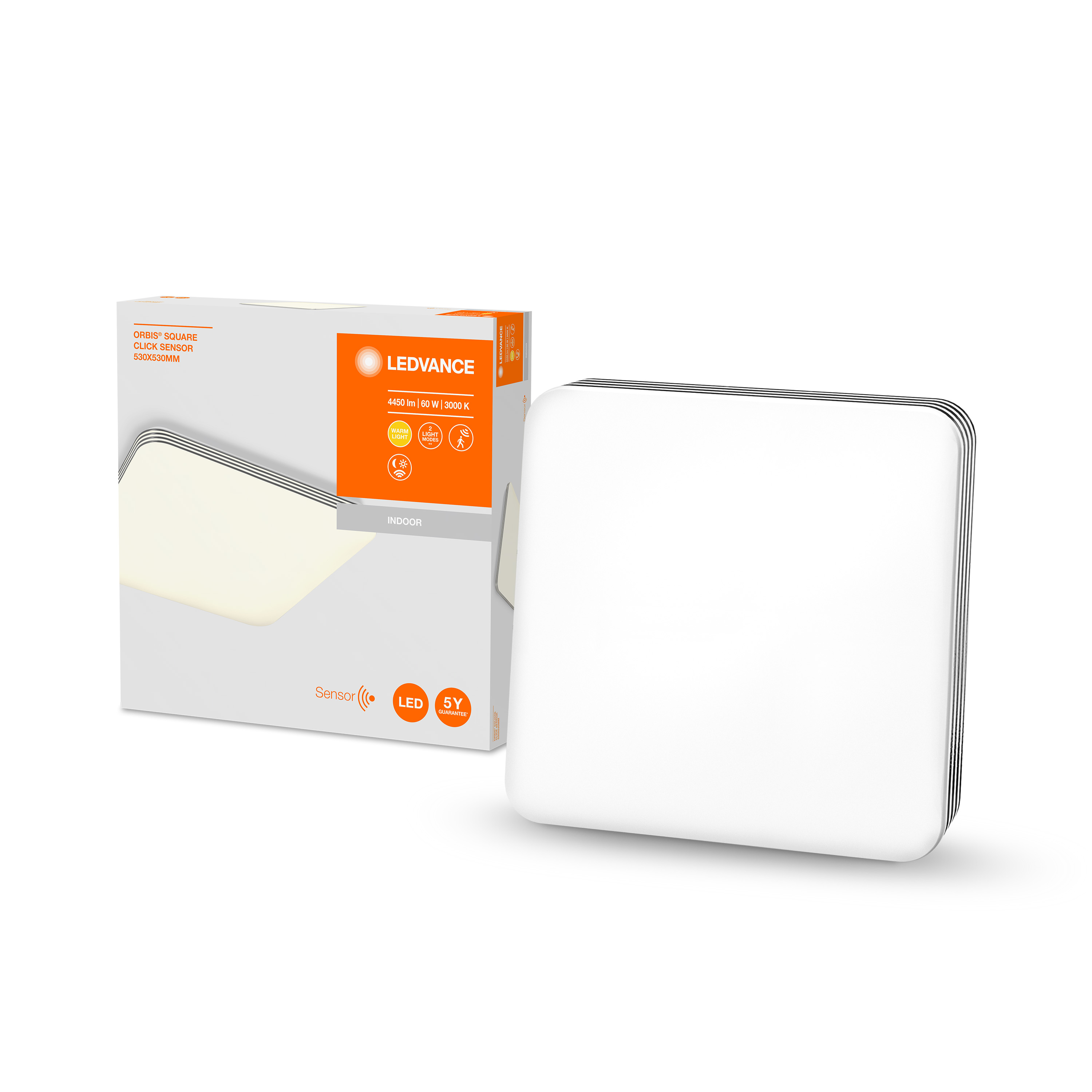

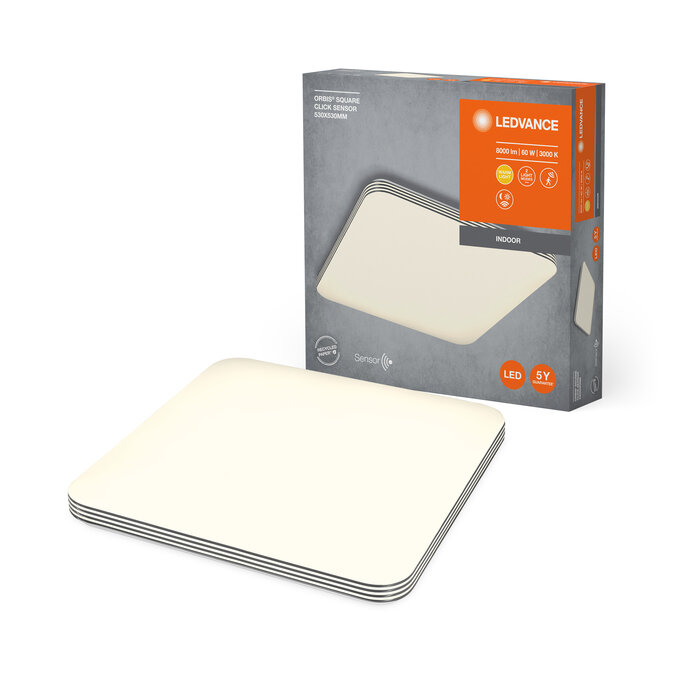

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ORBIS SQUARE 530 CL SEN MiPRC
LUM FC ORBIS SQUARE 530 CL SEN MiPRC

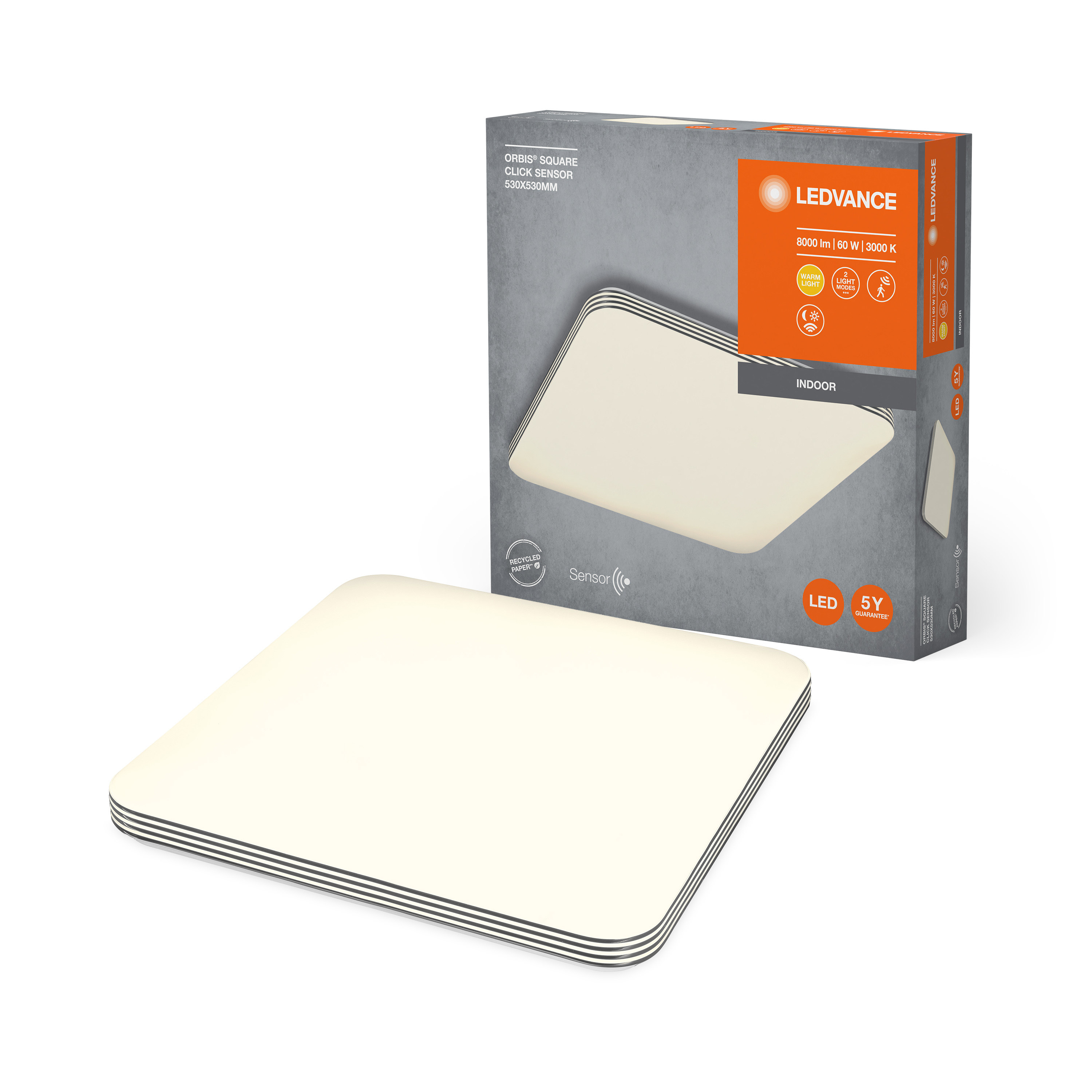

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SQUARE 530 60W CLICKSEN MiPRC
LUM FC SQUARE 530 60W CLICKSEN MiPRC

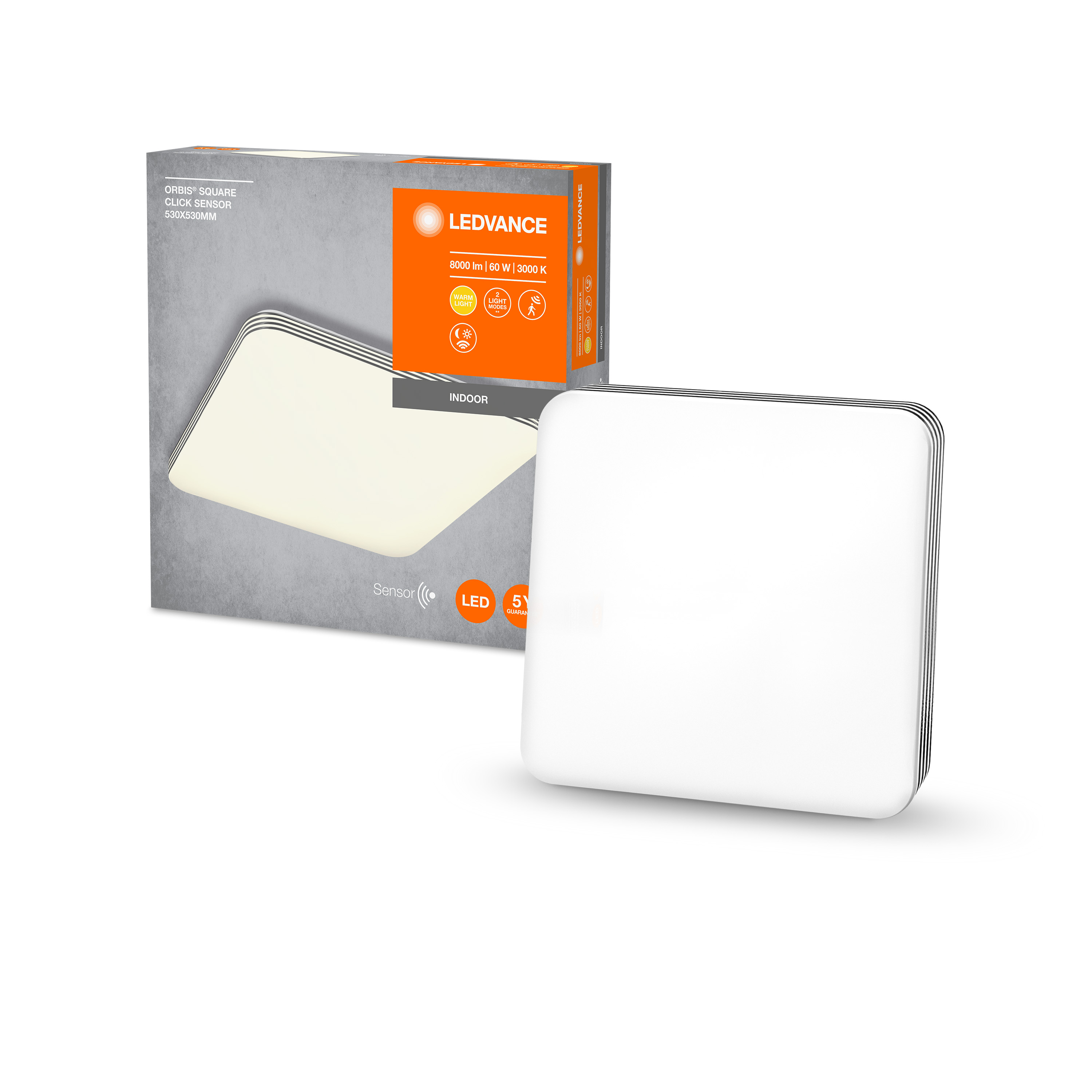

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SQUARE 530 60W 830 CLIS MiPRC
LUM FC SQUARE 530 60W 830 CLIS MiPRC
Packaging image, frontal
LUM FC ORBIS SQUARE 530 CL SEN MiPRC
LUM FC ORBIS SQUARE 530 CL SEN MiPRC
Packaging image, spacial
LUM FC ORBIS SQUARE 530 CL SEN MiPRC
LUM FC ORBIS SQUARE 530 CL SEN MiPRC

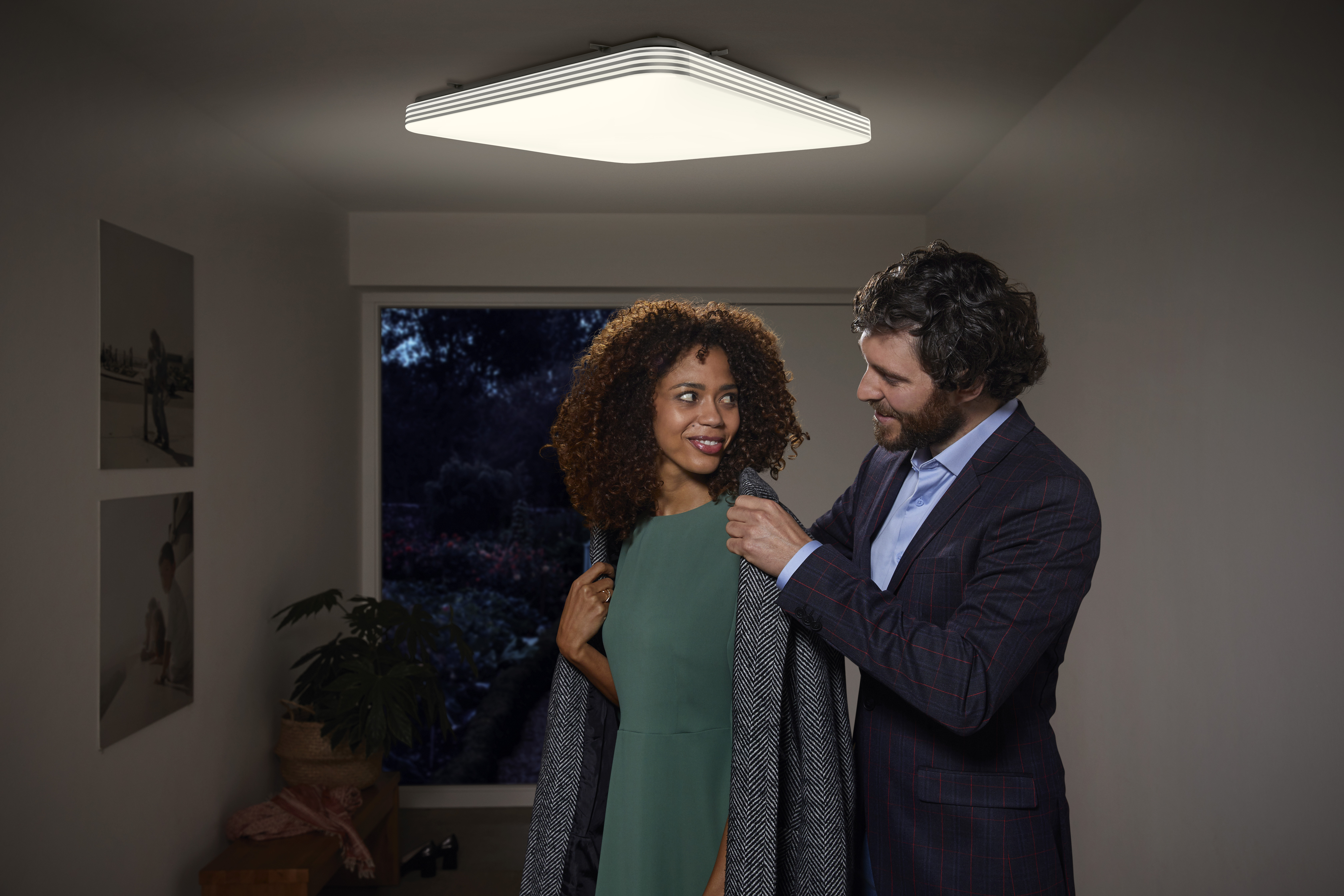

Application pictures
INDOOR ORBIS SQUARE CLICK SENSOR 530x530
INDOOR ORBIS SQUARE CLICK SENSOR 530x530

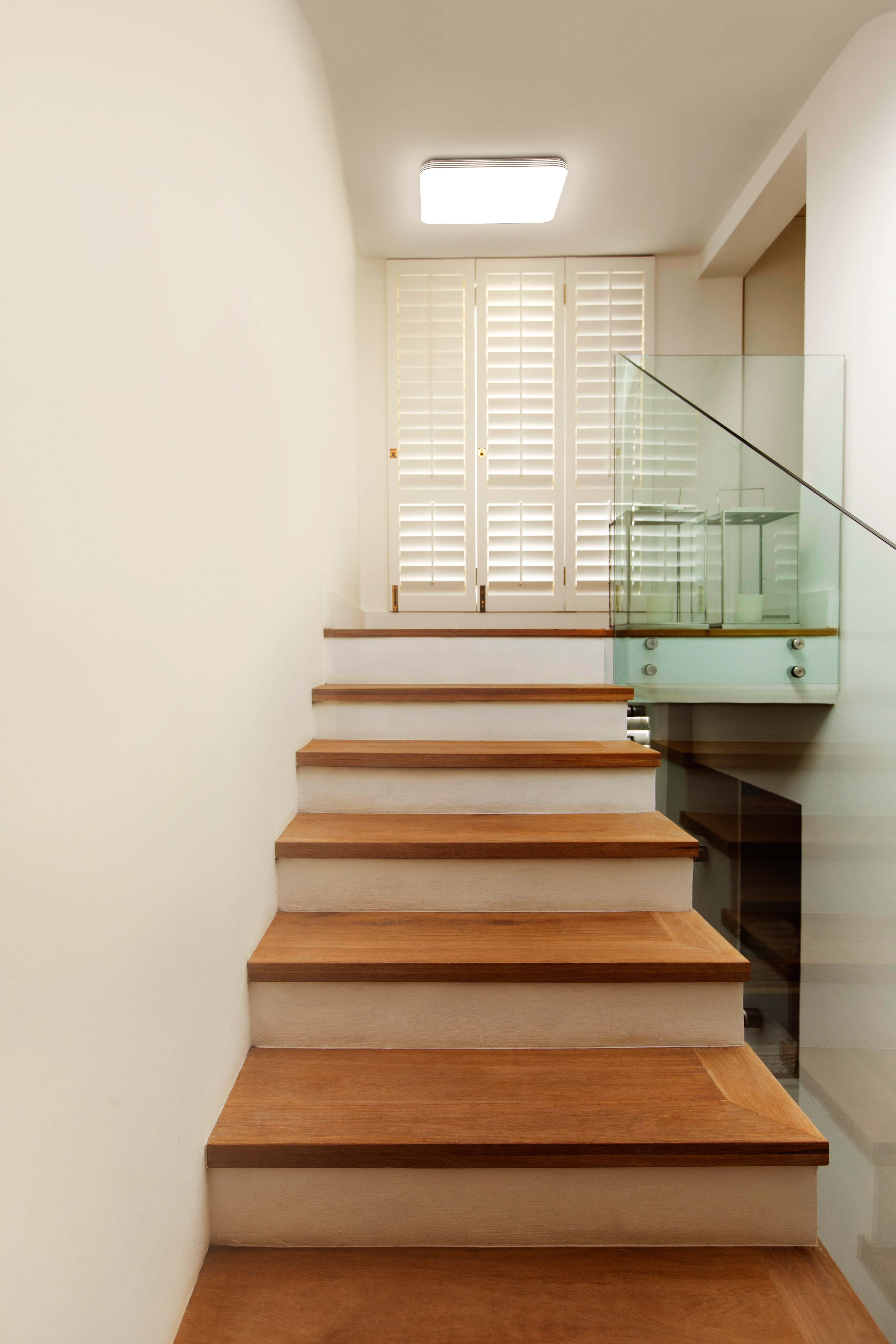

Application pictures
