Orbis Disc
Orbis Disc 30CM 22W Click CCT IP44 Wood Decor
GTIN: 4099854279638
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy to install and use
- Long lifetime thanks to LED technology
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
- Bathrooms (IP44)
Product features
- Type of protection: IP44
- Lifetime up to 30,000 h
- Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
- Click-CCT version: color temperature adjustable in two steps by repeated switching
- Available in square and rectangular form
- Housing material: aluminum
- Polycarbonate (PC) diffuser
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 22.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 116.000 mA |
| Inrush current | 0.116 A |
| Inrush current time Th50 | 800 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 75 |
| Max. number of luminaires per miniature circuit breaker C10 | 60 |
| Max. number of luminaires per miniature circuit breaker C16 | 96 |
| Power factor λ | > 0.7 |
| Total harmonic distortion | < 80 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 1800 lm |
| Total luminous flux of contained light sources | 3000 lm |
| Luminous efficacy | 81 lm/W |
| Color temperature | 3000 … 4000 K |
| Reference control setting of contained light source (Kelvin) | 3000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 300.00 mm |
| Height | 30.00 mm |
| Product weight | 760.00 g |
Materials & Colors
| Product color | Wood decor |
| Housing color | Wood decor |
| Body material | Polycarbonate (PC)|Acrylonitrile butadiene styrene (ABS) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 10000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854279638 | Folding box 1 |
37 mm x 317 mm x 318 mm | 883.00 g | 3.73 dm³ |
| 4099854279645 | Shipping box 4 |
335 mm x 335 mm x 175 mm | 4085.00 g | 19.64 dm³ |
User instruction / safety instructions
ORBIS DISC 30RD 22W CLC
ORBIS DISC 30RD 22W CLC
Declarations of conformity
ORBIS MIRROR ORBIS TUBE ORBIS DISC
ORBIS MIRROR ORBIS TUBE ORBIS DISC

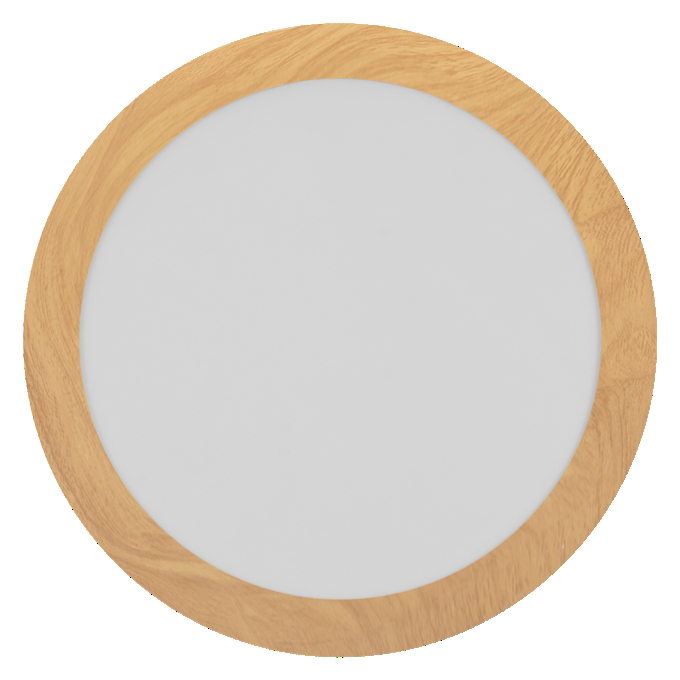

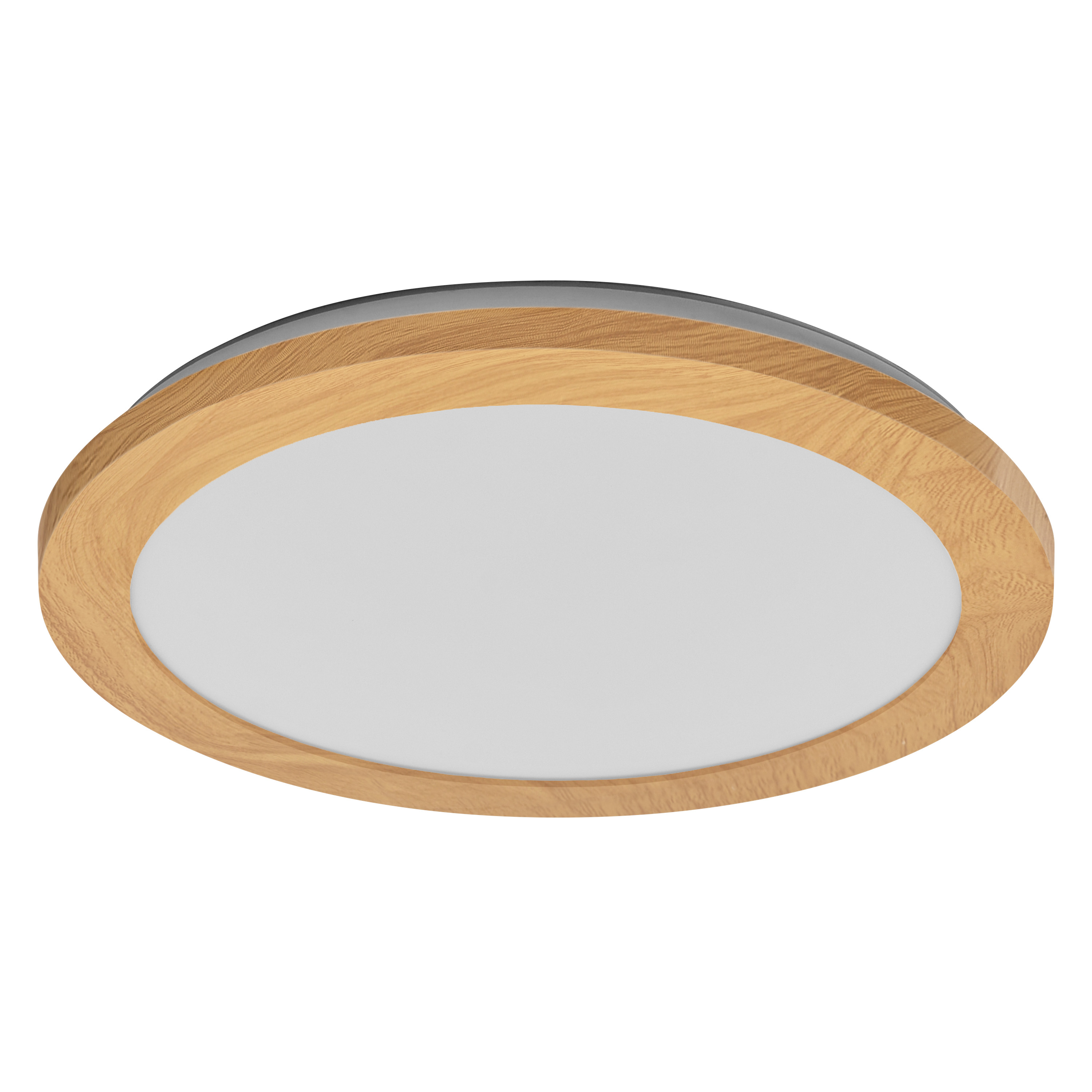

Product image: white background, upright
ORBIS DISC 30CM 22WCLICKCCT IP44 WD
ORBIS DISC 30CM 22WCLICKCCT IP44 WD

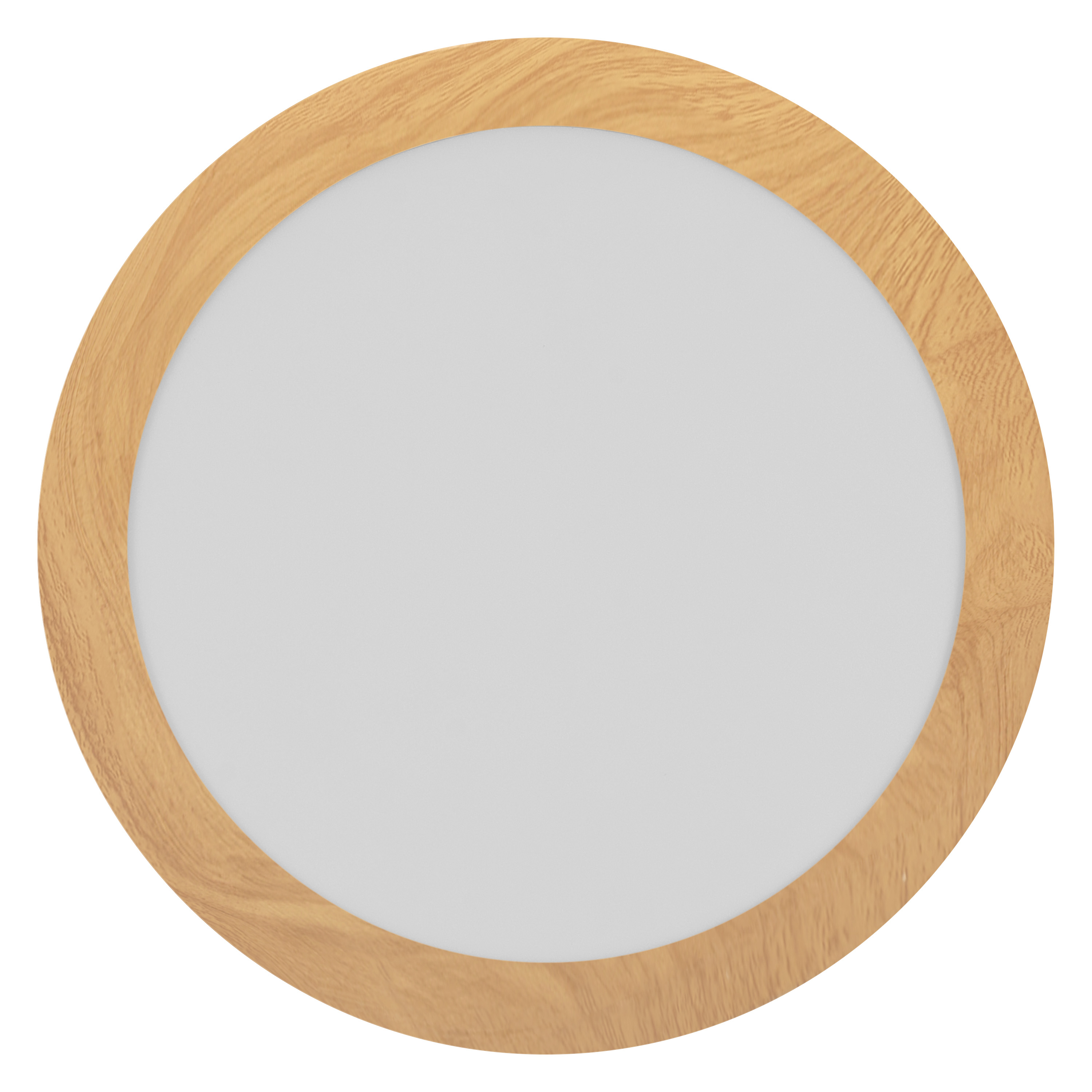

Product image: white background, upright, alternative image
ORBIS DISC 30CM 22WCLICKCCT IP44 WD
ORBIS DISC 30CM 22WCLICKCCT IP44 WD

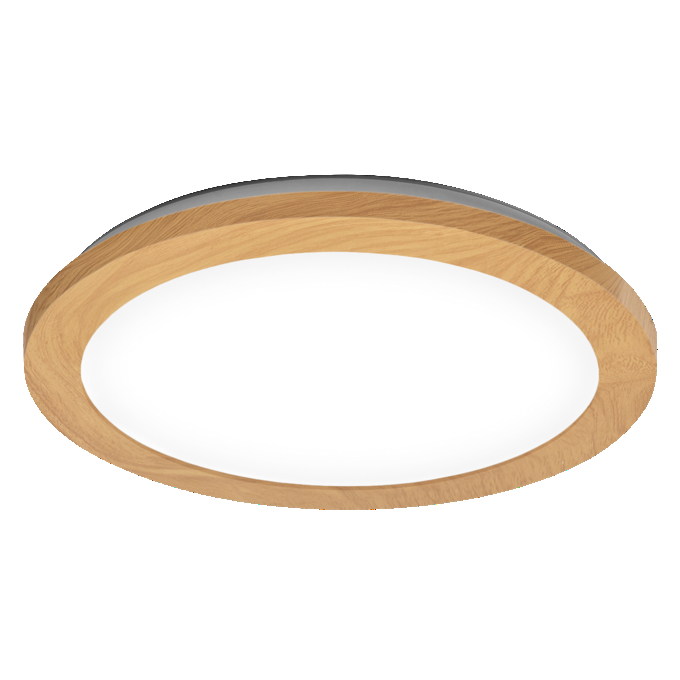

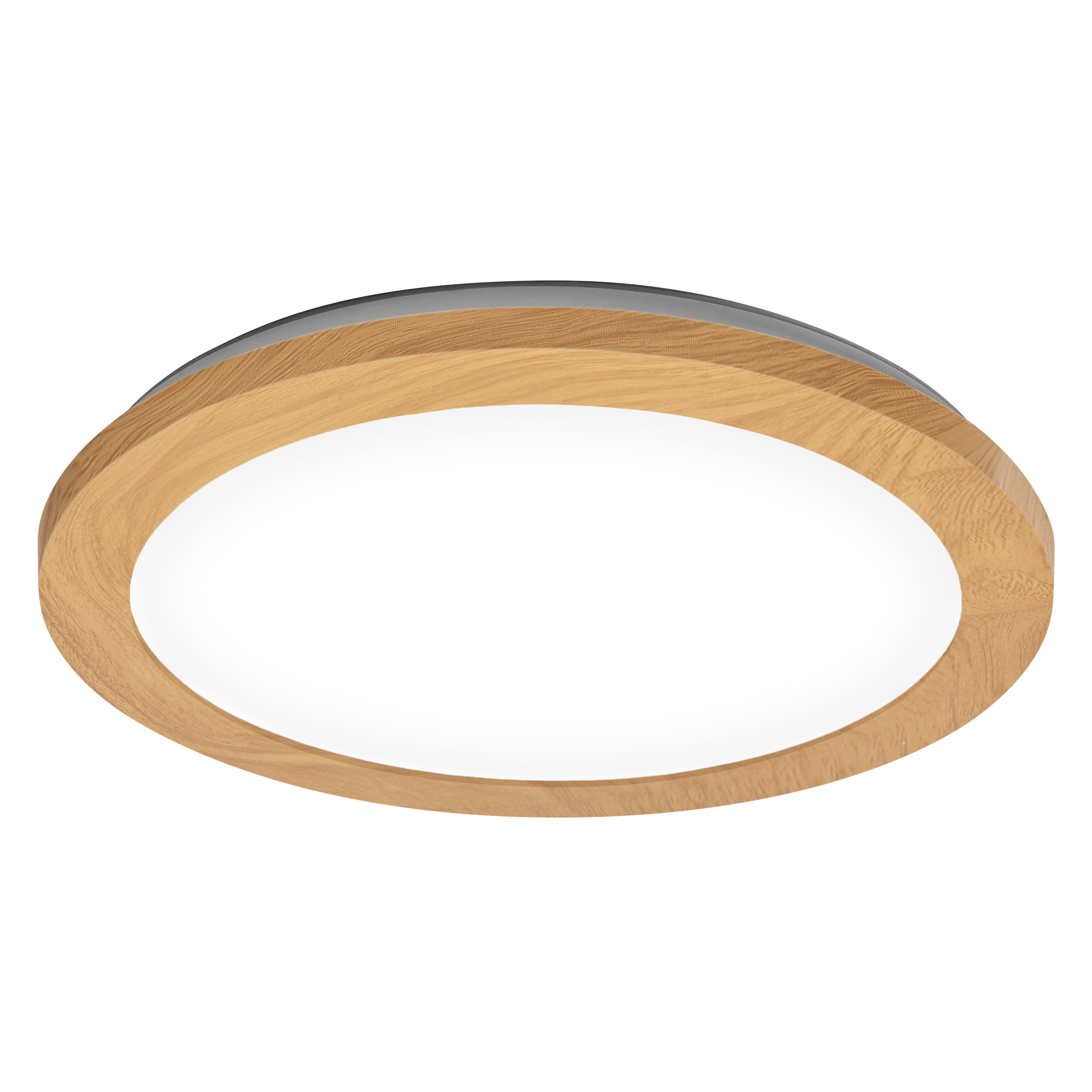

Product image: white background, upright, switched on
ORBIS DISC 30CM 22WCLICKCCT IP44 WD
ORBIS DISC 30CM 22WCLICKCCT IP44 WD
Product line drawing with letters
ORBIS DISC 30CM 22WCLICKCCT IP44
ORBIS DISC 30CM 22WCLICKCCT IP44
Product line drawing with numbers
ORBIS DISC 30CM 22WCLICKCCT IP44
ORBIS DISC 30CM 22WCLICKCCT IP44
Product line drawing, front, no dimensions
ORBIS DISC 30CM 22WCLICKCCT IP44
ORBIS DISC 30CM 22WCLICKCCT IP44

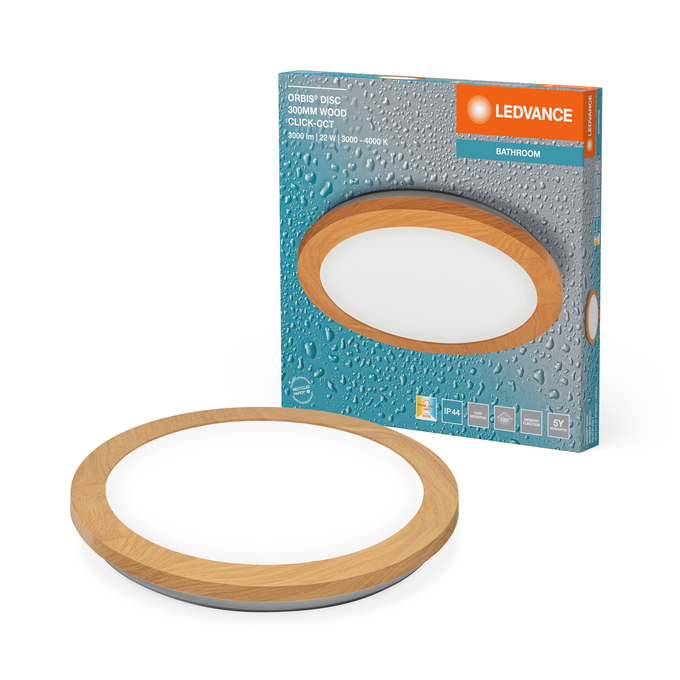

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC O DISC 30RD 22W CLC WD
LUM FC O DISC 30RD 22W CLC WD
Packaging image, frontal
LUM FC O DISC 30RD 22W CLC WD
LUM FC O DISC 30RD 22W CLC WD
Packaging image, spacial
LUM FC O DISC 30RD 22W CLC WD
LUM FC O DISC 30RD 22W CLC WD
Application pictures
ORBIS DISC 30CM 22W CLICK CCT IP44 WD WARM LIGHT
ORBIS DISC 30CM 22W CLICK CCT IP44 WD WARM LIGHT

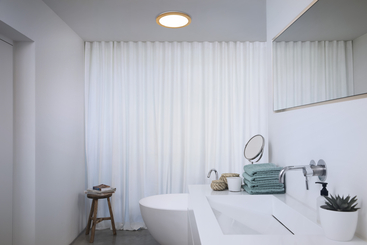

Application pictures
