Vintage 1906 Globe 95 Spiral Filament 1.8W 822 Gold E27

NEW

Vintage 1906 LED CLASSIC GLOBE

GTIN: 4099854551864 Folding box / 1 Show all packages

Download data sheet

Our warranty conditions

PRODUCT DETAILS

Product benefits

Lower energy consumption than incandescent or halogen lamps
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Lamps with innovative LED "filament" technology

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

LED lamps for line voltage
Lamp made of glass
Lifetime up to 15,000 h
Beam angle: up to 360°
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Electrical data

Nominal wattage	1.8 W
Construction wattage	1.80 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Nominal current	14 mA
Type of current	AC
Inrush current	1.2 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	27
Max. lamp number on MCB B16 A	44
Total harmonic distortion	125 %
Power factor λ	0.50

Photometrical data

Luminous flux	30 lm
Luminous efficacy	16 lm/W
Lumen main.fact.at end of nom.life time	0.93
Light color (designation)	Comfort warm white
Color temperature	2200 K
Color rendering index Ra	80
Light color	822
Standard deviation of color matching	≤6 sdcm
Flickering metric (Pst LM)	≤1.0
Stroboscope effect metric (SVM)	≤0.4

Light technical data

Beam angle	320 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	138.00 mm
Diameter	95.00 mm
Maximum diameter	95 mm
Product weight	63.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	53 °C

Lifespan

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.93

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear gold
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable

Certificates & Standards

Energy consumption	2.00 kWh/1000h
Type of protection	IP20
Standards	CE, UKCA, EAC
Photobiological safety group acc. to EN62778	RG1

Country-specific categorizations

Order reference

1906LGL95 1,8W/

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E27
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Standby power	0 W
Claim of equivalent power	Yes
Length	138.00 mm
Height	95.00 mm
Width	95.00 mm
Chromaticity coordinate x	0.5018
Chromaticity coordinate y	0.4153
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	≥0.5
LED light source replaces a fluorescent light source	No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854551864	Folding box 1	111 mm x 111 mm x 191 mm	135.00 g	2.35 dm³
4099854551871	Shipping box 4	238 mm x 230 mm x 203 mm	727.00 g	11.11 dm³

On-Pack-Info
ELR - exempt lamps

PDF (1.88 MB)

Declarations of conformity
LED lamp

PDF (223.55 KB)

Product image: white background, diagonal with OSRAM logo
1906 LED GLOBE95 1W non-dim 822 SPIRAL FILAMENT GOLD E27

JPG (2.06 MB)

Product image: white background, diagonal
1906 LED GLOBE95 1W non-dim 822 SPIRAL FILAMENT GOLD E27

JPG (2 MB)

Product image: white background, upright, OSRAM logo
1906 LED GLOBE95 1W non-dim 822 SPIRAL FILAMENT GOLD E27

JPG (1.98 MB)

Product image: white background, upright
1906 LED GLOBE95 1W non-dim 822 SPIRAL FILAMENT GOLD E27

JPG (1.94 MB)

Product image: white background, upright, switched on
1906 LED GLOBE95 1W non-dim 822 SPIRAL FILAMENT GOLD E27

JPG (2.14 MB)

Product line drawing with letters
1906 LED GLOBE95 1W non-dim 822 SPIRAL FILAMENT GOLD E27

SVG (11.72 KB)

Product line drawing with numbers
1906 LED GLOBE95 1W non-dim 822 SPIRAL FILAMENT GOLD E27

SVG (14.08 KB)

Product line drawing - technical
1906 LED GLOBE95 1W non-dim 822 SPIRAL FILAMENT GOLD E27

SVG (7.81 KB)

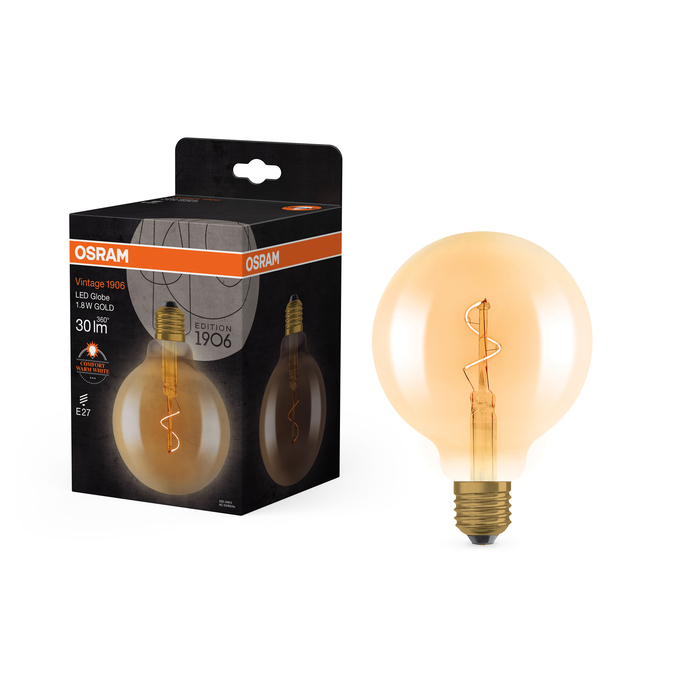

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED V1906 GLOBE 95 1.8W 822 FILGD E27

JPG (1.12 MB)

Packaging image, frontal
FC1 LED V1906 GLOBE 95 1.8W 822 FILGD E27

JPG (1.16 MB)

Packaging image, spacial
FC1 LED V1906 GLOBE 95 1.8W 822 FILGD E27

JPG (1.24 MB)

EAN	SEG number	EFO number	ELDAS number
4099854551864	8289604	3780478	941901372
